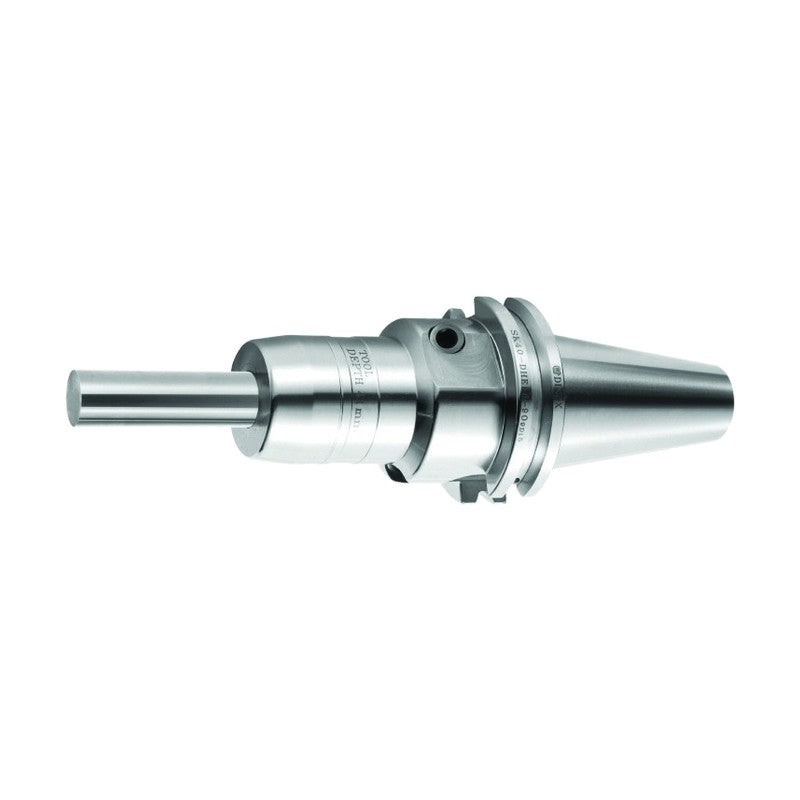

TAUMAX BT Shank Hydraulic Expansion Chuck DHE

TAUMAX BT Shank Hydraulic Expansion Chuck DHE

Hydraulic expansion chuck with a fully sealed hydraulic chamber, recommended for finishing, with run-out of 3 um or less at 3 x D.

Key features

  • Fully sealed internal construction keeps out dust, coolant and chips
  • Run-out 3 um or less at 3 x D
  • 2-point clamping for strong gripping force
  • Easy tool clamping with T-wrench
  • Damping effect of the hydraulic chamber reduces vibration
  • Tool clamping range Ø4-Ø32 mm

Specifications

Shank BT (MAS 403-BT)
Balance Grade G6.3
Internal Coolant Built-in
BT30-DHE4-65 Tool Dia. ØD (mm): 4 | Length L (mm): 65 | ØD1 (mm): 29 | ØD2 (mm): 46 | L1 (mm): 33 | Tool Insertion Depth H (mm): 40 | Max RPM: 25,000 | Weight (kg): 0.7 | Stock: Yes
BT30-DHE5-65 Tool Dia. ØD (mm): 5 | Length L (mm): 65 | ØD1 (mm): 29 | ØD2 (mm): 46 | L1 (mm): 33 | Tool Insertion Depth H (mm): 40 | Max RPM: 25,000 | Weight (kg): 0.7 | Stock: Yes
BT30-DHE6-65 Tool Dia. ØD (mm): 6 | Length L (mm): 65 | ØD1 (mm): 29 | ØD2 (mm): 46 | L1 (mm): 33 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 25,000 | Weight (kg): 0.7 | Stock: Yes
BT30-DHE8-65 Tool Dia. ØD (mm): 8 | Length L (mm): 65 | ØD1 (mm): 31 | ØD2 (mm): 46 | L1 (mm): 33 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 25,000 | Weight (kg): 0.7 | Stock: Yes
BT30-DHE10-65 Tool Dia. ØD (mm): 10 | Length L (mm): 65 | ØD1 (mm): 33 | ØD2 (mm): 46 | L1 (mm): 34 | Tool Insertion Depth H (mm): 35-45 | Adjust Screw: M5 | Max RPM: 25,000 | Weight (kg): 0.7 | Stock: Yes
BT30-DHE12-70 Tool Dia. ØD (mm): 12 | Length L (mm): 70 | ØD1 (mm): 35 | ØD2 (mm): 46 | L1 (mm): 34 | Tool Insertion Depth H (mm): 36-46 | Adjust Screw: M5 | Max RPM: 25,000 | Weight (kg): 0.8 | Stock: Yes
BT30-DHE14-90 Tool Dia. ØD (mm): 14 | Length L (mm): 90 | ØD1 (mm): 36 | ØD2 (mm): 46 | L1 (mm): 40 | Tool Insertion Depth H (mm): 43-53 | Adjust Screw: M5 | Max RPM: 25,000 | Weight (kg): 1 | Stock: Yes
BT30-DHE16-90 Tool Dia. ØD (mm): 16 | Length L (mm): 90 | ØD1 (mm): 40 | ØD2 (mm): 46 | L1 (mm): 45 | Tool Insertion Depth H (mm): 46-56 | Adjust Screw: M5 | Max RPM: 25,000 | Weight (kg): 1 | Stock: Yes
BT30-DHE18-90 Tool Dia. ØD (mm): 18 | Length L (mm): 90 | ØD1 (mm): 42 | ØD2 (mm): 46 | L1 (mm): 40 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M5 | Max RPM: 25,000 | Weight (kg): 1.1 | Stock: Yes
BT30-DHE20-90 Tool Dia. ØD (mm): 20 | Length L (mm): 90 | ØD1 (mm): 44 | ØD2 (mm): 46 | L1 (mm): 45 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M5 | Max RPM: 25,000 | Weight (kg): 1.1 | Stock: Yes
BT40-DHE4-90 Tool Dia. ØD (mm): 4 | Length L (mm): 90 | ØD1 (mm): 29 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 40 | Max RPM: 20,000 | Weight (kg): 1.4 | Stock: Yes
BT40-DHE5-90 Tool Dia. ØD (mm): 5 | Length L (mm): 90 | ØD1 (mm): 29 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 40 | Max RPM: 20,000 | Weight (kg): 1.4 | Stock: Yes
BT40-DHE6-90 Tool Dia. ØD (mm): 6 | Length L (mm): 90 | ØD1 (mm): 29 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 1.4 | Stock: Yes
BT40-DHE6-120 Tool Dia. ØD (mm): 6 | Length L (mm): 120 | ØD1 (mm): 29 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 1.9 | Stock: Yes
BT40-DHE6-140 Tool Dia. ØD (mm): 6 | Length L (mm): 140 | ØD1 (mm): 29 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 2.2 | Stock: Yes
BT40-DHE8-90 Tool Dia. ØD (mm): 8 | Length L (mm): 90 | ØD1 (mm): 31 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 1.4 | Stock: Yes
BT40-DHE8-140 Tool Dia. ØD (mm): 8 | Length L (mm): 140 | ØD1 (mm): 31 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 2.2 | Stock: Yes
BT40-DHE10-90 Tool Dia. ØD (mm): 10 | Length L (mm): 90 | ØD1 (mm): 33 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 35-45 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 1.5 | Stock: Yes
BT40-DHE10-120 Tool Dia. ØD (mm): 10 | Length L (mm): 120 | ØD1 (mm): 33 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 35-45 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 2.1 | Stock: Yes
BT40-DHE10-140 Tool Dia. ØD (mm): 10 | Length L (mm): 140 | ØD1 (mm): 33 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 35-45 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 2.2 | Stock: Yes
BT40-DHE12-90 Tool Dia. ØD (mm): 12 | Length L (mm): 90 | ØD1 (mm): 35 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 41-51 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 1.5 | Stock: Yes
BT40-DHE12-120 Tool Dia. ØD (mm): 12 | Length L (mm): 120 | ØD1 (mm): 35 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 41-51 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 2.2 | Stock: Yes
BT40-DHE12-140 Tool Dia. ØD (mm): 12 | Length L (mm): 140 | ØD1 (mm): 35 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 41-51 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 2.3 | Stock: Yes
BT40-DHE14-90 Tool Dia. ØD (mm): 14 | Length L (mm): 90 | ØD1 (mm): 36 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 43-53 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 1.5 | Stock: Yes
BT40-DHE14-140 Tool Dia. ØD (mm): 14 | Length L (mm): 140 | ØD1 (mm): 36 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 43-53 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 2.2 | Stock: Yes
BT40-DHE16-90 Tool Dia. ØD (mm): 16 | Length L (mm): 90 | ØD1 (mm): 40 | ØD2 (mm): 50 | L1 (mm): 45 | Tool Insertion Depth H (mm): 46-56 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 1.5 | Stock: Yes
BT40-DHE16-140 Tool Dia. ØD (mm): 16 | Length L (mm): 140 | ØD1 (mm): 40 | ØD2 (mm): 50 | L1 (mm): 45 | Tool Insertion Depth H (mm): 46-56 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 2.2 | Stock: Yes
BT40-DHE18-90 Tool Dia. ØD (mm): 18 | Length L (mm): 90 | ØD1 (mm): 42 | ØD2 (mm): 50 | L1 (mm): 45 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 1.5 | Stock: Yes
BT40-DHE18-140 Tool Dia. ØD (mm): 18 | Length L (mm): 140 | ØD1 (mm): 42 | ØD2 (mm): 50 | L1 (mm): 45 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 2.2 | Stock: Yes
BT40-DHE20-90 Tool Dia. ØD (mm): 20 | Length L (mm): 90 | ØD1 (mm): 44 | ØD2 (mm): 50 | L1 (mm): 47 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 1.5 | Stock: Yes
BT40-DHE20-120 Tool Dia. ØD (mm): 20 | Length L (mm): 120 | ØD1 (mm): 44 | ØD2 (mm): 50 | L1 (mm): 50 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 2.2 | Stock: Yes
BT40-DHE20-140 Tool Dia. ØD (mm): 20 | Length L (mm): 140 | ØD1 (mm): 44 | ØD2 (mm): 50 | L1 (mm): 50 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 2.3 | Stock: Yes
BT40-DHE25-90 Tool Dia. ØD (mm): 25 | Length L (mm): 90 | ØD1 (mm): 50 | ØD2 (mm): 70 | L1 (mm): 35 | Tool Insertion Depth H (mm): 58-68 | Adjust Screw: M16 | Max RPM: 20,000 | Weight (kg): 2 | Stock: Yes
BT40-DHE25-105 Tool Dia. ØD (mm): 25 | Length L (mm): 105 | ØD1 (mm): 57 | L1 (mm): 78 | Tool Insertion Depth H (mm): 53-63 | Adjust Screw: M16 | Max RPM: 20,000 | Weight (kg): 2 | Stock: Yes
BT40-DHE25-140 Tool Dia. ØD (mm): 25 | Length L (mm): 140 | ØD1 (mm): 57 | L1 (mm): 113 | Tool Insertion Depth H (mm): 53-63 | Adjust Screw: M16 | Max RPM: 20,000 | Weight (kg): 2.6 | Stock: Yes
BT40-DHE32-90 Tool Dia. ØD (mm): 32 | Length L (mm): 90 | ØD1 (mm): 63 | ØD2 (mm): 75 | L1 (mm): 35 | Tool Insertion Depth H (mm): 58-68 | Adjust Screw: M16 | Max RPM: 20,000 | Weight (kg): 2.3 | Stock: Yes
BT40-DHE32-105 Tool Dia. ØD (mm): 32 | Length L (mm): 105 | ØD1 (mm): 57 | ØD2 (mm): 61 | L1 (mm): 45 | Tool Insertion Depth H (mm): 57-67 | Adjust Screw: M16 | Max RPM: 20,000 | Weight (kg): 2.4 | Stock: Yes
BT40-DHE32-140 Tool Dia. ØD (mm): 32 | Length L (mm): 140 | ØD1 (mm): 57 | ØD2 (mm): 61 | L1 (mm): 78 | Tool Insertion Depth H (mm): 57-67 | Adjust Screw: M16 | Max RPM: 20,000 | Weight (kg): 3 | Stock: Yes
BT50-DHE4-90 Tool Dia. ØD (mm): 4 | Length L (mm): 90 | ØD1 (mm): 29 | ØD2 (mm): 50 | L1 (mm): 34 | Tool Insertion Depth H (mm): 40 | Max RPM: 15,000 | Weight (kg): 3.9 | Stock: Yes
BT50-DHE5-90 Tool Dia. ØD (mm): 5 | Length L (mm): 90 | ØD1 (mm): 29 | ØD2 (mm): 50 | L1 (mm): 34 | Tool Insertion Depth H (mm): 40 | Max RPM: 15,000 | Weight (kg): 3.9 | Stock: Yes
BT50-DHE6-90 Tool Dia. ØD (mm): 6 | Length L (mm): 90 | ØD1 (mm): 29 | ØD2 (mm): 50 | L1 (mm): 34 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 15,000 | Weight (kg): 3.9 | Stock: Yes
BT50-DHE6-120 Tool Dia. ØD (mm): 6 | Length L (mm): 120 | ØD1 (mm): 29 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 15,000 | Weight (kg): 1.9 | Stock: Yes
BT50-DHE6-140 Tool Dia. ØD (mm): 6 | Length L (mm): 140 | ØD1 (mm): 29 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 15,000 | Weight (kg): 4.4 | Stock: Yes
BT50-DHE8-90 Tool Dia. ØD (mm): 8 | Length L (mm): 90 | ØD1 (mm): 31 | ØD2 (mm): 50 | L1 (mm): 34 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 15,000 | Weight (kg): 4.2 | Stock: Yes
BT50-DHE8-140 Tool Dia. ØD (mm): 8 | Length L (mm): 140 | ØD1 (mm): 31 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 15,000 | Weight (kg): 4.6 | Stock: Yes
BT50-DHE10-90 Tool Dia. ØD (mm): 10 | Length L (mm): 90 | ØD1 (mm): 33 | ØD2 (mm): 50 | L1 (mm): 34 | Tool Insertion Depth H (mm): 35-45 | Adjust Screw: M5 | Max RPM: 15,000 | Weight (kg): 3.9 | Stock: Yes
BT50-DHE10-120 Tool Dia. ØD (mm): 10 | Length L (mm): 120 | ØD1 (mm): 33 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 35-45 | Adjust Screw: M5 | Max RPM: 15,000 | Weight (kg): 4.3 | Stock: Yes
BT50-DHE10-140 Tool Dia. ØD (mm): 10 | Length L (mm): 140 | ØD1 (mm): 33 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 35-45 | Adjust Screw: M5 | Max RPM: 15,000 | Weight (kg): 4.5 | Stock: Yes
BT50-DHE12-90 Tool Dia. ØD (mm): 12 | Length L (mm): 90 | ØD1 (mm): 35 | ØD2 (mm): 50 | L1 (mm): 34 | Tool Insertion Depth H (mm): 41-51 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 4 | Stock: Yes
BT50-DHE12-120 Tool Dia. ØD (mm): 12 | Length L (mm): 120 | ØD1 (mm): 35 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 41-51 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 4.4 | Stock: Yes
BT50-DHE12-140 Tool Dia. ØD (mm): 12 | Length L (mm): 140 | ØD1 (mm): 35 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 41-51 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 4.6 | Stock: Yes
BT50-DHE14-90 Tool Dia. ØD (mm): 14 | Length L (mm): 90 | ØD1 (mm): 36 | ØD2 (mm): 50 | L1 (mm): 34 | Tool Insertion Depth H (mm): 43-53 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 3.9 | Stock: Yes
BT50-DHE14-140 Tool Dia. ØD (mm): 14 | Length L (mm): 140 | ØD1 (mm): 36 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 43-53 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 4.5 | Stock: Yes
BT50-DHE16-90 Tool Dia. ØD (mm): 16 | Length L (mm): 90 | ØD1 (mm): 40 | ØD2 (mm): 50 | L1 (mm): 34 | Tool Insertion Depth H (mm): 46-56 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 4.1 | Stock: Yes
BT50-DHE16-140 Tool Dia. ØD (mm): 16 | Length L (mm): 140 | ØD1 (mm): 40 | ØD2 (mm): 50 | L1 (mm): 45 | Tool Insertion Depth H (mm): 46-56 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 4.7 | Stock: Yes
BT50-DHE18-90 Tool Dia. ØD (mm): 18 | Length L (mm): 90 | ØD1 (mm): 42 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 4 | Stock: Yes
BT50-DHE18-140 Tool Dia. ØD (mm): 18 | Length L (mm): 140 | ØD1 (mm): 42 | ØD2 (mm): 50 | L1 (mm): 45 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 4.5 | Stock: Yes
BT50-DHE20-90 Tool Dia. ØD (mm): 20 | Length L (mm): 90 | ØD1 (mm): 44 | ØD2 (mm): 50 | L1 (mm): 34 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 4 | Stock: Yes
BT50-DHE20-120 Tool Dia. ØD (mm): 20 | Length L (mm): 120 | ØD1 (mm): 44 | ØD2 (mm): 50 | L1 (mm): 47 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 4.5 | Stock: Yes
BT50-DHE20-140 Tool Dia. ØD (mm): 20 | Length L (mm): 140 | ØD1 (mm): 44 | ØD2 (mm): 50 | L1 (mm): 47 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 4.5 | Stock: Yes
BT50-DHE25-90 Tool Dia. ØD (mm): 25 | Length L (mm): 90 | ØD1 (mm): 66 | L1 (mm): 52 | Tool Insertion Depth H (mm): 58-68 | Adjust Screw: M16 | Max RPM: 15,000 | Weight (kg): 4.7 | Stock: Yes
BT50-DHE25-150 Tool Dia. ØD (mm): 25 | Length L (mm): 150 | ØD1 (mm): 57 | L1 (mm): 112 | Tool Insertion Depth H (mm): 53-63 | Adjust Screw: M16 | Max RPM: 15,000 | Weight (kg): 4.5 | Stock: Yes
BT50-DHE32-90 Tool Dia. ØD (mm): 32 | Length L (mm): 90 | ØD1 (mm): 72 | L1 (mm): 52 | Tool Insertion Depth H (mm): 58-68 | Adjust Screw: M16 | Max RPM: 15,000 | Weight (kg): 5.8 | Stock: Yes
