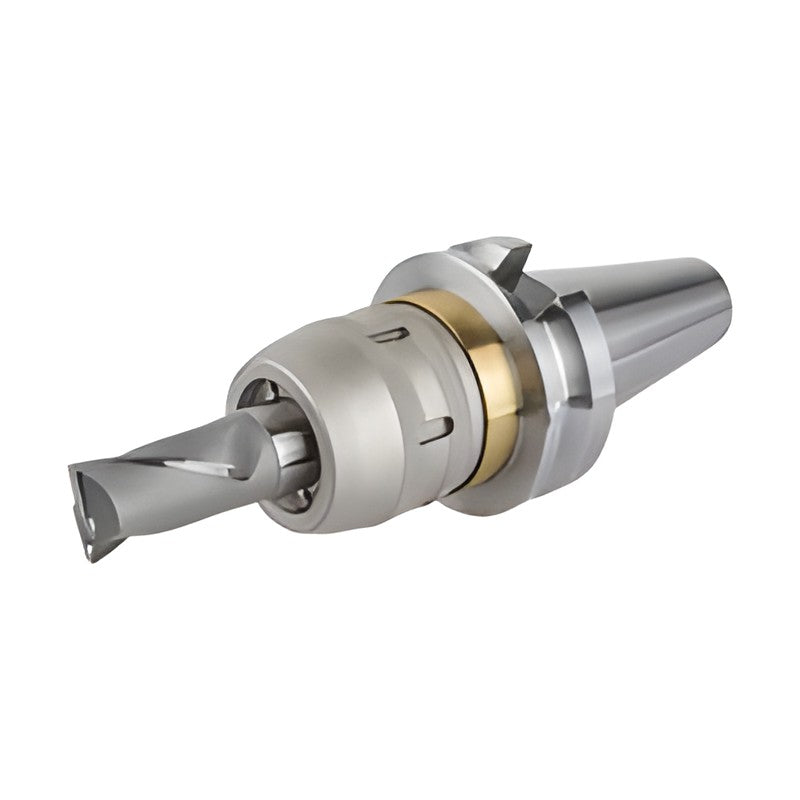

TAUMAX BT Shank New Power Milling Chuck Set BT-NPM Set

TAUMAX BT Shank New Power Milling Chuck Set BT-NPM Set

BT-NPM power milling chuck supplied as a set with straight collets and spanner (A set), plus taper collets and drill chuck arbor (B set).

Key features

  • A set: chuck body, DC straight collets and spanner
  • B set adds TC taper collets and DJT drill chuck arbor
  • Run-out 15 µm
  • HSK, SK and B sets customizable
BT40-NPM20-85(A) Set: A set (body + collets + spanner) | Body: BT40-NPM20-85 | Collets: DC20-6, 8, 10, 12, 16 | Spanner range (mm): 57-60 | Stock: No
BT40-NPM32-110(A) Set: A set (body + collets + spanner) | Body: BT40-NPM32-110 | Collets: DC32-6, 8, 10, 12, 16, 20, 25 | Spanner range (mm): 75-79 | Stock: Yes
BT50-NPM32-110(A) Set: A set (body + collets + spanner) | Body: BT50-NPM32-110 | Collets: DC32-6, 8, 10, 12, 16, 20, 25 | Spanner range (mm): 75-79 | Stock: Yes
BT50-NPM42-110(A) Set: A set (body + collets + spanner) | Body: BT50-NPM42-110 | Collets: DC42-6, 8, 10, 12, 16, 20, 25, 32 | Spanner range (mm): 92-96 | Stock: Yes
BT40-NPM20-85(B) Set: B set (body + collets + taper collets + drill chuck arbor + spanner) | Body: BT40-NPM20-85 | Collets: DC20-6, 8, 10, 12, 16 | Taper collets: TC20-1, 2 | Drill chuck arbor: DJT20-6 | Spanner range (mm): 57-60 | Stock: No
BT40-NPM32-110(B) Set: B set (body + collets + taper collets + drill chuck arbor + spanner) | Body: BT40-NPM32-110 | Collets: DC32-6, 8, 10, 12, 16, 20, 25 | Taper collets: TC32-1, 2, 3 | Drill chuck arbor: DJT32-6 | Spanner range (mm): 75-79 | Stock: No
BT50-NPM32-110(B) Set: B set (body + collets + taper collets + drill chuck arbor + spanner) | Body: BT50-NPM32-110 | Collets: DC32-6, 8, 10, 12, 16, 20, 25 | Taper collets: TC32-1, 2, 3 | Drill chuck arbor: DJT32-6 | Spanner range (mm): 75-79 | Stock: No
BT50-NPM42-110(B) Set: B set (body + collets + taper collets + drill chuck arbor + spanner) | Body: BT50-NPM42-110 | Collets: DC42-6, 8, 10, 12, 16, 20, 25, 32 | Taper collets: TC42-1, 2, 3, 4 | Drill chuck arbor: DJT42-6 | Spanner range (mm): 92-96 | Stock: No
Milling ChucksTAUMAX
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX BT Shank New Power Milling Chuck Set BT-NPM Set

Brand TAUMAX·Milling Chucks

Available part numbers (8)

BT40-NPM20-85(A), BT40-NPM32-110(A), BT50-NPM32-110(A), BT50-NPM42-110(A), BT40-NPM20-85(B), BT40-NPM32-110(B), BT50-NPM32-110(B), BT50-NPM42-110(B)

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BT40-NPM20-85(A)Set: A set (body + collets + spanner) | Body: BT40-NPM20-85 | Collets: DC20-6, 8, 10, 12, 16 | Spanner range (mm): 57-60 | Stock: No
BT40-NPM32-110(A)Set: A set (body + collets + spanner) | Body: BT40-NPM32-110 | Collets: DC32-6, 8, 10, 12, 16, 20, 25 | Spanner range (mm): 75-79 | Stock: Yes
BT50-NPM32-110(A)Set: A set (body + collets + spanner) | Body: BT50-NPM32-110 | Collets: DC32-6, 8, 10, 12, 16, 20, 25 | Spanner range (mm): 75-79 | Stock: Yes
BT50-NPM42-110(A)Set: A set (body + collets + spanner) | Body: BT50-NPM42-110 | Collets: DC42-6, 8, 10, 12, 16, 20, 25, 32 | Spanner range (mm): 92-96 | Stock: Yes
BT40-NPM20-85(B)Set: B set (body + collets + taper collets + drill chuck arbor + spanner) | Body: BT40-NPM20-85 | Collets: DC20-6, 8, 10, 12, 16 | Taper collets: TC20-1, 2 | Drill chuck arbor: DJT20-6 | Spanner range (mm): 57-60 | Stock: No
BT40-NPM32-110(B)Set: B set (body + collets + taper collets + drill chuck arbor + spanner) | Body: BT40-NPM32-110 | Collets: DC32-6, 8, 10, 12, 16, 20, 25 | Taper collets: TC32-1, 2, 3 | Drill chuck arbor: DJT32-6 | Spanner range (mm): 75-79 | Stock: No
BT50-NPM32-110(B)Set: B set (body + collets + taper collets + drill chuck arbor + spanner) | Body: BT50-NPM32-110 | Collets: DC32-6, 8, 10, 12, 16, 20, 25 | Taper collets: TC32-1, 2, 3 | Drill chuck arbor: DJT32-6 | Spanner range (mm): 75-79 | Stock: No
BT50-NPM42-110(B)Set: B set (body + collets + taper collets + drill chuck arbor + spanner) | Body: BT50-NPM42-110 | Collets: DC42-6, 8, 10, 12, 16, 20, 25, 32 | Taper collets: TC42-1, 2, 3, 4 | Drill chuck arbor: DJT42-6 | Spanner range (mm): 92-96 | Stock: No
