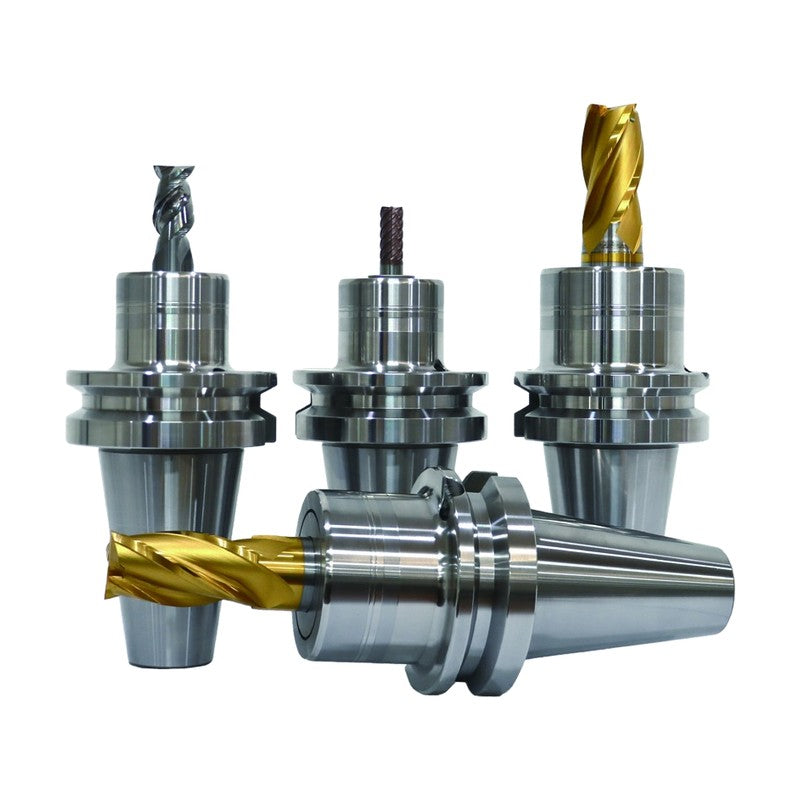

TAUMAX BT Shank Power Hydraulic Expansion Chuck DHE/P

TAUMAX BT Shank Power Hydraulic Expansion Chuck DHE/P

Power hydraulic expansion chuck that combines hydraulic-chuck precision with high clamping force for medium and rough machining.

Key features

  • High clamping force for medium and rough machining
  • Max. clamping torque 1,400 Nm (Ø32)
  • Run-out within 3 um at 3 x D, better than milling chucks
  • Stable tool clamping with little effort
  • Tool clamping range Ø20-Ø32 mm

Specifications

Shank BT (MAS 403-BT)
Balance Grade G6.3
Internal Coolant Built-in
BT30-DHE20P-90 Tool Dia. ØD (mm): 20 | Length L (mm): 90 | ØD1 (mm): 54 | ØD2 (mm): 70 | L1 (mm): 45 | Tool Insertion Depth H (mm): 48-58 | Adjust Screw: M5 | Max RPM: 25,000 | Weight (kg): 1.5 | Stock: Yes
BT40-DHE20P-75 Tool Dia. ØD (mm): 20 | Length L (mm): 75 | ØD1 (mm): 54 | ØD2 (mm): 70 | L1 (mm): 23 | Tool Insertion Depth H (mm): 48-58 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 1.8 | Stock: Yes
BT40-DHE25P-90 Tool Dia. ØD (mm): 25 | Length L (mm): 90 | ØD1 (mm): 66 | ØD2 (mm): 75 | L1 (mm): 38 | Tool Insertion Depth H (mm): 58-68 | Adjust Screw: M16 | Max RPM: 20,000 | Weight (kg): 2.3 | Stock: Yes
BT40-DHE32P-90 Tool Dia. ØD (mm): 32 | Length L (mm): 90 | ØD1 (mm): 74 | ØD2 (mm): 85 | L1 (mm): 38 | Tool Insertion Depth H (mm): 58-68 | Adjust Screw: M16 | Max RPM: 20,000 | Weight (kg): 2.5 | Stock: Yes
BT50-DHE20P-90 Tool Dia. ØD (mm): 20 | Length L (mm): 90 | ØD1 (mm): 54 | ØD2 (mm): 70 | L1 (mm): 34 | Tool Insertion Depth H (mm): 48-58 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 4.2 | Stock: Yes
BT50-DHE25P-90 Tool Dia. ØD (mm): 25 | Length L (mm): 90 | ØD1 (mm): 66 | ØD2 (mm): 75 | L1 (mm): 34 | Tool Insertion Depth H (mm): 58-68 | Adjust Screw: M16 | Max RPM: 15,000 | Weight (kg): 4.7 | Stock: Yes
BT50-DHE32P-90 Tool Dia. ØD (mm): 32 | Length L (mm): 90 | ØD1 (mm): 74 | ØD2 (mm): 85 | L1 (mm): 34 | Tool Insertion Depth H (mm): 58-68 | Adjust Screw: M16 | Max RPM: 15,000 | Weight (kg): 4.8 | Stock: Yes
Hydraulic ChucksTAUMAX
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX BT Shank Power Hydraulic Expansion Chuck DHE/P

Brand TAUMAX·Hydraulic Chucks

Available part numbers (7)

BT30-DHE20P-90, BT40-DHE20P-75, BT40-DHE25P-90, BT40-DHE32P-90, BT50-DHE20P-90, BT50-DHE25P-90, BT50-DHE32P-90

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BT30-DHE20P-90Tool Dia. ØD (mm): 20 | Length L (mm): 90 | ØD1 (mm): 54 | ØD2 (mm): 70 | L1 (mm): 45 | Tool Insertion Depth H (mm): 48-58 | Adjust Screw: M5 | Max RPM: 25,000 | Weight (kg): 1.5 | Stock: Yes
BT40-DHE20P-75Tool Dia. ØD (mm): 20 | Length L (mm): 75 | ØD1 (mm): 54 | ØD2 (mm): 70 | L1 (mm): 23 | Tool Insertion Depth H (mm): 48-58 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 1.8 | Stock: Yes
BT40-DHE25P-90Tool Dia. ØD (mm): 25 | Length L (mm): 90 | ØD1 (mm): 66 | ØD2 (mm): 75 | L1 (mm): 38 | Tool Insertion Depth H (mm): 58-68 | Adjust Screw: M16 | Max RPM: 20,000 | Weight (kg): 2.3 | Stock: Yes
BT40-DHE32P-90Tool Dia. ØD (mm): 32 | Length L (mm): 90 | ØD1 (mm): 74 | ØD2 (mm): 85 | L1 (mm): 38 | Tool Insertion Depth H (mm): 58-68 | Adjust Screw: M16 | Max RPM: 20,000 | Weight (kg): 2.5 | Stock: Yes
BT50-DHE20P-90Tool Dia. ØD (mm): 20 | Length L (mm): 90 | ØD1 (mm): 54 | ØD2 (mm): 70 | L1 (mm): 34 | Tool Insertion Depth H (mm): 48-58 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 4.2 | Stock: Yes
BT50-DHE25P-90Tool Dia. ØD (mm): 25 | Length L (mm): 90 | ØD1 (mm): 66 | ØD2 (mm): 75 | L1 (mm): 34 | Tool Insertion Depth H (mm): 58-68 | Adjust Screw: M16 | Max RPM: 15,000 | Weight (kg): 4.7 | Stock: Yes
BT50-DHE32P-90Tool Dia. ØD (mm): 32 | Length L (mm): 90 | ØD1 (mm): 74 | ØD2 (mm): 85 | L1 (mm): 34 | Tool Insertion Depth H (mm): 58-68 | Adjust Screw: M16 | Max RPM: 15,000 | Weight (kg): 4.8 | Stock: Yes
