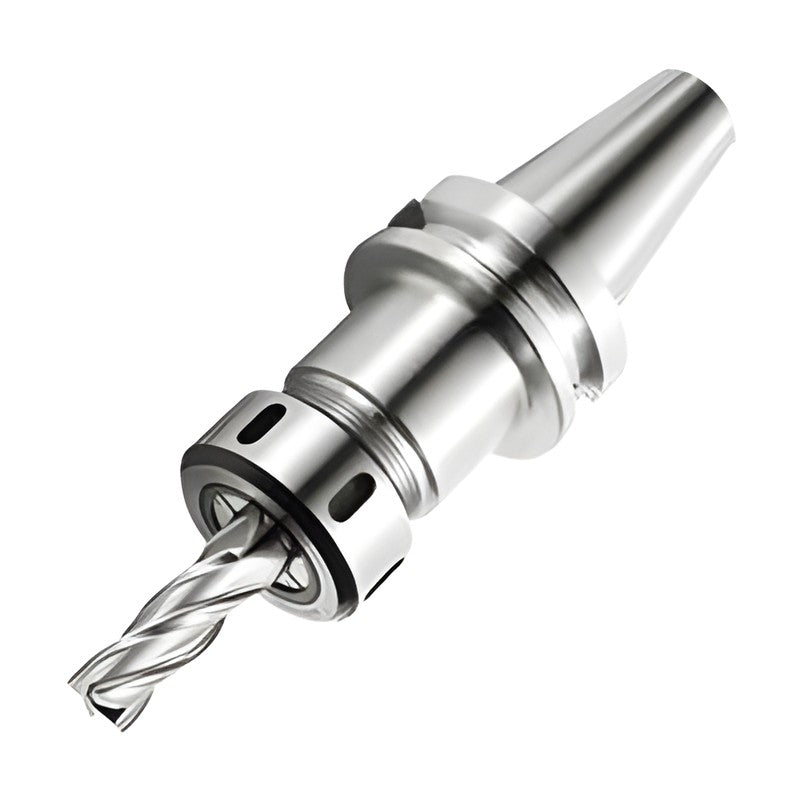

TAUMAX BT Shank Precision Collet Chuck BT-SDC/P

TAUMAX BT Shank Precision Collet Chuck BT-SDC/P

BT shank ER precision collet chuck for multi-purpose machining.

Key features

  • Consistent precision and clamping force with sleeve bearing RN nut
  • Stable run-out compared to standard nuts
  • Wide clamping range Ø1 to Ø26 mm with GERC/ER collets
  • For milling, drilling, tapping and chamfering
  • Jet coolant usable with RT/RUT nut and RTJW disk
BT30-SDC7P-70 Shank: BT30 | ØD (mm): 1.0~7.0 | L (mm): 70 | ØD1 (mm): 18 | ØD2 (mm): 17 | H insertion depth (mm): 33 | Collet/step (mm): GERC11/0.5 | G thread: M7 | Weight (kg): 0.5 | Stock: Yes
BT30-SDC7P-100 Shank: BT30 | ØD (mm): 1.0~7.0 | L (mm): 100 | ØD1 (mm): 18 | ØD2 (mm): 17 | H insertion depth (mm): 33 | Collet/step (mm): GERC11/0.5 | G thread: M7 | Weight (kg): 0.5 | Stock: Yes
BT30-SDC10P-50 Shank: BT30 | ØD (mm): 1.0~10.0 | L (mm): 50 | ØD1 (mm): 32 | H insertion depth (mm): 45 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 0.5 | Stock: Yes
BT30-SDC10P-70 Shank: BT30 | ØD (mm): 1.0~10.0 | L (mm): 70 | ØD1 (mm): 32 | ØD2 (mm): 31 | H insertion depth (mm): 45 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 0.6 | Stock: Yes
BT30-SDC10P-100 Shank: BT30 | ØD (mm): 1.0~10.0 | L (mm): 100 | ØD1 (mm): 32 | ØD2 (mm): 31 | H insertion depth (mm): 45 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 0.7 | Stock: Yes
BT30-SDC13P-50 Shank: BT30 | ØD (mm): 1.0~13.0 | L (mm): 50 | ØD1 (mm): 35 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M7 | Weight (kg): 0.5 | Stock: Yes
BT30-SDC13P-70 Shank: BT30 | ØD (mm): 1.0~13.0 | L (mm): 70 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 0.6 | Stock: Yes
BT30-SDC13P-100 Shank: BT30 | ØD (mm): 1.0~13.0 | L (mm): 100 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 0.8 | Stock: Yes
BT30-SDC16P-50 Shank: BT30 | ØD (mm): 2.0~16.0 | L (mm): 50 | ØD1 (mm): 42 | H insertion depth (mm): 50 | Collet/step (mm): GERC25/1.0 | G thread: M7 | Weight (kg): 0.5 | Stock: Yes
BT30-SDC16P-70 Shank: BT30 | ØD (mm): 2.0~16.0 | L (mm): 70 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | Collet/step (mm): GERC25/1.0 | G thread: M18 | Weight (kg): 0.7 | Stock: Yes
BT30-SDC16P-100 Shank: BT30 | ØD (mm): 2.0~16.0 | L (mm): 100 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | Collet/step (mm): GERC25/1.0 | G thread: M18 | Weight (kg): 1.0 | Stock: Yes
BT30-SDC20P-60 Shank: BT30 | ØD (mm): 2.0~20.0 | L (mm): 60 | ØD1 (mm): 50 | H insertion depth (mm): 60 | Collet/step (mm): GERC32/1.0 | G thread: M7 | Weight (kg): 0.6 | Stock: Yes
BT30-SDC20P-90 Shank: BT30 | ØD (mm): 2.0~20.0 | L (mm): 90 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | Collet/step (mm): GERC32/1.0 | G thread: M22 | Weight (kg): 1.0 | Stock: Yes
BT30-SDC20P-120 Shank: BT30 | ØD (mm): 2.0~20.0 | L (mm): 120 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | Collet/step (mm): GERC32/1.0 | G thread: M22 | Weight (kg): 1.4 | Stock: Yes
BT40-SDC7P-70 Shank: BT40 | ØD (mm): 1.0~7.0 | L (mm): 70 | ØD1 (mm): 18 | ØD2 (mm): 17 | H insertion depth (mm): 33 | Collet/step (mm): GERC11/0.5 | G thread: M7 | Weight (kg): 0.9 | Stock: Yes
BT40-SDC7P-90 Shank: BT40 | ØD (mm): 1.0~7.0 | L (mm): 90 | ØD1 (mm): 18 | ØD2 (mm): 17 | H insertion depth (mm): 33 | Collet/step (mm): GERC11/0.5 | G thread: M7 | Weight (kg): 0.9 | Stock: Yes
BT40-SDC7P-130 Shank: BT40 | ØD (mm): 1.0~7.0 | L (mm): 130 | ØD1 (mm): 18 | ØD2 (mm): 17 | H insertion depth (mm): 33 | Collet/step (mm): GERC11/0.5 | G thread: M7 | Weight (kg): 1.0 | Stock: Yes
BT40-SDC10P-70 Shank: BT40 | ØD (mm): 1.0~10.0 | L (mm): 70 | ØD1 (mm): 32 | ØD2 (mm): 31 | H insertion depth (mm): 45 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 1.0 | Stock: Yes
BT40-SDC10P-90 Shank: BT40 | ØD (mm): 1.0~10.0 | L (mm): 90 | ØD1 (mm): 32 | ØD2 (mm): 31 | H insertion depth (mm): 45 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 1.2 | Stock: Yes
BT40-SDC10P-130 Shank: BT40 | ØD (mm): 1.0~10.0 | L (mm): 130 | ØD1 (mm): 32 | ØD2 (mm): 31 | H insertion depth (mm): 45 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 1.4 | Stock: Yes
BT40-SDC13P-70 Shank: BT40 | ØD (mm): 1.0~13.0 | L (mm): 70 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 1.1 | Stock: Yes
BT40-SDC13P-90 Shank: BT40 | ØD (mm): 1.0~13.0 | L (mm): 90 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 1.2 | Stock: Yes
BT40-SDC13P-130 Shank: BT40 | ØD (mm): 1.0~13.0 | L (mm): 130 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 1.4 | Stock: Yes
BT40-SDC13P-150 Shank: BT40 | ØD (mm): 1.0~13.0 | L (mm): 150 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 1.6 | Stock: Yes
BT40-SDC16P-70 Shank: BT40 | ØD (mm): 2.0~16.0 | L (mm): 70 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | Collet/step (mm): GERC25/1.0 | G thread: M18 | Weight (kg): 1.1 | Stock: Yes
BT40-SDC16P-90 Shank: BT40 | ØD (mm): 2.0~16.0 | L (mm): 90 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | Collet/step (mm): GERC25/1.0 | G thread: M18 | Weight (kg): 1.3 | Stock: Yes
BT40-SDC16P-130 Shank: BT40 | ØD (mm): 2.0~16.0 | L (mm): 130 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | Collet/step (mm): GERC25/1.0 | G thread: M18 | Weight (kg): 1.7 | Stock: Yes
BT40-SDC20P-70 Shank: BT40 | ØD (mm): 2.0~20.0 | L (mm): 70 | ØD1 (mm): 50 | H insertion depth (mm): 60 | Collet/step (mm): GERC32/1.0 | G thread: M22 | Weight (kg): 1.1 | Stock: Yes
BT40-SDC20P-90 Shank: BT40 | ØD (mm): 2.0~20.0 | L (mm): 90 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | Collet/step (mm): GERC32/1.0 | G thread: M22 | Weight (kg): 1.4 | Stock: Yes
BT40-SDC20P-130 Shank: BT40 | ØD (mm): 2.0~20.0 | L (mm): 130 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | Collet/step (mm): GERC32/1.0 | G thread: M22 | Weight (kg): 1.9 | Stock: Yes
BT40-SDC20P-150 Shank: BT40 | ØD (mm): 2.0~20.0 | L (mm): 150 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | Collet/step (mm): GERC32/1.0 | G thread: M22 | Weight (kg): 2.2 | Stock: Yes
BT40-SDC26P-90 Shank: BT40 | ØD (mm): 4.0~26.0 | L (mm): 90 | ØD1 (mm): 63 | ØD2 (mm): 62 | H insertion depth (mm): 71 | Collet/step (mm): GERC40/1.0 | G thread: M28 | Weight (kg): 1.7 | Stock: Yes
BT50-SDC10P-100 Shank: BT50 | ØD (mm): 1.0~10.0 | L (mm): 100 | ØD1 (mm): 32 | ØD2 (mm): 31 | H insertion depth (mm): 45 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 3.7 | Stock: Yes
BT50-SDC10P-120 Shank: BT50 | ØD (mm): 1.0~10.0 | L (mm): 120 | ØD1 (mm): 32 | ØD2 (mm): 31 | H insertion depth (mm): 45 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 3.7 | Stock: Yes
BT50-SDC10P-160 Shank: BT50 | ØD (mm): 1.0~10.0 | L (mm): 160 | ØD1 (mm): 32 | ØD2 (mm): 31 | H insertion depth (mm): 45 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 3.8 | Stock: Yes
BT50-SDC13P-100 Shank: BT50 | ØD (mm): 1.0~13.0 | L (mm): 100 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 3.8 | Stock: Yes
BT50-SDC13P-130 Shank: BT50 | ØD (mm): 1.0~13.0 | L (mm): 130 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 3.8 | Stock: Yes
BT50-SDC13P-160 Shank: BT50 | ØD (mm): 1.0~13.0 | L (mm): 160 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 4.1 | Stock: Yes
BT50-SDC13P-180 Shank: BT50 | ØD (mm): 1.0~13.0 | L (mm): 180 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 4.2 | Stock: Yes
BT50-SDC16P-100 Shank: BT50 | ØD (mm): 2.0~16.0 | L (mm): 100 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | Collet/step (mm): GERC25/1.0 | G thread: M18 | Weight (kg): 3.9 | Stock: Yes
BT50-SDC16P-160 Shank: BT50 | ØD (mm): 2.0~16.0 | L (mm): 160 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | Collet/step (mm): GERC25/1.0 | G thread: M18 | Weight (kg): 4.3 | Stock: Yes
BT50-SDC20P-70 Shank: BT50 | ØD (mm): 2.0~20.0 | L (mm): 70 | ØD1 (mm): 50 | H insertion depth (mm): 60 | Collet/step (mm): GERC32/1.0 | G thread: M22 | Weight (kg): 1.7 | Stock: Yes
BT50-SDC20P-100 Shank: BT50 | ØD (mm): 2.0~20.0 | L (mm): 100 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | Collet/step (mm): GERC32/1.0 | G thread: M22 | Weight (kg): 4 | Stock: Yes
BT50-SDC20P-130 Shank: BT50 | ØD (mm): 2.0~20.0 | L (mm): 130 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | Collet/step (mm): GERC32/1.0 | G thread: M22 | Weight (kg): 4.3 | Stock: Yes
BT50-SDC20P-160 Shank: BT50 | ØD (mm): 2.0~20.0 | L (mm): 160 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | Collet/step (mm): GERC32/1.0 | G thread: M22 | Weight (kg): 4.7 | Stock: Yes
BT50-SDC20P-180 Shank: BT50 | ØD (mm): 2.0~20.0 | L (mm): 180 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | Collet/step (mm): GERC32/1.0 | G thread: M22 | Weight (kg): 5 | Stock: Yes
BT50-SDC26P-160 Shank: BT50 | ØD (mm): 4.0~26.0 | L (mm): 160 | ØD1 (mm): 63 | ØD2 (mm): 62 | H insertion depth (mm): 71 | Collet/step (mm): GERC40/1.0 | G thread: M28 | Weight (kg): 5.5 | Stock: Yes
Collet ChucksTAUMAX
47 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX BT Shank Precision Collet Chuck BT-SDC/P

Brand TAUMAX·Collet Chucks

Available part numbers (47)

BT30-SDC7P-70, BT30-SDC7P-100, BT30-SDC10P-50, BT30-SDC10P-70, BT30-SDC10P-100, BT30-SDC13P-50, BT30-SDC13P-70, BT30-SDC13P-100, BT30-SDC16P-50, BT30-SDC16P-70 + 37 more — see full table ↓
