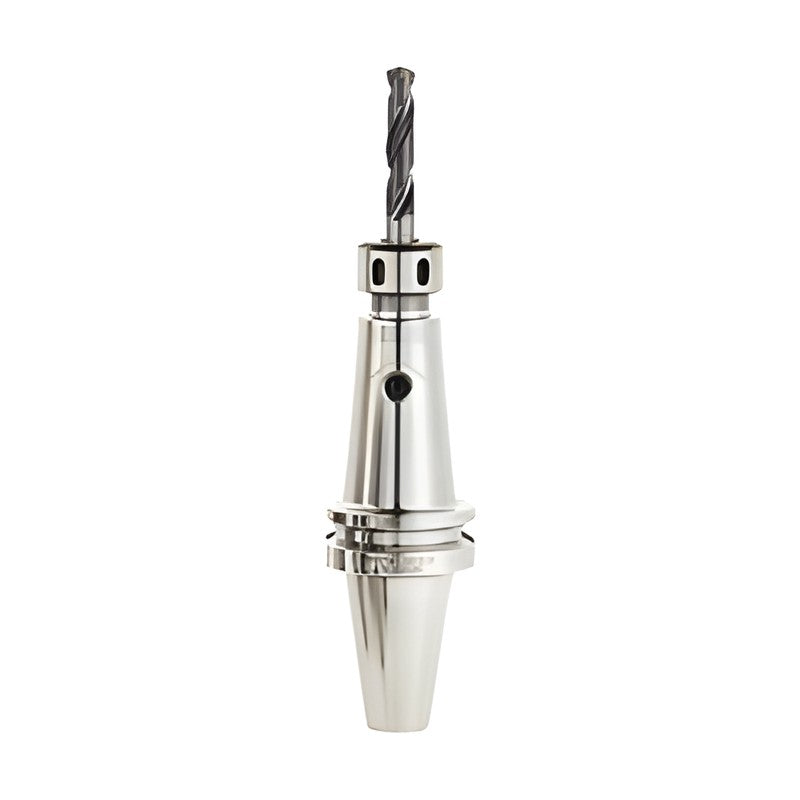

TAUMAX BT Shank Precision Collet Chuck Length Adjustment Type BT-SDC/PL

TAUMAX BT Shank Precision Collet Chuck Length Adjustment Type BT-SDC/PL

BT shank ER precision collet chuck with tool length adjustment screw.

Key features

  • Tool length adjustment by adjustment screw
  • Reduces tool setup time
  • Sleeve bearing RN nut
  • Clamping range Ø1 to Ø26 mm with GERC/ER collets
BT30-SDC13PL-100 Shank: BT30 | ØD (mm): 1.0~13.0 | L (mm): 100 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | L1 adjustable (mm): 39~49 | L2 (mm): 37 | Collet/step (mm): GERC20/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT30-SDC16PL-100 Shank: BT30 | ØD (mm): 2.0~16.0 | L (mm): 100 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | L1 adjustable (mm): 40~50 | Collet/step (mm): GERC25/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT30-SDC20PL-120 Shank: BT30 | ØD (mm): 2.0~20.0 | L (mm): 120 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | L1 adjustable (mm): 50~60 | Collet/step (mm): GERC32/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT40-SDC13PL-90 Shank: BT40 | ØD (mm): 1.0~13.0 | L (mm): 90 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | L1 adjustable (mm): 39~49 | L2 (mm): 37 | Collet/step (mm): GERC20/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT40-SDC13PL-130 Shank: BT40 | ØD (mm): 1.0~13.0 | L (mm): 130 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | L1 adjustable (mm): 39~49 | L2 (mm): 37 | Collet/step (mm): GERC20/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT40-SDC13PL-150 Shank: BT40 | ØD (mm): 1.0~13.0 | L (mm): 150 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | L1 adjustable (mm): 39~49 | L2 (mm): 37 | Collet/step (mm): GERC20/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT40-SDC16PL-90 Shank: BT40 | ØD (mm): 2.0~16.0 | L (mm): 90 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | L1 adjustable (mm): 40~50 | L2 (mm): 37 | Collet/step (mm): GERC25/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT40-SDC16PL-130 Shank: BT40 | ØD (mm): 2.0~16.0 | L (mm): 130 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | L1 adjustable (mm): 40~50 | L2 (mm): 57 | Collet/step (mm): GERC25/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT40-SDC20PL-130 Shank: BT40 | ØD (mm): 2.0~20.0 | L (mm): 130 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | L1 adjustable (mm): 50~60 | L2 (mm): 58 | Collet/step (mm): GERC32/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT40-SDC20PL-150 Shank: BT40 | ØD (mm): 2.0~20.0 | L (mm): 150 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | L1 adjustable (mm): 50~60 | L2 (mm): 68 | Collet/step (mm): GERC32/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT50-SDC13PL-100 Shank: BT50 | ØD (mm): 1.0~13.0 | L (mm): 100 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | L1 adjustable (mm): 39~49 | L2 (mm): 37 | Collet/step (mm): GERC20/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT50-SDC13PL-130 Shank: BT50 | ØD (mm): 1.0~13.0 | L (mm): 130 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | L1 adjustable (mm): 39~49 | L2 (mm): 37 | Collet/step (mm): GERC20/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT50-SDC13PL-160 Shank: BT50 | ØD (mm): 1.0~13.0 | L (mm): 160 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | L1 adjustable (mm): 39~49 | L2 (mm): 37 | Collet/step (mm): GERC20/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT50-SDC13PL-180 Shank: BT50 | ØD (mm): 1.0~13.0 | L (mm): 180 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | L1 adjustable (mm): 39~49 | L2 (mm): 37 | Collet/step (mm): GERC20/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT50-SDC16PL-100 Shank: BT50 | ØD (mm): 2.0~16.0 | L (mm): 100 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | L1 adjustable (mm): 40~50 | L2 (mm): 37 | Collet/step (mm): GERC25/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT50-SDC16PL-160 Shank: BT50 | ØD (mm): 2.0~16.0 | L (mm): 160 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | L1 adjustable (mm): 40~50 | L2 (mm): 67 | Collet/step (mm): GERC25/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT50-SDC20PL-130 Shank: BT50 | ØD (mm): 2.0~20.0 | L (mm): 130 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | L1 adjustable (mm): 50~60 | L2 (mm): 52 | Collet/step (mm): GERC32/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT50-SDC20PL-160 Shank: BT50 | ØD (mm): 2.0~20.0 | L (mm): 160 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | L1 adjustable (mm): 50~60 | L2 (mm): 67 | Collet/step (mm): GERC32/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT50-SDC20PL-180 Shank: BT50 | ØD (mm): 2.0~20.0 | L (mm): 180 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | L1 adjustable (mm): 50~60 | L2 (mm): 77 | Collet/step (mm): GERC32/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT50-SDC26PL-160 Shank: BT50 | ØD (mm): 4.0~26.0 | L (mm): 160 | ØD1 (mm): 63 | ØD2 (mm): 62 | H insertion depth (mm): 71 | L1 adjustable (mm): 61~71 | L2 (mm): 68 | Collet/step (mm): GERC40/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
Collet ChucksTAUMAX
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX BT Shank Precision Collet Chuck Length Adjustment Type BT-SDC/PL

Brand TAUMAX·Collet Chucks

Available part numbers (20)

BT30-SDC13PL-100, BT30-SDC16PL-100, BT30-SDC20PL-120, BT40-SDC13PL-90, BT40-SDC13PL-130, BT40-SDC13PL-150, BT40-SDC16PL-90, BT40-SDC16PL-130, BT40-SDC20PL-130, BT40-SDC20PL-150 + 10 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BT30-SDC13PL-100Shank: BT30 | ØD (mm): 1.0~13.0 | L (mm): 100 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | L1 adjustable (mm): 39~49 | L2 (mm): 37 | Collet/step (mm): GERC20/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT30-SDC16PL-100Shank: BT30 | ØD (mm): 2.0~16.0 | L (mm): 100 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | L1 adjustable (mm): 40~50 | Collet/step (mm): GERC25/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT30-SDC20PL-120Shank: BT30 | ØD (mm): 2.0~20.0 | L (mm): 120 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | L1 adjustable (mm): 50~60 | Collet/step (mm): GERC32/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT40-SDC13PL-90Shank: BT40 | ØD (mm): 1.0~13.0 | L (mm): 90 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | L1 adjustable (mm): 39~49 | L2 (mm): 37 | Collet/step (mm): GERC20/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT40-SDC13PL-130Shank: BT40 | ØD (mm): 1.0~13.0 | L (mm): 130 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | L1 adjustable (mm): 39~49 | L2 (mm): 37 | Collet/step (mm): GERC20/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT40-SDC13PL-150Shank: BT40 | ØD (mm): 1.0~13.0 | L (mm): 150 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | L1 adjustable (mm): 39~49 | L2 (mm): 37 | Collet/step (mm): GERC20/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT40-SDC16PL-90Shank: BT40 | ØD (mm): 2.0~16.0 | L (mm): 90 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | L1 adjustable (mm): 40~50 | L2 (mm): 37 | Collet/step (mm): GERC25/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT40-SDC16PL-130Shank: BT40 | ØD (mm): 2.0~16.0 | L (mm): 130 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | L1 adjustable (mm): 40~50 | L2 (mm): 57 | Collet/step (mm): GERC25/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT40-SDC20PL-130Shank: BT40 | ØD (mm): 2.0~20.0 | L (mm): 130 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | L1 adjustable (mm): 50~60 | L2 (mm): 58 | Collet/step (mm): GERC32/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT40-SDC20PL-150Shank: BT40 | ØD (mm): 2.0~20.0 | L (mm): 150 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | L1 adjustable (mm): 50~60 | L2 (mm): 68 | Collet/step (mm): GERC32/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT50-SDC13PL-100Shank: BT50 | ØD (mm): 1.0~13.0 | L (mm): 100 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | L1 adjustable (mm): 39~49 | L2 (mm): 37 | Collet/step (mm): GERC20/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT50-SDC13PL-130Shank: BT50 | ØD (mm): 1.0~13.0 | L (mm): 130 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | L1 adjustable (mm): 39~49 | L2 (mm): 37 | Collet/step (mm): GERC20/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT50-SDC13PL-160Shank: BT50 | ØD (mm): 1.0~13.0 | L (mm): 160 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | L1 adjustable (mm): 39~49 | L2 (mm): 37 | Collet/step (mm): GERC20/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT50-SDC13PL-180Shank: BT50 | ØD (mm): 1.0~13.0 | L (mm): 180 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | L1 adjustable (mm): 39~49 | L2 (mm): 37 | Collet/step (mm): GERC20/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT50-SDC16PL-100Shank: BT50 | ØD (mm): 2.0~16.0 | L (mm): 100 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | L1 adjustable (mm): 40~50 | L2 (mm): 37 | Collet/step (mm): GERC25/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT50-SDC16PL-160Shank: BT50 | ØD (mm): 2.0~16.0 | L (mm): 160 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | L1 adjustable (mm): 40~50 | L2 (mm): 67 | Collet/step (mm): GERC25/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT50-SDC20PL-130Shank: BT50 | ØD (mm): 2.0~20.0 | L (mm): 130 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | L1 adjustable (mm): 50~60 | L2 (mm): 52 | Collet/step (mm): GERC32/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT50-SDC20PL-160Shank: BT50 | ØD (mm): 2.0~20.0 | L (mm): 160 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | L1 adjustable (mm): 50~60 | L2 (mm): 67 | Collet/step (mm): GERC32/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT50-SDC20PL-180Shank: BT50 | ØD (mm): 2.0~20.0 | L (mm): 180 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | L1 adjustable (mm): 50~60 | L2 (mm): 77 | Collet/step (mm): GERC32/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
BT50-SDC26PL-160Shank: BT50 | ØD (mm): 4.0~26.0 | L (mm): 160 | ØD1 (mm): 63 | ØD2 (mm): 62 | H insertion depth (mm): 71 | L1 adjustable (mm): 61~71 | L2 (mm): 68 | Collet/step (mm): GERC40/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
