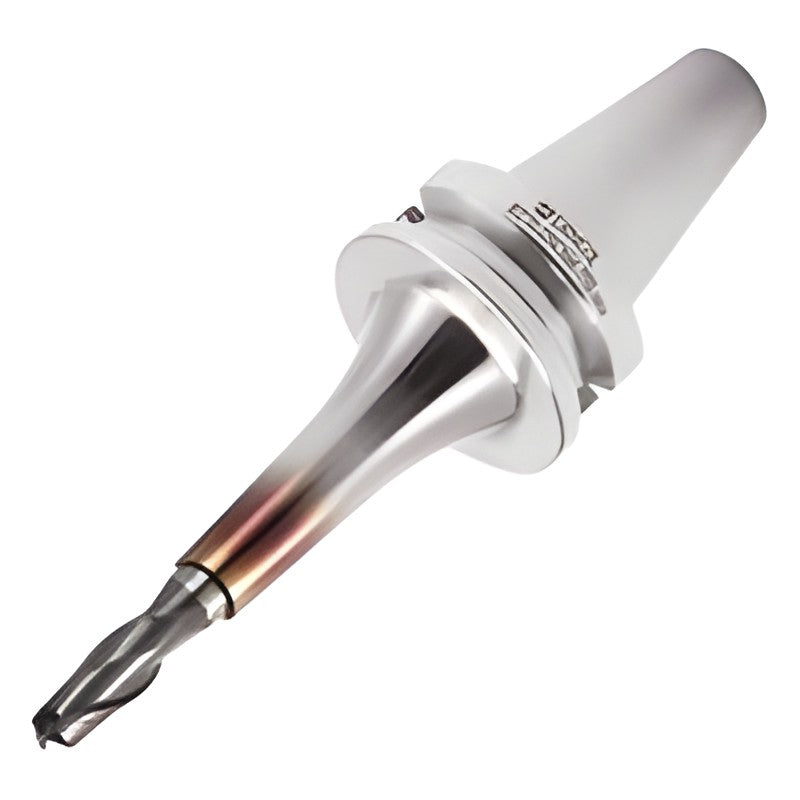

TAUMAX BT Shank Shrinking Chuck BT-DSC/M Mono Curve Type

TAUMAX BT Shank Shrinking Chuck BT-DSC/M Mono Curve Type

BT30 shank mono-type shrink-fit chuck with curved slim nose for carbide tools Ø3 to Ø12 mm.

Key features

  • Shrink-fit clamping with run-out of 3 µm or less
  • 30% higher clamping force compared to hydraulic chucks
  • Symmetrical design for balanced high-speed machining
  • Machining range: Ø3 to Ø20 mm
  • Use with cemented carbide tool shanks (h6)

Specifications

Shank BT30
L (mm) 75
Max RPM 25,000
BT30-DSC3M-75S ØD (mm): 3 | ØD1 (mm): 7 | ØD2 (mm): 25 | L1 (mm): 29 | H insertion depth (mm): 97 | Weight (kg): 0.4 | Stock: No
BT30-DSC4M-75S ØD (mm): 4 | ØD1 (mm): 8 | ØD2 (mm): 25 | L1 (mm): 30 | H insertion depth (mm): 97 | Weight (kg): 0.4 | Stock: No
BT30-DSC6M-75S ØD (mm): 6 | ØD1 (mm): 10 | ØD2 (mm): 30 | L1 (mm): 27.5 | H insertion depth (mm): 97 | Weight (kg): 0.5 | Stock: Yes (to be switched to NP order after stock depletion)
BT30-DSC8M-75S ØD (mm): 8 | ØD1 (mm): 13 | ØD2 (mm): 32 | L1 (mm): 28 | H insertion depth (mm): 97 | Weight (kg): 0.5 | Stock: No
BT30-DSC10M-75S ØD (mm): 10 | ØD1 (mm): 16 | ØD2 (mm): 32 | L1 (mm): 31 | H insertion depth (mm): 97 | Weight (kg): 0.5 | Stock: Yes (to be switched to NP order after stock depletion)
BT30-DSC12M-75S ØD (mm): 12 | ØD1 (mm): 19 | ØD2 (mm): 32 | L1 (mm): 34 | H insertion depth (mm): 45 | Weight (kg): 0.5 | Stock: No
Shrink Fit HoldersTAUMAX
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX BT Shank Shrinking Chuck BT-DSC/M Mono Curve Type

Brand TAUMAX·Shrink Fit Holders

Available part numbers (6)

BT30-DSC3M-75S, BT30-DSC4M-75S, BT30-DSC6M-75S, BT30-DSC8M-75S, BT30-DSC10M-75S, BT30-DSC12M-75S

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BT30-DSC3M-75SØD (mm): 3 | ØD1 (mm): 7 | ØD2 (mm): 25 | L1 (mm): 29 | H insertion depth (mm): 97 | Weight (kg): 0.4 | Stock: No
BT30-DSC4M-75SØD (mm): 4 | ØD1 (mm): 8 | ØD2 (mm): 25 | L1 (mm): 30 | H insertion depth (mm): 97 | Weight (kg): 0.4 | Stock: No
BT30-DSC6M-75SØD (mm): 6 | ØD1 (mm): 10 | ØD2 (mm): 30 | L1 (mm): 27.5 | H insertion depth (mm): 97 | Weight (kg): 0.5 | Stock: Yes (to be switched to NP order after stock depletion)
BT30-DSC8M-75SØD (mm): 8 | ØD1 (mm): 13 | ØD2 (mm): 32 | L1 (mm): 28 | H insertion depth (mm): 97 | Weight (kg): 0.5 | Stock: No
BT30-DSC10M-75SØD (mm): 10 | ØD1 (mm): 16 | ØD2 (mm): 32 | L1 (mm): 31 | H insertion depth (mm): 97 | Weight (kg): 0.5 | Stock: Yes (to be switched to NP order after stock depletion)
BT30-DSC12M-75SØD (mm): 12 | ØD1 (mm): 19 | ØD2 (mm): 32 | L1 (mm): 34 | H insertion depth (mm): 45 | Weight (kg): 0.5 | Stock: No
