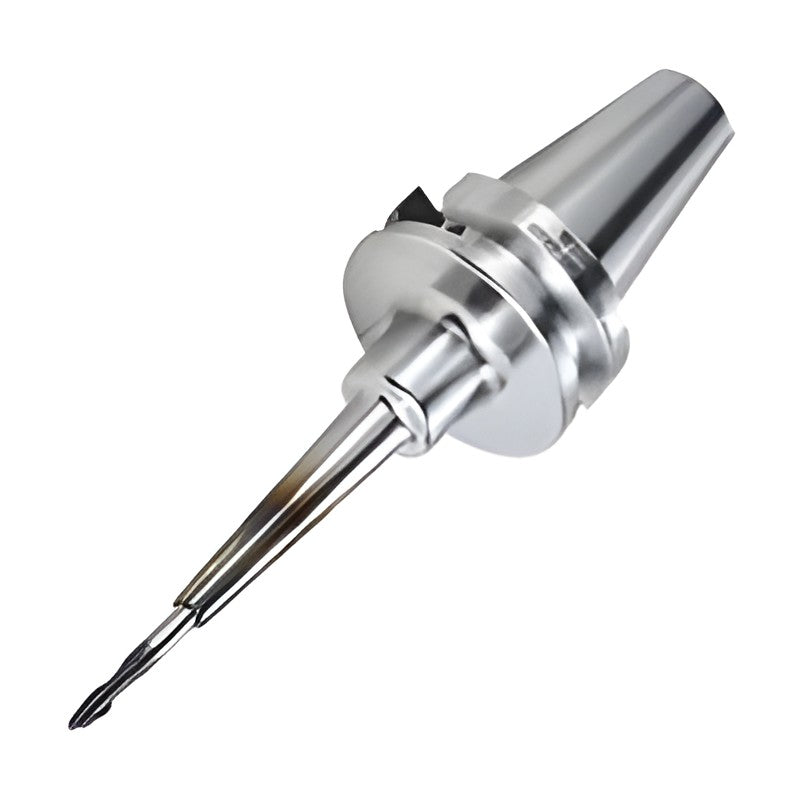

TAUMAX BT Shank Shrinking Chuck BT-DSC/S Mono Slim Type

TAUMAX BT Shank Shrinking Chuck BT-DSC/S Mono Slim Type

BT shank slim mono-type shrink-fit chuck for reduced interference, tools Ø6 to Ø12 mm.

Key features

  • Shrink-fit clamping with run-out of 3 µm or less
  • 30% higher clamping force compared to hydraulic chucks
  • Symmetrical design for balanced high-speed machining
  • Machining range: Ø3 to Ø20 mm
  • Use with cemented carbide tool shanks (h6)
BT30-DSC6S-60 Shank: BT30 | ØD (mm): 6 | L (mm): 60 | ØD1 (mm): 9 | ØD2 (mm): 20 | L1 (mm): 22 | H insertion depth (mm): 82 | Max RPM: 25,000 | Weight (kg): 0.4 | Stock: No
BT30-DSC6S-80 Shank: BT30 | ØD (mm): 6 | L (mm): 80 | ØD1 (mm): 9 | ØD2 (mm): 20 | L1 (mm): 42 | H insertion depth (mm): 102 | Max RPM: 25,000 | Weight (kg): 0.5 | Stock: Yes (to be switched to NP order after stock depletion)
BT30-DSC6S-120 Shank: BT30 | ØD (mm): 6 | L (mm): 120 | ØD1 (mm): 9 | ØD2 (mm): 25 | L1 (mm): 67 | H insertion depth (mm): 142 | Max RPM: 25,000 | Weight (kg): 0.5 | Stock: No
BT40-DSC6S-95 Shank: BT40 | ØD (mm): 6 | L (mm): 95 | ØD1 (mm): 9 | ØD2 (mm): 26 | L1 (mm): 42 | H insertion depth (mm): 128 | Max RPM: 20,000 | Weight (kg): 1 | Stock: No
BT40-DSC6S-120 Shank: BT40 | ØD (mm): 6 | L (mm): 120 | ØD1 (mm): 9 | ØD2 (mm): 26 | L1 (mm): 67 | H insertion depth (mm): 153 | Max RPM: 20,000 | Weight (kg): 1 | Stock: No
BT40-DSC6S-160 Shank: BT40 | ØD (mm): 6 | L (mm): 160 | ØD1 (mm): 9 | ØD2 (mm): 36 | L1 (mm): 97 | H insertion depth (mm): 193 | Max RPM: 20,000 | Weight (kg): 1.2 | Stock: No
BT40-DSC8S-95 Shank: BT40 | ØD (mm): 8 | L (mm): 95 | ØD1 (mm): 11 | ØD2 (mm): 36 | L1 (mm): 42 | H insertion depth (mm): 128 | Max RPM: 20,000 | Weight (kg): 1.1 | Stock: No
BT40-DSC8S-120 Shank: BT40 | ØD (mm): 8 | L (mm): 120 | ØD1 (mm): 11 | ØD2 (mm): 36 | L1 (mm): 67 | H insertion depth (mm): 153 | Max RPM: 20,000 | Weight (kg): 1.1 | Stock: No
BT40-DSC8S-160 Shank: BT40 | ØD (mm): 8 | L (mm): 160 | ØD1 (mm): 11 | ØD2 (mm): 36 | L1 (mm): 97 | H insertion depth (mm): 193 | Max RPM: 20,000 | Weight (kg): 1.2 | Stock: No
BT40-DSC10S-95 Shank: BT40 | ØD (mm): 10 | L (mm): 95 | ØD1 (mm): 13 | ØD2 (mm): 36 | L1 (mm): 42 | H insertion depth (mm): 128 | Max RPM: 20,000 | Weight (kg): 1 | Stock: Yes (to be switched to NP order after stock depletion)
BT40-DSC10S-120 Shank: BT40 | ØD (mm): 10 | L (mm): 120 | ØD1 (mm): 13 | ØD2 (mm): 36 | L1 (mm): 67 | H insertion depth (mm): 153 | Max RPM: 20,000 | Weight (kg): 1.1 | Stock: No
BT40-DSC10S-160 Shank: BT40 | ØD (mm): 10 | L (mm): 160 | ØD1 (mm): 13 | ØD2 (mm): 36 | L1 (mm): 97 | H insertion depth (mm): 193 | Max RPM: 20,000 | Weight (kg): 1.2 | Stock: No
BT40-DSC12S-95 Shank: BT40 | ØD (mm): 12 | L (mm): 95 | ØD1 (mm): 15 | ØD2 (mm): 36 | L1 (mm): 42 | H insertion depth (mm): 128 | Max RPM: 20,000 | Weight (kg): 1.1 | Stock: Yes (to be switched to NP order after stock depletion)
BT40-DSC12S-120 Shank: BT40 | ØD (mm): 12 | L (mm): 120 | ØD1 (mm): 15 | ØD2 (mm): 36 | L1 (mm): 67 | H insertion depth (mm): 153 | Max RPM: 20,000 | Weight (kg): 1.1 | Stock: No
BT40-DSC12S-160 Shank: BT40 | ØD (mm): 12 | L (mm): 160 | ØD1 (mm): 15 | ØD2 (mm): 36 | L1 (mm): 97 | H insertion depth (mm): 193 | Max RPM: 20,000 | Weight (kg): 1.2 | Stock: No
BT50-DSC6S-110 Shank: BT50 | ØD (mm): 6 | L (mm): 110 | ØD1 (mm): 9 | ØD2 (mm): 26 | L1 (mm): 42 | H insertion depth (mm): 164 | Max RPM: 15,000 | Weight (kg): 3.5 | Stock: No
BT50-DSC6S-160 Shank: BT50 | ØD (mm): 6 | L (mm): 160 | ØD1 (mm): 9 | ØD2 (mm): 36 | L1 (mm): 97 | H insertion depth (mm): 214 | Max RPM: 15,000 | Weight (kg): 3.6 | Stock: No
BT50-DSC8S-110 Shank: BT50 | ØD (mm): 8 | L (mm): 110 | ØD1 (mm): 11 | ØD2 (mm): 36 | L1 (mm): 42 | H insertion depth (mm): 164 | Max RPM: 15,000 | Weight (kg): 3.6 | Stock: No
BT50-DSC8S-160 Shank: BT50 | ØD (mm): 8 | L (mm): 160 | ØD1 (mm): 11 | ØD2 (mm): 36 | L1 (mm): 97 | H insertion depth (mm): 214 | Max RPM: 15,000 | Weight (kg): 3.6 | Stock: Yes (to be switched to NP order after stock depletion)
BT50-DSC10S-110 Shank: BT50 | ØD (mm): 10 | L (mm): 110 | ØD1 (mm): 13 | ØD2 (mm): 36 | L1 (mm): 42 | H insertion depth (mm): 164 | Max RPM: 15,000 | Weight (kg): 3.6 | Stock: No
BT50-DSC10S-160 Shank: BT50 | ØD (mm): 10 | L (mm): 160 | ØD1 (mm): 13 | ØD2 (mm): 36 | L1 (mm): 97 | H insertion depth (mm): 214 | Max RPM: 15,000 | Weight (kg): 3.6 | Stock: Yes (to be switched to NP order after stock depletion)
BT50-DSC12S-110 Shank: BT50 | ØD (mm): 12 | L (mm): 110 | ØD1 (mm): 15 | ØD2 (mm): 36 | L1 (mm): 42 | H insertion depth (mm): 164 | Max RPM: 15,000 | Weight (kg): 3.6 | Stock: No
BT50-DSC12S-160 Shank: BT50 | ØD (mm): 12 | L (mm): 160 | ØD1 (mm): 15 | ØD2 (mm): 36 | L1 (mm): 97 | H insertion depth (mm): 214 | Max RPM: 15,000 | Weight (kg): 3.7 | Stock: Yes (to be switched to NP order after stock depletion)
Shrink Fit HoldersTAUMAX
23 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX BT Shank Shrinking Chuck BT-DSC/S Mono Slim Type

Brand TAUMAX·Shrink Fit Holders

Available part numbers (23)

BT30-DSC6S-60, BT30-DSC6S-80, BT30-DSC6S-120, BT40-DSC6S-95, BT40-DSC6S-120, BT40-DSC6S-160, BT40-DSC8S-95, BT40-DSC8S-120, BT40-DSC8S-160, BT40-DSC10S-95 + 13 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BT30-DSC6S-60Shank: BT30 | ØD (mm): 6 | L (mm): 60 | ØD1 (mm): 9 | ØD2 (mm): 20 | L1 (mm): 22 | H insertion depth (mm): 82 | Max RPM: 25,000 | Weight (kg): 0.4 | Stock: No
BT30-DSC6S-80Shank: BT30 | ØD (mm): 6 | L (mm): 80 | ØD1 (mm): 9 | ØD2 (mm): 20 | L1 (mm): 42 | H insertion depth (mm): 102 | Max RPM: 25,000 | Weight (kg): 0.5 | Stock: Yes (to be switched to NP order after stock depletion)
BT30-DSC6S-120Shank: BT30 | ØD (mm): 6 | L (mm): 120 | ØD1 (mm): 9 | ØD2 (mm): 25 | L1 (mm): 67 | H insertion depth (mm): 142 | Max RPM: 25,000 | Weight (kg): 0.5 | Stock: No
BT40-DSC6S-95Shank: BT40 | ØD (mm): 6 | L (mm): 95 | ØD1 (mm): 9 | ØD2 (mm): 26 | L1 (mm): 42 | H insertion depth (mm): 128 | Max RPM: 20,000 | Weight (kg): 1 | Stock: No
BT40-DSC6S-120Shank: BT40 | ØD (mm): 6 | L (mm): 120 | ØD1 (mm): 9 | ØD2 (mm): 26 | L1 (mm): 67 | H insertion depth (mm): 153 | Max RPM: 20,000 | Weight (kg): 1 | Stock: No
BT40-DSC6S-160Shank: BT40 | ØD (mm): 6 | L (mm): 160 | ØD1 (mm): 9 | ØD2 (mm): 36 | L1 (mm): 97 | H insertion depth (mm): 193 | Max RPM: 20,000 | Weight (kg): 1.2 | Stock: No
BT40-DSC8S-95Shank: BT40 | ØD (mm): 8 | L (mm): 95 | ØD1 (mm): 11 | ØD2 (mm): 36 | L1 (mm): 42 | H insertion depth (mm): 128 | Max RPM: 20,000 | Weight (kg): 1.1 | Stock: No
BT40-DSC8S-120Shank: BT40 | ØD (mm): 8 | L (mm): 120 | ØD1 (mm): 11 | ØD2 (mm): 36 | L1 (mm): 67 | H insertion depth (mm): 153 | Max RPM: 20,000 | Weight (kg): 1.1 | Stock: No
BT40-DSC8S-160Shank: BT40 | ØD (mm): 8 | L (mm): 160 | ØD1 (mm): 11 | ØD2 (mm): 36 | L1 (mm): 97 | H insertion depth (mm): 193 | Max RPM: 20,000 | Weight (kg): 1.2 | Stock: No
BT40-DSC10S-95Shank: BT40 | ØD (mm): 10 | L (mm): 95 | ØD1 (mm): 13 | ØD2 (mm): 36 | L1 (mm): 42 | H insertion depth (mm): 128 | Max RPM: 20,000 | Weight (kg): 1 | Stock: Yes (to be switched to NP order after stock depletion)
BT40-DSC10S-120Shank: BT40 | ØD (mm): 10 | L (mm): 120 | ØD1 (mm): 13 | ØD2 (mm): 36 | L1 (mm): 67 | H insertion depth (mm): 153 | Max RPM: 20,000 | Weight (kg): 1.1 | Stock: No
BT40-DSC10S-160Shank: BT40 | ØD (mm): 10 | L (mm): 160 | ØD1 (mm): 13 | ØD2 (mm): 36 | L1 (mm): 97 | H insertion depth (mm): 193 | Max RPM: 20,000 | Weight (kg): 1.2 | Stock: No
BT40-DSC12S-95Shank: BT40 | ØD (mm): 12 | L (mm): 95 | ØD1 (mm): 15 | ØD2 (mm): 36 | L1 (mm): 42 | H insertion depth (mm): 128 | Max RPM: 20,000 | Weight (kg): 1.1 | Stock: Yes (to be switched to NP order after stock depletion)
BT40-DSC12S-120Shank: BT40 | ØD (mm): 12 | L (mm): 120 | ØD1 (mm): 15 | ØD2 (mm): 36 | L1 (mm): 67 | H insertion depth (mm): 153 | Max RPM: 20,000 | Weight (kg): 1.1 | Stock: No
BT40-DSC12S-160Shank: BT40 | ØD (mm): 12 | L (mm): 160 | ØD1 (mm): 15 | ØD2 (mm): 36 | L1 (mm): 97 | H insertion depth (mm): 193 | Max RPM: 20,000 | Weight (kg): 1.2 | Stock: No
BT50-DSC6S-110Shank: BT50 | ØD (mm): 6 | L (mm): 110 | ØD1 (mm): 9 | ØD2 (mm): 26 | L1 (mm): 42 | H insertion depth (mm): 164 | Max RPM: 15,000 | Weight (kg): 3.5 | Stock: No
BT50-DSC6S-160Shank: BT50 | ØD (mm): 6 | L (mm): 160 | ØD1 (mm): 9 | ØD2 (mm): 36 | L1 (mm): 97 | H insertion depth (mm): 214 | Max RPM: 15,000 | Weight (kg): 3.6 | Stock: No
BT50-DSC8S-110Shank: BT50 | ØD (mm): 8 | L (mm): 110 | ØD1 (mm): 11 | ØD2 (mm): 36 | L1 (mm): 42 | H insertion depth (mm): 164 | Max RPM: 15,000 | Weight (kg): 3.6 | Stock: No
BT50-DSC8S-160Shank: BT50 | ØD (mm): 8 | L (mm): 160 | ØD1 (mm): 11 | ØD2 (mm): 36 | L1 (mm): 97 | H insertion depth (mm): 214 | Max RPM: 15,000 | Weight (kg): 3.6 | Stock: Yes (to be switched to NP order after stock depletion)
BT50-DSC10S-110Shank: BT50 | ØD (mm): 10 | L (mm): 110 | ØD1 (mm): 13 | ØD2 (mm): 36 | L1 (mm): 42 | H insertion depth (mm): 164 | Max RPM: 15,000 | Weight (kg): 3.6 | Stock: No
BT50-DSC10S-160Shank: BT50 | ØD (mm): 10 | L (mm): 160 | ØD1 (mm): 13 | ØD2 (mm): 36 | L1 (mm): 97 | H insertion depth (mm): 214 | Max RPM: 15,000 | Weight (kg): 3.6 | Stock: Yes (to be switched to NP order after stock depletion)
BT50-DSC12S-110Shank: BT50 | ØD (mm): 12 | L (mm): 110 | ØD1 (mm): 15 | ØD2 (mm): 36 | L1 (mm): 42 | H insertion depth (mm): 164 | Max RPM: 15,000 | Weight (kg): 3.6 | Stock: No
BT50-DSC12S-160Shank: BT50 | ØD (mm): 12 | L (mm): 160 | ØD1 (mm): 15 | ØD2 (mm): 36 | L1 (mm): 97 | H insertion depth (mm): 214 | Max RPM: 15,000 | Weight (kg): 3.7 | Stock: Yes (to be switched to NP order after stock depletion)
