• TAUMAX BT Shank Slim Type Collet Chuck BT-DSK
1 1

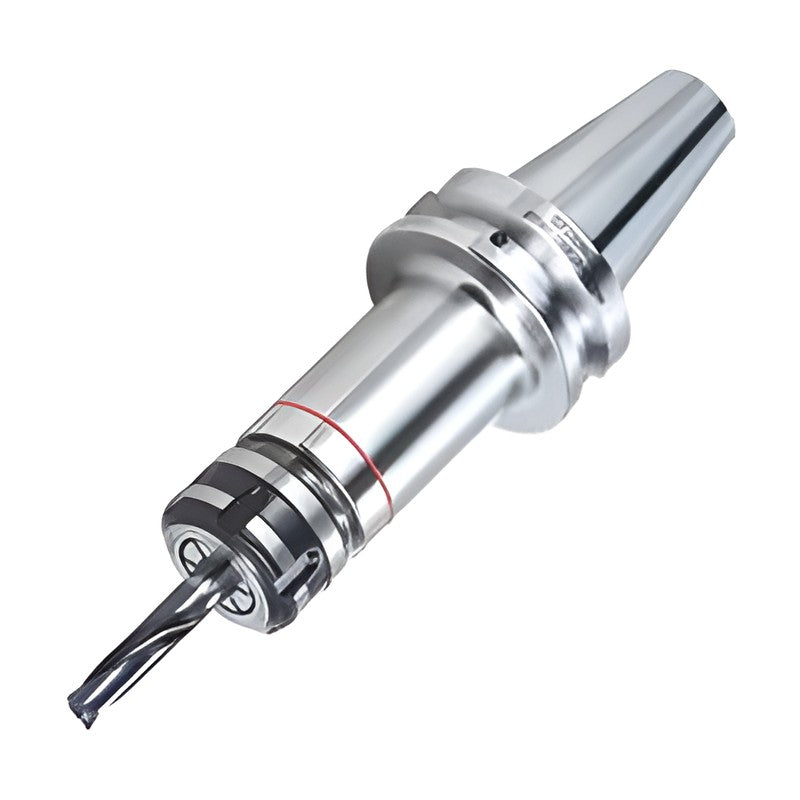

TAUMAX BT Shank Slim Type Collet Chuck BT-DSK

TAUMAX BT Shank Slim Type Collet Chuck BT-DSK

BT shank slim collet chuck using 8-degree HC collets, clamping range Ø2 to Ø25 mm.

Key features

  • 8-degree collet with broader fastening area
  • High fastening force for stable machining
  • Balanced design for high-speed machining (G6.3)
  • Tool clamping range Ø2 to Ø25 mm
BT30-DSK6-60 Shank: BT30 | ØD (mm): 3.0~6.0 | L (mm): 60 | ØD1 (mm): 20 | ØD2 (mm): 20 | L1 (mm): 33 | L2 (mm): 33 | H insertion depth (mm): 31 | Applicable collet: HC6 | G thread: M8 | Max RPM: 15,000 | Weight (kg): 0.4 | Stock: Yes
BT30-DSK6-90 Shank: BT30 | ØD (mm): 3.0~6.0 | L (mm): 90 | ØD1 (mm): 20 | ØD2 (mm): 32 | L1 (mm): 56 | L2 (mm): 65 | H insertion depth (mm): 31 | Applicable collet: HC6 | G thread: M8 | Max RPM: 15,000 | Weight (kg): 0.5 | Stock: Yes
BT30-DSK10-60 Shank: BT30 | ØD (mm): 2.0~10.0 | L (mm): 60 | ØD1 (mm): 28 | ØD2 (mm): 28 | L1 (mm): 35 | L2 (mm): 35 | H insertion depth (mm): 38 | Applicable collet: HC10 | G thread: M12 | Max RPM: 15,000 | Weight (kg): 0.5 | Stock: Yes
BT30-DSK10-90 Shank: BT30 | ØD (mm): 2.0~10.0 | L (mm): 90 | ØD1 (mm): 28 | ØD2 (mm): 28 | L1 (mm): 65 | L2 (mm): 65 | H insertion depth (mm): 38 | Applicable collet: HC10 | G thread: M12 | Max RPM: 15,000 | Weight (kg): 0.6 | Stock: Yes
BT30-DSK10-120 Shank: BT30 | ØD (mm): 2.0~10.0 | L (mm): 120 | ØD1 (mm): 28 | ØD2 (mm): 28 | L1 (mm): 95 | L2 (mm): 95 | H insertion depth (mm): 38 | Applicable collet: HC10 | G thread: M12 | Max RPM: 15,000 | Weight (kg): 1.1 | Stock: No
BT30-DSK13-60 Shank: BT30 | ØD (mm): 3.0~13.0 | L (mm): 60 | ØD1 (mm): 33 | ØD2 (mm): 33 | L1 (mm): 36 | L2 (mm): 36 | H insertion depth (mm): 43 | Applicable collet: HC13 | G thread: M12 | Max RPM: 15,000 | Weight (kg): 0.5 | Stock: Yes
BT30-DSK16-60 Shank: BT30 | ØD (mm): 3.0~16.0 | L (mm): 60 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 37 | L2 (mm): 37 | H insertion depth (mm): 52 | Applicable collet: HC16 | G thread: M12 | Max RPM: 15,000 | Weight (kg): 0.6 | Stock: Yes
BT30-DSK16-90 Shank: BT30 | ØD (mm): 3.0~16.0 | L (mm): 90 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 67 | L2 (mm): 67 | H insertion depth (mm): 52 | Applicable collet: HC16 | G thread: M18 | Max RPM: 15,000 | Weight (kg): 0.8 | Stock: Yes
BT30-DSK16-120 Shank: BT30 | ØD (mm): 3.0~16.0 | L (mm): 120 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 97 | L2 (mm): 97 | H insertion depth (mm): 52 | Applicable collet: HC16 | G thread: M18 | Max RPM: 15,000 | Weight (kg): 1.1 | Stock: No
BT30-DSK20-75 Shank: BT30 | ØD (mm): 4.0~20.0 | L (mm): 75 | ØD1 (mm): 48.5 | ØD2 (mm): 48.5 | L1 (mm): 53 | L2 (mm): 53 | H insertion depth (mm): 60 | Applicable collet: HC20 | G thread: M18 | Max RPM: 15,000 | Weight (kg): 1.1 | Stock: No
BT30-DSK20-90 Shank: BT30 | ØD (mm): 4.0~20.0 | L (mm): 90 | ØD1 (mm): 48.5 | ØD2 (mm): 48.5 | L1 (mm): 68 | L2 (mm): 68 | H insertion depth (mm): 60 | Applicable collet: HC20 | G thread: M18 | Max RPM: 15,000 | Weight (kg): 1.2 | Stock: No
BT30-DSK25-90 Shank: BT30 | ØD (mm): 16.0~25.0 | L (mm): 90 | ØD1 (mm): 55 | ØD2 (mm): 55 | L1 (mm): 68 | L2 (mm): 68 | H insertion depth (mm): 63.5 | Applicable collet: HC25 | G thread: M12 | Max RPM: 15,000 | Weight (kg): 0.9 | Stock: Yes
BT40-DSK6-60 Shank: BT40 | ØD (mm): 3.0~6.0 | L (mm): 60 | ØD1 (mm): 20 | ØD2 (mm): 20 | L1 (mm): 30 | L2 (mm): 30 | H insertion depth (mm): 31 | Applicable collet: HC6 | G thread: M8 | Max RPM: 10,000 | Weight (kg): 1.0 | Stock: No
BT40-DSK6-90 Shank: BT40 | ØD (mm): 3.0~6.0 | L (mm): 90 | ØD1 (mm): 20 | ØD2 (mm): 32 | L1 (mm): 51 | L2 (mm): 60 | H insertion depth (mm): 31 | Applicable collet: HC6 | G thread: M8 | Max RPM: 10,000 | Weight (kg): 1.1 | Stock: Yes
BT40-DSK6-120 Shank: BT40 | ØD (mm): 3.0~6.0 | L (mm): 120 | ØD1 (mm): 20 | ØD2 (mm): 32 | L1 (mm): 60 | L2 (mm): 90 | H insertion depth (mm): 31 | Applicable collet: HC6 | G thread: M8 | Max RPM: 10,000 | Weight (kg): 1.1 | Stock: Yes
BT40-DSK6-150 Shank: BT40 | ØD (mm): 3.0~6.0 | L (mm): 150 | ØD1 (mm): 20 | ØD2 (mm): 25 | L1 (mm): 60 | L2 (mm): 120 | H insertion depth (mm): 31 | Applicable collet: HC6 | G thread: M8 | Max RPM: 10,000 | Weight (kg): 1.1 | Stock: Yes
BT40-DSK10-60 Shank: BT40 | ØD (mm): 2.0~10.0 | L (mm): 60 | ØD1 (mm): 28 | ØD2 (mm): 28 | L1 (mm): 30 | L2 (mm): 30 | H insertion depth (mm): 38 | Applicable collet: HC10 | G thread: M12 | Max RPM: 10,000 | Weight (kg): 1.1 | Stock: No
BT40-DSK10-90 Shank: BT40 | ØD (mm): 2.0~10.0 | L (mm): 90 | ØD1 (mm): 28 | ØD2 (mm): 40 | L1 (mm): 48 | L2 (mm): 60 | H insertion depth (mm): 38 | Applicable collet: HC10 | G thread: M12 | Max RPM: 10,000 | Weight (kg): 1.2 | Stock: Yes
BT40-DSK10-120 Shank: BT40 | ØD (mm): 2.0~10.0 | L (mm): 120 | ØD1 (mm): 28 | ØD2 (mm): 40 | L1 (mm): 73 | L2 (mm): 90 | H insertion depth (mm): 38 | Applicable collet: HC10 | G thread: M12 | Max RPM: 10,000 | Weight (kg): 1.2 | Stock: Yes
BT40-DSK10-150 Shank: BT40 | ØD (mm): 2.0~10.0 | L (mm): 150 | ØD1 (mm): 28 | ØD2 (mm): 35 | L1 (mm): 73 | L2 (mm): 120 | H insertion depth (mm): 38 | Applicable collet: HC10 | G thread: M12 | Max RPM: 10,000 | Weight (kg): 1.4 | Stock: Yes
BT40-DSK10-180 Shank: BT40 | ØD (mm): 2.0~10.0 | L (mm): 180 | ØD1 (mm): 28 | ØD2 (mm): 39 | L1 (mm): 73 | L2 (mm): 148 | H insertion depth (mm): 38 | Applicable collet: HC10 | G thread: M12 | Max RPM: 10,000 | Weight (kg): 1.4 | Stock: No
BT40-DSK13-90 Shank: BT40 | ØD (mm): 3.0~13.0 | L (mm): 90 | ØD1 (mm): 33 | ØD2 (mm): 33 | L1 (mm): 59 | L2 (mm): 59 | H insertion depth (mm): 43 | Applicable collet: HC13 | G thread: M15 | Max RPM: 10,000 | Weight (kg): 1.3 | Stock: Yes
BT40-DSK16-60 Shank: BT40 | ØD (mm): 3.0~16.0 | L (mm): 60 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 31.5 | L2 (mm): 31.5 | H insertion depth (mm): 52 | Applicable collet: HC16 | G thread: M18 | Max RPM: 10,000 | Weight (kg): 1.3 | Stock: No
BT40-DSK16-90 Shank: BT40 | ØD (mm): 3.0~16.0 | L (mm): 90 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 58 | L2 (mm): 58 | H insertion depth (mm): 52 | Applicable collet: HC16 | G thread: M18 | Max RPM: 10,000 | Weight (kg): 1.3 | Stock: Yes
BT40-DSK16-120 Shank: BT40 | ØD (mm): 3.0~16.0 | L (mm): 120 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 88 | L2 (mm): 88 | H insertion depth (mm): 52 | Applicable collet: HC16 | G thread: M18 | Max RPM: 10,000 | Weight (kg): 1.5 | Stock: Yes
BT40-DSK16-150 Shank: BT40 | ØD (mm): 3.0~16.0 | L (mm): 150 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 118 | L2 (mm): 118 | H insertion depth (mm): 52 | Applicable collet: HC16 | G thread: M18 | Max RPM: 10,000 | Weight (kg): 1.9 | Stock: Yes
BT40-DSK16-180 Shank: BT40 | ØD (mm): 3.0~16.0 | L (mm): 180 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 148 | L2 (mm): 148 | H insertion depth (mm): 52 | Applicable collet: HC16 | G thread: M18 | Max RPM: 10,000 | Weight (kg): 1.9 | Stock: No
BT40-DSK20-60 Shank: BT40 | ØD (mm): 4.0~20.0 | L (mm): 60 | ØD1 (mm): 48.5 | ØD2 (mm): 48.5 | L1 (mm): 30 | L2 (mm): 30 | H insertion depth (mm): 60 | Applicable collet: HC20 | G thread: M22 | Max RPM: 10,000 | Weight (kg): 1.5 | Stock: No
BT40-DSK20-90 Shank: BT40 | ØD (mm): 4.0~20.0 | L (mm): 90 | ØD1 (mm): 48.5 | ØD2 (mm): 48.5 | L1 (mm): 60 | L2 (mm): 60 | H insertion depth (mm): 60 | Applicable collet: HC20 | G thread: M22 | Max RPM: 10,000 | Weight (kg): 1.5 | Stock: Yes
BT40-DSK20-120 Shank: BT40 | ØD (mm): 4.0~20.0 | L (mm): 120 | ØD1 (mm): 48.5 | ØD2 (mm): 48.5 | L1 (mm): 90 | L2 (mm): 90 | H insertion depth (mm): 60 | Applicable collet: HC20 | G thread: M22 | Max RPM: 10,000 | Weight (kg): 1.8 | Stock: Yes
BT40-DSK25-90 Shank: BT40 | ØD (mm): 16.0~25.0 | L (mm): 90 | ØD1 (mm): 55 | ØD2 (mm): 55 | L1 (mm): 61 | L2 (mm): 61 | H insertion depth (mm): 63.5 | Applicable collet: HC25 | G thread: M28 | Max RPM: 10,000 | Weight (kg): 1.6 | Stock: Yes
BT40-DSK25-120 Shank: BT40 | ØD (mm): 16.0~25.0 | L (mm): 120 | ØD1 (mm): 55 | ØD2 (mm): 55 | L1 (mm): 91 | L2 (mm): 91 | H insertion depth (mm): 63.5 | Applicable collet: HC25 | G thread: M28 | Max RPM: 10,000 | Weight (kg): 2.0 | Stock: Yes
BT50-DSK6-105 Shank: BT50 | ØD (mm): 3.0~6.0 | L (mm): 105 | ØD1 (mm): 20 | ØD2 (mm): 32 | L1 (mm): 57 | L2 (mm): 64 | H insertion depth (mm): 31 | Applicable collet: HC6 | G thread: M8 | Max RPM: 8,000 | Weight (kg): 3.6 | Stock: Yes
BT50-DSK6-135 Shank: BT50 | ØD (mm): 3.0~6.0 | L (mm): 135 | ØD1 (mm): 20 | ØD2 (mm): 32 | L1 (mm): 60 | L2 (mm): 92 | H insertion depth (mm): 31 | Applicable collet: HC6 | G thread: M8 | Max RPM: 8,000 | Weight (kg): 3.7 | Stock: Yes
BT50-DSK6-165 Shank: BT50 | ØD (mm): 3.0~6.0 | L (mm): 165 | ØD1 (mm): 20 | ØD2 (mm): 32 | L1 (mm): 60 | L2 (mm): 114 | H insertion depth (mm): 31 | Applicable collet: HC6 | G thread: M8 | Max RPM: 8,000 | Weight (kg): 4.1 | Stock: Yes
BT50-DSK10-105 Shank: BT50 | ØD (mm): 2.0~10.0 | L (mm): 105 | ØD1 (mm): 28 | ØD2 (mm): 28 | L1 (mm): 57 | L2 (mm): 57 | H insertion depth (mm): 38 | Applicable collet: HC10 | G thread: M12 | Max RPM: 8,000 | Weight (kg): 3.8 | Stock: Yes
BT50-DSK10-135 Shank: BT50 | ØD (mm): 2.0~10.0 | L (mm): 135 | ØD1 (mm): 28 | ØD2 (mm): 32 | L1 (mm): 70 | L2 (mm): 92 | H insertion depth (mm): 38 | Applicable collet: HC10 | G thread: M12 | Max RPM: 8,000 | Weight (kg): 3.9 | Stock: Yes
BT50-DSK10-165 Shank: BT50 | ØD (mm): 2.0~10.0 | L (mm): 165 | ØD1 (mm): 28 | ØD2 (mm): 32 | L1 (mm): 75 | L2 (mm): 111 | H insertion depth (mm): 38 | Applicable collet: HC10 | G thread: M12 | Max RPM: 8,000 | Weight (kg): 4.1 | Stock: Yes
BT50-DSK10-195 Shank: BT50 | ØD (mm): 2.0~10.0 | L (mm): 195 | ØD1 (mm): 28 | ØD2 (mm): 32 | L1 (mm): 75 | L2 (mm): 141 | H insertion depth (mm): 38 | Applicable collet: HC10 | G thread: M12 | Max RPM: 8,000 | Weight (kg): 4.5 | Stock: No
BT50-DSK13-135 Shank: BT50 | ØD (mm): 3.0~13.0 | L (mm): 135 | ØD1 (mm): 33 | ØD2 (mm): 33 | L1 (mm): 92 | L2 (mm): 92 | H insertion depth (mm): 43 | Applicable collet: HC13 | G thread: M15 | Max RPM: 8,000 | Weight (kg): 3.8 | Stock: Yes
BT50-DSK16-105 Shank: BT50 | ØD (mm): 3.0~16.0 | L (mm): 105 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 62 | L2 (mm): 62 | H insertion depth (mm): 52 | Applicable collet: HC16 | G thread: M18 | Max RPM: 8,000 | Weight (kg): 4 | Stock: Yes
BT50-DSK16-135 Shank: BT50 | ØD (mm): 3.0~16.0 | L (mm): 135 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 92 | L2 (mm): 92 | H insertion depth (mm): 52 | Applicable collet: HC16 | G thread: M18 | Max RPM: 8,000 | Weight (kg): 4.2 | Stock: Yes
BT50-DSK16-165 Shank: BT50 | ØD (mm): 3.0~16.0 | L (mm): 165 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 122 | L2 (mm): 122 | H insertion depth (mm): 52 | Applicable collet: HC16 | G thread: M18 | Max RPM: 8,000 | Weight (kg): 4.6 | Stock: Yes
BT50-DSK16-195 Shank: BT50 | ØD (mm): 3.0~16.0 | L (mm): 195 | ØD1 (mm): 40 | ØD2 (mm): 52 | L1 (mm): 90 | L2 (mm): 152 | H insertion depth (mm): 52 | Applicable collet: HC16 | G thread: M18 | Max RPM: 8,000 | Weight (kg): 4.6 | Stock: No
BT50-DSK20-105 Shank: BT50 | ØD (mm): 4.0~20.0 | L (mm): 105 | ØD1 (mm): 48.5 | ØD2 (mm): 48.5 | L1 (mm): 62 | L2 (mm): 62 | H insertion depth (mm): 60 | Applicable collet: HC20 | G thread: M22 | Max RPM: 8,000 | Weight (kg): 4.2 | Stock: Yes
BT50-DSK20-135 Shank: BT50 | ØD (mm): 4.0~20.0 | L (mm): 135 | ØD1 (mm): 48.5 | ØD2 (mm): 48.5 | L1 (mm): 92 | L2 (mm): 92 | H insertion depth (mm): 60 | Applicable collet: HC20 | G thread: M22 | Max RPM: 8,000 | Weight (kg): 4.5 | Stock: Yes
BT50-DSK20-165 Shank: BT50 | ØD (mm): 4.0~20.0 | L (mm): 165 | ØD1 (mm): 48.5 | ØD2 (mm): 48.5 | L1 (mm): 122 | L2 (mm): 122 | H insertion depth (mm): 60 | Applicable collet: HC20 | G thread: M22 | Max RPM: 8,000 | Weight (kg): 4.9 | Stock: Yes
BT50-DSK25-105 Shank: BT50 | ØD (mm): 16.0~25.0 | L (mm): 105 | ØD1 (mm): 55 | ØD2 (mm): 55 | L1 (mm): 62 | L2 (mm): 62 | H insertion depth (mm): 63.5 | Applicable collet: HC25 | G thread: M28 | Max RPM: 8,000 | Weight (kg): 4.4 | Stock: Yes
BT50-DSK25-135 Shank: BT50 | ØD (mm): 16.0~25.0 | L (mm): 135 | ØD1 (mm): 55 | ØD2 (mm): 55 | L1 (mm): 92 | L2 (mm): 92 | H insertion depth (mm): 63.5 | Applicable collet: HC25 | G thread: M28 | Max RPM: 8,000 | Weight (kg): 4.5 | Stock: Yes
BT50-DSK25-165 Shank: BT50 | ØD (mm): 16.0~25.0 | L (mm): 165 | ØD1 (mm): 55 | ØD2 (mm): 55 | L1 (mm): 122 | L2 (mm): 122 | H insertion depth (mm): 63.5 | Applicable collet: HC25 | G thread: M28 | Max RPM: 8,000 | Weight (kg): 5.2 | Stock: Yes
Collet ChucksTAUMAX
50 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX BT Shank Slim Type Collet Chuck BT-DSK

Brand TAUMAX·Collet Chucks

Available part numbers (50)

BT30-DSK6-60, BT30-DSK6-90, BT30-DSK10-60, BT30-DSK10-90, BT30-DSK10-120, BT30-DSK13-60, BT30-DSK16-60, BT30-DSK16-90, BT30-DSK16-120, BT30-DSK20-75 + 40 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BT30-DSK6-60Shank: BT30 | ØD (mm): 3.0~6.0 | L (mm): 60 | ØD1 (mm): 20 | ØD2 (mm): 20 | L1 (mm): 33 | L2 (mm): 33 | H insertion depth (mm): 31 | Applicable collet: HC6 | G thread: M8 | Max RPM: 15,000 | Weight (kg): 0.4 | Stock: Yes
BT30-DSK6-90Shank: BT30 | ØD (mm): 3.0~6.0 | L (mm): 90 | ØD1 (mm): 20 | ØD2 (mm): 32 | L1 (mm): 56 | L2 (mm): 65 | H insertion depth (mm): 31 | Applicable collet: HC6 | G thread: M8 | Max RPM: 15,000 | Weight (kg): 0.5 | Stock: Yes
BT30-DSK10-60Shank: BT30 | ØD (mm): 2.0~10.0 | L (mm): 60 | ØD1 (mm): 28 | ØD2 (mm): 28 | L1 (mm): 35 | L2 (mm): 35 | H insertion depth (mm): 38 | Applicable collet: HC10 | G thread: M12 | Max RPM: 15,000 | Weight (kg): 0.5 | Stock: Yes
BT30-DSK10-90Shank: BT30 | ØD (mm): 2.0~10.0 | L (mm): 90 | ØD1 (mm): 28 | ØD2 (mm): 28 | L1 (mm): 65 | L2 (mm): 65 | H insertion depth (mm): 38 | Applicable collet: HC10 | G thread: M12 | Max RPM: 15,000 | Weight (kg): 0.6 | Stock: Yes
BT30-DSK10-120Shank: BT30 | ØD (mm): 2.0~10.0 | L (mm): 120 | ØD1 (mm): 28 | ØD2 (mm): 28 | L1 (mm): 95 | L2 (mm): 95 | H insertion depth (mm): 38 | Applicable collet: HC10 | G thread: M12 | Max RPM: 15,000 | Weight (kg): 1.1 | Stock: No
BT30-DSK13-60Shank: BT30 | ØD (mm): 3.0~13.0 | L (mm): 60 | ØD1 (mm): 33 | ØD2 (mm): 33 | L1 (mm): 36 | L2 (mm): 36 | H insertion depth (mm): 43 | Applicable collet: HC13 | G thread: M12 | Max RPM: 15,000 | Weight (kg): 0.5 | Stock: Yes
BT30-DSK16-60Shank: BT30 | ØD (mm): 3.0~16.0 | L (mm): 60 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 37 | L2 (mm): 37 | H insertion depth (mm): 52 | Applicable collet: HC16 | G thread: M12 | Max RPM: 15,000 | Weight (kg): 0.6 | Stock: Yes
BT30-DSK16-90Shank: BT30 | ØD (mm): 3.0~16.0 | L (mm): 90 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 67 | L2 (mm): 67 | H insertion depth (mm): 52 | Applicable collet: HC16 | G thread: M18 | Max RPM: 15,000 | Weight (kg): 0.8 | Stock: Yes
BT30-DSK16-120Shank: BT30 | ØD (mm): 3.0~16.0 | L (mm): 120 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 97 | L2 (mm): 97 | H insertion depth (mm): 52 | Applicable collet: HC16 | G thread: M18 | Max RPM: 15,000 | Weight (kg): 1.1 | Stock: No
BT30-DSK20-75Shank: BT30 | ØD (mm): 4.0~20.0 | L (mm): 75 | ØD1 (mm): 48.5 | ØD2 (mm): 48.5 | L1 (mm): 53 | L2 (mm): 53 | H insertion depth (mm): 60 | Applicable collet: HC20 | G thread: M18 | Max RPM: 15,000 | Weight (kg): 1.1 | Stock: No
BT30-DSK20-90Shank: BT30 | ØD (mm): 4.0~20.0 | L (mm): 90 | ØD1 (mm): 48.5 | ØD2 (mm): 48.5 | L1 (mm): 68 | L2 (mm): 68 | H insertion depth (mm): 60 | Applicable collet: HC20 | G thread: M18 | Max RPM: 15,000 | Weight (kg): 1.2 | Stock: No
BT30-DSK25-90Shank: BT30 | ØD (mm): 16.0~25.0 | L (mm): 90 | ØD1 (mm): 55 | ØD2 (mm): 55 | L1 (mm): 68 | L2 (mm): 68 | H insertion depth (mm): 63.5 | Applicable collet: HC25 | G thread: M12 | Max RPM: 15,000 | Weight (kg): 0.9 | Stock: Yes
BT40-DSK6-60Shank: BT40 | ØD (mm): 3.0~6.0 | L (mm): 60 | ØD1 (mm): 20 | ØD2 (mm): 20 | L1 (mm): 30 | L2 (mm): 30 | H insertion depth (mm): 31 | Applicable collet: HC6 | G thread: M8 | Max RPM: 10,000 | Weight (kg): 1.0 | Stock: No
BT40-DSK6-90Shank: BT40 | ØD (mm): 3.0~6.0 | L (mm): 90 | ØD1 (mm): 20 | ØD2 (mm): 32 | L1 (mm): 51 | L2 (mm): 60 | H insertion depth (mm): 31 | Applicable collet: HC6 | G thread: M8 | Max RPM: 10,000 | Weight (kg): 1.1 | Stock: Yes
BT40-DSK6-120Shank: BT40 | ØD (mm): 3.0~6.0 | L (mm): 120 | ØD1 (mm): 20 | ØD2 (mm): 32 | L1 (mm): 60 | L2 (mm): 90 | H insertion depth (mm): 31 | Applicable collet: HC6 | G thread: M8 | Max RPM: 10,000 | Weight (kg): 1.1 | Stock: Yes
BT40-DSK6-150Shank: BT40 | ØD (mm): 3.0~6.0 | L (mm): 150 | ØD1 (mm): 20 | ØD2 (mm): 25 | L1 (mm): 60 | L2 (mm): 120 | H insertion depth (mm): 31 | Applicable collet: HC6 | G thread: M8 | Max RPM: 10,000 | Weight (kg): 1.1 | Stock: Yes
BT40-DSK10-60Shank: BT40 | ØD (mm): 2.0~10.0 | L (mm): 60 | ØD1 (mm): 28 | ØD2 (mm): 28 | L1 (mm): 30 | L2 (mm): 30 | H insertion depth (mm): 38 | Applicable collet: HC10 | G thread: M12 | Max RPM: 10,000 | Weight (kg): 1.1 | Stock: No
BT40-DSK10-90Shank: BT40 | ØD (mm): 2.0~10.0 | L (mm): 90 | ØD1 (mm): 28 | ØD2 (mm): 40 | L1 (mm): 48 | L2 (mm): 60 | H insertion depth (mm): 38 | Applicable collet: HC10 | G thread: M12 | Max RPM: 10,000 | Weight (kg): 1.2 | Stock: Yes
BT40-DSK10-120Shank: BT40 | ØD (mm): 2.0~10.0 | L (mm): 120 | ØD1 (mm): 28 | ØD2 (mm): 40 | L1 (mm): 73 | L2 (mm): 90 | H insertion depth (mm): 38 | Applicable collet: HC10 | G thread: M12 | Max RPM: 10,000 | Weight (kg): 1.2 | Stock: Yes
BT40-DSK10-150Shank: BT40 | ØD (mm): 2.0~10.0 | L (mm): 150 | ØD1 (mm): 28 | ØD2 (mm): 35 | L1 (mm): 73 | L2 (mm): 120 | H insertion depth (mm): 38 | Applicable collet: HC10 | G thread: M12 | Max RPM: 10,000 | Weight (kg): 1.4 | Stock: Yes
BT40-DSK10-180Shank: BT40 | ØD (mm): 2.0~10.0 | L (mm): 180 | ØD1 (mm): 28 | ØD2 (mm): 39 | L1 (mm): 73 | L2 (mm): 148 | H insertion depth (mm): 38 | Applicable collet: HC10 | G thread: M12 | Max RPM: 10,000 | Weight (kg): 1.4 | Stock: No
BT40-DSK13-90Shank: BT40 | ØD (mm): 3.0~13.0 | L (mm): 90 | ØD1 (mm): 33 | ØD2 (mm): 33 | L1 (mm): 59 | L2 (mm): 59 | H insertion depth (mm): 43 | Applicable collet: HC13 | G thread: M15 | Max RPM: 10,000 | Weight (kg): 1.3 | Stock: Yes
BT40-DSK16-60Shank: BT40 | ØD (mm): 3.0~16.0 | L (mm): 60 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 31.5 | L2 (mm): 31.5 | H insertion depth (mm): 52 | Applicable collet: HC16 | G thread: M18 | Max RPM: 10,000 | Weight (kg): 1.3 | Stock: No
BT40-DSK16-90Shank: BT40 | ØD (mm): 3.0~16.0 | L (mm): 90 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 58 | L2 (mm): 58 | H insertion depth (mm): 52 | Applicable collet: HC16 | G thread: M18 | Max RPM: 10,000 | Weight (kg): 1.3 | Stock: Yes
BT40-DSK16-120Shank: BT40 | ØD (mm): 3.0~16.0 | L (mm): 120 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 88 | L2 (mm): 88 | H insertion depth (mm): 52 | Applicable collet: HC16 | G thread: M18 | Max RPM: 10,000 | Weight (kg): 1.5 | Stock: Yes
BT40-DSK16-150Shank: BT40 | ØD (mm): 3.0~16.0 | L (mm): 150 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 118 | L2 (mm): 118 | H insertion depth (mm): 52 | Applicable collet: HC16 | G thread: M18 | Max RPM: 10,000 | Weight (kg): 1.9 | Stock: Yes
BT40-DSK16-180Shank: BT40 | ØD (mm): 3.0~16.0 | L (mm): 180 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 148 | L2 (mm): 148 | H insertion depth (mm): 52 | Applicable collet: HC16 | G thread: M18 | Max RPM: 10,000 | Weight (kg): 1.9 | Stock: No
BT40-DSK20-60Shank: BT40 | ØD (mm): 4.0~20.0 | L (mm): 60 | ØD1 (mm): 48.5 | ØD2 (mm): 48.5 | L1 (mm): 30 | L2 (mm): 30 | H insertion depth (mm): 60 | Applicable collet: HC20 | G thread: M22 | Max RPM: 10,000 | Weight (kg): 1.5 | Stock: No
BT40-DSK20-90Shank: BT40 | ØD (mm): 4.0~20.0 | L (mm): 90 | ØD1 (mm): 48.5 | ØD2 (mm): 48.5 | L1 (mm): 60 | L2 (mm): 60 | H insertion depth (mm): 60 | Applicable collet: HC20 | G thread: M22 | Max RPM: 10,000 | Weight (kg): 1.5 | Stock: Yes
BT40-DSK20-120Shank: BT40 | ØD (mm): 4.0~20.0 | L (mm): 120 | ØD1 (mm): 48.5 | ØD2 (mm): 48.5 | L1 (mm): 90 | L2 (mm): 90 | H insertion depth (mm): 60 | Applicable collet: HC20 | G thread: M22 | Max RPM: 10,000 | Weight (kg): 1.8 | Stock: Yes
BT40-DSK25-90Shank: BT40 | ØD (mm): 16.0~25.0 | L (mm): 90 | ØD1 (mm): 55 | ØD2 (mm): 55 | L1 (mm): 61 | L2 (mm): 61 | H insertion depth (mm): 63.5 | Applicable collet: HC25 | G thread: M28 | Max RPM: 10,000 | Weight (kg): 1.6 | Stock: Yes
BT40-DSK25-120Shank: BT40 | ØD (mm): 16.0~25.0 | L (mm): 120 | ØD1 (mm): 55 | ØD2 (mm): 55 | L1 (mm): 91 | L2 (mm): 91 | H insertion depth (mm): 63.5 | Applicable collet: HC25 | G thread: M28 | Max RPM: 10,000 | Weight (kg): 2.0 | Stock: Yes
BT50-DSK6-105Shank: BT50 | ØD (mm): 3.0~6.0 | L (mm): 105 | ØD1 (mm): 20 | ØD2 (mm): 32 | L1 (mm): 57 | L2 (mm): 64 | H insertion depth (mm): 31 | Applicable collet: HC6 | G thread: M8 | Max RPM: 8,000 | Weight (kg): 3.6 | Stock: Yes
BT50-DSK6-135Shank: BT50 | ØD (mm): 3.0~6.0 | L (mm): 135 | ØD1 (mm): 20 | ØD2 (mm): 32 | L1 (mm): 60 | L2 (mm): 92 | H insertion depth (mm): 31 | Applicable collet: HC6 | G thread: M8 | Max RPM: 8,000 | Weight (kg): 3.7 | Stock: Yes
BT50-DSK6-165Shank: BT50 | ØD (mm): 3.0~6.0 | L (mm): 165 | ØD1 (mm): 20 | ØD2 (mm): 32 | L1 (mm): 60 | L2 (mm): 114 | H insertion depth (mm): 31 | Applicable collet: HC6 | G thread: M8 | Max RPM: 8,000 | Weight (kg): 4.1 | Stock: Yes
BT50-DSK10-105Shank: BT50 | ØD (mm): 2.0~10.0 | L (mm): 105 | ØD1 (mm): 28 | ØD2 (mm): 28 | L1 (mm): 57 | L2 (mm): 57 | H insertion depth (mm): 38 | Applicable collet: HC10 | G thread: M12 | Max RPM: 8,000 | Weight (kg): 3.8 | Stock: Yes
BT50-DSK10-135Shank: BT50 | ØD (mm): 2.0~10.0 | L (mm): 135 | ØD1 (mm): 28 | ØD2 (mm): 32 | L1 (mm): 70 | L2 (mm): 92 | H insertion depth (mm): 38 | Applicable collet: HC10 | G thread: M12 | Max RPM: 8,000 | Weight (kg): 3.9 | Stock: Yes
BT50-DSK10-165Shank: BT50 | ØD (mm): 2.0~10.0 | L (mm): 165 | ØD1 (mm): 28 | ØD2 (mm): 32 | L1 (mm): 75 | L2 (mm): 111 | H insertion depth (mm): 38 | Applicable collet: HC10 | G thread: M12 | Max RPM: 8,000 | Weight (kg): 4.1 | Stock: Yes
BT50-DSK10-195Shank: BT50 | ØD (mm): 2.0~10.0 | L (mm): 195 | ØD1 (mm): 28 | ØD2 (mm): 32 | L1 (mm): 75 | L2 (mm): 141 | H insertion depth (mm): 38 | Applicable collet: HC10 | G thread: M12 | Max RPM: 8,000 | Weight (kg): 4.5 | Stock: No
BT50-DSK13-135Shank: BT50 | ØD (mm): 3.0~13.0 | L (mm): 135 | ØD1 (mm): 33 | ØD2 (mm): 33 | L1 (mm): 92 | L2 (mm): 92 | H insertion depth (mm): 43 | Applicable collet: HC13 | G thread: M15 | Max RPM: 8,000 | Weight (kg): 3.8 | Stock: Yes
BT50-DSK16-105Shank: BT50 | ØD (mm): 3.0~16.0 | L (mm): 105 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 62 | L2 (mm): 62 | H insertion depth (mm): 52 | Applicable collet: HC16 | G thread: M18 | Max RPM: 8,000 | Weight (kg): 4 | Stock: Yes
BT50-DSK16-135Shank: BT50 | ØD (mm): 3.0~16.0 | L (mm): 135 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 92 | L2 (mm): 92 | H insertion depth (mm): 52 | Applicable collet: HC16 | G thread: M18 | Max RPM: 8,000 | Weight (kg): 4.2 | Stock: Yes
BT50-DSK16-165Shank: BT50 | ØD (mm): 3.0~16.0 | L (mm): 165 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 122 | L2 (mm): 122 | H insertion depth (mm): 52 | Applicable collet: HC16 | G thread: M18 | Max RPM: 8,000 | Weight (kg): 4.6 | Stock: Yes
BT50-DSK16-195Shank: BT50 | ØD (mm): 3.0~16.0 | L (mm): 195 | ØD1 (mm): 40 | ØD2 (mm): 52 | L1 (mm): 90 | L2 (mm): 152 | H insertion depth (mm): 52 | Applicable collet: HC16 | G thread: M18 | Max RPM: 8,000 | Weight (kg): 4.6 | Stock: No
BT50-DSK20-105Shank: BT50 | ØD (mm): 4.0~20.0 | L (mm): 105 | ØD1 (mm): 48.5 | ØD2 (mm): 48.5 | L1 (mm): 62 | L2 (mm): 62 | H insertion depth (mm): 60 | Applicable collet: HC20 | G thread: M22 | Max RPM: 8,000 | Weight (kg): 4.2 | Stock: Yes
BT50-DSK20-135Shank: BT50 | ØD (mm): 4.0~20.0 | L (mm): 135 | ØD1 (mm): 48.5 | ØD2 (mm): 48.5 | L1 (mm): 92 | L2 (mm): 92 | H insertion depth (mm): 60 | Applicable collet: HC20 | G thread: M22 | Max RPM: 8,000 | Weight (kg): 4.5 | Stock: Yes
BT50-DSK20-165Shank: BT50 | ØD (mm): 4.0~20.0 | L (mm): 165 | ØD1 (mm): 48.5 | ØD2 (mm): 48.5 | L1 (mm): 122 | L2 (mm): 122 | H insertion depth (mm): 60 | Applicable collet: HC20 | G thread: M22 | Max RPM: 8,000 | Weight (kg): 4.9 | Stock: Yes
BT50-DSK25-105Shank: BT50 | ØD (mm): 16.0~25.0 | L (mm): 105 | ØD1 (mm): 55 | ØD2 (mm): 55 | L1 (mm): 62 | L2 (mm): 62 | H insertion depth (mm): 63.5 | Applicable collet: HC25 | G thread: M28 | Max RPM: 8,000 | Weight (kg): 4.4 | Stock: Yes
BT50-DSK25-135Shank: BT50 | ØD (mm): 16.0~25.0 | L (mm): 135 | ØD1 (mm): 55 | ØD2 (mm): 55 | L1 (mm): 92 | L2 (mm): 92 | H insertion depth (mm): 63.5 | Applicable collet: HC25 | G thread: M28 | Max RPM: 8,000 | Weight (kg): 4.5 | Stock: Yes
BT50-DSK25-165Shank: BT50 | ØD (mm): 16.0~25.0 | L (mm): 165 | ØD1 (mm): 55 | ØD2 (mm): 55 | L1 (mm): 122 | L2 (mm): 122 | H insertion depth (mm): 63.5 | Applicable collet: HC25 | G thread: M28 | Max RPM: 8,000 | Weight (kg): 5.2 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →
