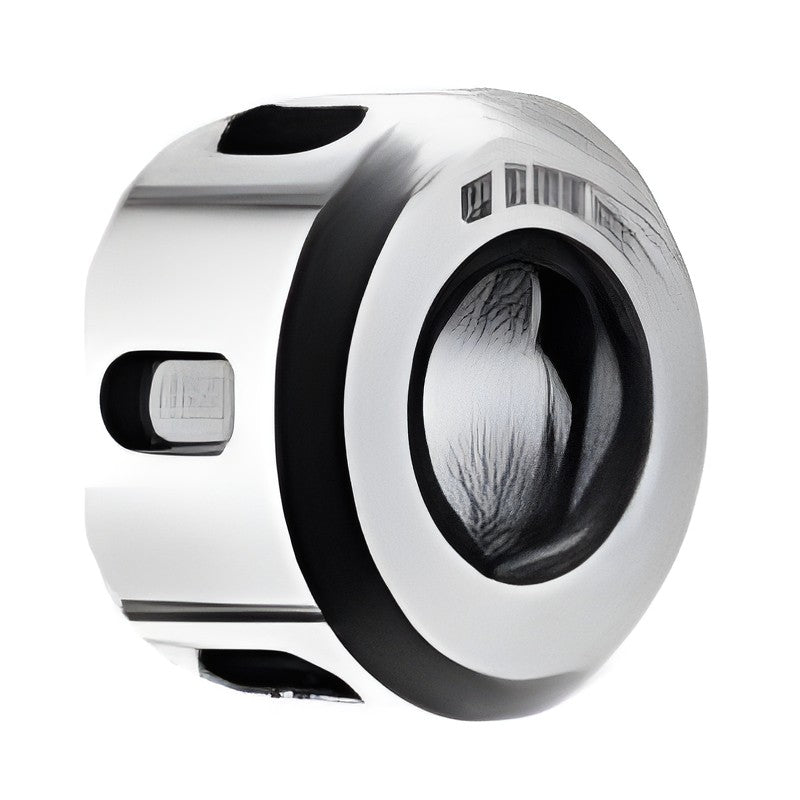

• TAUMAX Collet Chuck Nuts for SDC/P, SDC/PL, S-SDC, S-SDC/S, RTJW and DSK
1 1

TAUMAX Collet Chuck Nuts for SDC/P, SDC/PL, S-SDC, S-SDC/S, RTJW and DSK

TAUMAX Collet Chuck Nuts for SDC/P, SDC/PL, S-SDC, S-SDC/S, RTJW and DSK

Replacement nuts for DINE collet chucks, including sleeve bearing RN nuts, slim nuts and waterproof RT/RUT nuts.

Key features

  • Sleeve bearing RN nuts for SDC/P and SDC/PL
  • R/RU and R..M nuts for straight shank collet chucks
  • Waterproof RT/RUT nuts for RTJW jet coolant disks
  • DN nuts for DSK slim collet chucks
RN11 Type: Sleeve bearing nut | For chuck: SDC7P
RN16 Type: Sleeve bearing nut | For chuck: SDC10P
RN20 Type: Sleeve bearing nut | For chuck: SDC13P, SDC13PL
RN25 Type: Sleeve bearing nut | For chuck: SDC16P, SDC16PL
RN32 Type: Sleeve bearing nut | For chuck: SDC20P, SDC20PL
RN40 Type: Sleeve bearing nut | For chuck: SDC26P, SDC26PL
R11 Type: Nut | For chuck: S-SDC7
R16 Type: Nut | For chuck: S-SDC10
RU20 Type: Nut | For chuck: S-SDC13
RU32 Type: Nut | For chuck: S-SDC20
R11M Type: Nut | For chuck: S-SDC7S
R16M Type: Nut | For chuck: S-SDC10S
R20M Type: Nut | For chuck: S-SDC13S
R25M Type: Nut | For chuck: S-SDC16S
RT16 Type: Waterproof RT nut for RTJW | Thread M: M22x1.50 | D (mm): 28 | L (mm): 22.5
RUT20 Type: Waterproof RUT nut for RTJW | Thread M: M25x1.50 | D (mm): 35 | L (mm): 24
RUT25 Type: Waterproof RUT nut for RTJW | Thread M: M32x1.50 | D (mm): 42 | L (mm): 25
RUT32 Type: Waterproof RUT nut for RTJW | Thread M: M40x1.50 | D (mm): 50 | L (mm): 27.5
RUT40 Type: Waterproof RUT nut for RTJW | Thread M: M50x1.50 | D (mm): 63 | L (mm): 30.5
DN6 Type: Nut | For chuck: DSK6
DN10 Type: Nut | For chuck: DSK10
DN13 Type: Nut | For chuck: DSK13
DN16 Type: Nut | For chuck: DSK16
DN20 Type: Nut | For chuck: DSK20
DN25 Type: Nut | For chuck: DSK25
Tool Holder Spare PartsTAUMAX
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Collet Chuck Nuts for SDC/P, SDC/PL, S-SDC, S-SDC/S, RTJW and DSK

Brand TAUMAX·Tool Holder Spare Parts

Available part numbers (25)

RN11, RN16, RN20, RN25, RN32, RN40, R11, R16, RU20, RU32 + 15 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RN11Type: Sleeve bearing nut | For chuck: SDC7P
RN16Type: Sleeve bearing nut | For chuck: SDC10P
RN20Type: Sleeve bearing nut | For chuck: SDC13P, SDC13PL
RN25Type: Sleeve bearing nut | For chuck: SDC16P, SDC16PL
RN32Type: Sleeve bearing nut | For chuck: SDC20P, SDC20PL
RN40Type: Sleeve bearing nut | For chuck: SDC26P, SDC26PL
R11Type: Nut | For chuck: S-SDC7
R16Type: Nut | For chuck: S-SDC10
RU20Type: Nut | For chuck: S-SDC13
RU32Type: Nut | For chuck: S-SDC20
R11MType: Nut | For chuck: S-SDC7S
R16MType: Nut | For chuck: S-SDC10S
R20MType: Nut | For chuck: S-SDC13S
R25MType: Nut | For chuck: S-SDC16S
RT16Type: Waterproof RT nut for RTJW | Thread M: M22x1.50 | D (mm): 28 | L (mm): 22.5
RUT20Type: Waterproof RUT nut for RTJW | Thread M: M25x1.50 | D (mm): 35 | L (mm): 24
RUT25Type: Waterproof RUT nut for RTJW | Thread M: M32x1.50 | D (mm): 42 | L (mm): 25
RUT32Type: Waterproof RUT nut for RTJW | Thread M: M40x1.50 | D (mm): 50 | L (mm): 27.5
RUT40Type: Waterproof RUT nut for RTJW | Thread M: M50x1.50 | D (mm): 63 | L (mm): 30.5
DN6Type: Nut | For chuck: DSK6
DN10Type: Nut | For chuck: DSK10
DN13Type: Nut | For chuck: DSK13
DN16Type: Nut | For chuck: DSK16
DN20Type: Nut | For chuck: DSK20
DN25Type: Nut | For chuck: DSK25
