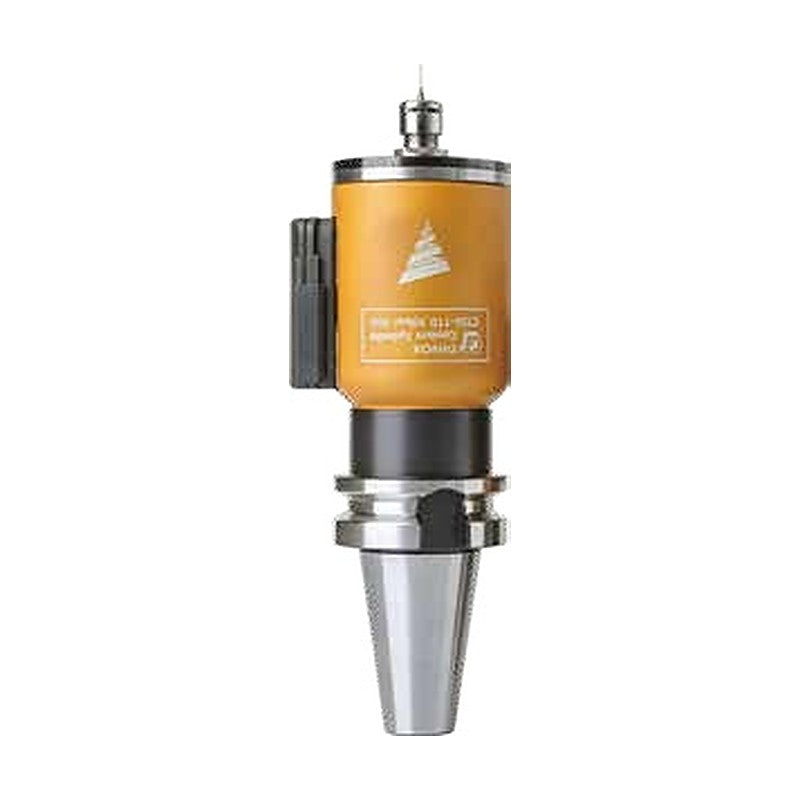

TAUMAX Coolant Turbine Spindle CTS

TAUMAX Coolant Turbine Spindle CTS

Spindle driven at high speed by high-pressure coolant, with the turbine blade positioned at the top to separate rotational and machining loads.

Key features

  • Speed 37,000 rpm (max. 60K class)
  • Coolant pressure min. 30 bar (30-70 bar)
  • Run-out 1 um or less
  • GERC11(HP) collet 3-6 mm
  • Bearing cooling by cutting fluid

Specifications

Power 0.81 HP
Collet GERC11(HP)
Internal coolant Yes
BT30-CTS6-156 Shank: BT30 | ØD (mm): 68 | ØD1 (mm): 16 | L (mm): 156 | L1 (mm): 21
BT40-CTS6-161 Shank: BT40 | ØD (mm): 68 | ØD1 (mm): 16 | L (mm): 161 | L1 (mm): 21
BT50-CTS6-172 Shank: BT50 | ØD (mm): 68 | ØD1 (mm): 16 | L (mm): 172 | L1 (mm): 21
HSK63A-CTS6-160 Shank: HSK63A | ØD (mm): 68 | ØD1 (mm): 16 | L (mm): 160 | L1 (mm): 21
Coolant Turbine SpindlesTAUMAX
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Coolant Turbine Spindle CTS

Brand TAUMAX·Coolant Turbine Spindles

Available part numbers (4)

BT30-CTS6-156, BT40-CTS6-161, BT50-CTS6-172, HSK63A-CTS6-160

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BT30-CTS6-156Shank: BT30 | ØD (mm): 68 | ØD1 (mm): 16 | L (mm): 156 | L1 (mm): 21
BT40-CTS6-161Shank: BT40 | ØD (mm): 68 | ØD1 (mm): 16 | L (mm): 161 | L1 (mm): 21
BT50-CTS6-172Shank: BT50 | ØD (mm): 68 | ØD1 (mm): 16 | L (mm): 172 | L1 (mm): 21
HSK63A-CTS6-160Shank: HSK63A | ØD (mm): 68 | ØD1 (mm): 16 | L (mm): 160 | L1 (mm): 21
