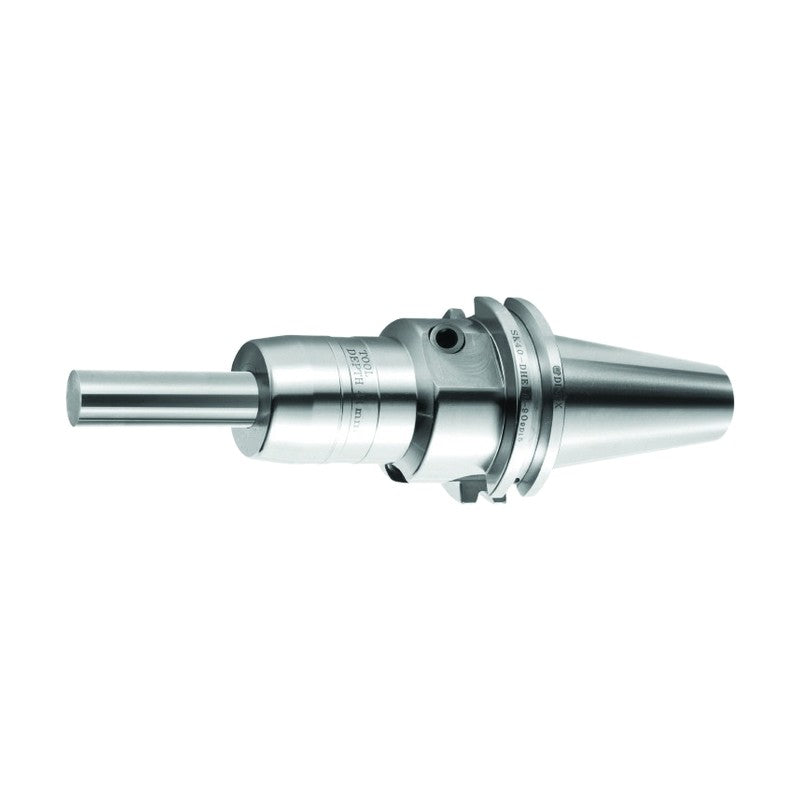

TAUMAX DBT Shank Hydraulic Expansion Chuck DHE

TAUMAX DBT Shank Hydraulic Expansion Chuck DHE

Hydraulic expansion chuck with a fully sealed hydraulic chamber, recommended for finishing, with run-out of 3 um or less at 3 x D.

Key features

  • Fully sealed internal construction keeps out dust, coolant and chips
  • Run-out 3 um or less at 3 x D
  • 2-point clamping for strong gripping force
  • Easy tool clamping with T-wrench
  • Damping effect of the hydraulic chamber reduces vibration
  • Tool clamping range Ø4-Ø32 mm

Specifications

Shank DBT (dual contact BT)
Balance Grade G6.3
Internal Coolant Built-in
Shank Tolerance h6 tool shank
DBT30-DHE6-65 Tool Dia. ØD (mm): 6 | Length L (mm): 65 | ØD1 (mm): 29 | ØD2 (mm): 46 | L1 (mm): 33 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 25,000 | Weight (kg): 0.7 | Stock: Non-stock item
DBT30-DHE8-65 Tool Dia. ØD (mm): 8 | Length L (mm): 65 | ØD1 (mm): 31 | ØD2 (mm): 46 | L1 (mm): 33 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 25,000 | Weight (kg): 0.7 | Stock: Non-stock item
DBT30-DHE10-65 Tool Dia. ØD (mm): 10 | Length L (mm): 65 | ØD1 (mm): 33 | ØD2 (mm): 46 | L1 (mm): 34 | Tool Insertion Depth H (mm): 35-45 | Adjust Screw: M5 | Max RPM: 25,000 | Weight (kg): 0.7 | Stock: Non-stock item
DBT30-DHE12-70 Tool Dia. ØD (mm): 12 | Length L (mm): 70 | ØD1 (mm): 35 | ØD2 (mm): 46 | L1 (mm): 34 | Tool Insertion Depth H (mm): 36-46 | Adjust Screw: M5 | Max RPM: 25,000 | Weight (kg): 0.8 | Stock: Non-stock item
DBT30-DHE14-90 Tool Dia. ØD (mm): 14 | Length L (mm): 90 | ØD1 (mm): 36 | ØD2 (mm): 46 | L1 (mm): 40 | Tool Insertion Depth H (mm): 43-53 | Adjust Screw: M5 | Max RPM: 25,000 | Weight (kg): 1 | Stock: Non-stock item
DBT30-DHE16-90 Tool Dia. ØD (mm): 16 | Length L (mm): 90 | ØD1 (mm): 40 | ØD2 (mm): 46 | L1 (mm): 45 | Tool Insertion Depth H (mm): 46-56 | Adjust Screw: M5 | Max RPM: 25,000 | Weight (kg): 1 | Stock: Non-stock item
DBT30-DHE18-90 Tool Dia. ØD (mm): 18 | Length L (mm): 90 | ØD1 (mm): 42 | ØD2 (mm): 46 | L1 (mm): 40 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M5 | Max RPM: 25,000 | Weight (kg): 1.1 | Stock: Non-stock item
DBT30-DHE20-90 Tool Dia. ØD (mm): 20 | Length L (mm): 90 | ØD1 (mm): 44 | ØD2 (mm): 46 | L1 (mm): 45 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M5 | Max RPM: 25,000 | Weight (kg): 1.1 | Stock: Yes
DBT40-DHE6-90 Tool Dia. ØD (mm): 6 | Length L (mm): 90 | ØD1 (mm): 29 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 1.4 | Stock: Yes
DBT40-DHE6-140 Tool Dia. ØD (mm): 6 | Length L (mm): 140 | ØD1 (mm): 29 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 2.2 | Stock: Non-stock item
DBT40-DHE8-90 Tool Dia. ØD (mm): 8 | Length L (mm): 90 | ØD1 (mm): 31 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 1.4 | Stock: Yes
DBT40-DHE8-140 Tool Dia. ØD (mm): 8 | Length L (mm): 140 | ØD1 (mm): 31 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 2.2 | Stock: Non-stock item
DBT40-DHE10-90 Tool Dia. ØD (mm): 10 | Length L (mm): 90 | ØD1 (mm): 33 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 35-45 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 1.5 | Stock: Yes
DBT40-DHE10-140 Tool Dia. ØD (mm): 10 | Length L (mm): 140 | ØD1 (mm): 33 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 35-45 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 2.2 | Stock: Non-stock item
DBT40-DHE12-90 Tool Dia. ØD (mm): 12 | Length L (mm): 90 | ØD1 (mm): 35 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 41-51 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 1.5 | Stock: Yes
DBT40-DHE12-140 Tool Dia. ØD (mm): 12 | Length L (mm): 140 | ØD1 (mm): 35 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 41-51 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 2.3 | Stock: Non-stock item
DBT40-DHE14-90 Tool Dia. ØD (mm): 14 | Length L (mm): 90 | ØD1 (mm): 36 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 43-53 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 1.5 | Stock: Yes
DBT40-DHE14-140 Tool Dia. ØD (mm): 14 | Length L (mm): 140 | ØD1 (mm): 36 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 43-53 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 2.2 | Stock: Non-stock item
DBT40-DHE16-90 Tool Dia. ØD (mm): 16 | Length L (mm): 90 | ØD1 (mm): 40 | ØD2 (mm): 50 | L1 (mm): 45 | Tool Insertion Depth H (mm): 46-56 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 1.5 | Stock: Yes
DBT40-DHE16-140 Tool Dia. ØD (mm): 16 | Length L (mm): 140 | ØD1 (mm): 40 | ØD2 (mm): 50 | L1 (mm): 45 | Tool Insertion Depth H (mm): 46-56 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 2.2 | Stock: Non-stock item
DBT40-DHE18-90 Tool Dia. ØD (mm): 18 | Length L (mm): 90 | ØD1 (mm): 42 | ØD2 (mm): 50 | L1 (mm): 45 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 1.5 | Stock: Yes
DBT40-DHE18-140 Tool Dia. ØD (mm): 18 | Length L (mm): 140 | ØD1 (mm): 42 | ØD2 (mm): 50 | L1 (mm): 45 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 2.2 | Stock: Non-stock item
DBT40-DHE20-90 Tool Dia. ØD (mm): 20 | Length L (mm): 90 | ØD1 (mm): 44 | ØD2 (mm): 50 | L1 (mm): 47 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 1.5 | Stock: Yes
DBT40-DHE20-140 Tool Dia. ØD (mm): 20 | Length L (mm): 140 | ØD1 (mm): 44 | ØD2 (mm): 50 | L1 (mm): 50 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 2.3 | Stock: Non-stock item
DBT40-DHE25-90 Tool Dia. ØD (mm): 25 | Length L (mm): 90 | ØD1 (mm): 50 | ØD2 (mm): 70 | L1 (mm): 35 | Tool Insertion Depth H (mm): 58-68 | Adjust Screw: M16 | Max RPM: 20,000 | Weight (kg): 2 | Stock: Yes
DBT40-DHE32-90 Tool Dia. ØD (mm): 32 | Length L (mm): 90 | ØD1 (mm): 63 | ØD2 (mm): 75 | L1 (mm): 35 | Tool Insertion Depth H (mm): 58-68 | Adjust Screw: M16 | Max RPM: 20,000 | Weight (kg): 2.3 | Stock: Yes
DBT50-DHE6-90 Tool Dia. ØD (mm): 6 | Length L (mm): 90 | ØD1 (mm): 29 | ØD2 (mm): 50 | L1 (mm): 34 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 15,000 | Weight (kg): 3.9 | Stock: Non-stock item
DBT50-DHE6-140 Tool Dia. ØD (mm): 6 | Length L (mm): 140 | ØD1 (mm): 29 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 15,000 | Weight (kg): 4.5 | Stock: Non-stock item
DBT50-DHE8-90 Tool Dia. ØD (mm): 8 | Length L (mm): 90 | ØD1 (mm): 31 | ØD2 (mm): 50 | L1 (mm): 34 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 15,000 | Weight (kg): 4.2 | Stock: Non-stock item
DBT50-DHE8-140 Tool Dia. ØD (mm): 8 | Length L (mm): 140 | ØD1 (mm): 31 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 15,000 | Weight (kg): 4.6 | Stock: Non-stock item
DBT50-DHE10-90 Tool Dia. ØD (mm): 10 | Length L (mm): 90 | ØD1 (mm): 33 | ØD2 (mm): 50 | L1 (mm): 34 | Tool Insertion Depth H (mm): 35-45 | Adjust Screw: M5 | Max RPM: 15,000 | Weight (kg): 3.9 | Stock: Non-stock item
DBT50-DHE10-140 Tool Dia. ØD (mm): 10 | Length L (mm): 140 | ØD1 (mm): 33 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 35-45 | Adjust Screw: M5 | Max RPM: 15,000 | Weight (kg): 4.5 | Stock: Non-stock item
DBT50-DHE12-90 Tool Dia. ØD (mm): 12 | Length L (mm): 90 | ØD1 (mm): 35 | ØD2 (mm): 50 | L1 (mm): 34 | Tool Insertion Depth H (mm): 41-51 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 4 | Stock: Non-stock item
DBT50-DHE12-140 Tool Dia. ØD (mm): 12 | Length L (mm): 140 | ØD1 (mm): 35 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 41-51 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 4.6 | Stock: Non-stock item
DBT50-DHE14-90 Tool Dia. ØD (mm): 14 | Length L (mm): 90 | ØD1 (mm): 36 | ØD2 (mm): 50 | L1 (mm): 34 | Tool Insertion Depth H (mm): 43-53 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 3.9 | Stock: Non-stock item
DBT50-DHE14-140 Tool Dia. ØD (mm): 14 | Length L (mm): 140 | ØD1 (mm): 36 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 43-53 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 4.5 | Stock: Non-stock item
DBT50-DHE16-90 Tool Dia. ØD (mm): 16 | Length L (mm): 90 | ØD1 (mm): 40 | ØD2 (mm): 50 | L1 (mm): 34 | Tool Insertion Depth H (mm): 46-56 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 4.1 | Stock: Non-stock item
DBT50-DHE16-140 Tool Dia. ØD (mm): 16 | Length L (mm): 140 | ØD1 (mm): 40 | ØD2 (mm): 50 | L1 (mm): 45 | Tool Insertion Depth H (mm): 46-56 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 4.7 | Stock: Non-stock item
DBT50-DHE18-90 Tool Dia. ØD (mm): 18 | Length L (mm): 90 | ØD1 (mm): 42 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 4 | Stock: Non-stock item
DBT50-DHE18-140 Tool Dia. ØD (mm): 18 | Length L (mm): 140 | ØD1 (mm): 42 | ØD2 (mm): 50 | L1 (mm): 45 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 4.5 | Stock: Non-stock item
DBT50-DHE20-90 Tool Dia. ØD (mm): 20 | Length L (mm): 90 | ØD1 (mm): 44 | ØD2 (mm): 50 | L1 (mm): 34 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 4.2 | Stock: Non-stock item
DBT50-DHE20-140 Tool Dia. ØD (mm): 20 | Length L (mm): 140 | ØD1 (mm): 44 | ØD2 (mm): 50 | L1 (mm): 47 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 4.5 | Stock: Non-stock item
DBT50-DHE25-90 Tool Dia. ØD (mm): 25 | Length L (mm): 90 | ØD1 (mm): 66 | L1 (mm): 52 | Tool Insertion Depth H (mm): 58-68 | Adjust Screw: M16 | Max RPM: 15,000 | Weight (kg): 4.7 | Stock: Non-stock item
DBT50-DHE32-90 Tool Dia. ØD (mm): 32 | Length L (mm): 90 | ØD1 (mm): 72 | L1 (mm): 52 | Tool Insertion Depth H (mm): 58-68 | Adjust Screw: M16 | Max RPM: 15,000 | Weight (kg): 4.8 | Stock: Non-stock item
Hydraulic ChucksTAUMAX
44 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX DBT Shank Hydraulic Expansion Chuck DHE

Brand TAUMAX·Hydraulic Chucks

Available part numbers (44)

DBT30-DHE6-65, DBT30-DHE8-65, DBT30-DHE10-65, DBT30-DHE12-70, DBT30-DHE14-90, DBT30-DHE16-90, DBT30-DHE18-90, DBT30-DHE20-90, DBT40-DHE6-90, DBT40-DHE6-140 + 34 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
