• TAUMAX ER Collet General Sealed Type C
1 1

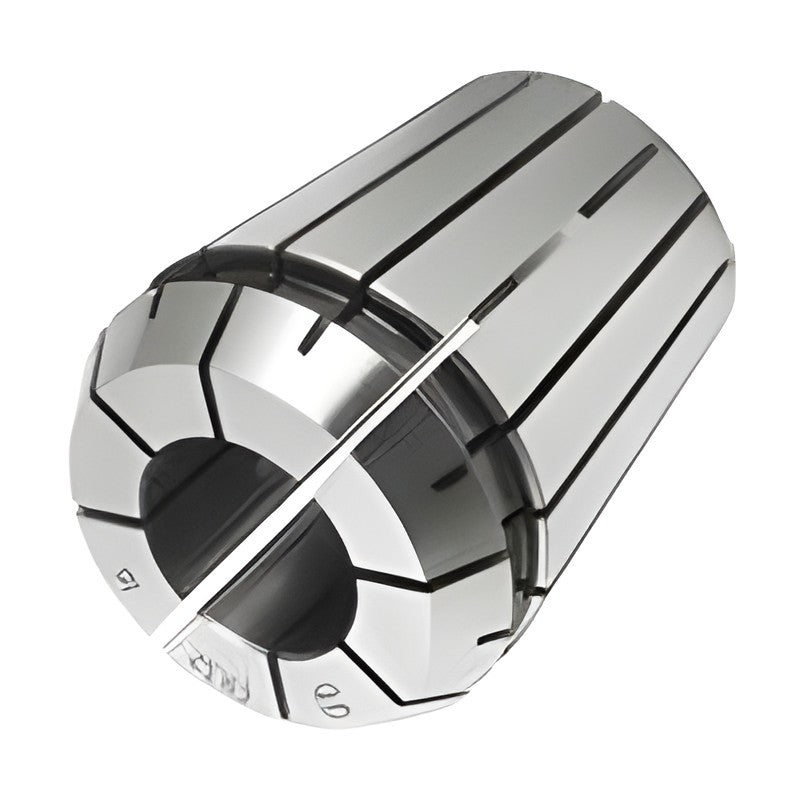

TAUMAX ER Collet General Sealed Type C

TAUMAX ER Collet General Sealed Type C

Sealed ER collet for internal coolant, 10 µm accuracy, sizes ER16 to ER32.

Key features

  • Sealed type for internal coolant

Specifications

Run-out accuracy 10 µm
ER16-5.0C ER size: 16 | ØD (mm): 5.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
ER16-6.0C ER size: 16 | ØD (mm): 6.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
ER16-8.0C ER size: 16 | ØD (mm): 8.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
ER16-10.0C ER size: 16 | ØD (mm): 10.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
ER20-6.0C ER size: 20 | ØD (mm): 6.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
ER20-8.0C ER size: 20 | ØD (mm): 8.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
ER20-10.0C ER size: 20 | ØD (mm): 10.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
ER20-12.0C ER size: 20 | ØD (mm): 12.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
ER25-6.0C ER size: 25 | ØD (mm): 6.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER25-8.0C ER size: 25 | ØD (mm): 8.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER25-10.0C ER size: 25 | ØD (mm): 10.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER25-12.0C ER size: 25 | ØD (mm): 12.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER25-14.0C ER size: 25 | ØD (mm): 14.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER25-16.0C ER size: 25 | ØD (mm): 16.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER32-8.0C ER size: 32 | ØD (mm): 8.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-9.0C ER size: 32 | ØD (mm): 9.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-10.0C ER size: 32 | ØD (mm): 10.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-11.0C ER size: 32 | ØD (mm): 11.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-12.0C ER size: 32 | ØD (mm): 12.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-13.0C ER size: 32 | ØD (mm): 13.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-14.0C ER size: 32 | ØD (mm): 14.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-15.0C ER size: 32 | ØD (mm): 15.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-16.0C ER size: 32 | ØD (mm): 16.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-18.0C ER size: 32 | ØD (mm): 18.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-20.0C ER size: 32 | ØD (mm): 20.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ColletsTAUMAX
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX ER Collet General Sealed Type C

Brand TAUMAX·Collets

Available part numbers (25)

ER16-5.0C, ER16-6.0C, ER16-8.0C, ER16-10.0C, ER20-6.0C, ER20-8.0C, ER20-10.0C, ER20-12.0C, ER25-6.0C, ER25-8.0C + 15 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ER16-5.0CER size: 16 | ØD (mm): 5.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
ER16-6.0CER size: 16 | ØD (mm): 6.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
ER16-8.0CER size: 16 | ØD (mm): 8.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
ER16-10.0CER size: 16 | ØD (mm): 10.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
ER20-6.0CER size: 20 | ØD (mm): 6.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
ER20-8.0CER size: 20 | ØD (mm): 8.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
ER20-10.0CER size: 20 | ØD (mm): 10.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
ER20-12.0CER size: 20 | ØD (mm): 12.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
ER25-6.0CER size: 25 | ØD (mm): 6.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER25-8.0CER size: 25 | ØD (mm): 8.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER25-10.0CER size: 25 | ØD (mm): 10.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER25-12.0CER size: 25 | ØD (mm): 12.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER25-14.0CER size: 25 | ØD (mm): 14.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER25-16.0CER size: 25 | ØD (mm): 16.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER32-8.0CER size: 32 | ØD (mm): 8.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-9.0CER size: 32 | ØD (mm): 9.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-10.0CER size: 32 | ØD (mm): 10.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-11.0CER size: 32 | ØD (mm): 11.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-12.0CER size: 32 | ØD (mm): 12.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-13.0CER size: 32 | ØD (mm): 13.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-14.0CER size: 32 | ØD (mm): 14.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-15.0CER size: 32 | ØD (mm): 15.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-16.0CER size: 32 | ØD (mm): 16.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-18.0CER size: 32 | ØD (mm): 18.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-20.0CER size: 32 | ØD (mm): 20.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
