• TAUMAX ER Collet General Type
1 1

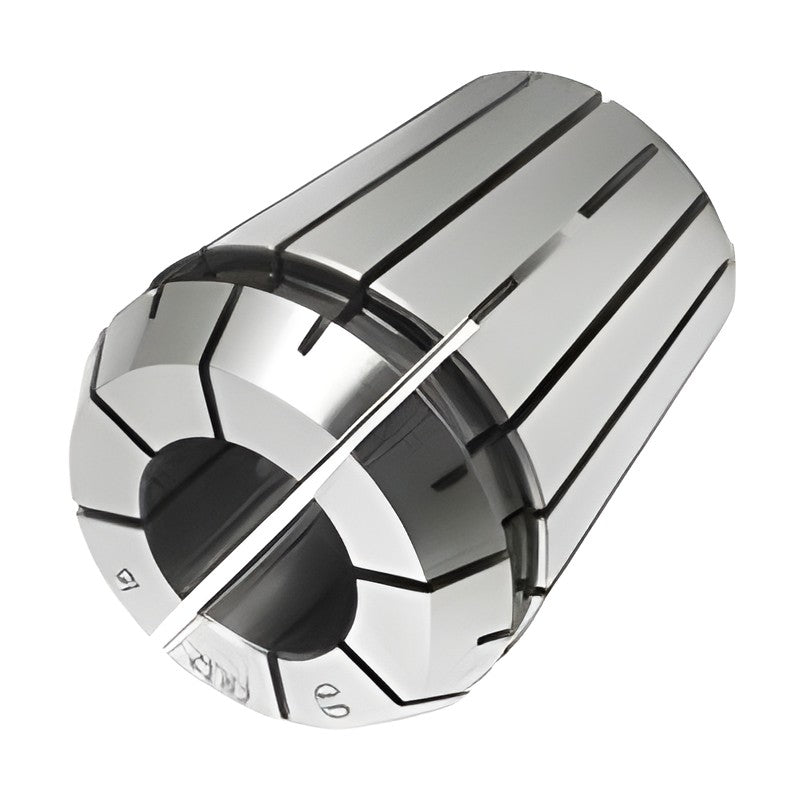

TAUMAX ER Collet General Type

TAUMAX ER Collet General Type

ER collet, general type with 10 µm accuracy, sizes ER11 to ER32.

Specifications

Run-out accuracy 10 µm
ER11-1.0 ER size: 11 | ØD (mm): 1.0 | L (mm): 18.0 | ØD1 (mm): 11.5 | Stock: Yes
ER11-1.5 ER size: 11 | ØD (mm): 1.5 | L (mm): 18.0 | ØD1 (mm): 11.5 | Stock: Yes
ER11-2.0 ER size: 11 | ØD (mm): 2.0 | L (mm): 18.0 | ØD1 (mm): 11.5 | Stock: Yes
ER11-2.5 ER size: 11 | ØD (mm): 2.5 | L (mm): 18.0 | ØD1 (mm): 11.5 | Stock: Yes
ER11-3.0 ER size: 11 | ØD (mm): 3.0 | L (mm): 18.0 | ØD1 (mm): 11.5 | Stock: Yes
ER11-3.5 ER size: 11 | ØD (mm): 3.5 | L (mm): 18.0 | ØD1 (mm): 11.5 | Stock: Yes
ER11-4.0 ER size: 11 | ØD (mm): 4.0 | L (mm): 18.0 | ØD1 (mm): 11.5 | Stock: Yes
ER11-4.5 ER size: 11 | ØD (mm): 4.5 | L (mm): 18.0 | ØD1 (mm): 11.5 | Stock: Yes
ER11-5.0 ER size: 11 | ØD (mm): 5.0 | L (mm): 18.0 | ØD1 (mm): 11.5 | Stock: Yes
ER11-5.5 ER size: 11 | ØD (mm): 5.5 | L (mm): 18.0 | ØD1 (mm): 11.5 | Stock: Yes
ER11-6.0 ER size: 11 | ØD (mm): 6.0 | L (mm): 18.0 | ØD1 (mm): 11.5 | Stock: Yes
ER11-6.5 ER size: 11 | ØD (mm): 6.5 | L (mm): 18.0 | ØD1 (mm): 11.5 | Stock: Yes
ER11-7.0 ER size: 11 | ØD (mm): 7.0 | L (mm): 18.0 | ØD1 (mm): 11.5 | Stock: Yes
ER16-1.0 ER size: 16 | ØD (mm): 1.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
ER16-2.0 ER size: 16 | ØD (mm): 2.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
ER16-3.0 ER size: 16 | ØD (mm): 3.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
ER16-4.0 ER size: 16 | ØD (mm): 4.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
ER16-5.0 ER size: 16 | ØD (mm): 5.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
ER16-6.0 ER size: 16 | ØD (mm): 6.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
ER16-7.0 ER size: 16 | ØD (mm): 7.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
ER16-8.0 ER size: 16 | ØD (mm): 8.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
ER16-9.0 ER size: 16 | ØD (mm): 9.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
ER16-10.0 ER size: 16 | ØD (mm): 10.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
ER20-1.0 ER size: 20 | ØD (mm): 1.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
ER20-2.0 ER size: 20 | ØD (mm): 2.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
ER20-3.0 ER size: 20 | ØD (mm): 3.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
ER20-4.0 ER size: 20 | ØD (mm): 4.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
ER20-5.0 ER size: 20 | ØD (mm): 5.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
ER20-6.0 ER size: 20 | ØD (mm): 6.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
ER20-7.0 ER size: 20 | ØD (mm): 7.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
ER20-8.0 ER size: 20 | ØD (mm): 8.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
ER20-9.0 ER size: 20 | ØD (mm): 9.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
ER20-10.0 ER size: 20 | ØD (mm): 10.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
ER20-11.0 ER size: 20 | ØD (mm): 11.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
ER20-12.0 ER size: 20 | ØD (mm): 12.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
ER20-13.0 ER size: 20 | ØD (mm): 13.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
ER25-2.0 ER size: 25 | ØD (mm): 2.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER25-3.0 ER size: 25 | ØD (mm): 3.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER25-4.0 ER size: 25 | ØD (mm): 4.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER25-5.0 ER size: 25 | ØD (mm): 5.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER25-6.0 ER size: 25 | ØD (mm): 6.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER25-7.0 ER size: 25 | ØD (mm): 7.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER25-8.0 ER size: 25 | ØD (mm): 8.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER25-9.0 ER size: 25 | ØD (mm): 9.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER25-10.0 ER size: 25 | ØD (mm): 10.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER25-11.0 ER size: 25 | ØD (mm): 11.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER25-12.0 ER size: 25 | ØD (mm): 12.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER25-13.0 ER size: 25 | ØD (mm): 13.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER25-14.0 ER size: 25 | ØD (mm): 14.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER25-15.0 ER size: 25 | ØD (mm): 15.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER25-16.0 ER size: 25 | ØD (mm): 16.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
ER32-2.0 ER size: 32 | ØD (mm): 2.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-3.0 ER size: 32 | ØD (mm): 3.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-4.0 ER size: 32 | ØD (mm): 4.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-5.0 ER size: 32 | ØD (mm): 5.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-6.0 ER size: 32 | ØD (mm): 6.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-7.0 ER size: 32 | ØD (mm): 7.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-8.0 ER size: 32 | ØD (mm): 8.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-9.0 ER size: 32 | ØD (mm): 9.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-10.0 ER size: 32 | ØD (mm): 10.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-11.0 ER size: 32 | ØD (mm): 11.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-12.0 ER size: 32 | ØD (mm): 12.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-13.0 ER size: 32 | ØD (mm): 13.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-14.0 ER size: 32 | ØD (mm): 14.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-15.0 ER size: 32 | ØD (mm): 15.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-16.0 ER size: 32 | ØD (mm): 16.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-17.0 ER size: 32 | ØD (mm): 17.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-18.0 ER size: 32 | ØD (mm): 18.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-19.0 ER size: 32 | ØD (mm): 19.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ER32-20.0 ER size: 32 | ØD (mm): 20.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ColletsTAUMAX
70 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX ER Collet General Type

Brand TAUMAX·Collets

Available part numbers (70)

ER11-1.0, ER11-1.5, ER11-2.0, ER11-2.5, ER11-3.0, ER11-3.5, ER11-4.0, ER11-4.5, ER11-5.0, ER11-5.5 + 60 more — see full table ↓
