• TAUMAX ER Collet Precision Type P
1 1

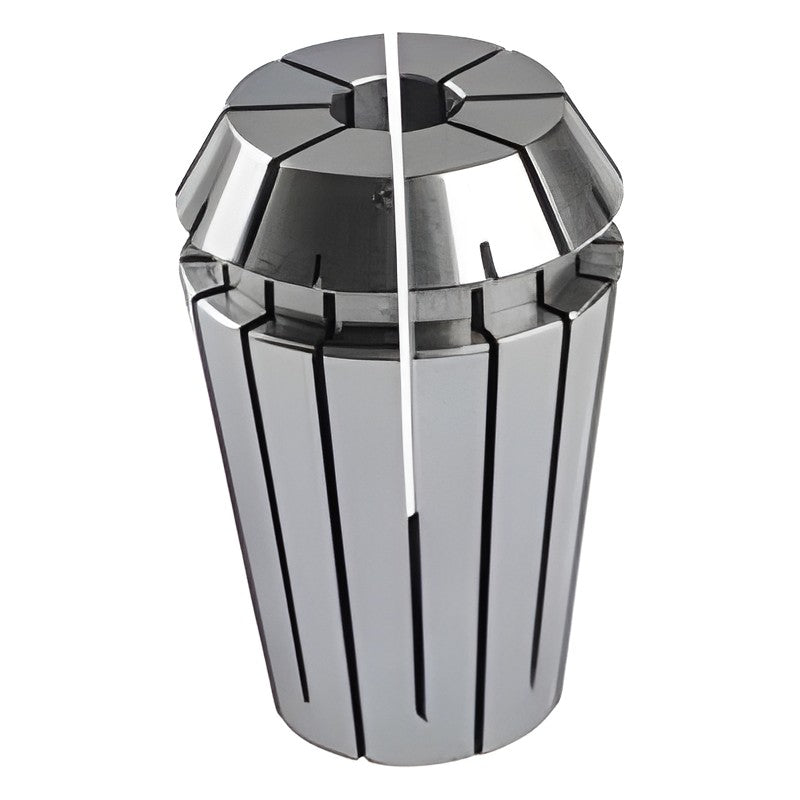

TAUMAX ER Collet Precision Type P

TAUMAX ER Collet Precision Type P

ER collet, precision type with 5 µm accuracy, sizes ER11 to ER32.

Specifications

Run-out accuracy 5 µm
ER11-2.0P ER size: 11 | ØD (mm): 2.0 | L (mm): 18.0 | ØD1 (mm): 11.3 | Stock: Yes
ER11-3.0P ER size: 11 | ØD (mm): 3.0 | L (mm): 18.0 | ØD1 (mm): 11.3 | Stock: Yes
ER11-4.0P ER size: 11 | ØD (mm): 4.0 | L (mm): 18.0 | ØD1 (mm): 11.3 | Stock: Yes
ER11-5.0P ER size: 11 | ØD (mm): 5.0 | L (mm): 18.0 | ØD1 (mm): 11.3 | Stock: Yes
ER11-6.0P ER size: 11 | ØD (mm): 6.0 | L (mm): 18.0 | ØD1 (mm): 11.3 | Stock: Yes
ER11-7.0P ER size: 11 | ØD (mm): 7.0 | L (mm): 18.0 | ØD1 (mm): 11.3 | Stock: Yes
ER16-3.0P ER size: 16 | ØD (mm): 3.0 | L (mm): 27.5 | ØD1 (mm): 16.7 | Stock: Yes
ER16-4.0P ER size: 16 | ØD (mm): 4.0 | L (mm): 27.5 | ØD1 (mm): 16.7 | Stock: Yes
ER16-5.0P ER size: 16 | ØD (mm): 5.0 | L (mm): 27.5 | ØD1 (mm): 16.7 | Stock: Yes
ER16-6.0P ER size: 16 | ØD (mm): 6.0 | L (mm): 27.5 | ØD1 (mm): 16.7 | Stock: Yes
ER16-7.0P ER size: 16 | ØD (mm): 7.0 | L (mm): 27.5 | ØD1 (mm): 16.7 | Stock: Yes
ER16-8.0P ER size: 16 | ØD (mm): 8.0 | L (mm): 27.5 | ØD1 (mm): 16.7 | Stock: Yes
ER16-9.0P ER size: 16 | ØD (mm): 9.0 | L (mm): 27.5 | ØD1 (mm): 16.7 | Stock: Yes
ER16-10.0P ER size: 16 | ØD (mm): 10.0 | L (mm): 27.5 | ØD1 (mm): 16.7 | Stock: Yes
ER20-3.0P ER size: 20 | ØD (mm): 3.0 | L (mm): 31.5 | ØD1 (mm): 20.7 | Stock: Yes
ER20-4.0P ER size: 20 | ØD (mm): 4.0 | L (mm): 31.5 | ØD1 (mm): 20.7 | Stock: Yes
ER20-5.0P ER size: 20 | ØD (mm): 5.0 | L (mm): 31.5 | ØD1 (mm): 20.7 | Stock: Yes
ER20-6.0P ER size: 20 | ØD (mm): 6.0 | L (mm): 31.5 | ØD1 (mm): 20.7 | Stock: Yes
ER20-7.0P ER size: 20 | ØD (mm): 7.0 | L (mm): 31.5 | ØD1 (mm): 20.7 | Stock: Yes
ER20-8.0P ER size: 20 | ØD (mm): 8.0 | L (mm): 31.5 | ØD1 (mm): 20.7 | Stock: Yes
ER20-9.0P ER size: 20 | ØD (mm): 9.0 | L (mm): 31.5 | ØD1 (mm): 20.7 | Stock: Yes
ER20-10.0P ER size: 20 | ØD (mm): 10.0 | L (mm): 31.5 | ØD1 (mm): 20.7 | Stock: Yes
ER20-11.0P ER size: 20 | ØD (mm): 11.0 | L (mm): 31.5 | ØD1 (mm): 20.7 | Stock: Yes
ER20-12.0P ER size: 20 | ØD (mm): 12.0 | L (mm): 31.5 | ØD1 (mm): 20.7 | Stock: Yes
ER20-13.0P ER size: 20 | ØD (mm): 13.0 | L (mm): 31.5 | ØD1 (mm): 20.7 | Stock: Yes
ER25-3.0P ER size: 25 | ØD (mm): 3.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER25-4.0P ER size: 25 | ØD (mm): 4.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER25-5.0P ER size: 25 | ØD (mm): 5.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER25-6.0P ER size: 25 | ØD (mm): 6.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER25-7.0P ER size: 25 | ØD (mm): 7.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER25-8.0P ER size: 25 | ØD (mm): 8.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER25-9.0P ER size: 25 | ØD (mm): 9.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER25-10.0P ER size: 25 | ØD (mm): 10.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER25-11.0P ER size: 25 | ØD (mm): 11.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER25-12.0P ER size: 25 | ØD (mm): 12.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER25-13.0P ER size: 25 | ØD (mm): 13.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER25-14.0P ER size: 25 | ØD (mm): 14.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER25-15.0P ER size: 25 | ØD (mm): 15.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER25-16.0P ER size: 25 | ØD (mm): 16.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER32-3.0P ER size: 32 | ØD (mm): 3.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-4.0P ER size: 32 | ØD (mm): 4.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-5.0P ER size: 32 | ØD (mm): 5.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-6.0P ER size: 32 | ØD (mm): 6.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-7.0P ER size: 32 | ØD (mm): 7.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-8.0P ER size: 32 | ØD (mm): 8.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-9.0P ER size: 32 | ØD (mm): 9.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-10.0P ER size: 32 | ØD (mm): 10.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-11.0P ER size: 32 | ØD (mm): 11.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-12.0P ER size: 32 | ØD (mm): 12.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-13.0P ER size: 32 | ØD (mm): 13.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-14.0P ER size: 32 | ØD (mm): 14.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-15.0P ER size: 32 | ØD (mm): 15.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-16.0P ER size: 32 | ØD (mm): 16.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-17.0P ER size: 32 | ØD (mm): 17.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-18.0P ER size: 32 | ØD (mm): 18.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-19.0P ER size: 32 | ØD (mm): 19.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-20.0P ER size: 32 | ØD (mm): 20.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ColletsTAUMAX
57 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX ER Collet Precision Type P

Brand TAUMAX·Collets

Available part numbers (57)

ER11-2.0P, ER11-3.0P, ER11-4.0P, ER11-5.0P, ER11-6.0P, ER11-7.0P, ER16-3.0P, ER16-4.0P, ER16-5.0P, ER16-6.0P + 47 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ER11-2.0PER size: 11 | ØD (mm): 2.0 | L (mm): 18.0 | ØD1 (mm): 11.3 | Stock: Yes
ER11-3.0PER size: 11 | ØD (mm): 3.0 | L (mm): 18.0 | ØD1 (mm): 11.3 | Stock: Yes
ER11-4.0PER size: 11 | ØD (mm): 4.0 | L (mm): 18.0 | ØD1 (mm): 11.3 | Stock: Yes
ER11-5.0PER size: 11 | ØD (mm): 5.0 | L (mm): 18.0 | ØD1 (mm): 11.3 | Stock: Yes
ER11-6.0PER size: 11 | ØD (mm): 6.0 | L (mm): 18.0 | ØD1 (mm): 11.3 | Stock: Yes
ER11-7.0PER size: 11 | ØD (mm): 7.0 | L (mm): 18.0 | ØD1 (mm): 11.3 | Stock: Yes
ER16-3.0PER size: 16 | ØD (mm): 3.0 | L (mm): 27.5 | ØD1 (mm): 16.7 | Stock: Yes
ER16-4.0PER size: 16 | ØD (mm): 4.0 | L (mm): 27.5 | ØD1 (mm): 16.7 | Stock: Yes
ER16-5.0PER size: 16 | ØD (mm): 5.0 | L (mm): 27.5 | ØD1 (mm): 16.7 | Stock: Yes
ER16-6.0PER size: 16 | ØD (mm): 6.0 | L (mm): 27.5 | ØD1 (mm): 16.7 | Stock: Yes
ER16-7.0PER size: 16 | ØD (mm): 7.0 | L (mm): 27.5 | ØD1 (mm): 16.7 | Stock: Yes
ER16-8.0PER size: 16 | ØD (mm): 8.0 | L (mm): 27.5 | ØD1 (mm): 16.7 | Stock: Yes
ER16-9.0PER size: 16 | ØD (mm): 9.0 | L (mm): 27.5 | ØD1 (mm): 16.7 | Stock: Yes
ER16-10.0PER size: 16 | ØD (mm): 10.0 | L (mm): 27.5 | ØD1 (mm): 16.7 | Stock: Yes
ER20-3.0PER size: 20 | ØD (mm): 3.0 | L (mm): 31.5 | ØD1 (mm): 20.7 | Stock: Yes
ER20-4.0PER size: 20 | ØD (mm): 4.0 | L (mm): 31.5 | ØD1 (mm): 20.7 | Stock: Yes
ER20-5.0PER size: 20 | ØD (mm): 5.0 | L (mm): 31.5 | ØD1 (mm): 20.7 | Stock: Yes
ER20-6.0PER size: 20 | ØD (mm): 6.0 | L (mm): 31.5 | ØD1 (mm): 20.7 | Stock: Yes
ER20-7.0PER size: 20 | ØD (mm): 7.0 | L (mm): 31.5 | ØD1 (mm): 20.7 | Stock: Yes
ER20-8.0PER size: 20 | ØD (mm): 8.0 | L (mm): 31.5 | ØD1 (mm): 20.7 | Stock: Yes
ER20-9.0PER size: 20 | ØD (mm): 9.0 | L (mm): 31.5 | ØD1 (mm): 20.7 | Stock: Yes
ER20-10.0PER size: 20 | ØD (mm): 10.0 | L (mm): 31.5 | ØD1 (mm): 20.7 | Stock: Yes
ER20-11.0PER size: 20 | ØD (mm): 11.0 | L (mm): 31.5 | ØD1 (mm): 20.7 | Stock: Yes
ER20-12.0PER size: 20 | ØD (mm): 12.0 | L (mm): 31.5 | ØD1 (mm): 20.7 | Stock: Yes
ER20-13.0PER size: 20 | ØD (mm): 13.0 | L (mm): 31.5 | ØD1 (mm): 20.7 | Stock: Yes
ER25-3.0PER size: 25 | ØD (mm): 3.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER25-4.0PER size: 25 | ØD (mm): 4.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER25-5.0PER size: 25 | ØD (mm): 5.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER25-6.0PER size: 25 | ØD (mm): 6.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER25-7.0PER size: 25 | ØD (mm): 7.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER25-8.0PER size: 25 | ØD (mm): 8.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER25-9.0PER size: 25 | ØD (mm): 9.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER25-10.0PER size: 25 | ØD (mm): 10.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER25-11.0PER size: 25 | ØD (mm): 11.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER25-12.0PER size: 25 | ØD (mm): 12.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER25-13.0PER size: 25 | ØD (mm): 13.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER25-14.0PER size: 25 | ØD (mm): 14.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER25-15.0PER size: 25 | ØD (mm): 15.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER25-16.0PER size: 25 | ØD (mm): 16.0 | L (mm): 34.0 | ØD1 (mm): 25.8 | Stock: Yes
ER32-3.0PER size: 32 | ØD (mm): 3.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-4.0PER size: 32 | ØD (mm): 4.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-5.0PER size: 32 | ØD (mm): 5.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-6.0PER size: 32 | ØD (mm): 6.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-7.0PER size: 32 | ØD (mm): 7.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-8.0PER size: 32 | ØD (mm): 8.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-9.0PER size: 32 | ØD (mm): 9.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-10.0PER size: 32 | ØD (mm): 10.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-11.0PER size: 32 | ØD (mm): 11.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-12.0PER size: 32 | ØD (mm): 12.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-13.0PER size: 32 | ØD (mm): 13.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-14.0PER size: 32 | ØD (mm): 14.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-15.0PER size: 32 | ØD (mm): 15.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-16.0PER size: 32 | ØD (mm): 16.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-17.0PER size: 32 | ØD (mm): 17.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-18.0PER size: 32 | ØD (mm): 18.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-19.0PER size: 32 | ØD (mm): 19.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
ER32-20.0PER size: 32 | ØD (mm): 20.0 | L (mm): 40.0 | ØD1 (mm): 32.8 | Stock: Yes
