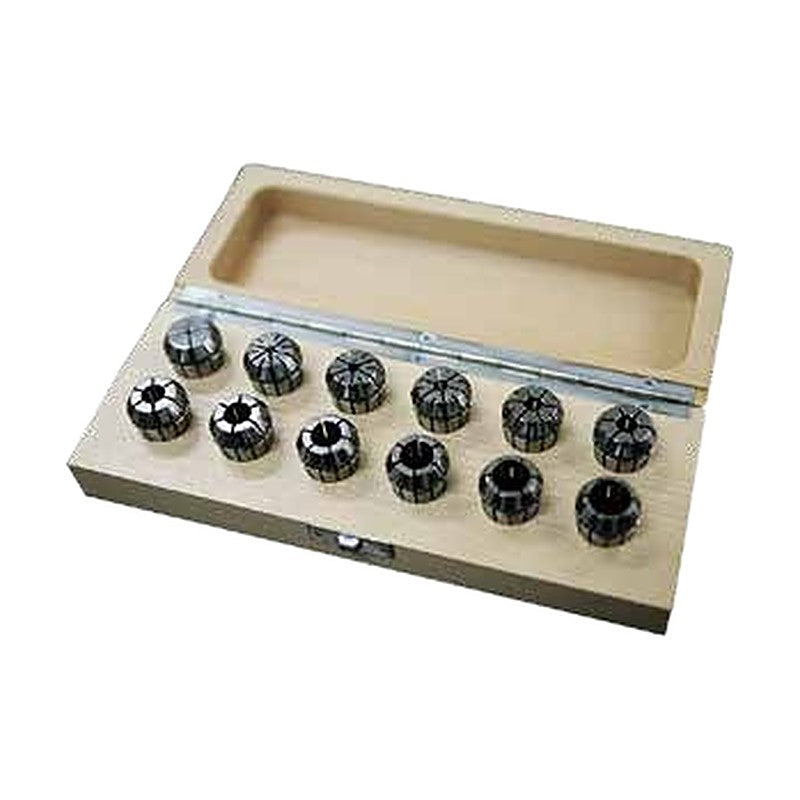

TAUMAX ER Collet Set General Type

TAUMAX ER Collet Set General Type

Set of general-type ER collets covering the clamping range of one ER size.

Specifications

Run-out accuracy 10 µm
ER11(SET) ØD (mm): 1.0-7.0 | Step (mm): 0.5 | Collets in set: 13pcs | Weight (kg): 0.1 | Stock: Yes
ER16(SET) ØD (mm): 1.0-10.0 | Step (mm): 1.0 | Collets in set: 10pcs | Weight (kg): 0.1 | Stock: Yes
ER20(SET) ØD (mm): 2.0-13.0 | Step (mm): 1.0 | Collets in set: 12pcs | Weight (kg): 0.4 | Stock: Yes
ER25(SET) ØD (mm): 2.0-16.0 | Step (mm): 1.0 | Collets in set: 15pcs | Weight (kg): 1.1 | Stock: Yes
ER32(SET) ØD (mm): 3.0-20.0 | Step (mm): 1.0 | Collets in set: 18pcs | Weight (kg): 2.6 | Stock: Yes
ColletsTAUMAX
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX ER Collet Set General Type

Brand TAUMAX·Collets

Available part numbers (5)

ER11(SET), ER16(SET), ER20(SET), ER25(SET), ER32(SET)

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ER11(SET)ØD (mm): 1.0-7.0 | Step (mm): 0.5 | Collets in set: 13pcs | Weight (kg): 0.1 | Stock: Yes
ER16(SET)ØD (mm): 1.0-10.0 | Step (mm): 1.0 | Collets in set: 10pcs | Weight (kg): 0.1 | Stock: Yes
ER20(SET)ØD (mm): 2.0-13.0 | Step (mm): 1.0 | Collets in set: 12pcs | Weight (kg): 0.4 | Stock: Yes
ER25(SET)ØD (mm): 2.0-16.0 | Step (mm): 1.0 | Collets in set: 15pcs | Weight (kg): 1.1 | Stock: Yes
ER32(SET)ØD (mm): 3.0-20.0 | Step (mm): 1.0 | Collets in set: 18pcs | Weight (kg): 2.6 | Stock: Yes
