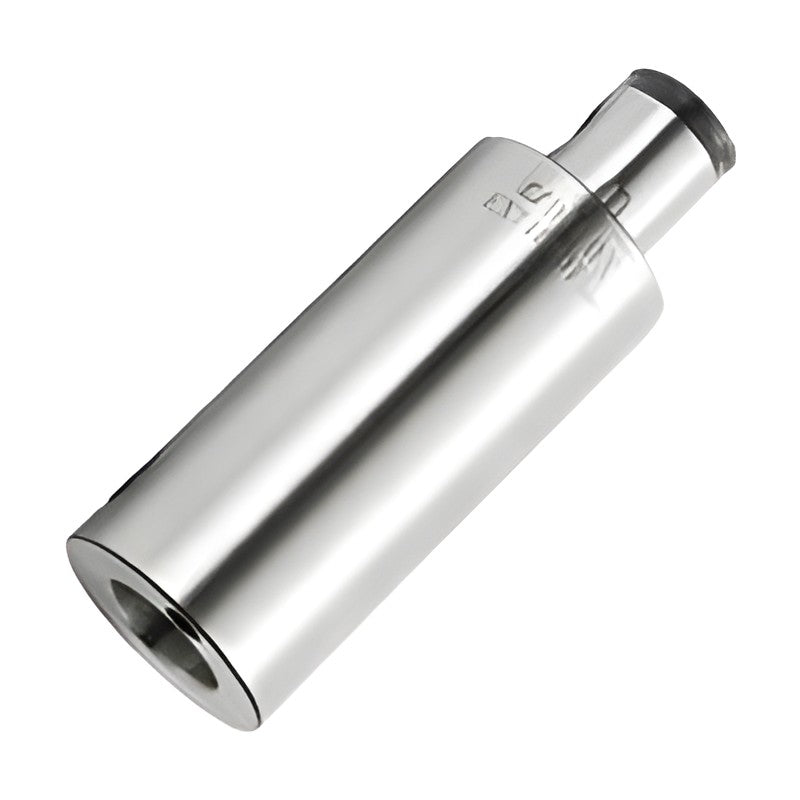

TAUMAX Extension Bar EXT for Modular Arbors

TAUMAX Extension Bar EXT for Modular Arbors

Extension bar for MD modular arbors to extend boring depth.

EXT1930F ØD (mm): 11 | L (mm): 30 | Connection ØD1 (mm): 19 | ØD2 (mm): 11 | G (thread): M5 | Weight (kg): 0.1 | Stock: Yes
EXT1950F ØD (mm): 11 | L (mm): 50 | Connection ØD1 (mm): 19 | ØD2 (mm): 11 | G (thread): M5 | Weight (kg): 0.1 | Stock: Yes
EXT2530F ØD (mm): 14 | L (mm): 30 | Connection ØD1 (mm): 25 | ØD2 (mm): 14 | G (thread): M6 | Weight (kg): 0.1 | Stock: Yes
EXT2550F ØD (mm): 14 | L (mm): 50 | Connection ØD1 (mm): 25 | ØD2 (mm): 14 | G (thread): M6 | Weight (kg): 0.2 | Stock: Yes
EXT3235F ØD (mm): 18 | L (mm): 35 | Connection ØD1 (mm): 32 | ØD2 (mm): 18 | G (thread): M8 | Weight (kg): 0.2 | Stock: Yes
EXT3260F ØD (mm): 18 | L (mm): 60 | Connection ØD1 (mm): 32 | ØD2 (mm): 18 | G (thread): M8 | Weight (kg): 0.4 | Stock: Yes
EXT4040F ØD (mm): 22 | L (mm): 40 | Connection ØD1 (mm): 40 | ØD2 (mm): 22 | G (thread): M10 | Weight (kg): 0.4 | Stock: Yes
EXT4090F ØD (mm): 22 | L (mm): 90 | Connection ØD1 (mm): 40 | ØD2 (mm): 22 | G (thread): M10 | Weight (kg): 0.9 | Stock: Yes
EXT5050F ØD (mm): 28 | L (mm): 50 | Connection ØD1 (mm): 50 | ØD2 (mm): 28 | G (thread): M12 | Weight (kg): 0.7 | Stock: Yes
EXT50100F ØD (mm): 28 | L (mm): 100 | Connection ØD1 (mm): 50 | ØD2 (mm): 28 | G (thread): M12 | Weight (kg): 1.4 | Stock: Yes
EXT6360F ØD (mm): 36 | L (mm): 60 | Connection ØD1 (mm): 63 | ØD2 (mm): 36 | G (thread): M16 | Weight (kg): 1.4 | Stock: Yes
EXT63120F ØD (mm): 36 | L (mm): 120 | Connection ØD1 (mm): 63 | ØD2 (mm): 36 | G (thread): M16 | Weight (kg): 2.9 | Stock: Yes
EXT8070F ØD (mm): 45 | L (mm): 70 | Connection ØD1 (mm): 80 | ØD2 (mm): 45 | G (thread): M16 | Weight (kg): 2.5 | Stock: Yes
EXT80120F ØD (mm): 45 | L (mm): 120 | Connection ØD1 (mm): 80 | ØD2 (mm): 45 | G (thread): M16 | Weight (kg): 4.5 | Stock: Yes
EXT9080F ØD (mm): 45 | L (mm): 80 | Connection ØD1 (mm): 90 | ØD2 (mm): 45 | G (thread): M16 | Weight (kg): 3.8 | Stock: Yes
EXT90130F ØD (mm): 45 | L (mm): 130 | Connection ØD1 (mm): 90 | ØD2 (mm): 45 | G (thread): M16 | Weight (kg): 6.4 | Stock: Yes
Modular ArborsTAUMAX
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Extension Bar EXT for Modular Arbors

Brand TAUMAX·Modular Arbors

Available part numbers (16)

EXT1930F, EXT1950F, EXT2530F, EXT2550F, EXT3235F, EXT3260F, EXT4040F, EXT4090F, EXT5050F, EXT50100F + 6 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EXT1930FØD (mm): 11 | L (mm): 30 | Connection ØD1 (mm): 19 | ØD2 (mm): 11 | G (thread): M5 | Weight (kg): 0.1 | Stock: Yes
EXT1950FØD (mm): 11 | L (mm): 50 | Connection ØD1 (mm): 19 | ØD2 (mm): 11 | G (thread): M5 | Weight (kg): 0.1 | Stock: Yes
EXT2530FØD (mm): 14 | L (mm): 30 | Connection ØD1 (mm): 25 | ØD2 (mm): 14 | G (thread): M6 | Weight (kg): 0.1 | Stock: Yes
EXT2550FØD (mm): 14 | L (mm): 50 | Connection ØD1 (mm): 25 | ØD2 (mm): 14 | G (thread): M6 | Weight (kg): 0.2 | Stock: Yes
EXT3235FØD (mm): 18 | L (mm): 35 | Connection ØD1 (mm): 32 | ØD2 (mm): 18 | G (thread): M8 | Weight (kg): 0.2 | Stock: Yes
EXT3260FØD (mm): 18 | L (mm): 60 | Connection ØD1 (mm): 32 | ØD2 (mm): 18 | G (thread): M8 | Weight (kg): 0.4 | Stock: Yes
EXT4040FØD (mm): 22 | L (mm): 40 | Connection ØD1 (mm): 40 | ØD2 (mm): 22 | G (thread): M10 | Weight (kg): 0.4 | Stock: Yes
EXT4090FØD (mm): 22 | L (mm): 90 | Connection ØD1 (mm): 40 | ØD2 (mm): 22 | G (thread): M10 | Weight (kg): 0.9 | Stock: Yes
EXT5050FØD (mm): 28 | L (mm): 50 | Connection ØD1 (mm): 50 | ØD2 (mm): 28 | G (thread): M12 | Weight (kg): 0.7 | Stock: Yes
EXT50100FØD (mm): 28 | L (mm): 100 | Connection ØD1 (mm): 50 | ØD2 (mm): 28 | G (thread): M12 | Weight (kg): 1.4 | Stock: Yes
EXT6360FØD (mm): 36 | L (mm): 60 | Connection ØD1 (mm): 63 | ØD2 (mm): 36 | G (thread): M16 | Weight (kg): 1.4 | Stock: Yes
EXT63120FØD (mm): 36 | L (mm): 120 | Connection ØD1 (mm): 63 | ØD2 (mm): 36 | G (thread): M16 | Weight (kg): 2.9 | Stock: Yes
EXT8070FØD (mm): 45 | L (mm): 70 | Connection ØD1 (mm): 80 | ØD2 (mm): 45 | G (thread): M16 | Weight (kg): 2.5 | Stock: Yes
EXT80120FØD (mm): 45 | L (mm): 120 | Connection ØD1 (mm): 80 | ØD2 (mm): 45 | G (thread): M16 | Weight (kg): 4.5 | Stock: Yes
EXT9080FØD (mm): 45 | L (mm): 80 | Connection ØD1 (mm): 90 | ØD2 (mm): 45 | G (thread): M16 | Weight (kg): 3.8 | Stock: Yes
EXT90130FØD (mm): 45 | L (mm): 130 | Connection ØD1 (mm): 90 | ØD2 (mm): 45 | G (thread): M16 | Weight (kg): 6.4 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →
