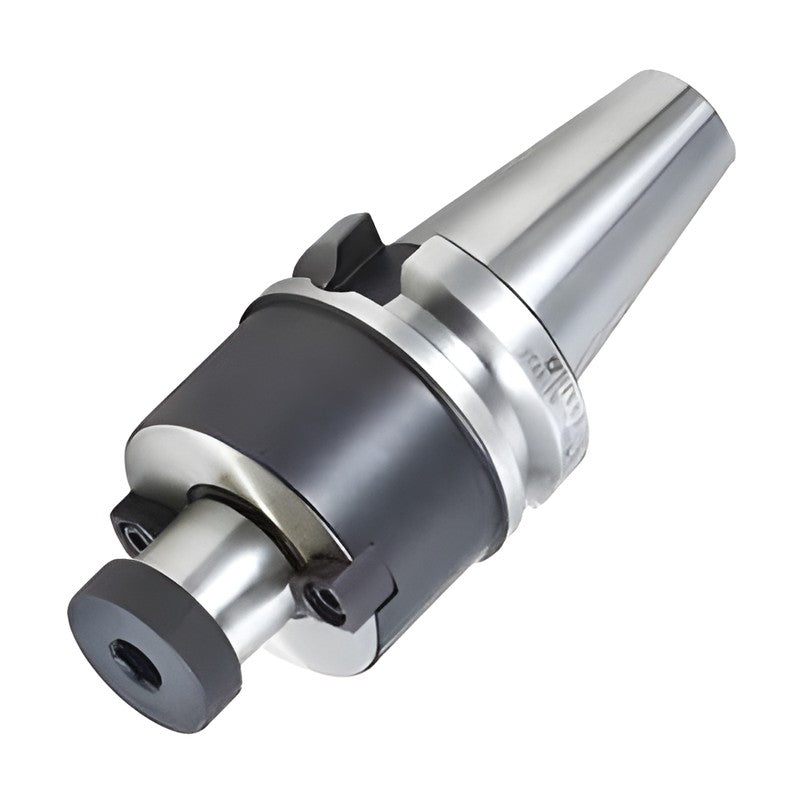

TAUMAX Face Mill Arbor FMC

TAUMAX Face Mill Arbor FMC

Shell mill / face mill arbor with BT, HSK-A or SK shank for metric-bore face cutters from Ø40 to Ø160 mm.

Specifications

Coolant Internal coolant optional
BT30-FMC16-45 Cutter dia. (mm): 40 | Bore ØD (mm): 16 | L (mm): 45 | ØD1 (mm): 38 | H (mm): 17 | Key width W (mm): 8 | K (mm): 5.0 | G (thread): M8 | Weight (kg): 0.7 | Stock: Yes
BT30-FMC22-45 Cutter dia. (mm): 50 | Bore ØD (mm): 22 | L (mm): 45 | ØD1 (mm): 45 | H (mm): 18 | Key width W (mm): 10 | K (mm): 5.6 | G (thread): M10 | Weight (kg): 0.8 | Stock: Yes
BT30-FMC27-45 Cutter dia. (mm): 80 | Bore ØD (mm): 27 | L (mm): 45 | ØD1 (mm): 60 | H (mm): 20 | Key width W (mm): 12 | K (mm): 6.3 | G (thread): M12 | Weight (kg): 1.0 | Stock: Yes
BT40-FMC16-60 Cutter dia. (mm): 40 | Bore ØD (mm): 16 | L (mm): 60 | ØD1 (mm): 38 | H (mm): 17 | Key width W (mm): 8 | K (mm): 5.0 | G (thread): M8 | Weight (kg): 1.3 | Stock: Yes
BT40-FMC22-45 Cutter dia. (mm): 50 | Bore ØD (mm): 22 | L (mm): 45 | ØD1 (mm): 45 | H (mm): 18 | Key width W (mm): 10 | K (mm): 5.6 | G (thread): M10 | Weight (kg): 1.3 | Stock: Yes
BT40-FMC22-90 Cutter dia. (mm): 50 | Bore ØD (mm): 22 | L (mm): 90 | ØD1 (mm): 45 | H (mm): 18 | Key width W (mm): 10 | K (mm): 5.6 | G (thread): M10 | Weight (kg): 1.9 | Stock: Yes
BT40-FMC27-60 Cutter dia. (mm): 80 | Bore ØD (mm): 27 | L (mm): 60 | ØD1 (mm): 60 | H (mm): 20 | Key width W (mm): 12 | K (mm): 6.3 | G (thread): M12 | Weight (kg): 1.8 | Stock: Yes
BT40-FMC27-90 Cutter dia. (mm): 80 | Bore ØD (mm): 27 | L (mm): 90 | ØD1 (mm): 60 | H (mm): 20 | Key width W (mm): 12 | K (mm): 6.3 | G (thread): M12 | Weight (kg): 2.4 | Stock: Yes
BT40-FMC32-60 Cutter dia. (mm): 100 | Bore ØD (mm): 32 | L (mm): 60 | ØD1 (mm): 85 | H (mm): 22 | Key width W (mm): 14 | K (mm): 7.0 | G (thread): M16 | Weight (kg): 2.1 | Stock: Yes
BT40-FMC40-50 Cutter dia. (mm): 125/160 | Bore ØD (mm): 40 | L (mm): 50 | ØD1 (mm): 89 | H (mm): 27 | Key width W (mm): 15.87 | K (mm): 8.0 | G (thread): M20 | Weight (kg): 2.3 | Stock: Yes
BT50-FMC16-60 Cutter dia. (mm): 40 | Bore ØD (mm): 16 | L (mm): 60 | ØD1 (mm): 38 | H (mm): 17 | Key width W (mm): 8 | K (mm): 5.0 | G (thread): M8 | Weight (kg): 3.9 | Stock: Yes
BT50-FMC22-60 Cutter dia. (mm): 50 | Bore ØD (mm): 22 | L (mm): 60 | ØD1 (mm): 45 | H (mm): 18 | Key width W (mm): 10 | K (mm): 5.6 | G (thread): M10 | Weight (kg): 4.1 | Stock: Yes
BT50-FMC22-105 Cutter dia. (mm): 50 | Bore ØD (mm): 22 | L (mm): 105 | ØD1 (mm): 45 | H (mm): 18 | Key width W (mm): 10 | K (mm): 5.6 | G (thread): M10 | Weight (kg): 4.3 | Stock: Yes
BT50-FMC22-150 Cutter dia. (mm): 50 | Bore ØD (mm): 22 | L (mm): 150 | ØD1 (mm): 45 | H (mm): 18 | Key width W (mm): 10 | K (mm): 5.6 | G (thread): M10 | Weight (kg): 6.1 | Stock: Yes
BT50-FMC27-45 Cutter dia. (mm): 80 | Bore ØD (mm): 27 | L (mm): 45 | ØD1 (mm): 70 | H (mm): 20 | Key width W (mm): 12 | K (mm): 6.3 | G (thread): M12 | Weight (kg): 3.8 | Stock: Yes
BT50-FMC27-90 Cutter dia. (mm): 80 | Bore ØD (mm): 27 | L (mm): 90 | ØD1 (mm): 70 | H (mm): 20 | Key width W (mm): 12 | K (mm): 6.3 | G (thread): M12 | Weight (kg): 4.8 | Stock: Yes
BT50-FMC27-150 Cutter dia. (mm): 80 | Bore ØD (mm): 27 | L (mm): 150 | ØD1 (mm): 70 | H (mm): 20 | Key width W (mm): 12 | K (mm): 6.3 | G (thread): M12 | Weight (kg): 6.1 | Stock: Yes
BT50-FMC32-45 Cutter dia. (mm): 100 | Bore ØD (mm): 32 | L (mm): 45 | ØD1 (mm): 85 | H (mm): 22 | Key width W (mm): 14 | K (mm): 7.0 | G (thread): M16 | Weight (kg): 4.1 | Stock: Yes
BT50-FMC32-75 Cutter dia. (mm): 100 | Bore ØD (mm): 32 | L (mm): 75 | ØD1 (mm): 85 | H (mm): 22 | Key width W (mm): 14 | K (mm): 7.0 | G (thread): M16 | Weight (kg): 5.2 | Stock: Yes
BT50-FMC32-105 Cutter dia. (mm): 100 | Bore ØD (mm): 32 | L (mm): 105 | ØD1 (mm): 85 | H (mm): 22 | Key width W (mm): 14 | K (mm): 7.0 | G (thread): M16 | Weight (kg): 6.3 | Stock: Yes
BT50-FMC32-150 Cutter dia. (mm): 100 | Bore ØD (mm): 32 | L (mm): 150 | ØD1 (mm): 85 | H (mm): 22 | Key width W (mm): 14 | K (mm): 7.0 | G (thread): M16 | Weight (kg): 6.9 | Stock: Yes
BT50-FMC40-50 Cutter dia. (mm): 125/160 | Bore ØD (mm): 40 | L (mm): 50 | ØD1 (mm): 89 | H (mm): 27 | Key width W (mm): 15.87 | K (mm): 8.0 | G (thread): M20 | Weight (kg): 4.6 | Stock: Yes
BT50-FMC40-150 Cutter dia. (mm): 125/160 | Bore ØD (mm): 40 | L (mm): 150 | ØD1 (mm): 89 | H (mm): 27 | Key width W (mm): 15.9 | K (mm): 7.0 | G (thread): M20 | Weight (kg): 7.7 | Stock: Yes
HSK63A-FMC16-50 Cutter dia. (mm): 40 | Bore ØD (mm): 16 | L (mm): 50 | ØD1 (mm): 38 | H (mm): 17 | Key width W (mm): 8 | K (mm): 5 | G (thread): M8 | Weight (kg): 0.9 | Stock: Yes
HSK63A-FMC22-60 Cutter dia. (mm): 50 | Bore ØD (mm): 22 | L (mm): 60 | ØD1 (mm): 45 | H (mm): 18 | Key width W (mm): 10 | K (mm): 5.6 | G (thread): M10 | Weight (kg): 1.1 | Stock: Yes
HSK63A-FMC27-65 Cutter dia. (mm): 80 | Bore ØD (mm): 27 | L (mm): 65 | ØD1 (mm): 60 | H (mm): 20 | Key width W (mm): 12 | K (mm): 6.3 | G (thread): M12 | Weight (kg): 1.4 | Stock: Yes
HSK63A-FMC32-75 Cutter dia. (mm): 100 | Bore ØD (mm): 32 | L (mm): 75 | ØD1 (mm): 85 | H (mm): 22 | Key width W (mm): 14 | K (mm): 7 | G (thread): M16 | Weight (kg): 1.7 | Stock: Yes
HSK63A-FMC40-60 Cutter dia. (mm): 125/160 | Bore ØD (mm): 40 | L (mm): 60 | ØD1 (mm): 89 | H (mm): 27 | Key width W (mm): 15.9 | K (mm): 8 | G (thread): M20 | Weight (kg): 2.5 | Stock: Yes
SK40-FMC22-55 Cutter dia. (mm): 50 | Bore ØD (mm): 22 | L (mm): 55 | ØD1 (mm): 45 | H (mm): 18 | Key width W (mm): 10 | K (mm): 5.6 | G (thread): M6 | Weight (kg): 1.4 | Stock: Yes
SK40-FMC27-55 Cutter dia. (mm): 80 | Bore ØD (mm): 27 | L (mm): 55 | ØD1 (mm): 60 | H (mm): 20 | Key width W (mm): 12 | K (mm): 6.3 | G (thread): M12 | Weight (kg): 1.6 | Stock: Yes
SK40-FMC32-60 Cutter dia. (mm): 100 | Bore ØD (mm): 32 | L (mm): 60 | ØD1 (mm): 85 | H (mm): 22 | Key width W (mm): 14 | K (mm): 7 | G (thread): M16 | Weight (kg): 2.2 | Stock: Yes
SK40-FMC40-50 Cutter dia. (mm): 125/160 | Bore ØD (mm): 40 | L (mm): 50 | ØD1 (mm): 89 | H (mm): 27 | Key width W (mm): 15.9 | K (mm): 8 | G (thread): M20 | Weight (kg): 2.3 | Stock: Yes
SK50-FMC22-55 Cutter dia. (mm): 50 | Bore ØD (mm): 22 | L (mm): 55 | ØD1 (mm): 45 | H (mm): 18 | Key width W (mm): 10 | K (mm): 5.6 | G (thread): M10 | Weight (kg): 3.2 | Stock: Yes
SK50-FMC27-55 Cutter dia. (mm): 80 | Bore ØD (mm): 27 | L (mm): 55 | ØD1 (mm): 70 | H (mm): 20 | Key width W (mm): 12 | K (mm): 6.3 | G (thread): M12 | Weight (kg): 3.3 | Stock: Yes
SK50-FMC32-60 Cutter dia. (mm): 100 | Bore ØD (mm): 32 | L (mm): 60 | ØD1 (mm): 85 | H (mm): 22 | Key width W (mm): 14 | K (mm): 7 | G (thread): M16 | Weight (kg): 3.8 | Stock: Yes
SK50-FMC40-50 Cutter dia. (mm): 125/160 | Bore ØD (mm): 40 | L (mm): 50 | ØD1 (mm): 89 | H (mm): 27 | Key width W (mm): 15.9 | K (mm): 8 | G (thread): M20 | Weight (kg): 4.2 | Stock: Yes
Face Mill ArborsTAUMAX
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Face Mill Arbor FMC

Brand TAUMAX·Face Mill Arbors

Available part numbers (36)

BT30-FMC16-45, BT30-FMC22-45, BT30-FMC27-45, BT40-FMC16-60, BT40-FMC22-45, BT40-FMC22-90, BT40-FMC27-60, BT40-FMC27-90, BT40-FMC32-60, BT40-FMC40-50 + 26 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BT30-FMC16-45Cutter dia. (mm): 40 | Bore ØD (mm): 16 | L (mm): 45 | ØD1 (mm): 38 | H (mm): 17 | Key width W (mm): 8 | K (mm): 5.0 | G (thread): M8 | Weight (kg): 0.7 | Stock: Yes
BT30-FMC22-45Cutter dia. (mm): 50 | Bore ØD (mm): 22 | L (mm): 45 | ØD1 (mm): 45 | H (mm): 18 | Key width W (mm): 10 | K (mm): 5.6 | G (thread): M10 | Weight (kg): 0.8 | Stock: Yes
BT30-FMC27-45Cutter dia. (mm): 80 | Bore ØD (mm): 27 | L (mm): 45 | ØD1 (mm): 60 | H (mm): 20 | Key width W (mm): 12 | K (mm): 6.3 | G (thread): M12 | Weight (kg): 1.0 | Stock: Yes
BT40-FMC16-60Cutter dia. (mm): 40 | Bore ØD (mm): 16 | L (mm): 60 | ØD1 (mm): 38 | H (mm): 17 | Key width W (mm): 8 | K (mm): 5.0 | G (thread): M8 | Weight (kg): 1.3 | Stock: Yes
BT40-FMC22-45Cutter dia. (mm): 50 | Bore ØD (mm): 22 | L (mm): 45 | ØD1 (mm): 45 | H (mm): 18 | Key width W (mm): 10 | K (mm): 5.6 | G (thread): M10 | Weight (kg): 1.3 | Stock: Yes
BT40-FMC22-90Cutter dia. (mm): 50 | Bore ØD (mm): 22 | L (mm): 90 | ØD1 (mm): 45 | H (mm): 18 | Key width W (mm): 10 | K (mm): 5.6 | G (thread): M10 | Weight (kg): 1.9 | Stock: Yes
BT40-FMC27-60Cutter dia. (mm): 80 | Bore ØD (mm): 27 | L (mm): 60 | ØD1 (mm): 60 | H (mm): 20 | Key width W (mm): 12 | K (mm): 6.3 | G (thread): M12 | Weight (kg): 1.8 | Stock: Yes
BT40-FMC27-90Cutter dia. (mm): 80 | Bore ØD (mm): 27 | L (mm): 90 | ØD1 (mm): 60 | H (mm): 20 | Key width W (mm): 12 | K (mm): 6.3 | G (thread): M12 | Weight (kg): 2.4 | Stock: Yes
BT40-FMC32-60Cutter dia. (mm): 100 | Bore ØD (mm): 32 | L (mm): 60 | ØD1 (mm): 85 | H (mm): 22 | Key width W (mm): 14 | K (mm): 7.0 | G (thread): M16 | Weight (kg): 2.1 | Stock: Yes
BT40-FMC40-50Cutter dia. (mm): 125/160 | Bore ØD (mm): 40 | L (mm): 50 | ØD1 (mm): 89 | H (mm): 27 | Key width W (mm): 15.87 | K (mm): 8.0 | G (thread): M20 | Weight (kg): 2.3 | Stock: Yes
BT50-FMC16-60Cutter dia. (mm): 40 | Bore ØD (mm): 16 | L (mm): 60 | ØD1 (mm): 38 | H (mm): 17 | Key width W (mm): 8 | K (mm): 5.0 | G (thread): M8 | Weight (kg): 3.9 | Stock: Yes
BT50-FMC22-60Cutter dia. (mm): 50 | Bore ØD (mm): 22 | L (mm): 60 | ØD1 (mm): 45 | H (mm): 18 | Key width W (mm): 10 | K (mm): 5.6 | G (thread): M10 | Weight (kg): 4.1 | Stock: Yes
BT50-FMC22-105Cutter dia. (mm): 50 | Bore ØD (mm): 22 | L (mm): 105 | ØD1 (mm): 45 | H (mm): 18 | Key width W (mm): 10 | K (mm): 5.6 | G (thread): M10 | Weight (kg): 4.3 | Stock: Yes
BT50-FMC22-150Cutter dia. (mm): 50 | Bore ØD (mm): 22 | L (mm): 150 | ØD1 (mm): 45 | H (mm): 18 | Key width W (mm): 10 | K (mm): 5.6 | G (thread): M10 | Weight (kg): 6.1 | Stock: Yes
BT50-FMC27-45Cutter dia. (mm): 80 | Bore ØD (mm): 27 | L (mm): 45 | ØD1 (mm): 70 | H (mm): 20 | Key width W (mm): 12 | K (mm): 6.3 | G (thread): M12 | Weight (kg): 3.8 | Stock: Yes
BT50-FMC27-90Cutter dia. (mm): 80 | Bore ØD (mm): 27 | L (mm): 90 | ØD1 (mm): 70 | H (mm): 20 | Key width W (mm): 12 | K (mm): 6.3 | G (thread): M12 | Weight (kg): 4.8 | Stock: Yes
BT50-FMC27-150Cutter dia. (mm): 80 | Bore ØD (mm): 27 | L (mm): 150 | ØD1 (mm): 70 | H (mm): 20 | Key width W (mm): 12 | K (mm): 6.3 | G (thread): M12 | Weight (kg): 6.1 | Stock: Yes
BT50-FMC32-45Cutter dia. (mm): 100 | Bore ØD (mm): 32 | L (mm): 45 | ØD1 (mm): 85 | H (mm): 22 | Key width W (mm): 14 | K (mm): 7.0 | G (thread): M16 | Weight (kg): 4.1 | Stock: Yes
BT50-FMC32-75Cutter dia. (mm): 100 | Bore ØD (mm): 32 | L (mm): 75 | ØD1 (mm): 85 | H (mm): 22 | Key width W (mm): 14 | K (mm): 7.0 | G (thread): M16 | Weight (kg): 5.2 | Stock: Yes
BT50-FMC32-105Cutter dia. (mm): 100 | Bore ØD (mm): 32 | L (mm): 105 | ØD1 (mm): 85 | H (mm): 22 | Key width W (mm): 14 | K (mm): 7.0 | G (thread): M16 | Weight (kg): 6.3 | Stock: Yes
BT50-FMC32-150Cutter dia. (mm): 100 | Bore ØD (mm): 32 | L (mm): 150 | ØD1 (mm): 85 | H (mm): 22 | Key width W (mm): 14 | K (mm): 7.0 | G (thread): M16 | Weight (kg): 6.9 | Stock: Yes
BT50-FMC40-50Cutter dia. (mm): 125/160 | Bore ØD (mm): 40 | L (mm): 50 | ØD1 (mm): 89 | H (mm): 27 | Key width W (mm): 15.87 | K (mm): 8.0 | G (thread): M20 | Weight (kg): 4.6 | Stock: Yes
BT50-FMC40-150Cutter dia. (mm): 125/160 | Bore ØD (mm): 40 | L (mm): 150 | ØD1 (mm): 89 | H (mm): 27 | Key width W (mm): 15.9 | K (mm): 7.0 | G (thread): M20 | Weight (kg): 7.7 | Stock: Yes
HSK63A-FMC16-50Cutter dia. (mm): 40 | Bore ØD (mm): 16 | L (mm): 50 | ØD1 (mm): 38 | H (mm): 17 | Key width W (mm): 8 | K (mm): 5 | G (thread): M8 | Weight (kg): 0.9 | Stock: Yes
HSK63A-FMC22-60Cutter dia. (mm): 50 | Bore ØD (mm): 22 | L (mm): 60 | ØD1 (mm): 45 | H (mm): 18 | Key width W (mm): 10 | K (mm): 5.6 | G (thread): M10 | Weight (kg): 1.1 | Stock: Yes
HSK63A-FMC27-65Cutter dia. (mm): 80 | Bore ØD (mm): 27 | L (mm): 65 | ØD1 (mm): 60 | H (mm): 20 | Key width W (mm): 12 | K (mm): 6.3 | G (thread): M12 | Weight (kg): 1.4 | Stock: Yes
HSK63A-FMC32-75Cutter dia. (mm): 100 | Bore ØD (mm): 32 | L (mm): 75 | ØD1 (mm): 85 | H (mm): 22 | Key width W (mm): 14 | K (mm): 7 | G (thread): M16 | Weight (kg): 1.7 | Stock: Yes
HSK63A-FMC40-60Cutter dia. (mm): 125/160 | Bore ØD (mm): 40 | L (mm): 60 | ØD1 (mm): 89 | H (mm): 27 | Key width W (mm): 15.9 | K (mm): 8 | G (thread): M20 | Weight (kg): 2.5 | Stock: Yes
SK40-FMC22-55Cutter dia. (mm): 50 | Bore ØD (mm): 22 | L (mm): 55 | ØD1 (mm): 45 | H (mm): 18 | Key width W (mm): 10 | K (mm): 5.6 | G (thread): M6 | Weight (kg): 1.4 | Stock: Yes
SK40-FMC27-55Cutter dia. (mm): 80 | Bore ØD (mm): 27 | L (mm): 55 | ØD1 (mm): 60 | H (mm): 20 | Key width W (mm): 12 | K (mm): 6.3 | G (thread): M12 | Weight (kg): 1.6 | Stock: Yes
SK40-FMC32-60Cutter dia. (mm): 100 | Bore ØD (mm): 32 | L (mm): 60 | ØD1 (mm): 85 | H (mm): 22 | Key width W (mm): 14 | K (mm): 7 | G (thread): M16 | Weight (kg): 2.2 | Stock: Yes
SK40-FMC40-50Cutter dia. (mm): 125/160 | Bore ØD (mm): 40 | L (mm): 50 | ØD1 (mm): 89 | H (mm): 27 | Key width W (mm): 15.9 | K (mm): 8 | G (thread): M20 | Weight (kg): 2.3 | Stock: Yes
SK50-FMC22-55Cutter dia. (mm): 50 | Bore ØD (mm): 22 | L (mm): 55 | ØD1 (mm): 45 | H (mm): 18 | Key width W (mm): 10 | K (mm): 5.6 | G (thread): M10 | Weight (kg): 3.2 | Stock: Yes
SK50-FMC27-55Cutter dia. (mm): 80 | Bore ØD (mm): 27 | L (mm): 55 | ØD1 (mm): 70 | H (mm): 20 | Key width W (mm): 12 | K (mm): 6.3 | G (thread): M12 | Weight (kg): 3.3 | Stock: Yes
SK50-FMC32-60Cutter dia. (mm): 100 | Bore ØD (mm): 32 | L (mm): 60 | ØD1 (mm): 85 | H (mm): 22 | Key width W (mm): 14 | K (mm): 7 | G (thread): M16 | Weight (kg): 3.8 | Stock: Yes
SK50-FMC40-50Cutter dia. (mm): 125/160 | Bore ØD (mm): 40 | L (mm): 50 | ØD1 (mm): 89 | H (mm): 27 | Key width W (mm): 15.9 | K (mm): 8 | G (thread): M20 | Weight (kg): 4.2 | Stock: Yes
