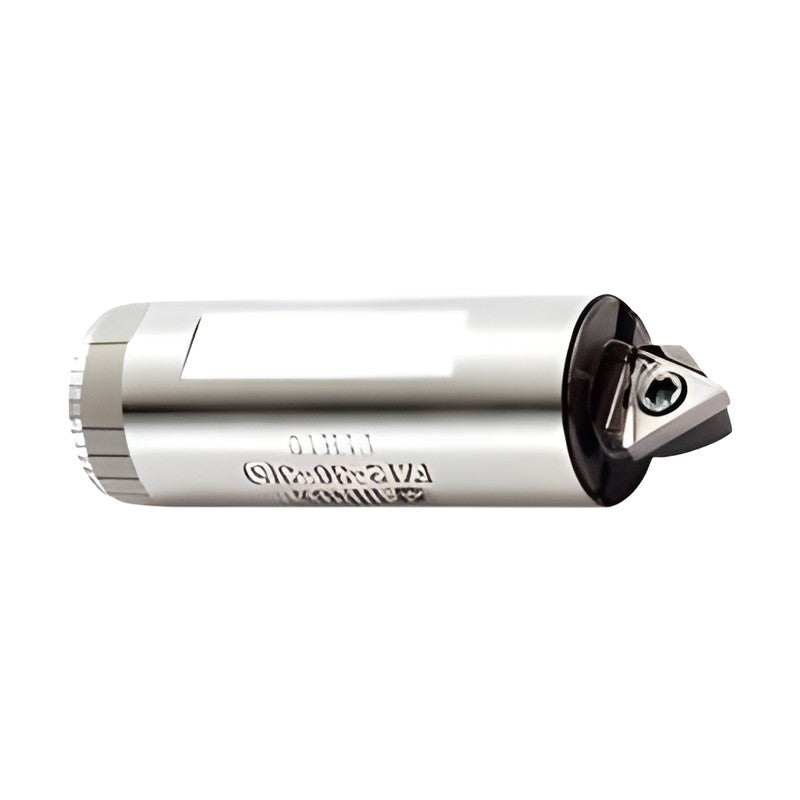

TAUMAX FZ Boring Unit Spare Parts

TAUMAX FZ Boring Unit Spare Parts

Housing sets, spindles and wrenches for FZ boring units used on BSA boring bars.

Key features

  • Housing set ordering example: FZ10-28-3(S) to FZ10-28-3HS
  • Insert screws BFTX0204A / BFTX0307A (see Insert Screw family)
  • Inserts: TBGT0601, TPGT0802, TPGT1103 with K10, P10 or cermet grades
FZ8-23,26-3HS Part: Housing set | For FZ unit: FZ8-23, 26-3, P10 | Spindle: 8Z3(P10) | L-wrench: LW-1.5
FZ10-28,32-3HS Part: Housing set | For FZ unit: FZ10-28, 32-3(S) | Spindle: U10Z3-TB06 | Insert screw: BFTX0204A | Torx wrench: TRX6 | L-wrench: LW-2.0
FZ12-36,40-3HS Part: Housing set | For FZ unit: FZ12-36, 40-3(S) | Spindle: U12Z3-TB06 | Insert screw: BFTX0204A | Torx wrench: TRX6 | L-wrench: LW-2.5
FZ16-45,50-3HS Part: Housing set | For FZ unit: FZ16-45, 50-3(S) | Spindle: U16Z3-TP08 | Insert screw: BFTX0204A | Torx wrench: TRX6 | L-wrench: LW-3.0
FZ20-56,64-3HS Part: Housing set | For FZ unit: FZ20-56, 64-3(S) | Spindle: U20Z3-TP08 | Insert screw: BFTX0204A | Torx wrench: TRX6 | L-wrench: LW-4.0
FZ25-72,80-3HS Part: Housing set | For FZ unit: FZ25-72, 80-3(S) | Spindle: U25Z3-TP11 | Insert screw: BFTX0307A | Torx wrench: TRX10 | L-wrench: LW-4.0
FZ32-90,100-3HS Part: Housing set | For FZ unit: FZ32-90, 100, 110, 125-3(S) | Spindle: U32Z3-TP11 | Insert screw: BFTX0307A | Torx wrench: TRX10 | L-wrench: LW-5.0
LW-2.0 Part: L-wrench | For FZ unit: FZ10
LW-3.0 Part: L-wrench | For FZ unit: FZ16
LW-4.0 Part: L-wrench | For FZ unit: FZ20, FZ25
LW-5.0 Part: L-wrench | For FZ unit: FZ32
Tool Holder Spare PartsTAUMAX
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX FZ Boring Unit Spare Parts

Brand TAUMAX·Tool Holder Spare Parts

Available part numbers (11)

FZ8-23,26-3HS, FZ10-28,32-3HS, FZ12-36,40-3HS, FZ16-45,50-3HS, FZ20-56,64-3HS, FZ25-72,80-3HS, FZ32-90,100-3HS, LW-2.0, LW-3.0, LW-4.0 + 1 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FZ8-23,26-3HSPart: Housing set | For FZ unit: FZ8-23, 26-3, P10 | Spindle: 8Z3(P10) | L-wrench: LW-1.5
FZ10-28,32-3HSPart: Housing set | For FZ unit: FZ10-28, 32-3(S) | Spindle: U10Z3-TB06 | Insert screw: BFTX0204A | Torx wrench: TRX6 | L-wrench: LW-2.0
FZ12-36,40-3HSPart: Housing set | For FZ unit: FZ12-36, 40-3(S) | Spindle: U12Z3-TB06 | Insert screw: BFTX0204A | Torx wrench: TRX6 | L-wrench: LW-2.5
FZ16-45,50-3HSPart: Housing set | For FZ unit: FZ16-45, 50-3(S) | Spindle: U16Z3-TP08 | Insert screw: BFTX0204A | Torx wrench: TRX6 | L-wrench: LW-3.0
FZ20-56,64-3HSPart: Housing set | For FZ unit: FZ20-56, 64-3(S) | Spindle: U20Z3-TP08 | Insert screw: BFTX0204A | Torx wrench: TRX6 | L-wrench: LW-4.0
FZ25-72,80-3HSPart: Housing set | For FZ unit: FZ25-72, 80-3(S) | Spindle: U25Z3-TP11 | Insert screw: BFTX0307A | Torx wrench: TRX10 | L-wrench: LW-4.0
FZ32-90,100-3HSPart: Housing set | For FZ unit: FZ32-90, 100, 110, 125-3(S) | Spindle: U32Z3-TP11 | Insert screw: BFTX0307A | Torx wrench: TRX10 | L-wrench: LW-5.0
LW-2.0Part: L-wrench | For FZ unit: FZ10
LW-3.0Part: L-wrench | For FZ unit: FZ16
LW-4.0Part: L-wrench | For FZ unit: FZ20, FZ25
LW-5.0Part: L-wrench | For FZ unit: FZ32
