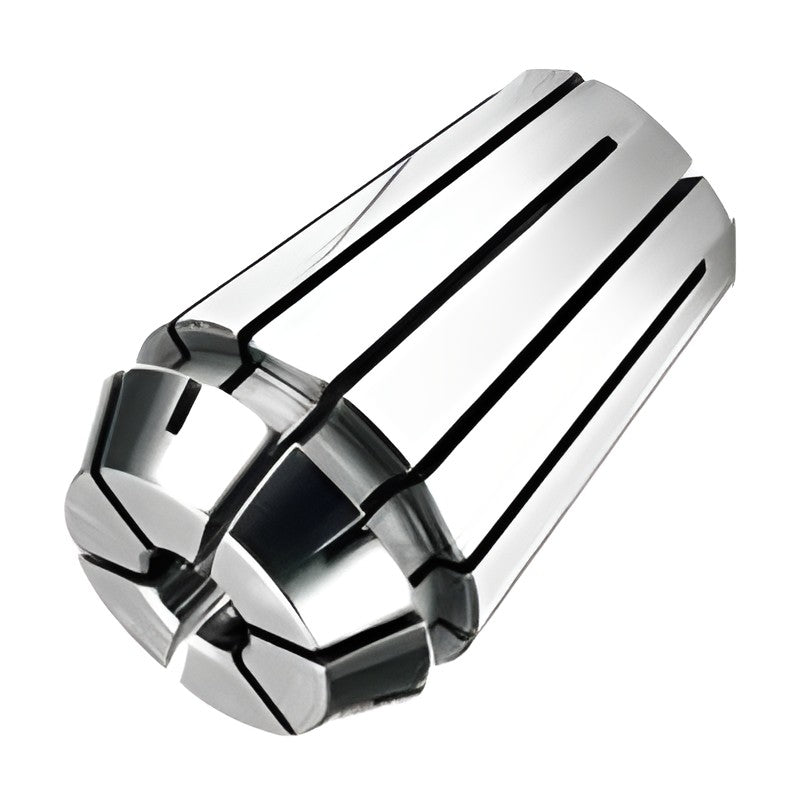

TAUMAX GERC Collet General Sealed Type C

TAUMAX GERC Collet General Sealed Type C

Sealed (waterproof) ER-standard GERC collet for internal coolant, 5 µm accuracy.

Key features

  • ER-standard collet with anti-corrosion coating
  • Fewer slits minimize clamping deformation
  • All corners honed to protect nut and collet chuck
  • Sealed type for internal coolant

Specifications

Run-out accuracy 5 µm
GERC16-5.0C ER size: 16 | ØD (mm): 5.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
GERC16-6.0C ER size: 16 | ØD (mm): 6.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
GERC16-8.0C ER size: 16 | ØD (mm): 8.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
GERC16-10.0C ER size: 16 | ØD (mm): 10.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
GERC20-6.0C ER size: 20 | ØD (mm): 6.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC20-8.0C ER size: 20 | ØD (mm): 8.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC20-10.0C ER size: 20 | ØD (mm): 10.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC20-12.0C ER size: 20 | ØD (mm): 12.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC25-6.0C ER size: 25 | ØD (mm): 6.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
GERC25-8.0C ER size: 25 | ØD (mm): 8.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
GERC25-10.0C ER size: 25 | ØD (mm): 10.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
GERC25-12.0C ER size: 25 | ØD (mm): 12.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
GERC25-14.0C ER size: 25 | ØD (mm): 14.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
GERC25-16.0C ER size: 25 | ØD (mm): 16.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
GERC32-8.0C ER size: 32 | ØD (mm): 8.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-9.0C ER size: 32 | ØD (mm): 9.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-10.0C ER size: 32 | ØD (mm): 10.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-11.0C ER size: 32 | ØD (mm): 11.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-12.0C ER size: 32 | ØD (mm): 12.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-13.0C ER size: 32 | ØD (mm): 13.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-14.0C ER size: 32 | ØD (mm): 14.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-15.0C ER size: 32 | ØD (mm): 15.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-16.0C ER size: 32 | ØD (mm): 16.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-18.0C ER size: 32 | ØD (mm): 18.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-20.0C ER size: 32 | ØD (mm): 20.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ColletsTAUMAX
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX GERC Collet General Sealed Type C

Brand TAUMAX·Collets

Available part numbers (25)

GERC16-5.0C, GERC16-6.0C, GERC16-8.0C, GERC16-10.0C, GERC20-6.0C, GERC20-8.0C, GERC20-10.0C, GERC20-12.0C, GERC25-6.0C, GERC25-8.0C + 15 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GERC16-5.0CER size: 16 | ØD (mm): 5.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
GERC16-6.0CER size: 16 | ØD (mm): 6.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
GERC16-8.0CER size: 16 | ØD (mm): 8.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
GERC16-10.0CER size: 16 | ØD (mm): 10.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
GERC20-6.0CER size: 20 | ØD (mm): 6.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC20-8.0CER size: 20 | ØD (mm): 8.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC20-10.0CER size: 20 | ØD (mm): 10.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC20-12.0CER size: 20 | ØD (mm): 12.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC25-6.0CER size: 25 | ØD (mm): 6.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
GERC25-8.0CER size: 25 | ØD (mm): 8.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
GERC25-10.0CER size: 25 | ØD (mm): 10.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
GERC25-12.0CER size: 25 | ØD (mm): 12.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
GERC25-14.0CER size: 25 | ØD (mm): 14.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
GERC25-16.0CER size: 25 | ØD (mm): 16.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
GERC32-8.0CER size: 32 | ØD (mm): 8.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-9.0CER size: 32 | ØD (mm): 9.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-10.0CER size: 32 | ØD (mm): 10.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-11.0CER size: 32 | ØD (mm): 11.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-12.0CER size: 32 | ØD (mm): 12.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-13.0CER size: 32 | ØD (mm): 13.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-14.0CER size: 32 | ØD (mm): 14.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-15.0CER size: 32 | ØD (mm): 15.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-16.0CER size: 32 | ØD (mm): 16.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-18.0CER size: 32 | ØD (mm): 18.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-20.0CER size: 32 | ØD (mm): 20.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →
