• TAUMAX GERC Collet Precision Type HP
1 1

TAUMAX GERC Collet Precision Type HP

TAUMAX GERC Collet Precision Type HP

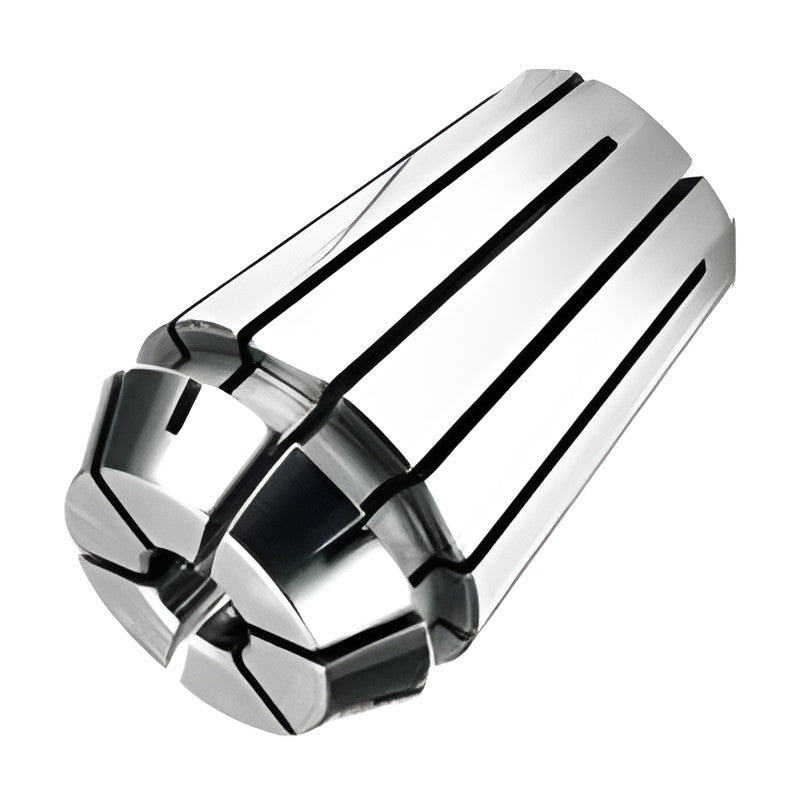

High-precision ER-standard GERC collet, precision type with 2 µm accuracy.

Key features

  • ER-standard collet with anti-corrosion coating
  • Fewer slits minimize clamping deformation
  • All corners honed to protect nut and collet chuck

Specifications

Run-out accuracy 2 µm
GERC11-3.0HP ER size: 11 | ØD (mm): 3.0 | L (mm): 18.0 | ØD1 (mm): 11.5 | Stock: Yes
GERC11-4.0HP ER size: 11 | ØD (mm): 4.0 | L (mm): 18.0 | ØD1 (mm): 11.5 | Stock: Yes
GERC11-5.0HP ER size: 11 | ØD (mm): 5.0 | L (mm): 18.0 | ØD1 (mm): 11.5 | Stock: Yes
GERC11-6.0HP ER size: 11 | ØD (mm): 6.0 | L (mm): 18.0 | ØD1 (mm): 11.5 | Stock: Yes
GERC16-3.0HP ER size: 16 | ØD (mm): 3.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
GERC16-4.0HP ER size: 16 | ØD (mm): 4.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
GERC16-5.0HP ER size: 16 | ØD (mm): 5.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
GERC16-6.0HP ER size: 16 | ØD (mm): 6.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
GERC16-7.0HP ER size: 16 | ØD (mm): 7.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
GERC16-8.0HP ER size: 16 | ØD (mm): 8.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
GERC16-9.0HP ER size: 16 | ØD (mm): 9.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
GERC16-10.0HP ER size: 16 | ØD (mm): 10.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
GERC20-3.0HP ER size: 20 | ØD (mm): 3.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC20-4.0HP ER size: 20 | ØD (mm): 4.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC20-5.0HP ER size: 20 | ØD (mm): 5.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC20-6.0HP ER size: 20 | ØD (mm): 6.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC20-8.0HP ER size: 20 | ØD (mm): 8.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC20-9.0HP ER size: 20 | ØD (mm): 9.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC20-10.0HP ER size: 20 | ØD (mm): 10.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC20-11.0HP ER size: 20 | ØD (mm): 11.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC20-12.0HP ER size: 20 | ØD (mm): 12.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC20-13.0HP ER size: 20 | ØD (mm): 13.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC25-6.0HP ER size: 25 | ØD (mm): 6.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
GERC25-10.0HP ER size: 25 | ØD (mm): 10.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
GERC25-12.0HP ER size: 25 | ØD (mm): 12.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
GERC25-14.0HP ER size: 25 | ØD (mm): 14.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
GERC25-16.0HP ER size: 25 | ØD (mm): 16.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
GERC32-6.0HP ER size: 32 | ØD (mm): 6.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-10.0HP ER size: 32 | ØD (mm): 10.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-12.0HP ER size: 32 | ØD (mm): 12.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-16.0HP ER size: 32 | ØD (mm): 16.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-18.0HP ER size: 32 | ØD (mm): 18.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-20.0HP ER size: 32 | ØD (mm): 20.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
ColletsTAUMAX
33 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX GERC Collet Precision Type HP

Brand TAUMAX·Collets

Available part numbers (33)

GERC11-3.0HP, GERC11-4.0HP, GERC11-5.0HP, GERC11-6.0HP, GERC16-3.0HP, GERC16-4.0HP, GERC16-5.0HP, GERC16-6.0HP, GERC16-7.0HP, GERC16-8.0HP + 23 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GERC11-3.0HPER size: 11 | ØD (mm): 3.0 | L (mm): 18.0 | ØD1 (mm): 11.5 | Stock: Yes
GERC11-4.0HPER size: 11 | ØD (mm): 4.0 | L (mm): 18.0 | ØD1 (mm): 11.5 | Stock: Yes
GERC11-5.0HPER size: 11 | ØD (mm): 5.0 | L (mm): 18.0 | ØD1 (mm): 11.5 | Stock: Yes
GERC11-6.0HPER size: 11 | ØD (mm): 6.0 | L (mm): 18.0 | ØD1 (mm): 11.5 | Stock: Yes
GERC16-3.0HPER size: 16 | ØD (mm): 3.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
GERC16-4.0HPER size: 16 | ØD (mm): 4.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
GERC16-5.0HPER size: 16 | ØD (mm): 5.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
GERC16-6.0HPER size: 16 | ØD (mm): 6.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
GERC16-7.0HPER size: 16 | ØD (mm): 7.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
GERC16-8.0HPER size: 16 | ØD (mm): 8.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
GERC16-9.0HPER size: 16 | ØD (mm): 9.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
GERC16-10.0HPER size: 16 | ØD (mm): 10.0 | L (mm): 27.5 | ØD1 (mm): 17.0 | Stock: Yes
GERC20-3.0HPER size: 20 | ØD (mm): 3.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC20-4.0HPER size: 20 | ØD (mm): 4.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC20-5.0HPER size: 20 | ØD (mm): 5.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC20-6.0HPER size: 20 | ØD (mm): 6.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC20-8.0HPER size: 20 | ØD (mm): 8.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC20-9.0HPER size: 20 | ØD (mm): 9.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC20-10.0HPER size: 20 | ØD (mm): 10.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC20-11.0HPER size: 20 | ØD (mm): 11.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC20-12.0HPER size: 20 | ØD (mm): 12.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC20-13.0HPER size: 20 | ØD (mm): 13.0 | L (mm): 31.5 | ØD1 (mm): 21.0 | Stock: Yes
GERC25-6.0HPER size: 25 | ØD (mm): 6.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
GERC25-10.0HPER size: 25 | ØD (mm): 10.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
GERC25-12.0HPER size: 25 | ØD (mm): 12.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
GERC25-14.0HPER size: 25 | ØD (mm): 14.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
GERC25-16.0HPER size: 25 | ØD (mm): 16.0 | L (mm): 34.0 | ØD1 (mm): 26.0 | Stock: Yes
GERC32-6.0HPER size: 32 | ØD (mm): 6.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-10.0HPER size: 32 | ØD (mm): 10.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-12.0HPER size: 32 | ØD (mm): 12.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-16.0HPER size: 32 | ØD (mm): 16.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-18.0HPER size: 32 | ØD (mm): 18.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
GERC32-20.0HPER size: 32 | ØD (mm): 20.0 | L (mm): 40.0 | ØD1 (mm): 33.0 | Stock: Yes
