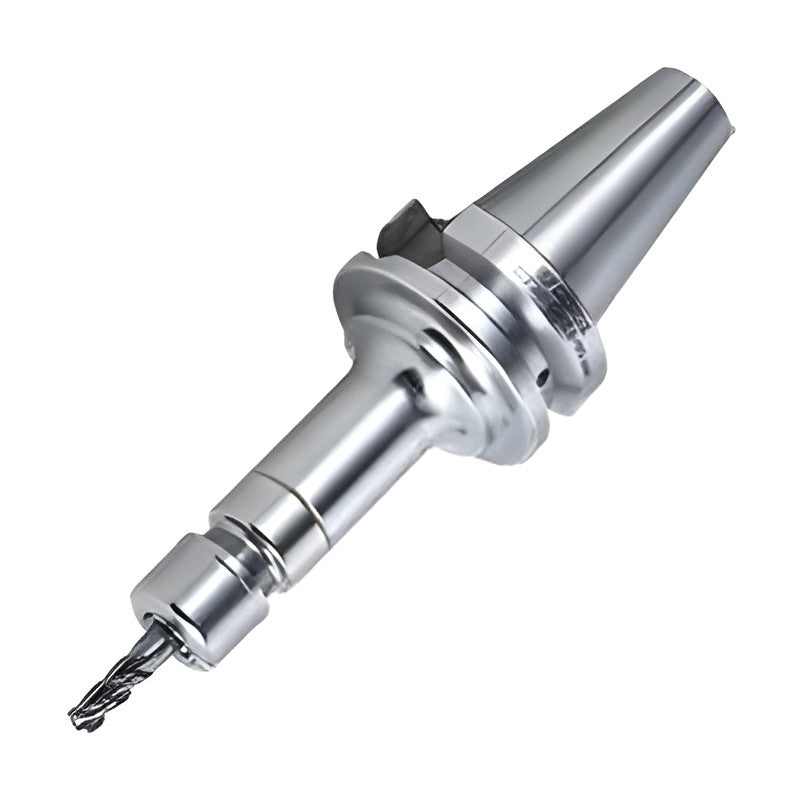

TAUMAX Great Speed Slim Collet Chuck BT-GSK

TAUMAX Great Speed Slim Collet Chuck BT-GSK

BT shank great speed slim collet chuck using 8-degree HC collets for clamping tools from Ø2 to Ø25 mm.

Key features

  • 8-degree HC collet with broader clamping area
  • High-speed type nut minimizes imbalance from fastening grooves
  • Screw-ground nut threads for repeatable precision
  • Test bar area on the body for easy run-out measurement
  • Tool clamping range Ø2 to Ø25 mm
  • Internal coolant optional

Specifications

Shank BT (MAS 403-BT)
Balance grade G2.5 at 25,000 rpm
BT30-GSK6-60 Clamping range (mm): 3.0~6.0 | L (mm): 60 | ØD1 (mm): 20 | ØD2 (mm): 20 | L1 (mm): 33 | L2 (mm): 33 | H (mm): 31 | Collet: HC6 | G (thread): M8 | Max RPM: 25,000 | Weight (kg): 0.4 | Stock: Yes
BT30-GSK6-90 Clamping range (mm): 3.0~6.0 | L (mm): 90 | ØD1 (mm): 20 | ØD2 (mm): 32 | L1 (mm): 56 | L2 (mm): 65 | H (mm): 31 | Collet: HC6 | G (thread): M8 | Max RPM: 25,000 | Weight (kg): 0.5 | Stock: Yes
BT30-GSK10-60 Clamping range (mm): 2.0~10.0 | L (mm): 60 | ØD1 (mm): 27 | ØD2 (mm): 27 | L1 (mm): 35 | L2 (mm): 35 | H (mm): 38 | Collet: HC10 | G (thread): M12 | Max RPM: 25,000 | Weight (kg): 0.5 | Stock: Yes
BT30-GSK10-90 Clamping range (mm): 2.0~10.0 | L (mm): 90 | ØD1 (mm): 27 | ØD2 (mm): 27 | L1 (mm): 65 | L2 (mm): 65 | H (mm): 38 | Collet: HC10 | G (thread): M12 | Max RPM: 25,000 | Weight (kg): 0.6 | Stock: Yes
BT30-GSK13-60 Clamping range (mm): 3.0~13.0 | L (mm): 60 | ØD1 (mm): 35 | ØD2 (mm): 35 | L1 (mm): 36 | L2 (mm): 36 | H (mm): 43 | Collet: HC13 | G (thread): M12 | Max RPM: 25,000 | Weight (kg): 0.6 | Stock: Yes
BT30-GSK16-60 Clamping range (mm): 3.0~16.0 | L (mm): 60 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 37 | L2 (mm): 37 | H (mm): 52 | Collet: HC16 | G (thread): M8 | Max RPM: 25,000 | Weight (kg): 0.6 | Stock: Yes
BT30-GSK16-90 Clamping range (mm): 3.0~16.0 | L (mm): 90 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 67 | L2 (mm): 67 | H (mm): 52 | Collet: HC16 | G (thread): M18 | Max RPM: 25,000 | Weight (kg): 0.8 | Stock: Yes
BT30-GSK25-90 Clamping range (mm): 16.0~25.0 | L (mm): 90 | ØD1 (mm): 55 | ØD2 (mm): 55 | L1 (mm): 68 | L2 (mm): 68 | H (mm): 63.5 | Collet: HC25 | G (thread): M12 | Max RPM: 25,000 | Weight (kg): 1.0 | Stock: Yes
BT40-GSK6-90 Clamping range (mm): 3.0~6.0 | L (mm): 90 | ØD1 (mm): 20 | ØD2 (mm): 32 | L1 (mm): 51 | L2 (mm): 60 | H (mm): 31 | Collet: HC6 | G (thread): M8 | Max RPM: 20,000 | Weight (kg): 1.0 | Stock: Yes
BT40-GSK6-120 Clamping range (mm): 3.0~6.0 | L (mm): 120 | ØD1 (mm): 20 | ØD2 (mm): 32 | L1 (mm): 62 | L2 (mm): 90 | H (mm): 31 | Collet: HC6 | G (thread): M8 | Max RPM: 20,000 | Weight (kg): 1.2 | Stock: Yes
BT40-GSK6-150 Clamping range (mm): 3.0~6.0 | L (mm): 150 | ØD1 (mm): 20 | ØD2 (mm): 25 | L1 (mm): 60 | L2 (mm): 120 | H (mm): 31 | Collet: HC6 | G (thread): M8 | Max RPM: 20,000 | Weight (kg): 1.2 | Stock: Yes
BT40-GSK10-90 Clamping range (mm): 2.0~10.0 | L (mm): 90 | ØD1 (mm): 27 | ØD2 (mm): 40 | L1 (mm): 48 | L2 (mm): 60 | H (mm): 38 | Collet: HC10 | G (thread): M12 | Max RPM: 20,000 | Weight (kg): 1.1 | Stock: Yes
BT40-GSK10-120 Clamping range (mm): 2.0~10.0 | L (mm): 120 | ØD1 (mm): 27 | ØD2 (mm): 40 | L1 (mm): 73 | L2 (mm): 90 | H (mm): 38 | Collet: HC10 | G (thread): M12 | Max RPM: 20,000 | Weight (kg): 1.3 | Stock: Yes
BT40-GSK10-150 Clamping range (mm): 2.0~10.0 | L (mm): 150 | ØD1 (mm): 27 | ØD2 (mm): 34.5 | L1 (mm): 73 | L2 (mm): 120 | H (mm): 38 | Collet: HC10 | G (thread): M12 | Max RPM: 20,000 | Weight (kg): 1.4 | Stock: Yes
BT40-GSK13-90 Clamping range (mm): 3.0~13.0 | L (mm): 90 | ØD1 (mm): 35 | ØD2 (mm): 35 | L1 (mm): 59 | L2 (mm): 59 | H (mm): 43 | Collet: HC13 | G (thread): M15 | Max RPM: 20,000 | Weight (kg): 1.2 | Stock: Yes
BT40-GSK16-90 Clamping range (mm): 3.0~16.0 | L (mm): 90 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 58 | L2 (mm): 58 | H (mm): 52 | Collet: HC16 | G (thread): M18 | Max RPM: 20,000 | Weight (kg): 1.3 | Stock: Yes
BT40-GSK16-120 Clamping range (mm): 3.0~16.0 | L (mm): 120 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 88 | L2 (mm): 88 | H (mm): 52 | Collet: HC16 | G (thread): M18 | Max RPM: 20,000 | Weight (kg): 1.5 | Stock: Yes
BT40-GSK16-150 Clamping range (mm): 3.0~16.0 | L (mm): 150 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 118 | L2 (mm): 118 | H (mm): 52 | Collet: HC16 | G (thread): M18 | Max RPM: 20,000 | Weight (kg): 1.8 | Stock: Yes
BT40-GSK20-90 Clamping range (mm): 4.0~20.0 | L (mm): 90 | ØD1 (mm): 48 | ØD2 (mm): 48 | L1 (mm): 60 | L2 (mm): 60 | H (mm): 60 | Collet: HC20 | G (thread): M22 | Max RPM: 20,000 | Weight (kg): 1.4 | Stock: Yes
BT40-GSK20-120 Clamping range (mm): 4.0~20.0 | L (mm): 120 | ØD1 (mm): 48 | ØD2 (mm): 48 | L1 (mm): 90 | L2 (mm): 90 | H (mm): 60 | Collet: HC20 | G (thread): M22 | Max RPM: 20,000 | Weight (kg): 1.8 | Stock: Yes
BT40-GSK25-90 Clamping range (mm): 16.0~25.0 | L (mm): 90 | ØD1 (mm): 55 | ØD2 (mm): 55 | L1 (mm): 61 | L2 (mm): 61 | H (mm): 63.5 | Collet: HC25 | G (thread): M28 | Max RPM: 20,000 | Weight (kg): 1.6 | Stock: Yes
BT40-GSK25-120 Clamping range (mm): 16.0~25.0 | L (mm): 120 | ØD1 (mm): 55 | ØD2 (mm): 55 | L1 (mm): 91 | L2 (mm): 91 | H (mm): 63.5 | Collet: HC25 | G (thread): M28 | Max RPM: 20,000 | Weight (kg): 2.0 | Stock: Yes
BT50-GSK6-105 Clamping range (mm): 3.0~6.0 | L (mm): 105 | ØD1 (mm): 20 | ØD2 (mm): 32 | L1 (mm): 57 | L2 (mm): 64 | H (mm): 31 | Collet: HC6 | G (thread): M8 | Max RPM: 15,000 | Weight (kg): 3.6 | Stock: Yes
BT50-GSK6-135 Clamping range (mm): 3.0~6.0 | L (mm): 135 | ØD1 (mm): 20 | ØD2 (mm): 32 | L1 (mm): 62 | L2 (mm): 92 | H (mm): 31 | Collet: HC6 | G (thread): M8 | Max RPM: 15,000 | Weight (kg): 3.6 | Stock: Yes
BT50-GSK6-165 Clamping range (mm): 3.0~6.0 | L (mm): 165 | ØD1 (mm): 20 | ØD2 (mm): 32 | L1 (mm): 62 | L2 (mm): 114 | H (mm): 31 | Collet: HC6 | G (thread): M8 | Max RPM: 15,000 | Weight (kg): 3.9 | Stock: Yes
BT50-GSK10-105 Clamping range (mm): 2.0~10.0 | L (mm): 105 | ØD1 (mm): 27 | ØD2 (mm): 27 | L1 (mm): 57 | L2 (mm): 57 | H (mm): 38 | Collet: HC10 | G (thread): M12 | Max RPM: 15,000 | Weight (kg): 3.7 | Stock: Yes
BT50-GSK10-135 Clamping range (mm): 2.0~10.0 | L (mm): 135 | ØD1 (mm): 27 | ØD2 (mm): 32 | L1 (mm): 77 | L2 (mm): 92 | H (mm): 38 | Collet: HC10 | G (thread): M12 | Max RPM: 15,000 | Weight (kg): 3.7 | Stock: Yes
BT50-GSK10-165 Clamping range (mm): 2.0~10.0 | L (mm): 165 | ØD1 (mm): 27 | ØD2 (mm): 32 | L1 (mm): 82 | L2 (mm): 111 | H (mm): 38 | Collet: HC10 | G (thread): M12 | Max RPM: 15,000 | Weight (kg): 4.0 | Stock: Yes
BT50-GSK13-135 Clamping range (mm): 3.0~13.0 | L (mm): 135 | ØD1 (mm): 35 | ØD2 (mm): 35 | L1 (mm): 92 | L2 (mm): 92 | H (mm): 43 | Collet: HC13 | G (thread): M15 | Max RPM: 15,000 | Weight (kg): 3.9 | Stock: Yes
BT50-GSK16-105 Clamping range (mm): 3.0~16.0 | L (mm): 105 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 62 | L2 (mm): 62 | H (mm): 52 | Collet: HC16 | G (thread): M18 | Max RPM: 15,000 | Weight (kg): 3.9 | Stock: Yes
BT50-GSK16-135 Clamping range (mm): 3.0~16.0 | L (mm): 135 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 92 | L2 (mm): 92 | H (mm): 52 | Collet: HC16 | G (thread): M18 | Max RPM: 15,000 | Weight (kg): 4.1 | Stock: Yes
BT50-GSK16-165 Clamping range (mm): 3.0~16.0 | L (mm): 165 | ØD1 (mm): 40 | ØD2 (mm): 50 | L1 (mm): 40 | L2 (mm): 122 | H (mm): 52 | Collet: HC16 | G (thread): M18 | Max RPM: 15,000 | Weight (kg): 4.3 | Stock: Yes
BT50-GSK20-105 Clamping range (mm): 4.0~20.0 | L (mm): 105 | ØD1 (mm): 48 | L2 (mm): 62 | H (mm): 60 | Collet: HC20 | G (thread): M22 | Max RPM: 15,000 | Weight (kg): 4.1 | Stock: Yes
BT50-GSK20-135 Clamping range (mm): 4.0~20.0 | L (mm): 135 | ØD1 (mm): 48 | L2 (mm): 92 | H (mm): 60 | Collet: HC20 | G (thread): M22 | Max RPM: 15,000 | Weight (kg): 4.4 | Stock: Yes
BT50-GSK20-165 Clamping range (mm): 4.0~20.0 | L (mm): 165 | ØD1 (mm): 48 | L2 (mm): 122 | H (mm): 60 | Collet: HC20 | G (thread): M22 | Max RPM: 15,000 | Weight (kg): 4.9 | Stock: Yes
BT50-GSK25-105 Clamping range (mm): 16.0~25.0 | L (mm): 105 | ØD1 (mm): 55 | ØD2 (mm): 55 | L1 (mm): 62 | L2 (mm): 62 | H (mm): 63.5 | Collet: HC25 | G (thread): M28 | Max RPM: 15,000 | Weight (kg): 4.2 | Stock: Yes
BT50-GSK25-135 Clamping range (mm): 16.0~25.0 | L (mm): 135 | ØD1 (mm): 55 | ØD2 (mm): 55 | L1 (mm): 92 | L2 (mm): 92 | H (mm): 63.5 | Collet: HC25 | G (thread): M28 | Max RPM: 15,000 | Weight (kg): 4.6 | Stock: Yes
BT50-GSK25-165 Clamping range (mm): 16.0~25.0 | L (mm): 165 | ØD1 (mm): 55 | ØD2 (mm): 55 | L1 (mm): 122 | L2 (mm): 122 | H (mm): 63.5 | Collet: HC25 | G (thread): M28 | Max RPM: 15,000 | Weight (kg): 5.1 | Stock: Yes
