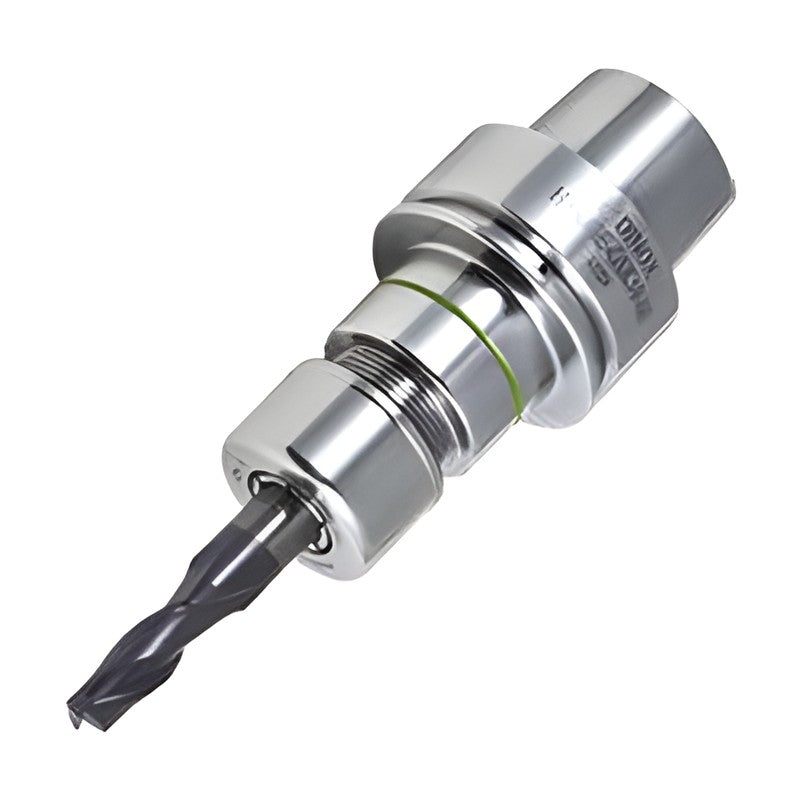

TAUMAX Great Speed Slim Collet Chuck HSK-GSK / SK-GSK

TAUMAX Great Speed Slim Collet Chuck HSK-GSK / SK-GSK

HSK-A and SK shank great speed slim collet chuck using 8-degree HC collets for clamping tools from Ø2 to Ø25 mm.

Key features

  • 8-degree HC collet with broader clamping area
  • High-speed type nut minimizes imbalance from fastening grooves
  • Screw-ground nut threads for repeatable precision
  • Test bar area on the body for easy run-out measurement
  • Tool clamping range Ø2 to Ø25 mm
  • Internal coolant optional
HSK63A-GSK6-100 Clamping range (mm): 3.0~6.0 | L (mm): 100 | ØD1 (mm): 20 | ØD2 (mm): 32 | L1 (mm): 51 | L2 (mm): 71 | H (mm): 31 | Collet: HC6 | G (thread): M8 | Max RPM: 20,000 | Weight (kg): 0.8 | Stock: Yes
HSK63A-GSK10-105 Clamping range (mm): 2.0~10.0 | L (mm): 105 | ØD1 (mm): 27 | ØD2 (mm): 40 | L1 (mm): 60 | L2 (mm): 76 | H (mm): 38 | Collet: HC10 | G (thread): M12 | Max RPM: 20,000 | Weight (kg): 0.9 | Stock: Yes
HSK63A-GSK16-120 Clamping range (mm): 3.0~16.0 | L (mm): 120 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 90 | H (mm): 52 | Collet: HC16 | G (thread): M18 | Max RPM: 20,000 | Weight (kg): 1.3 | Stock: Yes
HSK63A-GSK20-120 Clamping range (mm): 4.0~20.0 | L (mm): 120 | ØD1 (mm): 48 | ØD2 (mm): 48 | L1 (mm): 92 | H (mm): 60 | Collet: HC20 | G (thread): M15 | Max RPM: 20,000 | Weight (kg): 1.6 | Stock: Yes
HSK100A-GSK6-120 Clamping range (mm): 3.0~6.0 | L (mm): 120 | ØD1 (mm): 19.5 | ØD2 (mm): 32 | L1 (mm): 69 | L2 (mm): 86 | H (mm): 31 | Collet: HC6 | G (thread): M8 | Max RPM: 15,000 | Weight (kg): 2.2 | Stock: Yes
HSK100A-GSK10-120 Clamping range (mm): 2.0~10.0 | L (mm): 120 | ØD1 (mm): 27.5 | ØD2 (mm): 27.5 | L1 (mm): 70 | L2 (mm): 88 | H (mm): 38 | Collet: HC10 | G (thread): M12 | Max RPM: 15,000 | Weight (kg): 2.3 | Stock: Yes
HSK100A-GSK16-140 Clamping range (mm): 3.0~16.0 | L (mm): 140 | ØD1 (mm): 40 | ØD2 (mm): 40 | L1 (mm): 105 | H (mm): 52 | Collet: HC16 | G (thread): M18 | Max RPM: 15,000 | Weight (kg): 2.8 | Stock: Yes
HSK100A-GSK25-155 Clamping range (mm): 16.0~25.0 | L (mm): 155 | ØD1 (mm): 55 | ØD2 (mm): 55 | L1 (mm): 120 | H (mm): 63.5 | Collet: HC25 | G (thread): M28 | Max RPM: 15,000 | Weight (kg): 3.6 | Stock: Yes
SK40-GSK6-60 Clamping range (mm): 3.0~6.0 | L (mm): 60 | ØD1 (mm): 20 | L1 (mm): 37 | H (mm): 31 | Collet: HC6 | G (thread): M8 | Max RPM: 20,000 | Weight (kg): 0.8 | Stock: Yes
SK40-GSK6-90 Clamping range (mm): 3.0~6.0 | L (mm): 90 | ØD1 (mm): 20 | ØD2 (mm): 45 | L1 (mm): 48 | L2 (mm): 70 | H (mm): 31 | Collet: HC6 | G (thread): M8 | Max RPM: 20,000 | Weight (kg): 1.0 | Stock: Yes
SK40-GSK10-90 Clamping range (mm): 2.0~10.0 | L (mm): 90 | ØD1 (mm): 27 | ØD2 (mm): 45 | L1 (mm): 50 | L2 (mm): 70 | H (mm): 38 | Collet: HC10 | G (thread): M12 | Max RPM: 20,000 | Weight (kg): 1.1 | Stock: Yes
SK40-GSK10-150 Clamping range (mm): 2.0~10.0 | L (mm): 150 | ØD1 (mm): 27 | ØD2 (mm): 32 | ØD3 (mm): 45 | L1 (mm): 74 | L2 (mm): 112 | L3 (mm): 130 | H (mm): 38 | Collet: HC10 | G (thread): M12 | Max RPM: 20,000 | Weight (kg): 1.3
SK40-GSK16-90 Clamping range (mm): 3.0~16.0 | L (mm): 90 | ØD1 (mm): 40 | L1 (mm): 67 | H (mm): 52 | Collet: HC16 | G (thread): M18 | Max RPM: 20,000 | Weight (kg): 1.2 | Stock: Yes
SK40-GSK16-150 Clamping range (mm): 3.0~16.0 | L (mm): 150 | ØD1 (mm): 40 | ØD2 (mm): 45 | L1 (mm): 114 | L2 (mm): 131 | H (mm): 52 | Collet: HC16 | G (thread): M18 | Max RPM: 20,000 | Weight (kg): 1.7 | Stock: Yes
SK40-GSK20-90 Clamping range (mm): 4.0~20.0 | L (mm): 90 | ØD1 (mm): 48 | L1 (mm): 70 | H (mm): 60 | Collet: HC20 | G (thread): M22 | Max RPM: 20,000 | Weight (kg): 1.3 | Stock: Yes
SK40-GSK25-90 Clamping range (mm): 16.0~25.0 | L (mm): 90 | ØD1 (mm): 55 | L1 (mm): 70 | H (mm): 63.5 | Collet: HC25 | G (thread): M28 | Max RPM: 20,000 | Weight (kg): 1.3 | Stock: Yes
SK50-GSK6-105 Clamping range (mm): 3.0~6.0 | L (mm): 105 | ØD1 (mm): 20 | ØD2 (mm): 70 | L1 (mm): 60 | L2 (mm): 85 | H (mm): 31 | Collet: HC6 | G (thread): M8 | Max RPM: 15,000 | Weight (kg): 3.1 | Stock: Yes
SK50-GSK6-165 Clamping range (mm): 3.0~6.0 | L (mm): 165 | ØD1 (mm): 20 | ØD2 (mm): 32 | ØD3 (mm): 70 | L1 (mm): 60 | L2 (mm): 120 | L3 (mm): 145 | H (mm): 31 | Collet: HC6 | G (thread): M8 | Max RPM: 15,000 | Weight (kg): 3.3
SK50-GSK10-105 Clamping range (mm): 2.0~10.0 | L (mm): 105 | ØD1 (mm): 27 | ØD2 (mm): 70 | L1 (mm): 65 | L2 (mm): 85 | H (mm): 38 | Collet: HC10 | G (thread): M12 | Max RPM: 15,000 | Weight (kg): 3.2 | Stock: Yes
SK50-GSK10-165 Clamping range (mm): 2.0~10.0 | L (mm): 165 | ØD1 (mm): 27 | ØD2 (mm): 32 | ØD3 (mm): 70 | L1 (mm): 79 | L2 (mm): 120 | L3 (mm): 145 | H (mm): 38 | Collet: HC10 | G (thread): M12 | Max RPM: 15,000 | Weight (kg): 3.4
SK50-GSK16-105 Clamping range (mm): 3.0~16.0 | L (mm): 105 | ØD1 (mm): 40 | ØD2 (mm): 70 | L1 (mm): 65 | L2 (mm): 85 | H (mm): 52 | Collet: HC16 | G (thread): M18 | Max RPM: 15,000 | Weight (kg): 3.4 | Stock: Yes
SK50-GSK16-165 Clamping range (mm): 3.0~16.0 | L (mm): 165 | ØD1 (mm): 40 | ØD2 (mm): 70 | L1 (mm): 125 | L2 (mm): 145 | H (mm): 52 | Collet: HC16 | G (thread): M18 | Max RPM: 15,000 | Weight (kg): 3.9 | Stock: Yes (switching to non-stock after depletion)
SK50-GSK20-105 Clamping range (mm): 4.0~20.0 | L (mm): 105 | ØD1 (mm): 48 | ØD2 (mm): 70 | L1 (mm): 65 | L2 (mm): 85 | H (mm): 60 | Collet: HC20 | G (thread): M22 | Max RPM: 15,000 | Weight (kg): 3.6 | Stock: Yes
SK50-GSK20-165 Clamping range (mm): 4.0~20.0 | L (mm): 165 | ØD1 (mm): 48 | ØD2 (mm): 70 | L1 (mm): 125 | L2 (mm): 145 | H (mm): 60 | Collet: HC20 | G (thread): M22 | Max RPM: 15,000 | Weight (kg): 4.3 | Stock: Yes
SK50-GSK25-105 Clamping range (mm): 16.0~25.0 | L (mm): 105 | ØD1 (mm): 55 | ØD2 (mm): 70 | L1 (mm): 65 | L2 (mm): 85 | H (mm): 63.5 | Collet: HC25 | G (thread): M28 | Max RPM: 15,000 | Weight (kg): 3.7 | Stock: Yes
SK50-GSK25-165 Clamping range (mm): 16.0~25.0 | L (mm): 165 | ØD1 (mm): 55 | ØD2 (mm): 70 | L1 (mm): 125 | L2 (mm): 145 | H (mm): 63.5 | Collet: HC25 | G (thread): M28 | Max RPM: 15,000 | Weight (kg): 4.6 | Stock: Yes
Collet ChucksTAUMAX
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Great Speed Slim Collet Chuck HSK-GSK / SK-GSK

Brand TAUMAX·Collet Chucks

Available part numbers (26)

HSK63A-GSK6-100, HSK63A-GSK10-105, HSK63A-GSK16-120, HSK63A-GSK20-120, HSK100A-GSK6-120, HSK100A-GSK10-120, HSK100A-GSK16-140, HSK100A-GSK25-155, SK40-GSK6-60, SK40-GSK6-90 + 16 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
