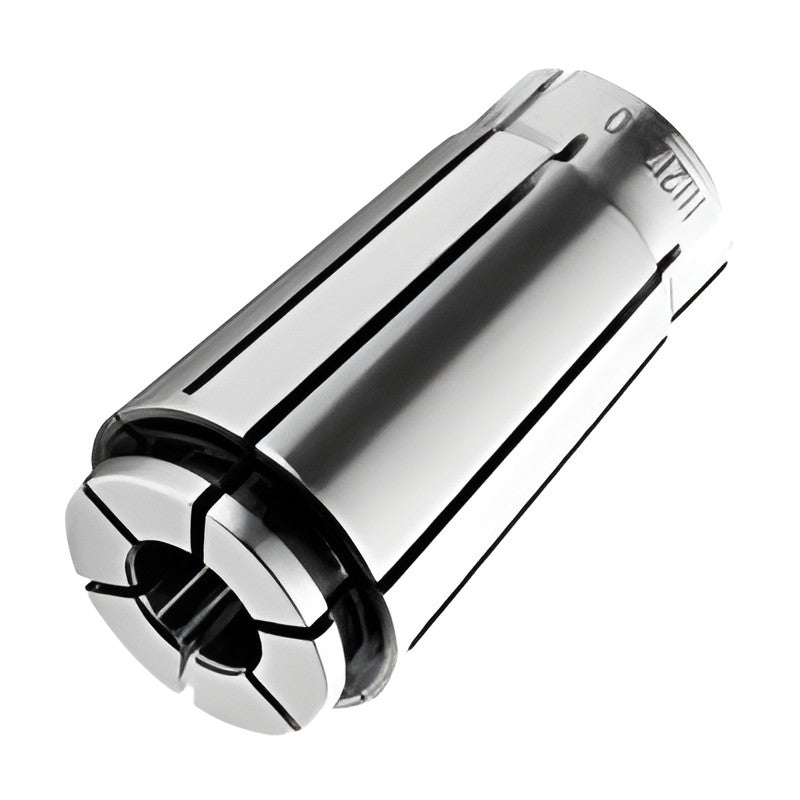

TAUMAX HC Slim Collet General Type

TAUMAX HC Slim Collet General Type

8-degree HC slim collet (general type, 5 µm run-out) for DSK and GSK slim collet chucks.

Specifications

Collet angle 8 degrees
HC6-3.0 Clamping dia. ØD (mm): 3.0 | L (mm): 25.0 | ØD1 (mm): 10.5 | Run-out accuracy: 5 µm | Stock: Yes
HC6-4.0 Clamping dia. ØD (mm): 4.0 | L (mm): 25.0 | ØD1 (mm): 10.5 | Run-out accuracy: 5 µm | Stock: Yes
HC6-5.0 Clamping dia. ØD (mm): 5.0 | L (mm): 25.0 | ØD1 (mm): 10.5 | Run-out accuracy: 5 µm | Stock: Yes
HC6-6.0 Clamping dia. ØD (mm): 6.0 | L (mm): 25.0 | ØD1 (mm): 10.5 | Run-out accuracy: 5 µm | Stock: Yes
HC10-2.0 Clamping dia. ØD (mm): 2.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 5 µm | Stock: Yes
HC10-3.0 Clamping dia. ØD (mm): 3.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 5 µm | Stock: Yes
HC10-4.0 Clamping dia. ØD (mm): 4.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 5 µm | Stock: Yes
HC10-5.0 Clamping dia. ØD (mm): 5.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 5 µm | Stock: Yes
HC10-6.0 Clamping dia. ØD (mm): 6.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 5 µm | Stock: Yes
HC10-7.0 Clamping dia. ØD (mm): 7.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 5 µm | Stock: Yes
HC10-8.0 Clamping dia. ØD (mm): 8.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 5 µm | Stock: Yes
HC10-9.0 Clamping dia. ØD (mm): 9.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 5 µm | Stock: Yes
HC10-10.0 Clamping dia. ØD (mm): 10.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 5 µm | Stock: Yes
HC13-3.0 Clamping dia. ØD (mm): 3.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 5 µm | Stock: Yes
HC13-4.0 Clamping dia. ØD (mm): 4.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 5 µm | Stock: Yes
HC13-5.0 Clamping dia. ØD (mm): 5.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 5 µm | Stock: Yes
HC13-6.0 Clamping dia. ØD (mm): 6.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 5 µm | Stock: Yes
HC13-7.0 Clamping dia. ØD (mm): 7.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 5 µm | Stock: Yes
HC13-8.0 Clamping dia. ØD (mm): 8.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 5 µm | Stock: Yes
HC13-9.0 Clamping dia. ØD (mm): 9.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 5 µm | Stock: Yes
HC13-10.0 Clamping dia. ØD (mm): 10.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 5 µm | Stock: Yes
HC13-11.0 Clamping dia. ØD (mm): 11.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 5 µm | Stock: Yes
HC13-12.0 Clamping dia. ØD (mm): 12.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 5 µm | Stock: Yes
HC13-13.0 Clamping dia. ØD (mm): 13.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 5 µm | Stock: Yes
HC16-3.0 Clamping dia. ØD (mm): 3.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC16-4.0 Clamping dia. ØD (mm): 4.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC16-5.0 Clamping dia. ØD (mm): 5.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC16-6.0 Clamping dia. ØD (mm): 6.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC16-7.0 Clamping dia. ØD (mm): 7.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC16-8.0 Clamping dia. ØD (mm): 8.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC16-9.0 Clamping dia. ØD (mm): 9.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC16-10.0 Clamping dia. ØD (mm): 10.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC16-11.0 Clamping dia. ØD (mm): 11.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC16-12.0 Clamping dia. ØD (mm): 12.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC16-13.0 Clamping dia. ØD (mm): 13.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC16-14.0 Clamping dia. ØD (mm): 14.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC16-15.0 Clamping dia. ØD (mm): 15.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC16-16.0 Clamping dia. ØD (mm): 16.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC20-4.0 Clamping dia. ØD (mm): 4.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 5 µm | Stock: Yes
HC20-6.0 Clamping dia. ØD (mm): 6.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 5 µm | Stock: Yes
HC20-8.0 Clamping dia. ØD (mm): 8.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 5 µm | Stock: Yes
HC20-10.0 Clamping dia. ØD (mm): 10.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 5 µm | Stock: Yes
HC20-12.0 Clamping dia. ØD (mm): 12.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 5 µm | Stock: Yes
HC20-14.0 Clamping dia. ØD (mm): 14.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 5 µm | Stock: Yes
HC20-16.0 Clamping dia. ØD (mm): 16.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 5 µm | Stock: Yes
HC20-18.0 Clamping dia. ØD (mm): 18.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 5 µm | Stock: Yes
HC20-20.0 Clamping dia. ØD (mm): 20.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 5 µm | Stock: Yes
HC25-16.0 Clamping dia. ØD (mm): 16.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 5 µm | Stock: Yes
HC25-17.0 Clamping dia. ØD (mm): 17.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 5 µm | Stock: Yes
HC25-18.0 Clamping dia. ØD (mm): 18.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 5 µm | Stock: Yes
HC25-19.0 Clamping dia. ØD (mm): 19.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 5 µm | Stock: Yes
HC25-20.0 Clamping dia. ØD (mm): 20.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 5 µm | Stock: Yes
HC25-21.0 Clamping dia. ØD (mm): 21.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 5 µm | Stock: Yes
HC25-22.0 Clamping dia. ØD (mm): 22.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 5 µm | Stock: Yes
HC25-23.0 Clamping dia. ØD (mm): 23.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 5 µm | Stock: Yes
HC25-24.0 Clamping dia. ØD (mm): 24.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 5 µm | Stock: Yes
HC25-25.0 Clamping dia. ØD (mm): 25.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 5 µm | Stock: Yes
ColletsTAUMAX
57 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX HC Slim Collet General Type

Brand TAUMAX·Collets

Available part numbers (57)

HC6-3.0, HC6-4.0, HC6-5.0, HC6-6.0, HC10-2.0, HC10-3.0, HC10-4.0, HC10-5.0, HC10-6.0, HC10-7.0 + 47 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HC6-3.0Clamping dia. ØD (mm): 3.0 | L (mm): 25.0 | ØD1 (mm): 10.5 | Run-out accuracy: 5 µm | Stock: Yes
HC6-4.0Clamping dia. ØD (mm): 4.0 | L (mm): 25.0 | ØD1 (mm): 10.5 | Run-out accuracy: 5 µm | Stock: Yes
HC6-5.0Clamping dia. ØD (mm): 5.0 | L (mm): 25.0 | ØD1 (mm): 10.5 | Run-out accuracy: 5 µm | Stock: Yes
HC6-6.0Clamping dia. ØD (mm): 6.0 | L (mm): 25.0 | ØD1 (mm): 10.5 | Run-out accuracy: 5 µm | Stock: Yes
HC10-2.0Clamping dia. ØD (mm): 2.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 5 µm | Stock: Yes
HC10-3.0Clamping dia. ØD (mm): 3.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 5 µm | Stock: Yes
HC10-4.0Clamping dia. ØD (mm): 4.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 5 µm | Stock: Yes
HC10-5.0Clamping dia. ØD (mm): 5.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 5 µm | Stock: Yes
HC10-6.0Clamping dia. ØD (mm): 6.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 5 µm | Stock: Yes
HC10-7.0Clamping dia. ØD (mm): 7.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 5 µm | Stock: Yes
HC10-8.0Clamping dia. ØD (mm): 8.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 5 µm | Stock: Yes
HC10-9.0Clamping dia. ØD (mm): 9.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 5 µm | Stock: Yes
HC10-10.0Clamping dia. ØD (mm): 10.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 5 µm | Stock: Yes
HC13-3.0Clamping dia. ØD (mm): 3.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 5 µm | Stock: Yes
HC13-4.0Clamping dia. ØD (mm): 4.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 5 µm | Stock: Yes
HC13-5.0Clamping dia. ØD (mm): 5.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 5 µm | Stock: Yes
HC13-6.0Clamping dia. ØD (mm): 6.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 5 µm | Stock: Yes
HC13-7.0Clamping dia. ØD (mm): 7.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 5 µm | Stock: Yes
HC13-8.0Clamping dia. ØD (mm): 8.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 5 µm | Stock: Yes
HC13-9.0Clamping dia. ØD (mm): 9.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 5 µm | Stock: Yes
HC13-10.0Clamping dia. ØD (mm): 10.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 5 µm | Stock: Yes
HC13-11.0Clamping dia. ØD (mm): 11.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 5 µm | Stock: Yes
HC13-12.0Clamping dia. ØD (mm): 12.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 5 µm | Stock: Yes
HC13-13.0Clamping dia. ØD (mm): 13.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 5 µm | Stock: Yes
HC16-3.0Clamping dia. ØD (mm): 3.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC16-4.0Clamping dia. ØD (mm): 4.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC16-5.0Clamping dia. ØD (mm): 5.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC16-6.0Clamping dia. ØD (mm): 6.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC16-7.0Clamping dia. ØD (mm): 7.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC16-8.0Clamping dia. ØD (mm): 8.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC16-9.0Clamping dia. ØD (mm): 9.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC16-10.0Clamping dia. ØD (mm): 10.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC16-11.0Clamping dia. ØD (mm): 11.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC16-12.0Clamping dia. ØD (mm): 12.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC16-13.0Clamping dia. ØD (mm): 13.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC16-14.0Clamping dia. ØD (mm): 14.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC16-15.0Clamping dia. ØD (mm): 15.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC16-16.0Clamping dia. ØD (mm): 16.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 5 µm | Stock: Yes
HC20-4.0Clamping dia. ØD (mm): 4.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 5 µm | Stock: Yes
HC20-6.0Clamping dia. ØD (mm): 6.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 5 µm | Stock: Yes
HC20-8.0Clamping dia. ØD (mm): 8.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 5 µm | Stock: Yes
HC20-10.0Clamping dia. ØD (mm): 10.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 5 µm | Stock: Yes
HC20-12.0Clamping dia. ØD (mm): 12.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 5 µm | Stock: Yes
HC20-14.0Clamping dia. ØD (mm): 14.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 5 µm | Stock: Yes
HC20-16.0Clamping dia. ØD (mm): 16.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 5 µm | Stock: Yes
HC20-18.0Clamping dia. ØD (mm): 18.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 5 µm | Stock: Yes
HC20-20.0Clamping dia. ØD (mm): 20.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 5 µm | Stock: Yes
HC25-16.0Clamping dia. ØD (mm): 16.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 5 µm | Stock: Yes
HC25-17.0Clamping dia. ØD (mm): 17.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 5 µm | Stock: Yes
HC25-18.0Clamping dia. ØD (mm): 18.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 5 µm | Stock: Yes
HC25-19.0Clamping dia. ØD (mm): 19.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 5 µm | Stock: Yes
HC25-20.0Clamping dia. ØD (mm): 20.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 5 µm | Stock: Yes
HC25-21.0Clamping dia. ØD (mm): 21.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 5 µm | Stock: Yes
HC25-22.0Clamping dia. ØD (mm): 22.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 5 µm | Stock: Yes
HC25-23.0Clamping dia. ØD (mm): 23.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 5 µm | Stock: Yes
HC25-24.0Clamping dia. ØD (mm): 24.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 5 µm | Stock: Yes
HC25-25.0Clamping dia. ØD (mm): 25.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 5 µm | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →
