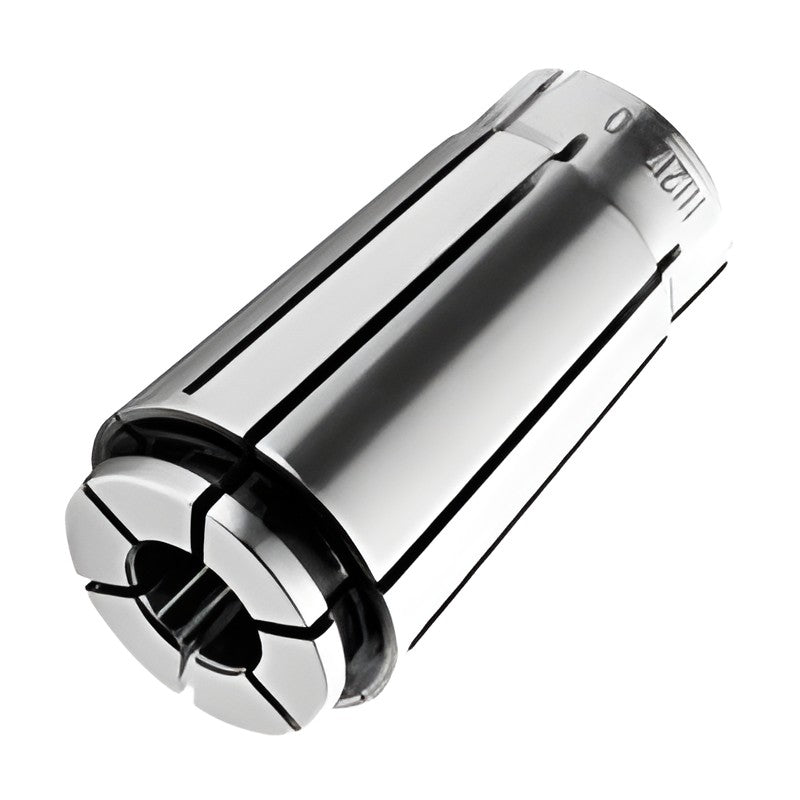

TAUMAX HC Slim Collet Precision Type

TAUMAX HC Slim Collet Precision Type

8-degree HC slim collet (precision type, 3 µm run-out) for DSK and GSK slim collet chucks.

Specifications

Collet angle 8 degrees
HC6-3.0P Clamping dia. ØD (mm): 3.0 | L (mm): 25.0 | ØD1 (mm): 10.5 | Run-out accuracy: 3 µm | Stock: Yes
HC6-4.0P Clamping dia. ØD (mm): 4.0 | L (mm): 25.0 | ØD1 (mm): 10.5 | Run-out accuracy: 3 µm | Stock: Yes
HC6-5.0P Clamping dia. ØD (mm): 5.0 | L (mm): 25.0 | ØD1 (mm): 10.5 | Run-out accuracy: 3 µm | Stock: Yes
HC6-6.0P Clamping dia. ØD (mm): 6.0 | L (mm): 25.0 | ØD1 (mm): 10.5 | Run-out accuracy: 3 µm | Stock: Yes
HC10-2.0P Clamping dia. ØD (mm): 2.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 3 µm | Stock: Yes
HC10-3.0P Clamping dia. ØD (mm): 3.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 3 µm | Stock: Yes
HC10-4.0P Clamping dia. ØD (mm): 4.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 3 µm | Stock: Yes
HC10-5.0P Clamping dia. ØD (mm): 5.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 3 µm | Stock: Yes
HC10-6.0P Clamping dia. ØD (mm): 6.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 3 µm | Stock: Yes
HC10-7.0P Clamping dia. ØD (mm): 7.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 3 µm | Stock: Yes
HC10-8.0P Clamping dia. ØD (mm): 8.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 3 µm | Stock: Yes
HC10-9.0P Clamping dia. ØD (mm): 9.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 3 µm | Stock: Yes
HC10-10.0P Clamping dia. ØD (mm): 10.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 3 µm | Stock: Yes
HC13-3.0P Clamping dia. ØD (mm): 3.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 3 µm | Stock: Yes
HC13-4.0P Clamping dia. ØD (mm): 4.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 3 µm | Stock: Yes
HC13-5.0P Clamping dia. ØD (mm): 5.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 3 µm | Stock: Yes
HC13-6.0P Clamping dia. ØD (mm): 6.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 3 µm | Stock: Yes
HC13-7.0P Clamping dia. ØD (mm): 7.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 3 µm | Stock: Yes
HC13-8.0P Clamping dia. ØD (mm): 8.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 3 µm | Stock: Yes
HC13-9.0P Clamping dia. ØD (mm): 9.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 3 µm | Stock: Yes
HC13-10.0P Clamping dia. ØD (mm): 10.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 3 µm | Stock: Yes
HC13-11.0P Clamping dia. ØD (mm): 11.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 3 µm | Stock: Yes
HC13-12.0P Clamping dia. ØD (mm): 12.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 3 µm | Stock: Yes
HC13-13.0P Clamping dia. ØD (mm): 13.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 3 µm | Stock: Yes
HC16-3.0P Clamping dia. ØD (mm): 3.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC16-4.0P Clamping dia. ØD (mm): 4.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC16-5.0P Clamping dia. ØD (mm): 5.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC16-6.0P Clamping dia. ØD (mm): 6.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC16-7.0P Clamping dia. ØD (mm): 7.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC16-8.0P Clamping dia. ØD (mm): 8.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC16-9.0P Clamping dia. ØD (mm): 9.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC16-10.0P Clamping dia. ØD (mm): 10.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC16-11.0P Clamping dia. ØD (mm): 11.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC16-12.0P Clamping dia. ØD (mm): 12.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC16-13.0P Clamping dia. ØD (mm): 13.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC16-14.0P Clamping dia. ØD (mm): 14.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC16-15.0P Clamping dia. ØD (mm): 15.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC16-16.0P Clamping dia. ØD (mm): 16.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC20-4.0P Clamping dia. ØD (mm): 4.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 3 µm | Stock: Yes
HC20-6.0P Clamping dia. ØD (mm): 6.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 3 µm | Stock: Yes
HC20-8.0P Clamping dia. ØD (mm): 8.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 3 µm | Stock: Yes
HC20-10.0P Clamping dia. ØD (mm): 10.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 3 µm | Stock: Yes
HC20-12.0P Clamping dia. ØD (mm): 12.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 3 µm | Stock: Yes
HC20-14.0P Clamping dia. ØD (mm): 14.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 3 µm | Stock: Yes
HC20-16.0P Clamping dia. ØD (mm): 16.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 3 µm | Stock: Yes
HC20-18.0P Clamping dia. ØD (mm): 18.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 3 µm
HC20-20.0P Clamping dia. ØD (mm): 20.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 3 µm | Stock: Yes
HC25-16.0P Clamping dia. ØD (mm): 16.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 3 µm
HC25-17.0P Clamping dia. ØD (mm): 17.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 3 µm
HC25-18.0P Clamping dia. ØD (mm): 18.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 3 µm
HC25-19.0P Clamping dia. ØD (mm): 19.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 3 µm
HC25-20.0P Clamping dia. ØD (mm): 20.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 3 µm | Stock: Yes (switching to non-stock after depletion)
HC25-21.0P Clamping dia. ØD (mm): 21.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 3 µm
HC25-22.0P Clamping dia. ØD (mm): 22.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 3 µm
HC25-23.0P Clamping dia. ØD (mm): 23.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 3 µm
HC25-24.0P Clamping dia. ØD (mm): 24.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 3 µm
HC25-25.0P Clamping dia. ØD (mm): 25.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 3 µm | Stock: Yes (switching to non-stock after depletion)
ColletsTAUMAX
57 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX HC Slim Collet Precision Type

Brand TAUMAX·Collets

Available part numbers (57)

HC6-3.0P, HC6-4.0P, HC6-5.0P, HC6-6.0P, HC10-2.0P, HC10-3.0P, HC10-4.0P, HC10-5.0P, HC10-6.0P, HC10-7.0P + 47 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HC6-3.0PClamping dia. ØD (mm): 3.0 | L (mm): 25.0 | ØD1 (mm): 10.5 | Run-out accuracy: 3 µm | Stock: Yes
HC6-4.0PClamping dia. ØD (mm): 4.0 | L (mm): 25.0 | ØD1 (mm): 10.5 | Run-out accuracy: 3 µm | Stock: Yes
HC6-5.0PClamping dia. ØD (mm): 5.0 | L (mm): 25.0 | ØD1 (mm): 10.5 | Run-out accuracy: 3 µm | Stock: Yes
HC6-6.0PClamping dia. ØD (mm): 6.0 | L (mm): 25.0 | ØD1 (mm): 10.5 | Run-out accuracy: 3 µm | Stock: Yes
HC10-2.0PClamping dia. ØD (mm): 2.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 3 µm | Stock: Yes
HC10-3.0PClamping dia. ØD (mm): 3.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 3 µm | Stock: Yes
HC10-4.0PClamping dia. ØD (mm): 4.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 3 µm | Stock: Yes
HC10-5.0PClamping dia. ØD (mm): 5.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 3 µm | Stock: Yes
HC10-6.0PClamping dia. ØD (mm): 6.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 3 µm | Stock: Yes
HC10-7.0PClamping dia. ØD (mm): 7.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 3 µm | Stock: Yes
HC10-8.0PClamping dia. ØD (mm): 8.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 3 µm | Stock: Yes
HC10-9.0PClamping dia. ØD (mm): 9.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 3 µm | Stock: Yes
HC10-10.0PClamping dia. ØD (mm): 10.0 | L (mm): 30.5 | ØD1 (mm): 15.6 | Run-out accuracy: 3 µm | Stock: Yes
HC13-3.0PClamping dia. ØD (mm): 3.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 3 µm | Stock: Yes
HC13-4.0PClamping dia. ØD (mm): 4.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 3 µm | Stock: Yes
HC13-5.0PClamping dia. ØD (mm): 5.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 3 µm | Stock: Yes
HC13-6.0PClamping dia. ØD (mm): 6.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 3 µm | Stock: Yes
HC13-7.0PClamping dia. ØD (mm): 7.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 3 µm | Stock: Yes
HC13-8.0PClamping dia. ØD (mm): 8.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 3 µm | Stock: Yes
HC13-9.0PClamping dia. ØD (mm): 9.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 3 µm | Stock: Yes
HC13-10.0PClamping dia. ØD (mm): 10.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 3 µm | Stock: Yes
HC13-11.0PClamping dia. ØD (mm): 11.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 3 µm | Stock: Yes
HC13-12.0PClamping dia. ØD (mm): 12.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 3 µm | Stock: Yes
HC13-13.0PClamping dia. ØD (mm): 13.0 | L (mm): 39.0 | ØD1 (mm): 20.1 | Run-out accuracy: 3 µm | Stock: Yes
HC16-3.0PClamping dia. ØD (mm): 3.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC16-4.0PClamping dia. ØD (mm): 4.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC16-5.0PClamping dia. ØD (mm): 5.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC16-6.0PClamping dia. ØD (mm): 6.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC16-7.0PClamping dia. ØD (mm): 7.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC16-8.0PClamping dia. ØD (mm): 8.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC16-9.0PClamping dia. ØD (mm): 9.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC16-10.0PClamping dia. ØD (mm): 10.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC16-11.0PClamping dia. ØD (mm): 11.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC16-12.0PClamping dia. ØD (mm): 12.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC16-13.0PClamping dia. ØD (mm): 13.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC16-14.0PClamping dia. ØD (mm): 14.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC16-15.0PClamping dia. ØD (mm): 15.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC16-16.0PClamping dia. ØD (mm): 16.0 | L (mm): 45.0 | ØD1 (mm): 24.6 | Run-out accuracy: 3 µm | Stock: Yes
HC20-4.0PClamping dia. ØD (mm): 4.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 3 µm | Stock: Yes
HC20-6.0PClamping dia. ØD (mm): 6.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 3 µm | Stock: Yes
HC20-8.0PClamping dia. ØD (mm): 8.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 3 µm | Stock: Yes
HC20-10.0PClamping dia. ØD (mm): 10.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 3 µm | Stock: Yes
HC20-12.0PClamping dia. ØD (mm): 12.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 3 µm | Stock: Yes
HC20-14.0PClamping dia. ØD (mm): 14.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 3 µm | Stock: Yes
HC20-16.0PClamping dia. ØD (mm): 16.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 3 µm | Stock: Yes
HC20-18.0PClamping dia. ØD (mm): 18.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 3 µm
HC20-20.0PClamping dia. ØD (mm): 20.0 | L (mm): 54.3 | ØD1 (mm): 29.2 | Run-out accuracy: 3 µm | Stock: Yes
HC25-16.0PClamping dia. ØD (mm): 16.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 3 µm
HC25-17.0PClamping dia. ØD (mm): 17.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 3 µm
HC25-18.0PClamping dia. ØD (mm): 18.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 3 µm
HC25-19.0PClamping dia. ØD (mm): 19.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 3 µm
HC25-20.0PClamping dia. ØD (mm): 20.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 3 µm | Stock: Yes (switching to non-stock after depletion)
HC25-21.0PClamping dia. ØD (mm): 21.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 3 µm
HC25-22.0PClamping dia. ØD (mm): 22.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 3 µm
HC25-23.0PClamping dia. ØD (mm): 23.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 3 µm
HC25-24.0PClamping dia. ØD (mm): 24.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 3 µm
HC25-25.0PClamping dia. ØD (mm): 25.0 | L (mm): 57.0 | ØD1 (mm): 35.7 | Run-out accuracy: 3 µm | Stock: Yes (switching to non-stock after depletion)

Need a different model, or a part not listed here? Send us your parts list →
