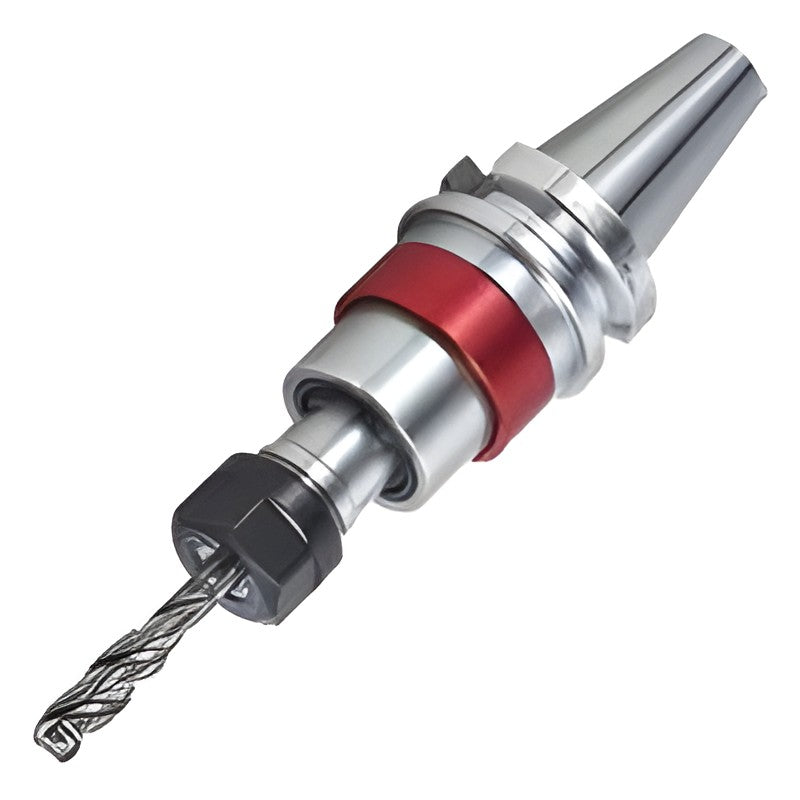

TAUMAX High Speed Synchro Tapping Chuck DST

TAUMAX High Speed Synchro Tapping Chuck DST

Synchro tapping chuck with micro floating to compensate synchronization error in rigid tapping, using ER/TER collets for M1 to M22.

Key features

  • Optimized floating design for high-speed tapping
  • Minimizes synchronization error with rigid tapping
  • Internal coolant applicable
  • Tapping range M1 to M22
BT30-DST3-70 Tapping range: M1~M3 | L (mm): 70 | ØD1 (mm): 19 | ØD2 cover dia. (mm): 20 | ØD2 outer dia. (mm): 18 | Collet: ER11 | Float F- (mm): 0.5 | Float F+ (mm): 0.5 | Weight (kg): 0.5 | Stock: Yes
BT30-DST10-100 Tapping range: M3~M10 | L (mm): 100 | ØD1 (mm): 28 | ØD2 cover dia. (mm): 40.4 | ØD2 outer dia. (mm): 34.4 | Collet: TER16 | Float F- (mm): 0.5 | Float F+ (mm): 0.5 | Weight (kg): 0.8 | Stock: Yes
BT40-DST3-70 Tapping range: M1~M3 | L (mm): 70 | ØD1 (mm): 19 | ØD2 cover dia. (mm): 20 | ØD2 outer dia. (mm): 18 | Collet: ER11 | Float F- (mm): 0.5 | Float F+ (mm): 0.5 | Weight (kg): 1.0 | Stock: Yes
BT40-DST10-100 Tapping range: M3~M10 | L (mm): 100 | ØD1 (mm): 28 | ØD2 cover dia. (mm): 40.4 | ØD2 outer dia. (mm): 34.4 | Collet: TER16 | Float F- (mm): 0.5 | Float F+ (mm): 0.5 | Weight (kg): 1.3 | Stock: Yes
BT40-DST22-110 Tapping range: M6~M22 | L (mm): 110 | ØD1 (mm): 50 | ØD2 cover dia. (mm): 60 | ØD2 outer dia. (mm): 54 | Collet: TER32 | Float F- (mm): 0.7 | Float F+ (mm): 0.7 | Weight (kg): 1.7 | Stock: Yes
BT50-DST10-110 Tapping range: M3~M10 | L (mm): 110 | ØD1 (mm): 28 | ØD2 cover dia. (mm): 40.4 | ØD2 outer dia. (mm): 34.4 | Collet: TER16 | Float F- (mm): 0.5 | Float F+ (mm): 0.5 | Weight (kg): 3.8 | Stock: Yes
BT50-DST22-130 Tapping range: M6~M22 | L (mm): 130 | ØD1 (mm): 50 | ØD2 cover dia. (mm): 60 | ØD2 outer dia. (mm): 54 | Collet: TER32 | Float F- (mm): 0.7 | Float F+ (mm): 0.7 | Weight (kg): 4.5 | Stock: Yes
HSK63A-DST3-80 Tapping range: M1~M3 | L (mm): 80 | ØD1 (mm): 19 | ØD2 cover dia. (mm): 20 | ØD2 outer dia. (mm): 18 | Collet: ER11 | Float F- (mm): 0.5 | Float F+ (mm): 0.5 | Weight (kg): 0.7
HSK63A-DST10-100 Tapping range: M3~M10 | L (mm): 100 | ØD1 (mm): 28 | ØD2 cover dia. (mm): 40.4 | ØD2 outer dia. (mm): 34.4 | Collet: TER16 | Float F- (mm): 0.5 | Float F+ (mm): 0.5 | Weight (kg): 0.9 | Stock: Yes
HSK63A-DST22-130 Tapping range: M6~M22 | L (mm): 130 | ØD1 (mm): 49.5 | ØD2 cover dia. (mm): 60 | ØD2 outer dia. (mm): 54 | Collet: TER32 | Float F- (mm): 0.7 | Float F+ (mm): 0.7 | Weight (kg): 1.8 | Stock: Yes
SK30-DST3-70 Tapping range: M1~M3 | L (mm): 70 | ØD1 (mm): 19 | ØD2 cover dia. (mm): 20 | ØD2 outer dia. (mm): 18 | Collet: ER11 | Float F- (mm): 0.2 | Float F+ (mm): 0.2 | Weight (kg): 0.4 | Stock: Yes
SK40-DST3-70 Tapping range: M1~M3 | L (mm): 70 | ØD1 (mm): 19 | ØD2 cover dia. (mm): 20 | ØD2 outer dia. (mm): 18 | Collet: ER11 | Float F- (mm): 0.2 | Float F+ (mm): 0.2 | Weight (kg): 0.9
SK40-DST10-110 Tapping range: M3~M10 | L (mm): 110 | ØD1 (mm): 28 | ØD2 cover dia. (mm): 40.4 | ØD2 outer dia. (mm): 34.4 | Collet: TER16 | Float F- (mm): 0.5 | Float F+ (mm): 0.5 | Weight (kg): 1.2 | Stock: Yes
SK40-DST22-120 Tapping range: M6~M22 | L (mm): 120 | ØD1 (mm): 50 | ØD2 cover dia. (mm): 60 | ØD2 outer dia. (mm): 54 | Collet: TER32 | Float F- (mm): 0.7 | Float F+ (mm): 0.7 | Weight (kg): 1.8 | Stock: Yes
SK50-DST10-110 Tapping range: M3~M10 | L (mm): 110 | ØD1 (mm): 28 | ØD2 cover dia. (mm): 40.4 | ØD2 outer dia. (mm): 34.4 | Collet: TER16 | Float F- (mm): 0.5 | Float F+ (mm): 0.5 | Weight (kg): 3.0 | Stock: Yes
SK50-DST22-120 Tapping range: M6~M22 | L (mm): 120 | ØD1 (mm): 50 | ØD2 cover dia. (mm): 60 | ØD2 outer dia. (mm): 54 | Collet: TER32 | Float F- (mm): 0.7 | Float F+ (mm): 0.7 | Weight (kg): 3.7 | Stock: Yes
Tapping HoldersTAUMAX
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX High Speed Synchro Tapping Chuck DST

Brand TAUMAX·Tapping Holders

Available part numbers (16)

BT30-DST3-70, BT30-DST10-100, BT40-DST3-70, BT40-DST10-100, BT40-DST22-110, BT50-DST10-110, BT50-DST22-130, HSK63A-DST3-80, HSK63A-DST10-100, HSK63A-DST22-130 + 6 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BT30-DST3-70Tapping range: M1~M3 | L (mm): 70 | ØD1 (mm): 19 | ØD2 cover dia. (mm): 20 | ØD2 outer dia. (mm): 18 | Collet: ER11 | Float F- (mm): 0.5 | Float F+ (mm): 0.5 | Weight (kg): 0.5 | Stock: Yes
BT30-DST10-100Tapping range: M3~M10 | L (mm): 100 | ØD1 (mm): 28 | ØD2 cover dia. (mm): 40.4 | ØD2 outer dia. (mm): 34.4 | Collet: TER16 | Float F- (mm): 0.5 | Float F+ (mm): 0.5 | Weight (kg): 0.8 | Stock: Yes
BT40-DST3-70Tapping range: M1~M3 | L (mm): 70 | ØD1 (mm): 19 | ØD2 cover dia. (mm): 20 | ØD2 outer dia. (mm): 18 | Collet: ER11 | Float F- (mm): 0.5 | Float F+ (mm): 0.5 | Weight (kg): 1.0 | Stock: Yes
BT40-DST10-100Tapping range: M3~M10 | L (mm): 100 | ØD1 (mm): 28 | ØD2 cover dia. (mm): 40.4 | ØD2 outer dia. (mm): 34.4 | Collet: TER16 | Float F- (mm): 0.5 | Float F+ (mm): 0.5 | Weight (kg): 1.3 | Stock: Yes
BT40-DST22-110Tapping range: M6~M22 | L (mm): 110 | ØD1 (mm): 50 | ØD2 cover dia. (mm): 60 | ØD2 outer dia. (mm): 54 | Collet: TER32 | Float F- (mm): 0.7 | Float F+ (mm): 0.7 | Weight (kg): 1.7 | Stock: Yes
BT50-DST10-110Tapping range: M3~M10 | L (mm): 110 | ØD1 (mm): 28 | ØD2 cover dia. (mm): 40.4 | ØD2 outer dia. (mm): 34.4 | Collet: TER16 | Float F- (mm): 0.5 | Float F+ (mm): 0.5 | Weight (kg): 3.8 | Stock: Yes
BT50-DST22-130Tapping range: M6~M22 | L (mm): 130 | ØD1 (mm): 50 | ØD2 cover dia. (mm): 60 | ØD2 outer dia. (mm): 54 | Collet: TER32 | Float F- (mm): 0.7 | Float F+ (mm): 0.7 | Weight (kg): 4.5 | Stock: Yes
HSK63A-DST3-80Tapping range: M1~M3 | L (mm): 80 | ØD1 (mm): 19 | ØD2 cover dia. (mm): 20 | ØD2 outer dia. (mm): 18 | Collet: ER11 | Float F- (mm): 0.5 | Float F+ (mm): 0.5 | Weight (kg): 0.7
HSK63A-DST10-100Tapping range: M3~M10 | L (mm): 100 | ØD1 (mm): 28 | ØD2 cover dia. (mm): 40.4 | ØD2 outer dia. (mm): 34.4 | Collet: TER16 | Float F- (mm): 0.5 | Float F+ (mm): 0.5 | Weight (kg): 0.9 | Stock: Yes
HSK63A-DST22-130Tapping range: M6~M22 | L (mm): 130 | ØD1 (mm): 49.5 | ØD2 cover dia. (mm): 60 | ØD2 outer dia. (mm): 54 | Collet: TER32 | Float F- (mm): 0.7 | Float F+ (mm): 0.7 | Weight (kg): 1.8 | Stock: Yes
SK30-DST3-70Tapping range: M1~M3 | L (mm): 70 | ØD1 (mm): 19 | ØD2 cover dia. (mm): 20 | ØD2 outer dia. (mm): 18 | Collet: ER11 | Float F- (mm): 0.2 | Float F+ (mm): 0.2 | Weight (kg): 0.4 | Stock: Yes
SK40-DST3-70Tapping range: M1~M3 | L (mm): 70 | ØD1 (mm): 19 | ØD2 cover dia. (mm): 20 | ØD2 outer dia. (mm): 18 | Collet: ER11 | Float F- (mm): 0.2 | Float F+ (mm): 0.2 | Weight (kg): 0.9
SK40-DST10-110Tapping range: M3~M10 | L (mm): 110 | ØD1 (mm): 28 | ØD2 cover dia. (mm): 40.4 | ØD2 outer dia. (mm): 34.4 | Collet: TER16 | Float F- (mm): 0.5 | Float F+ (mm): 0.5 | Weight (kg): 1.2 | Stock: Yes
SK40-DST22-120Tapping range: M6~M22 | L (mm): 120 | ØD1 (mm): 50 | ØD2 cover dia. (mm): 60 | ØD2 outer dia. (mm): 54 | Collet: TER32 | Float F- (mm): 0.7 | Float F+ (mm): 0.7 | Weight (kg): 1.8 | Stock: Yes
SK50-DST10-110Tapping range: M3~M10 | L (mm): 110 | ØD1 (mm): 28 | ØD2 cover dia. (mm): 40.4 | ØD2 outer dia. (mm): 34.4 | Collet: TER16 | Float F- (mm): 0.5 | Float F+ (mm): 0.5 | Weight (kg): 3.0 | Stock: Yes
SK50-DST22-120Tapping range: M6~M22 | L (mm): 120 | ØD1 (mm): 50 | ØD2 cover dia. (mm): 60 | ØD2 outer dia. (mm): 54 | Collet: TER32 | Float F- (mm): 0.7 | Float F+ (mm): 0.7 | Weight (kg): 3.7 | Stock: Yes
