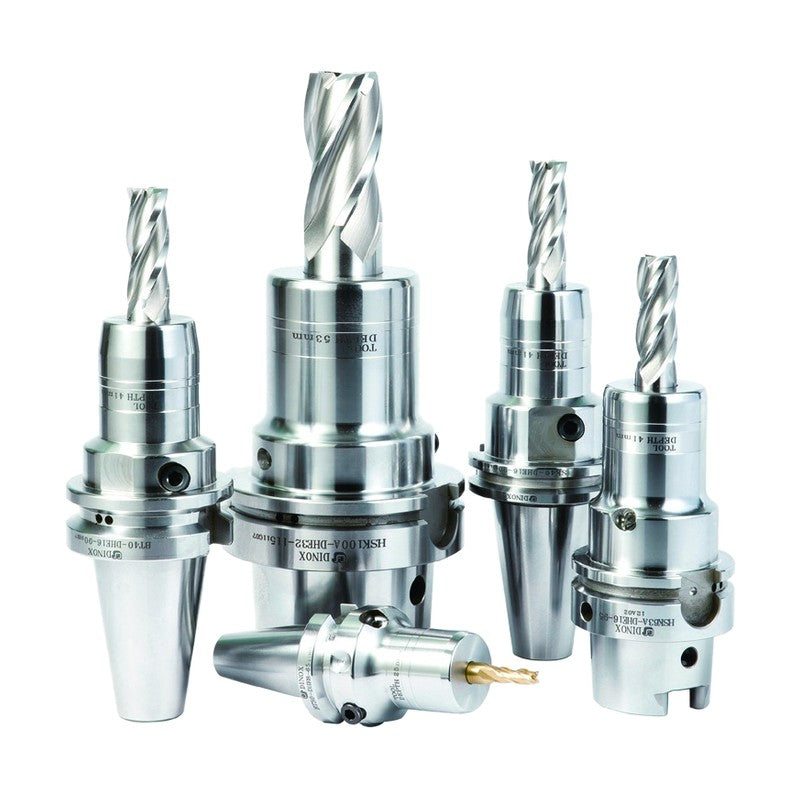

TAUMAX HSK Shank Hydraulic Expansion Chuck DHE

TAUMAX HSK Shank Hydraulic Expansion Chuck DHE

Hydraulic expansion chuck with a fully sealed hydraulic chamber, recommended for finishing, with run-out of 3 um or less at 3 x D.

Key features

  • Fully sealed internal construction keeps out dust, coolant and chips
  • Run-out 3 um or less at 3 x D
  • 2-point clamping for strong gripping force
  • Easy tool clamping with T-wrench
  • Damping effect of the hydraulic chamber reduces vibration
  • Tool clamping range Ø4-Ø32 mm

Specifications

Shank HSK-A (DIN 69893-1)
Balance Grade G6.3
Internal Coolant Optional (coolant nozzle set sold separately)
HSK50A-DHE6-70 Tool Dia. ØD (mm): 6 | Length L (mm): 70 | ØD1 (mm): 29 | ØD2 (mm): 40 | L1 (mm): 28 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 0.7 | Stock: Non-stock item
HSK50A-DHE8-70 Tool Dia. ØD (mm): 8 | Length L (mm): 70 | ØD1 (mm): 31 | ØD2 (mm): 40 | L1 (mm): 28 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 0.7 | Stock: Non-stock item
HSK50A-DHE10-80 Tool Dia. ØD (mm): 10 | Length L (mm): 80 | ØD1 (mm): 33 | ØD2 (mm): 40 | L1 (mm): 35 | Tool Insertion Depth H (mm): 35-45 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 0.8 | Stock: Non-stock item
HSK50A-DHE12-90 Tool Dia. ØD (mm): 12 | Length L (mm): 90 | ØD1 (mm): 35 | ØD2 (mm): 40 | L1 (mm): 40 | Tool Insertion Depth H (mm): 41-51 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 0.8 | Stock: Non-stock item
HSK50A-DHE14-95 Tool Dia. ØD (mm): 14 | Length L (mm): 95 | ØD1 (mm): 36 | ØD2 (mm): 53 | L1 (mm): 28 | Tool Insertion Depth H (mm): 43-53 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 0.8 | Stock: Non-stock item
HSK50A-DHE16-95 Tool Dia. ØD (mm): 16 | Length L (mm): 95 | ØD1 (mm): 40 | ØD2 (mm): 53 | L1 (mm): 28 | Tool Insertion Depth H (mm): 46-56 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 0.9 | Stock: Non-stock item
HSK50A-DHE18-100 Tool Dia. ØD (mm): 18 | Length L (mm): 100 | ØD1 (mm): 42 | ØD2 (mm): 60 | L1 (mm): 28 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 0.9 | Stock: Non-stock item
HSK50A-DHE20-100 Tool Dia. ØD (mm): 20 | Length L (mm): 100 | ØD1 (mm): 44 | ØD2 (mm): 60 | L1 (mm): 28 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 0.9 | Stock: Non-stock item
HSK63A-DHE4-75 Tool Dia. ØD (mm): 4 | Length L (mm): 75 | ØD1 (mm): 29 | ØD2 (mm): 50 | L1 (mm): 34 | Tool Insertion Depth H (mm): 40 | Max RPM: 20,000 | Weight (kg): 1 | Stock: Yes
HSK63A-DHE5-75 Tool Dia. ØD (mm): 5 | Length L (mm): 75 | ØD1 (mm): 29 | ØD2 (mm): 50 | L1 (mm): 34 | Tool Insertion Depth H (mm): 40 | Max RPM: 20,000 | Weight (kg): 1 | Stock: Yes
HSK63A-DHE6-75 Tool Dia. ØD (mm): 6 | Length L (mm): 75 | ØD1 (mm): 29 | ØD2 (mm): 50 | L1 (mm): 34 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 1 | Stock: Yes
HSK63A-DHE6-150 Tool Dia. ØD (mm): 6 | Length L (mm): 150 | ØD1 (mm): 29 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 2.2 | Stock: Non-stock item
HSK63A-DHE8-75 Tool Dia. ØD (mm): 8 | Length L (mm): 75 | ØD1 (mm): 31 | ØD2 (mm): 50 | L1 (mm): 34 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 1 | Stock: Yes
HSK63A-DHE8-150 Tool Dia. ØD (mm): 8 | Length L (mm): 150 | ØD1 (mm): 31 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 2.2 | Stock: Non-stock item
HSK63A-DHE10-85 Tool Dia. ØD (mm): 10 | Length L (mm): 85 | ØD1 (mm): 33 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 35-45 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 1.2 | Stock: Yes
HSK63A-DHE10-150 Tool Dia. ØD (mm): 10 | Length L (mm): 150 | ØD1 (mm): 33 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 35-45 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 2.2 | Stock: Yes
HSK63A-DHE12-90 Tool Dia. ØD (mm): 12 | Length L (mm): 90 | ØD1 (mm): 35 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 41-51 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 1.2 | Stock: Yes
HSK63A-DHE12-150 Tool Dia. ØD (mm): 12 | Length L (mm): 150 | ØD1 (mm): 35 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 41-51 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 2.2 | Stock: Yes
HSK63A-DHE14-95 Tool Dia. ØD (mm): 14 | Length L (mm): 95 | ØD1 (mm): 36 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 43-53 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 1.3 | Stock: Non-stock item
HSK63A-DHE14-150 Tool Dia. ØD (mm): 14 | Length L (mm): 150 | ØD1 (mm): 36 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 43-53 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 2.2 | Stock: Non-stock item
HSK63A-DHE16-95 Tool Dia. ØD (mm): 16 | Length L (mm): 95 | ØD1 (mm): 40 | ØD2 (mm): 50 | L1 (mm): 45 | Tool Insertion Depth H (mm): 46-56 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 1.3 | Stock: Yes
HSK63A-DHE16-150 Tool Dia. ØD (mm): 16 | Length L (mm): 150 | ØD1 (mm): 40 | ØD2 (mm): 50 | L1 (mm): 45 | Tool Insertion Depth H (mm): 46-56 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 2.2 | Stock: Non-stock item
HSK63A-DHE18-100 Tool Dia. ØD (mm): 18 | Length L (mm): 100 | ØD1 (mm): 42 | ØD2 (mm): 50 | L1 (mm): 45 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 1.4 | Stock: Non-stock item
HSK63A-DHE18-150 Tool Dia. ØD (mm): 18 | Length L (mm): 150 | ØD1 (mm): 42 | ØD2 (mm): 50 | L1 (mm): 45 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 2.2 | Stock: Non-stock item
HSK63A-DHE20-100 Tool Dia. ØD (mm): 20 | Length L (mm): 100 | ØD1 (mm): 44 | ØD2 (mm): 50 | L1 (mm): 50 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 1.4 | Stock: Yes
HSK63A-DHE20-150 Tool Dia. ØD (mm): 20 | Length L (mm): 150 | ØD1 (mm): 44 | ØD2 (mm): 50 | L1 (mm): 50 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 2.2 | Stock: Yes
HSK63A-DHE25-110 Tool Dia. ØD (mm): 25 | Length L (mm): 110 | ØD1 (mm): 50 | ØD2 (mm): 70 | L1 (mm): 48 | Tool Insertion Depth H (mm): 58-68 | Adjust Screw: M16 | Max RPM: 20,000 | Weight (kg): 1.9 | Stock: Yes
HSK63A-DHE32-110 Tool Dia. ØD (mm): 32 | Length L (mm): 110 | ØD1 (mm): 63 | ØD2 (mm): 75 | L1 (mm): 48 | Tool Insertion Depth H (mm): 58-68 | Adjust Screw: M16 | Max RPM: 20,000 | Weight (kg): 2.3 | Stock: Yes
HSK100A-DHE6-80 Tool Dia. ØD (mm): 6 | Length L (mm): 80 | ØD1 (mm): 29 | ØD2 (mm): 50 | L1 (mm): 34 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 15,000 | Weight (kg): 2.4 | Stock: Yes
HSK100A-DHE6-150 Tool Dia. ØD (mm): 6 | Length L (mm): 150 | ØD1 (mm): 29 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 15,000 | Weight (kg): 2.8 | Stock: Non-stock item
HSK100A-DHE8-80 Tool Dia. ØD (mm): 8 | Length L (mm): 80 | ØD1 (mm): 31 | ØD2 (mm): 50 | L1 (mm): 34 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 15,000 | Weight (kg): 2.4 | Stock: Yes
HSK100A-DHE8-150 Tool Dia. ØD (mm): 8 | Length L (mm): 150 | ØD1 (mm): 31 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 15,000 | Weight (kg): 2.8 | Stock: Non-stock item
HSK100A-DHE10-90 Tool Dia. ØD (mm): 10 | Length L (mm): 90 | ØD1 (mm): 33 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 35-45 | Adjust Screw: M5 | Max RPM: 15,000 | Weight (kg): 2.5 | Stock: Non-stock item
HSK100A-DHE10-150 Tool Dia. ØD (mm): 10 | Length L (mm): 150 | ØD1 (mm): 33 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 35-45 | Adjust Screw: M5 | Max RPM: 15,000 | Weight (kg): 3 | Stock: Non-stock item
HSK100A-DHE12-95 Tool Dia. ØD (mm): 12 | Length L (mm): 95 | ØD1 (mm): 35 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 41-51 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 2.5 | Stock: Non-stock item
HSK100A-DHE12-150 Tool Dia. ØD (mm): 12 | Length L (mm): 150 | ØD1 (mm): 35 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 41-51 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 3 | Stock: Non-stock item
HSK100A-DHE14-100 Tool Dia. ØD (mm): 14 | Length L (mm): 100 | ØD1 (mm): 36 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 43-53 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 2.6 | Stock: Non-stock item
HSK100A-DHE14-150 Tool Dia. ØD (mm): 14 | Length L (mm): 150 | ØD1 (mm): 36 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 43-53 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 3.1 | Stock: Non-stock item
HSK100A-DHE16-100 Tool Dia. ØD (mm): 16 | Length L (mm): 100 | ØD1 (mm): 40 | ØD2 (mm): 50 | L1 (mm): 45 | Tool Insertion Depth H (mm): 46-56 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 2.6 | Stock: Non-stock item
HSK100A-DHE16-150 Tool Dia. ØD (mm): 16 | Length L (mm): 150 | ØD1 (mm): 40 | ØD2 (mm): 50 | L1 (mm): 45 | Tool Insertion Depth H (mm): 46-56 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 3.1 | Stock: Non-stock item
HSK100A-DHE18-100 Tool Dia. ØD (mm): 18 | Length L (mm): 100 | ØD1 (mm): 42 | ØD2 (mm): 50 | L1 (mm): 45 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 2.7 | Stock: Non-stock item
HSK100A-DHE18-150 Tool Dia. ØD (mm): 18 | Length L (mm): 150 | ØD1 (mm): 42 | ØD2 (mm): 50 | L1 (mm): 45 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 3.2 | Stock: Non-stock item
HSK100A-DHE20-105 Tool Dia. ØD (mm): 20 | Length L (mm): 105 | ØD1 (mm): 44 | ØD2 (mm): 50 | L1 (mm): 50 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 2.8 | Stock: Yes
HSK100A-DHE20-150 Tool Dia. ØD (mm): 20 | Length L (mm): 150 | ØD1 (mm): 44 | ØD2 (mm): 50 | L1 (mm): 50 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 3.4 | Stock: Non-stock item
HSK100A-DHE25-115 Tool Dia. ØD (mm): 25 | Length L (mm): 115 | ØD1 (mm): 50 | ØD2 (mm): 63 | L1 (mm): 62 | Tool Insertion Depth H (mm): 58-68 | Adjust Screw: M16 | Max RPM: 15,000 | Weight (kg): 3.3 | Stock: Yes
HSK100A-DHE32-115 Tool Dia. ØD (mm): 32 | Length L (mm): 115 | ØD1 (mm): 63 | ØD2 (mm): 75 | L1 (mm): 62 | Tool Insertion Depth H (mm): 58-68 | Adjust Screw: M16 | Max RPM: 15,000 | Weight (kg): 3.8 | Stock: Yes
Hydraulic ChucksTAUMAX
46 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX HSK Shank Hydraulic Expansion Chuck DHE

Brand TAUMAX·Hydraulic Chucks

Available part numbers (46)

HSK50A-DHE6-70, HSK50A-DHE8-70, HSK50A-DHE10-80, HSK50A-DHE12-90, HSK50A-DHE14-95, HSK50A-DHE16-95, HSK50A-DHE18-100, HSK50A-DHE20-100, HSK63A-DHE4-75, HSK63A-DHE5-75 + 36 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
