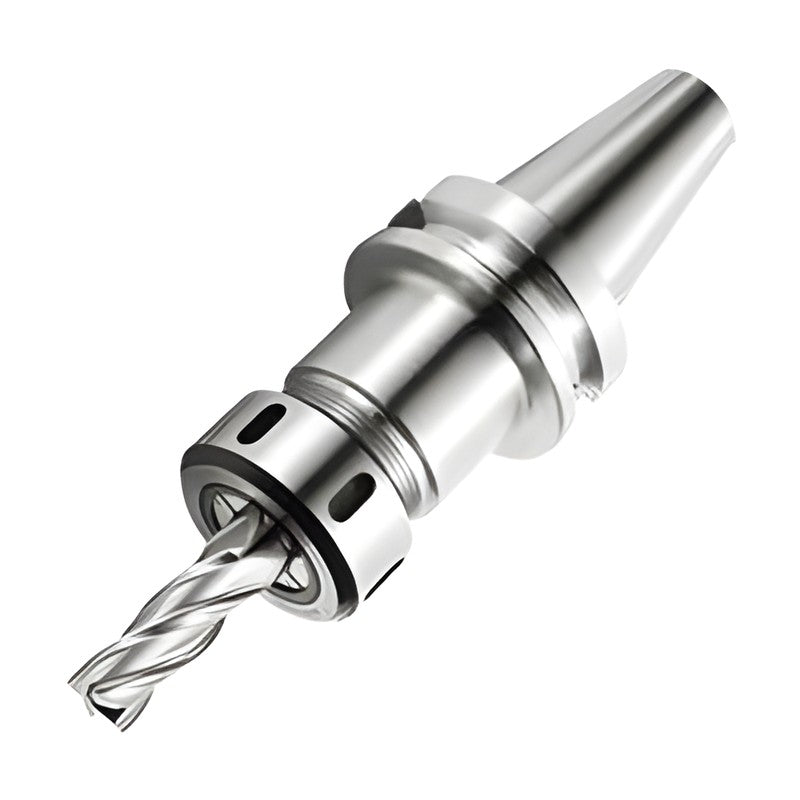

TAUMAX HSK Shank Precision Collet Chuck HSK-SDC/P

TAUMAX HSK Shank Precision Collet Chuck HSK-SDC/P

HSK-A shank ER precision collet chuck for multi-purpose machining.

Key features

  • Consistent precision and clamping force with sleeve bearing RN nut
  • Stable run-out compared to standard nuts
  • Wide clamping range Ø1 to Ø26 mm with GERC/ER collets
  • For milling, drilling, tapping and chamfering
  • Jet coolant usable with RT/RUT nut and RTJW disk
HSK63A-SDC7P-100 Shank: HSK63A | ØD (mm): 1.0-7.0 | L (mm): 100 | ØD1 (mm): 18 | ØD2 (mm): 17 | H insertion depth (mm): 33 | G thread: M7 | Collet/step (mm): GERC11/0.5 | Weight (kg): 0.9 | Stock: No
HSK63A-SDC7P-120 Shank: HSK63A | ØD (mm): 1.0-7.0 | L (mm): 120 | ØD1 (mm): 18 | ØD2 (mm): 17 | H insertion depth (mm): 33 | G thread: M7 | Collet/step (mm): GERC11/0.5 | Weight (kg): 0.9 | Stock: No
HSK63A-SDC10P-100 Shank: HSK63A | ØD (mm): 1.0-10.0 | L (mm): 100 | ØD1 (mm): 32 | ØD2 (mm): 31 | H insertion depth (mm): 44.5 | G thread: M10 | Collet/step (mm): GERC16/1.0 | Weight (kg): 1.0 | Stock: Yes
HSK63A-SDC10P-120 Shank: HSK63A | ØD (mm): 1.0-10.0 | L (mm): 120 | ØD1 (mm): 32 | ØD2 (mm): 31 | H insertion depth (mm): 44.5 | G thread: M10 | Collet/step (mm): GERC16/1.0 | Weight (kg): 1.0 | Stock: No
HSK63A-SDC13P-100 Shank: HSK63A | ØD (mm): 1.0-13.0 | L (mm): 100 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | G thread: M7 | Collet/step (mm): GERC20/1.0 | Weight (kg): 1.1 | Stock: Yes
HSK63A-SDC13P-120 Shank: HSK63A | ØD (mm): 1.0-13.0 | L (mm): 120 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | G thread: M13 | Collet/step (mm): GERC20/1.0 | Weight (kg): 1.2 | Stock: No
HSK63A-SDC13P-150 Shank: HSK63A | ØD (mm): 1.0-13.0 | L (mm): 150 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | G thread: M13 | Collet/step (mm): GERC20/1.0 | Weight (kg): 1.2 | Stock: No
HSK63A-SDC16P-100 Shank: HSK63A | ØD (mm): 2.0-16.0 | L (mm): 100 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | G thread: M7 | Collet/step (mm): GERC25/1.0 | Weight (kg): 1.2 | Stock: Yes
HSK63A-SDC20P-110 Shank: HSK63A | ØD (mm): 2.0-20.0 | L (mm): 110 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | G thread: M7 | Collet/step (mm): GERC32/1.0 | Weight (kg): 1.5 | Stock: Yes
HSK63A-SDC26P-130 Shank: HSK63A | ØD (mm): 4.0~26.0 | L (mm): 130 | ØD1 (mm): 63 | ØD2 (mm): 62 | H insertion depth (mm): 71 | G thread: M10 | Collet/step (mm): GERC40/1.0 | Weight (kg): 1.6 | Stock: No
HSK100A-SDC7P-100 Shank: HSK100A | ØD (mm): 1.0-7.0 | L (mm): 100 | ØD1 (mm): 18 | ØD2 (mm): 17 | H insertion depth (mm): 33 | G thread: M7 | Collet/step (mm): GERC11/0.5 | Weight (kg): 2.0 | Stock: No
HSK100A-SDC10P-100 Shank: HSK100A | ØD (mm): 1.0-10.0 | L (mm): 100 | ØD1 (mm): 32 | ØD2 (mm): 31 | H insertion depth (mm): 44.5 | G thread: M7 | Collet/step (mm): GERC16/1.0 | Weight (kg): 2.2 | Stock: No
HSK100A-SDC13P-100 Shank: HSK100A | ØD (mm): 1.0-13.0 | L (mm): 100 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | G thread: M7 | Collet/step (mm): GERC20/1.0 | Weight (kg): 2.4 | Stock: No
HSK100A-SDC16P-110 Shank: HSK100A | ØD (mm): 2.0-16.0 | L (mm): 110 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | G thread: M13 | Collet/step (mm): GERC25/1.0 | Weight (kg): 2.6 | Stock: Yes
HSK100A-SDC20P-120 Shank: HSK100A | ØD (mm): 2.0-20.0 | L (mm): 120 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | G thread: M10 | Collet/step (mm): GERC32/1.0 | Weight (kg): 2.9 | Stock: Yes
HSK100A-SDC26P-130 Shank: HSK100A | ØD (mm): 4.0~26.0 | L (mm): 130 | ØD1 (mm): 63 | ØD2 (mm): 62 | H insertion depth (mm): 71 | G thread: M10 | Collet/step (mm): GERC40/1.0 | Weight (kg): 3.8 | Stock: No
Collet ChucksTAUMAX
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX HSK Shank Precision Collet Chuck HSK-SDC/P

Brand TAUMAX·Collet Chucks

Available part numbers (16)

HSK63A-SDC7P-100, HSK63A-SDC7P-120, HSK63A-SDC10P-100, HSK63A-SDC10P-120, HSK63A-SDC13P-100, HSK63A-SDC13P-120, HSK63A-SDC13P-150, HSK63A-SDC16P-100, HSK63A-SDC20P-110, HSK63A-SDC26P-130 + 6 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HSK63A-SDC7P-100Shank: HSK63A | ØD (mm): 1.0-7.0 | L (mm): 100 | ØD1 (mm): 18 | ØD2 (mm): 17 | H insertion depth (mm): 33 | G thread: M7 | Collet/step (mm): GERC11/0.5 | Weight (kg): 0.9 | Stock: No
HSK63A-SDC7P-120Shank: HSK63A | ØD (mm): 1.0-7.0 | L (mm): 120 | ØD1 (mm): 18 | ØD2 (mm): 17 | H insertion depth (mm): 33 | G thread: M7 | Collet/step (mm): GERC11/0.5 | Weight (kg): 0.9 | Stock: No
HSK63A-SDC10P-100Shank: HSK63A | ØD (mm): 1.0-10.0 | L (mm): 100 | ØD1 (mm): 32 | ØD2 (mm): 31 | H insertion depth (mm): 44.5 | G thread: M10 | Collet/step (mm): GERC16/1.0 | Weight (kg): 1.0 | Stock: Yes
HSK63A-SDC10P-120Shank: HSK63A | ØD (mm): 1.0-10.0 | L (mm): 120 | ØD1 (mm): 32 | ØD2 (mm): 31 | H insertion depth (mm): 44.5 | G thread: M10 | Collet/step (mm): GERC16/1.0 | Weight (kg): 1.0 | Stock: No
HSK63A-SDC13P-100Shank: HSK63A | ØD (mm): 1.0-13.0 | L (mm): 100 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | G thread: M7 | Collet/step (mm): GERC20/1.0 | Weight (kg): 1.1 | Stock: Yes
HSK63A-SDC13P-120Shank: HSK63A | ØD (mm): 1.0-13.0 | L (mm): 120 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | G thread: M13 | Collet/step (mm): GERC20/1.0 | Weight (kg): 1.2 | Stock: No
HSK63A-SDC13P-150Shank: HSK63A | ØD (mm): 1.0-13.0 | L (mm): 150 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | G thread: M13 | Collet/step (mm): GERC20/1.0 | Weight (kg): 1.2 | Stock: No
HSK63A-SDC16P-100Shank: HSK63A | ØD (mm): 2.0-16.0 | L (mm): 100 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | G thread: M7 | Collet/step (mm): GERC25/1.0 | Weight (kg): 1.2 | Stock: Yes
HSK63A-SDC20P-110Shank: HSK63A | ØD (mm): 2.0-20.0 | L (mm): 110 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | G thread: M7 | Collet/step (mm): GERC32/1.0 | Weight (kg): 1.5 | Stock: Yes
HSK63A-SDC26P-130Shank: HSK63A | ØD (mm): 4.0~26.0 | L (mm): 130 | ØD1 (mm): 63 | ØD2 (mm): 62 | H insertion depth (mm): 71 | G thread: M10 | Collet/step (mm): GERC40/1.0 | Weight (kg): 1.6 | Stock: No
HSK100A-SDC7P-100Shank: HSK100A | ØD (mm): 1.0-7.0 | L (mm): 100 | ØD1 (mm): 18 | ØD2 (mm): 17 | H insertion depth (mm): 33 | G thread: M7 | Collet/step (mm): GERC11/0.5 | Weight (kg): 2.0 | Stock: No
HSK100A-SDC10P-100Shank: HSK100A | ØD (mm): 1.0-10.0 | L (mm): 100 | ØD1 (mm): 32 | ØD2 (mm): 31 | H insertion depth (mm): 44.5 | G thread: M7 | Collet/step (mm): GERC16/1.0 | Weight (kg): 2.2 | Stock: No
HSK100A-SDC13P-100Shank: HSK100A | ØD (mm): 1.0-13.0 | L (mm): 100 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | G thread: M7 | Collet/step (mm): GERC20/1.0 | Weight (kg): 2.4 | Stock: No
HSK100A-SDC16P-110Shank: HSK100A | ØD (mm): 2.0-16.0 | L (mm): 110 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | G thread: M13 | Collet/step (mm): GERC25/1.0 | Weight (kg): 2.6 | Stock: Yes
HSK100A-SDC20P-120Shank: HSK100A | ØD (mm): 2.0-20.0 | L (mm): 120 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | G thread: M10 | Collet/step (mm): GERC32/1.0 | Weight (kg): 2.9 | Stock: Yes
HSK100A-SDC26P-130Shank: HSK100A | ØD (mm): 4.0~26.0 | L (mm): 130 | ØD1 (mm): 63 | ØD2 (mm): 62 | H insertion depth (mm): 71 | G thread: M10 | Collet/step (mm): GERC40/1.0 | Weight (kg): 3.8 | Stock: No
