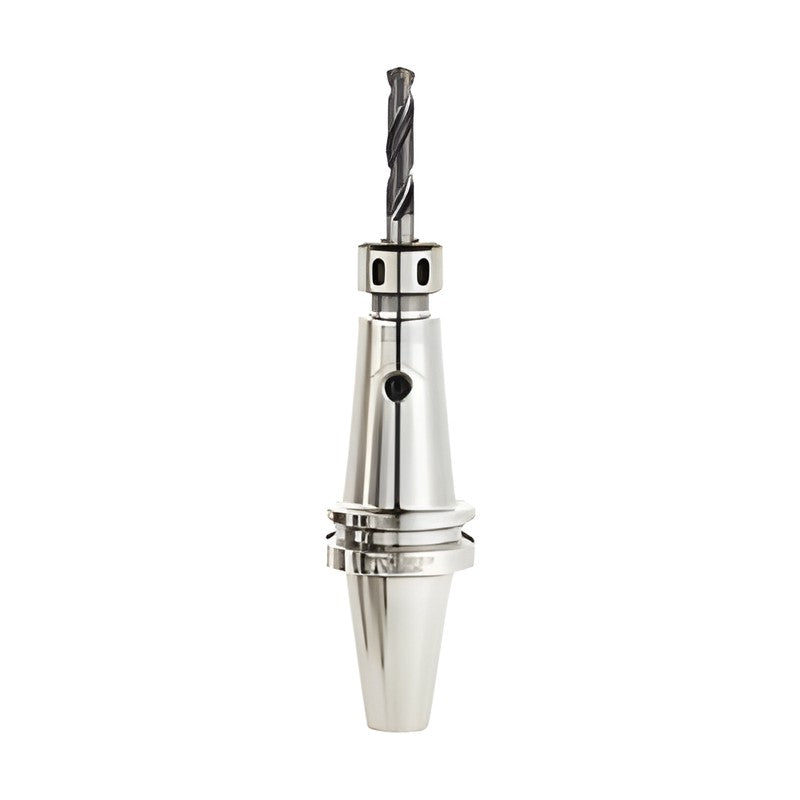

TAUMAX HSK Shank Precision Collet Chuck Length Adjustment Type HSK-SDC/PL

TAUMAX HSK Shank Precision Collet Chuck Length Adjustment Type HSK-SDC/PL

HSK-A shank ER precision collet chuck with tool length adjustment screw.

Key features

  • Tool length adjustment by adjustment screw
  • Reduces tool setup time
  • Sleeve bearing RN nut
  • Clamping range Ø1 to Ø26 mm with GERC/ER collets
HSK63A-SDC13PL-100 Shank: HSK63A | ØD (mm): 1.0~13.0 | L (mm): 100 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | L1 adjustable (mm): 39~49 | L2 (mm): 37 | Collet/step (mm): GERC20/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
HSK63A-SDC16PL-100 Shank: HSK63A | ØD (mm): 2.0~16.0 | L (mm): 100 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | L1 adjustable (mm): 40~50 | L2 (mm): 43 | Collet/step (mm): GERC25/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
HSK63A-SDC20PL-110 Shank: HSK63A | ØD (mm): 2.0~20.0 | L (mm): 110 | ØD1 (mm): 50 | ØD2 (mm): 49 | ØD3 (mm): 52 | H insertion depth (mm): 60 | L1 adjustable (mm): 50~60 | L2 (mm): 48 | Collet/step (mm): GERC32/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
HSK100A-SDC16PL-110 Shank: HSK100A | ØD (mm): 2.0~16.0 | L (mm): 110 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | L1 adjustable (mm): 40~50 | L2 (mm): 46 | Collet/step (mm): GERC25/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
HSK100A-SDC20PL-120 Shank: HSK100A | ØD (mm): 2.0~20.0 | L (mm): 120 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | L1 adjustable (mm): 50~60 | L2 (mm): 52 | Collet/step (mm): GERC32/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
Collet ChucksTAUMAX
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX HSK Shank Precision Collet Chuck Length Adjustment Type HSK-SDC/PL

Brand TAUMAX·Collet Chucks

Available part numbers (5)

HSK63A-SDC13PL-100, HSK63A-SDC16PL-100, HSK63A-SDC20PL-110, HSK100A-SDC16PL-110, HSK100A-SDC20PL-120

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HSK63A-SDC13PL-100Shank: HSK63A | ØD (mm): 1.0~13.0 | L (mm): 100 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | L1 adjustable (mm): 39~49 | L2 (mm): 37 | Collet/step (mm): GERC20/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
HSK63A-SDC16PL-100Shank: HSK63A | ØD (mm): 2.0~16.0 | L (mm): 100 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | L1 adjustable (mm): 40~50 | L2 (mm): 43 | Collet/step (mm): GERC25/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
HSK63A-SDC20PL-110Shank: HSK63A | ØD (mm): 2.0~20.0 | L (mm): 110 | ØD1 (mm): 50 | ØD2 (mm): 49 | ØD3 (mm): 52 | H insertion depth (mm): 60 | L1 adjustable (mm): 50~60 | L2 (mm): 48 | Collet/step (mm): GERC32/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
HSK100A-SDC16PL-110Shank: HSK100A | ØD (mm): 2.0~16.0 | L (mm): 110 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | L1 adjustable (mm): 40~50 | L2 (mm): 46 | Collet/step (mm): GERC25/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
HSK100A-SDC20PL-120Shank: HSK100A | ØD (mm): 2.0~20.0 | L (mm): 120 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | L1 adjustable (mm): 50~60 | L2 (mm): 52 | Collet/step (mm): GERC32/1.0 | Stock: Yes (to be switched to NP order after stock depletion)
