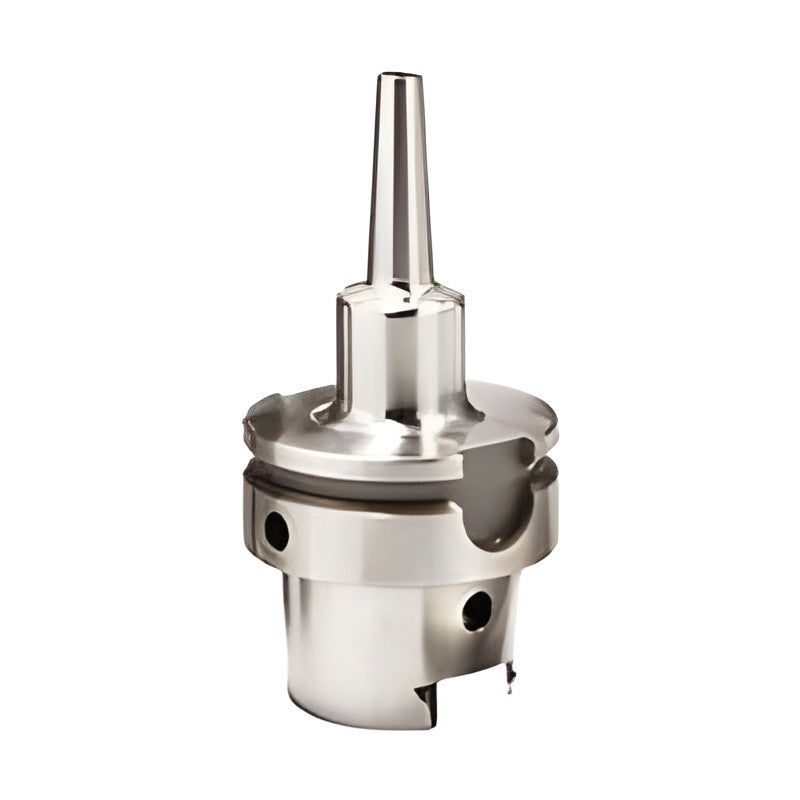

TAUMAX HSK Shank Shrinking Chuck HSK-DSC/M Mono Type

TAUMAX HSK Shank Shrinking Chuck HSK-DSC/M Mono Type

HSK63A shank mono-type shrink-fit chuck for carbide tools Ø6 to Ø16 mm.

Key features

  • Shrink-fit clamping with run-out of 3 µm or less
  • 30% higher clamping force compared to hydraulic chucks
  • Symmetrical design for balanced high-speed machining
  • Machining range: Ø3 to Ø20 mm
  • Use with cemented carbide tool shanks (h6)

Specifications

Shank HSK63A
Max RPM 20,000
HSK63A-DSC6M-95 ØD (mm): 6 | L (mm): 95 | ØD1 (mm): 10 | ØD2 (mm): 26 | L1 (mm): 42 | H insertion depth (mm): 73 | Weight (kg): 0.7 | Stock: Yes
HSK63A-DSC8M-95 ØD (mm): 8 | L (mm): 95 | ØD1 (mm): 13 | ØD2 (mm): 36 | L1 (mm): 42 | H insertion depth (mm): 39 | Weight (kg): 0.8 | Stock: Yes
HSK63A-DSC10M-120 ØD (mm): 10 | L (mm): 120 | ØD1 (mm): 16 | ØD2 (mm): 36 | L1 (mm): 67 | H insertion depth (mm): 45 | Weight (kg): 0.8 | Stock: Yes
HSK63A-DSC12M-120 ØD (mm): 12 | L (mm): 120 | ØD1 (mm): 19 | ØD2 (mm): 36 | L1 (mm): 67 | H insertion depth (mm): 45 | Weight (kg): 0.9 | Stock: Yes
HSK63A-DSC16M-120 ØD (mm): 16 | L (mm): 120 | ØD1 (mm): 24 | ØD2 (mm): 50 | L1 (mm): 67 | H insertion depth (mm): 47 | Weight (kg): 1.1 | Stock: Yes
Shrink Fit HoldersTAUMAX
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX HSK Shank Shrinking Chuck HSK-DSC/M Mono Type

Brand TAUMAX·Shrink Fit Holders

Available part numbers (5)

HSK63A-DSC6M-95, HSK63A-DSC8M-95, HSK63A-DSC10M-120, HSK63A-DSC12M-120, HSK63A-DSC16M-120

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HSK63A-DSC6M-95ØD (mm): 6 | L (mm): 95 | ØD1 (mm): 10 | ØD2 (mm): 26 | L1 (mm): 42 | H insertion depth (mm): 73 | Weight (kg): 0.7 | Stock: Yes
HSK63A-DSC8M-95ØD (mm): 8 | L (mm): 95 | ØD1 (mm): 13 | ØD2 (mm): 36 | L1 (mm): 42 | H insertion depth (mm): 39 | Weight (kg): 0.8 | Stock: Yes
HSK63A-DSC10M-120ØD (mm): 10 | L (mm): 120 | ØD1 (mm): 16 | ØD2 (mm): 36 | L1 (mm): 67 | H insertion depth (mm): 45 | Weight (kg): 0.8 | Stock: Yes
HSK63A-DSC12M-120ØD (mm): 12 | L (mm): 120 | ØD1 (mm): 19 | ØD2 (mm): 36 | L1 (mm): 67 | H insertion depth (mm): 45 | Weight (kg): 0.9 | Stock: Yes
HSK63A-DSC16M-120ØD (mm): 16 | L (mm): 120 | ØD1 (mm): 24 | ØD2 (mm): 50 | L1 (mm): 67 | H insertion depth (mm): 47 | Weight (kg): 1.1 | Stock: Yes
