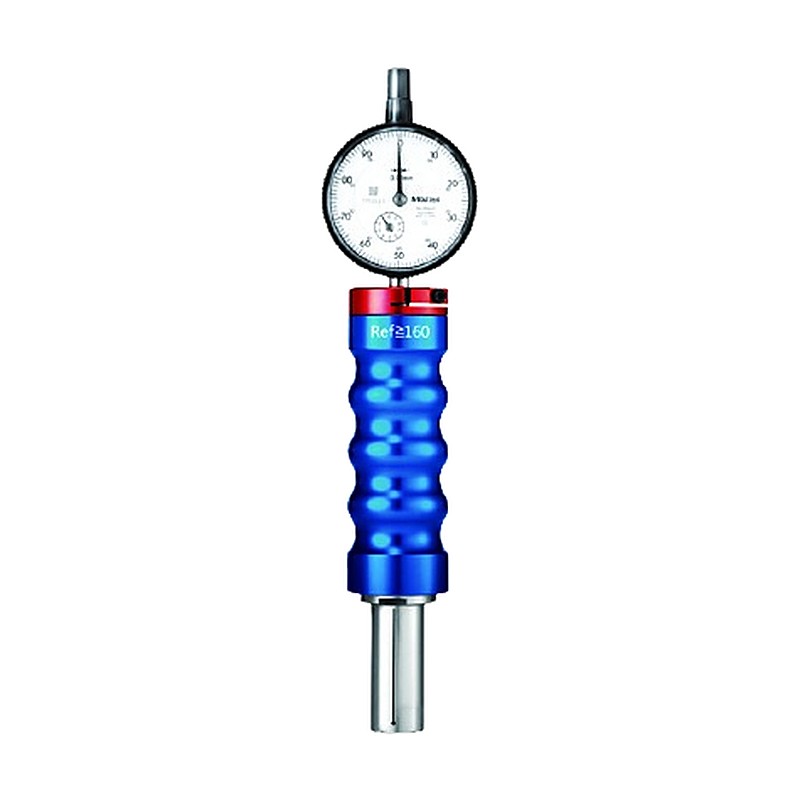

TAUMAX Hydraulic Expansion Chuck Gauge HDG

TAUMAX Hydraulic Expansion Chuck Gauge HDG

Gauge that checks whether a hydraulic chuck's clamping force is normal before machining, by measuring the bore reduction when the chuck is clamped.

Key features

  • Checks hydraulic chuck clamping force before machining
  • Reduces errors caused by lowered clamping force
  • Helps prevent defective machining from tool pull-out
  • Measured values based on the maker's own hydraulic chucks

Specifications

Compatibility Not compatible with other makers' hydraulic chucks
HDG-6 Hydraulic Chuck Tool Dia. (mm): 6 | Usable Range (um): more than 80 | Inspection Range (um): 70-80 | Stock: Yes
HDG-7 Hydraulic Chuck Tool Dia. (mm): 7 | Usable Range (um): more than 80 | Inspection Range (um): 70-80 | Stock: Non-stock item
HDG-8 Hydraulic Chuck Tool Dia. (mm): 8 | Usable Range (um): more than 80 | Inspection Range (um): 70-80 | Stock: Yes
HDG-9 Hydraulic Chuck Tool Dia. (mm): 9 | Usable Range (um): more than 120 | Inspection Range (um): 110-120 | Stock: Non-stock item
HDG-10 Hydraulic Chuck Tool Dia. (mm): 10 | Usable Range (um): more than 100 | Inspection Range (um): 90-100 | Stock: Yes
HDG-12 Hydraulic Chuck Tool Dia. (mm): 12 | Usable Range (um): more than 120 | Inspection Range (um): 110-120 | Stock: Yes
HDG-14 Hydraulic Chuck Tool Dia. (mm): 14 | Usable Range (um): more than 150 | Inspection Range (um): 140-150 | Stock: Non-stock item
HDG-16 Hydraulic Chuck Tool Dia. (mm): 16 | Usable Range (um): more than 150 | Inspection Range (um): 140-150 | Stock: Yes
HDG-18 Hydraulic Chuck Tool Dia. (mm): 18 | Usable Range (um): more than 150 | Inspection Range (um): 140-150 | Stock: Non-stock item
HDG-20 Hydraulic Chuck Tool Dia. (mm): 20 | Usable Range (um): more than 160 | Inspection Range (um): 150-160 | Stock: Yes
HDG-25 Hydraulic Chuck Tool Dia. (mm): 25 | Usable Range (um): more than 190 | Inspection Range (um): 180-190 | Stock: Non-stock item
HDG-32 Hydraulic Chuck Tool Dia. (mm): 32 | Usable Range (um): more than 160 | Inspection Range (um): 150-160 | Stock: Non-stock item
