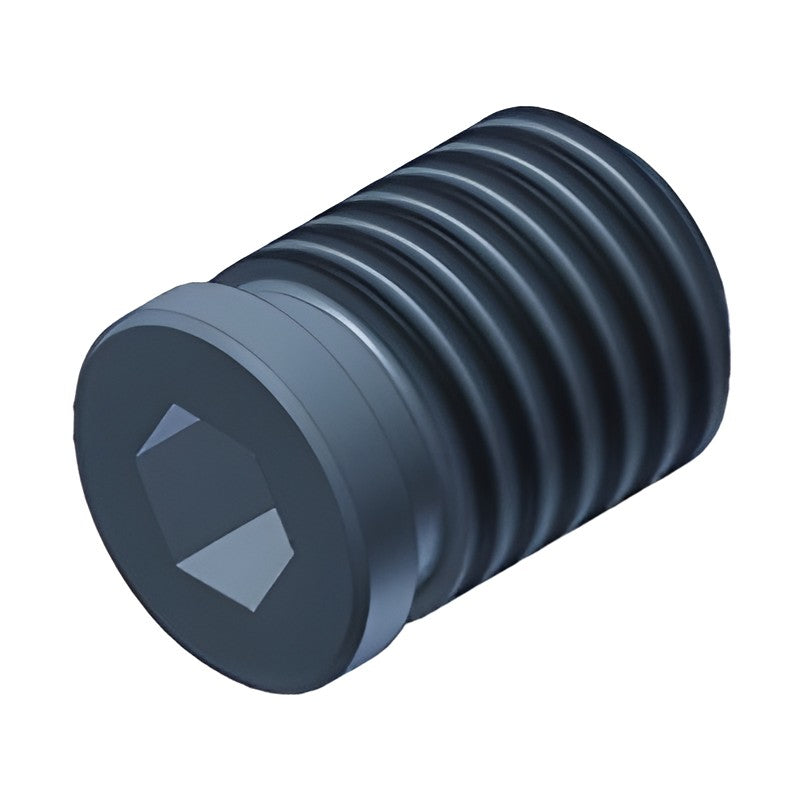

TAUMAX Hydraulic Expansion Chuck Spare Parts DHE

Clamp bolts, adjust screws, T-wrenches and HSK coolant accessories for DHE series hydraulic expansion chucks.

Key features

Clamp bolts and adjust screws supplied as standard components
T-wrenches and HSK coolant nozzle sets available separately

BTF1212-1.5		Part: Clamp bolt \| Applicable: DHE Ø25, Ø32
BTF1012		Part: Clamp bolt \| Applicable: DHE/S Ø16, Ø20
BTF1010-1.5		Part: Clamp bolt \| Applicable: DHE/P Ø20, Ø25, Ø32
BTF0808		Part: Clamp bolt \| Applicable: S-DHE Ø6-Ø20
BTF0806		Part: Clamp bolt \| Applicable: ST-DHE Front, Rear-post and Back types
DHE-G-M10-14L		Part: Clamp bolt \| Applicable: DHE/G Ø6-Ø32
DHE-M5(ADJ)		Part: Adjust screw \| Applicable: DHE Ø6-Ø10; DHE/S Ø6-Ø12; DHE/P BT30 Ø20 and HSK63A; S-DHE Ø6-Ø16; ST-DHE Front; DHE/G Ø6-Ø10
DHE-M10(ADJ)		Part: Adjust screw \| Applicable: DHE Ø12-Ø20; DHE/S Ø16, Ø20; DHE/P BT40/BT50 Ø20; S-DHE Ø20; DHE/G Ø12-Ø20
DHE-M16(ADJ)		Part: Adjust screw \| Applicable: DHE Ø25, Ø32; DHE/P Ø25, Ø32; DHE/G Ø25, Ø32
DHETW-4		Part: T-wrench \| Applicable: S-DHE; ST-DHE
DHETW-5		Part: T-wrench \| Applicable: DHE Ø4-Ø20; DHE/S; DHE/P; DHE/G
DHETW-6		Part: T-wrench \| Applicable: DHE Ø25, Ø32
HSK50A-CNS		Part: Internal coolant nozzle set (sold separately) \| Applicable: HSK50A shank chucks
HSK63A-CNS		Part: Internal coolant nozzle set (sold separately) \| Applicable: HSK63A shank chucks
HSK100A-CNS		Part: Internal coolant nozzle set (sold separately) \| Applicable: HSK100A shank chucks
HSK50-WRENCH(C)		Part: Coolant tube wrench (sold separately) \| Applicable: HSK50A coolant nozzle set
HSK63-WRENCH(C)		Part: Coolant tube wrench (sold separately) \| Applicable: HSK63A coolant nozzle set
HSK100-WRENCH(C)		Part: Coolant tube wrench (sold separately) \| Applicable: HSK100A coolant nozzle set

Tool Holder Spare PartsTAUMAX

18 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Hydraulic Expansion Chuck Spare Parts DHE

Brand TAUMAX·Tool Holder Spare Parts

Available part numbers (18)

BTF1212-1.5, BTF1012, BTF1010-1.5, BTF0808, BTF0806, DHE-G-M10-14L, DHE-M5(ADJ), DHE-M10(ADJ), DHE-M16(ADJ), DHETW-4 + 8 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

	Product code	Spec
	BTF1212-1.5	Part: Clamp bolt \| Applicable: DHE Ø25, Ø32
	BTF1012	Part: Clamp bolt \| Applicable: DHE/S Ø16, Ø20
	BTF1010-1.5	Part: Clamp bolt \| Applicable: DHE/P Ø20, Ø25, Ø32
	BTF0808	Part: Clamp bolt \| Applicable: S-DHE Ø6-Ø20
	BTF0806	Part: Clamp bolt \| Applicable: ST-DHE Front, Rear-post and Back types
	DHE-G-M10-14L	Part: Clamp bolt \| Applicable: DHE/G Ø6-Ø32
	DHE-M5(ADJ)	Part: Adjust screw \| Applicable: DHE Ø6-Ø10; DHE/S Ø6-Ø12; DHE/P BT30 Ø20 and HSK63A; S-DHE Ø6-Ø16; ST-DHE Front; DHE/G Ø6-Ø10
	DHE-M10(ADJ)	Part: Adjust screw \| Applicable: DHE Ø12-Ø20; DHE/S Ø16, Ø20; DHE/P BT40/BT50 Ø20; S-DHE Ø20; DHE/G Ø12-Ø20
	DHE-M16(ADJ)	Part: Adjust screw \| Applicable: DHE Ø25, Ø32; DHE/P Ø25, Ø32; DHE/G Ø25, Ø32
	DHETW-4	Part: T-wrench \| Applicable: S-DHE; ST-DHE
	DHETW-5	Part: T-wrench \| Applicable: DHE Ø4-Ø20; DHE/S; DHE/P; DHE/G
	DHETW-6	Part: T-wrench \| Applicable: DHE Ø25, Ø32
	HSK50A-CNS	Part: Internal coolant nozzle set (sold separately) \| Applicable: HSK50A shank chucks
	HSK63A-CNS	Part: Internal coolant nozzle set (sold separately) \| Applicable: HSK63A shank chucks
	HSK100A-CNS	Part: Internal coolant nozzle set (sold separately) \| Applicable: HSK100A shank chucks
	HSK50-WRENCH(C)	Part: Coolant tube wrench (sold separately) \| Applicable: HSK50A coolant nozzle set
	HSK63-WRENCH(C)	Part: Coolant tube wrench (sold separately) \| Applicable: HSK63A coolant nozzle set
	HSK100-WRENCH(C)	Part: Coolant tube wrench (sold separately) \| Applicable: HSK100A coolant nozzle set
