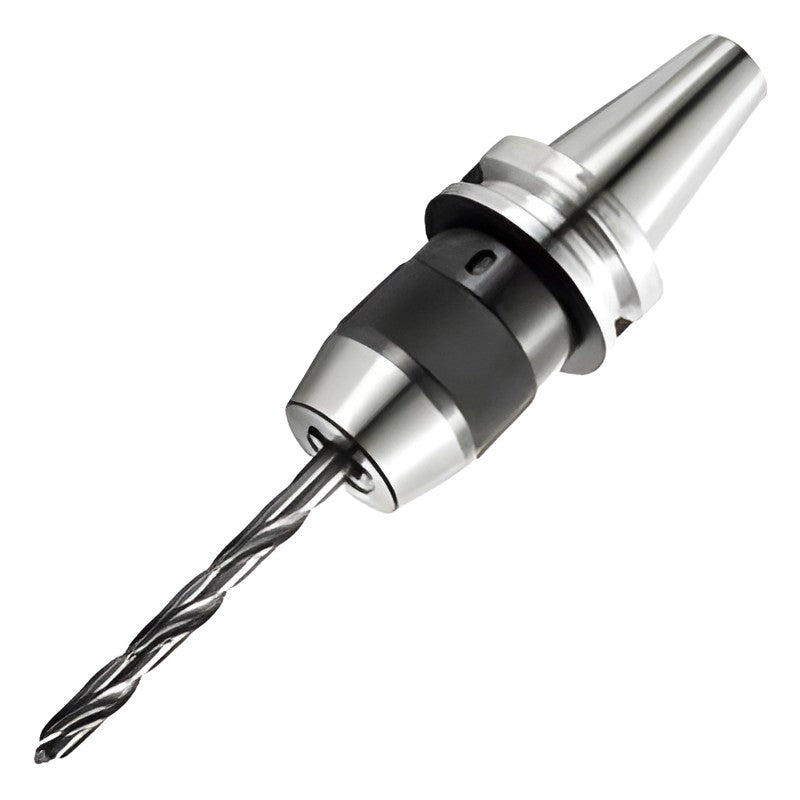

TAUMAX Integrated Drill Chuck NPU

TAUMAX Integrated Drill Chuck NPU

Integrated keyless drill chuck holder with BT, HSK-A or SK shank for drills from Ø1 to Ø13 mm.

BT30-NPU8-97 Clamping range (mm): 1~8 | L (mm): 97 | ØD1 (mm): 38 | L1 (mm): 75 | L2 (mm): 8 | Weight (kg): 0.8 | Stock: Yes
BT30-NPU13-125 Clamping range (mm): 1~13 | L (mm): 125 | ØD1 (mm): 50 | L1 (mm): 103 | L2 (mm): 12 | Weight (kg): 1.4 | Stock: Yes
BT40-NPU8-87 Clamping range (mm): 1~8 | L (mm): 87 | ØD1 (mm): 38 | L1 (mm): 60 | L2 (mm): 8 | Weight (kg): 1.2 | Stock: Yes
BT40-NPU13-105 Clamping range (mm): 1~13 | L (mm): 105 | ØD1 (mm): 50 | L1 (mm): 78 | L2 (mm): 12 | Weight (kg): 1.6 | Stock: Yes
BT40-NPU13-130 Clamping range (mm): 1~13 | L (mm): 130 | ØD1 (mm): 50 | L1 (mm): 103 | L2 (mm): 12 | Weight (kg): 1.9 | Stock: Yes
BT50-NPU13-130 Clamping range (mm): 1~13 | L (mm): 130 | ØD1 (mm): 50 | L1 (mm): 92 | L2 (mm): 12 | Weight (kg): 4.5 | Stock: Yes
BT50-NPU13-190 Clamping range (mm): 1~13 | L (mm): 190 | ØD1 (mm): 50 | L1 (mm): 152 | L2 (mm): 12 | Weight (kg): 5.3 | Stock: Yes
HSK63A-NPU13-175 Clamping range (mm): 1~13 | L (mm): 175 | ØD1 (mm): 50 | L1 (mm): 149 | L2 (mm): 12 | Weight (kg): 2.4 | Stock: Yes
HSK100A-NPU13-180 Clamping range (mm): 1~13 | L (mm): 180 | ØD1 (mm): 50 | L1 (mm): 151 | L2 (mm): 12 | Weight (kg): 3.6 | Stock: Yes
SK40-NPU13-105 Clamping range (mm): 1~13 | L (mm): 105 | ØD1 (mm): 50 | L1 (mm): 78 | L2 (mm): 12.5 | Weight (kg): 1.6 | Stock: Yes
SK50-NPU13-111 Clamping range (mm): 1~13 | L (mm): 111 | ØD1 (mm): 50 | L1 (mm): 84 | L2 (mm): 12.5 | Weight (kg): 3.6 | Stock: Yes
Drill ChucksTAUMAX
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Integrated Drill Chuck NPU

Brand TAUMAX·Drill Chucks

Available part numbers (11)

BT30-NPU8-97, BT30-NPU13-125, BT40-NPU8-87, BT40-NPU13-105, BT40-NPU13-130, BT50-NPU13-130, BT50-NPU13-190, HSK63A-NPU13-175, HSK100A-NPU13-180, SK40-NPU13-105 + 1 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BT30-NPU8-97Clamping range (mm): 1~8 | L (mm): 97 | ØD1 (mm): 38 | L1 (mm): 75 | L2 (mm): 8 | Weight (kg): 0.8 | Stock: Yes
BT30-NPU13-125Clamping range (mm): 1~13 | L (mm): 125 | ØD1 (mm): 50 | L1 (mm): 103 | L2 (mm): 12 | Weight (kg): 1.4 | Stock: Yes
BT40-NPU8-87Clamping range (mm): 1~8 | L (mm): 87 | ØD1 (mm): 38 | L1 (mm): 60 | L2 (mm): 8 | Weight (kg): 1.2 | Stock: Yes
BT40-NPU13-105Clamping range (mm): 1~13 | L (mm): 105 | ØD1 (mm): 50 | L1 (mm): 78 | L2 (mm): 12 | Weight (kg): 1.6 | Stock: Yes
BT40-NPU13-130Clamping range (mm): 1~13 | L (mm): 130 | ØD1 (mm): 50 | L1 (mm): 103 | L2 (mm): 12 | Weight (kg): 1.9 | Stock: Yes
BT50-NPU13-130Clamping range (mm): 1~13 | L (mm): 130 | ØD1 (mm): 50 | L1 (mm): 92 | L2 (mm): 12 | Weight (kg): 4.5 | Stock: Yes
BT50-NPU13-190Clamping range (mm): 1~13 | L (mm): 190 | ØD1 (mm): 50 | L1 (mm): 152 | L2 (mm): 12 | Weight (kg): 5.3 | Stock: Yes
HSK63A-NPU13-175Clamping range (mm): 1~13 | L (mm): 175 | ØD1 (mm): 50 | L1 (mm): 149 | L2 (mm): 12 | Weight (kg): 2.4 | Stock: Yes
HSK100A-NPU13-180Clamping range (mm): 1~13 | L (mm): 180 | ØD1 (mm): 50 | L1 (mm): 151 | L2 (mm): 12 | Weight (kg): 3.6 | Stock: Yes
SK40-NPU13-105Clamping range (mm): 1~13 | L (mm): 105 | ØD1 (mm): 50 | L1 (mm): 78 | L2 (mm): 12.5 | Weight (kg): 1.6 | Stock: Yes
SK50-NPU13-111Clamping range (mm): 1~13 | L (mm): 111 | ØD1 (mm): 50 | L1 (mm): 84 | L2 (mm): 12.5 | Weight (kg): 3.6 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →
