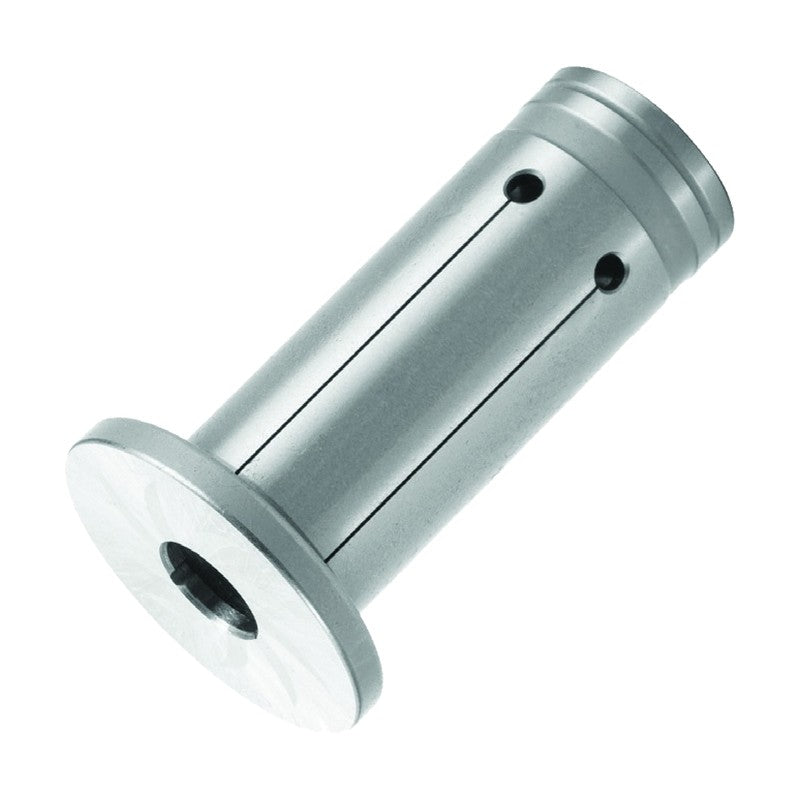

TAUMAX Jet Coolant Collet DHJ

TAUMAX Jet Coolant Collet DHJ

Jet coolant reduction collet that provides a jet coolant function simply by clamping it in a hydraulic chuck.

Key features

  • Jet coolant function just by clamping in the hydraulic chuck
  • Internal coolant usable when fitted with an O-ring
  • Reduces workpiece damage caused by chips
  • Run-out 3 um

Specifications

Collet Size Ø20
DHJ20-6 Inner Dia. ØD (mm): 6 | Length L (mm): 50 | Outer Dia. ØD1 (mm): 20 | Weight (kg): 0.1 | Stock: Yes
DHJ20-8 Inner Dia. ØD (mm): 8 | Length L (mm): 50 | Outer Dia. ØD1 (mm): 20 | Weight (kg): 0.1 | Stock: Yes
DHJ20-10 Inner Dia. ØD (mm): 10 | Length L (mm): 50 | Outer Dia. ØD1 (mm): 20 | Weight (kg): 0.1 | Stock: Yes
DHJ20-12 Inner Dia. ØD (mm): 12 | Length L (mm): 50 | Outer Dia. ØD1 (mm): 20 | Weight (kg): 0.1 | Stock: Yes
DHJ20-14 Inner Dia. ØD (mm): 14 | Length L (mm): 50 | Outer Dia. ØD1 (mm): 20 | Weight (kg): 0.08 | Stock: Yes
DHJ20-16 Inner Dia. ØD (mm): 16 | Length L (mm): 50 | Outer Dia. ØD1 (mm): 20 | Weight (kg): 0.08 | Stock: Yes
ColletsTAUMAX
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Jet Coolant Collet DHJ

Brand TAUMAX·Collets

Available part numbers (6)

DHJ20-6, DHJ20-8, DHJ20-10, DHJ20-12, DHJ20-14, DHJ20-16

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DHJ20-6Inner Dia. ØD (mm): 6 | Length L (mm): 50 | Outer Dia. ØD1 (mm): 20 | Weight (kg): 0.1 | Stock: Yes
DHJ20-8Inner Dia. ØD (mm): 8 | Length L (mm): 50 | Outer Dia. ØD1 (mm): 20 | Weight (kg): 0.1 | Stock: Yes
DHJ20-10Inner Dia. ØD (mm): 10 | Length L (mm): 50 | Outer Dia. ØD1 (mm): 20 | Weight (kg): 0.1 | Stock: Yes
DHJ20-12Inner Dia. ØD (mm): 12 | Length L (mm): 50 | Outer Dia. ØD1 (mm): 20 | Weight (kg): 0.1 | Stock: Yes
DHJ20-14Inner Dia. ØD (mm): 14 | Length L (mm): 50 | Outer Dia. ØD1 (mm): 20 | Weight (kg): 0.08 | Stock: Yes
DHJ20-16Inner Dia. ØD (mm): 16 | Length L (mm): 50 | Outer Dia. ØD1 (mm): 20 | Weight (kg): 0.08 | Stock: Yes
