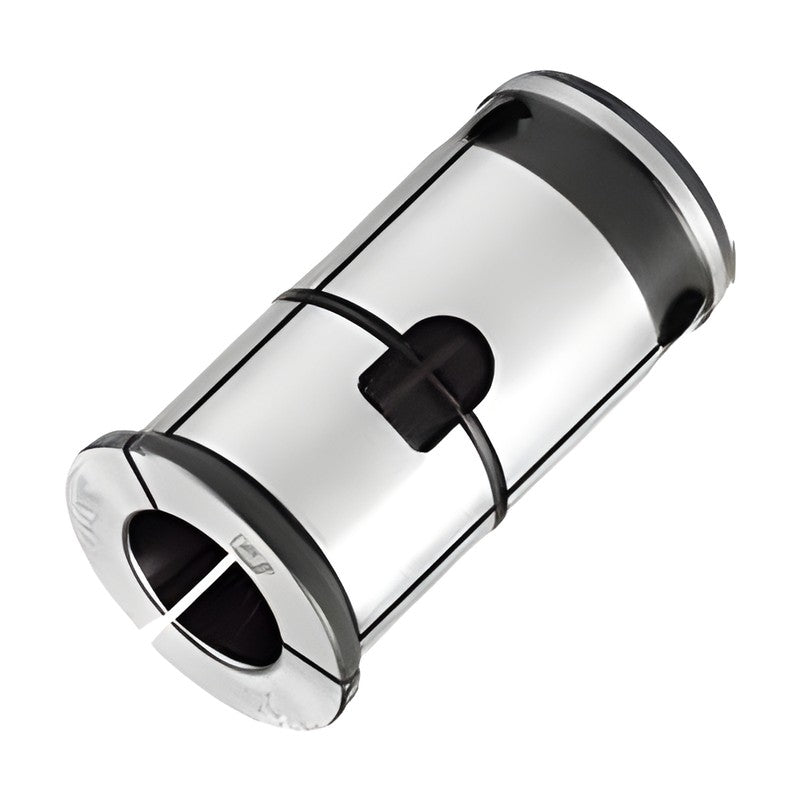

TAUMAX Lock Collet for Milling Chuck DCL

TAUMAX Lock Collet for Milling Chuck DCL

Mechanical-lock collet for milling chucks that prevents tool pull-out using Weldon flat (DIN 6535 HB) end mills.

Key features

  • Mechanical fastening prevents tool deviation and slip
  • Stable clamping under extreme machining conditions
  • Key engages the groove of the milling chuck
  • For DIN 6535 HB Weldon flat shank end mills
DCL20-6 Collet size: DCL20 | ØD (mm): 6 | L (mm): 53 | ØD1 (mm): 20 | Stock: Yes (to be switched to NP order after stock depletion)
DCL20-8 Collet size: DCL20 | ØD (mm): 8 | L (mm): 53 | ØD1 (mm): 20 | Stock: Yes (to be switched to NP order after stock depletion)
DCL20-10 Collet size: DCL20 | ØD (mm): 10 | L (mm): 53 | ØD1 (mm): 20 | Stock: Yes (to be switched to NP order after stock depletion)
DCL20-12 Collet size: DCL20 | ØD (mm): 12 | L (mm): 53 | ØD1 (mm): 20 | Stock: Yes (to be switched to NP order after stock depletion)
DCL20-14 Collet size: DCL20 | ØD (mm): 14 | L (mm): 53 | ØD1 (mm): 20 | Stock: Yes (to be switched to NP order after stock depletion)
DCL20-16 Collet size: DCL20 | ØD (mm): 16 | L (mm): 53 | ØD1 (mm): 20 | Stock: Yes (to be switched to NP order after stock depletion)
DCL32-6 Collet size: DCL32 | ØD (mm): 6 | L (mm): 65 | ØD1 (mm): 32 | Stock: Yes (to be switched to NP order after stock depletion)
DCL32-8 Collet size: DCL32 | ØD (mm): 8 | L (mm): 65 | ØD1 (mm): 32 | Stock: Yes (to be switched to NP order after stock depletion)
DCL32-10 Collet size: DCL32 | ØD (mm): 10 | L (mm): 65 | ØD1 (mm): 32 | Stock: Yes (to be switched to NP order after stock depletion)
DCL32-12 Collet size: DCL32 | ØD (mm): 12 | L (mm): 65 | ØD1 (mm): 32 | Stock: Yes (to be switched to NP order after stock depletion)
DCL32-14 Collet size: DCL32 | ØD (mm): 14 | L (mm): 65 | ØD1 (mm): 32 | Stock: Yes (to be switched to NP order after stock depletion)
DCL32-16 Collet size: DCL32 | ØD (mm): 16 | L (mm): 65 | ØD1 (mm): 32 | Stock: Yes (to be switched to NP order after stock depletion)
DCL32-18 Collet size: DCL32 | ØD (mm): 18 | L (mm): 65 | ØD1 (mm): 32 | Stock: Yes (to be switched to NP order after stock depletion)
DCL32-20 Collet size: DCL32 | ØD (mm): 20 | L (mm): 65 | ØD1 (mm): 32 | Stock: Yes (to be switched to NP order after stock depletion)
DCL32-25 Collet size: DCL32 | ØD (mm): 25 | L (mm): 65 | ØD1 (mm): 32 | Stock: Yes (to be switched to NP order after stock depletion)
ColletsTAUMAX
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Lock Collet for Milling Chuck DCL

Brand TAUMAX·Collets

Available part numbers (15)

DCL20-6, DCL20-8, DCL20-10, DCL20-12, DCL20-14, DCL20-16, DCL32-6, DCL32-8, DCL32-10, DCL32-12 + 5 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DCL20-6Collet size: DCL20 | ØD (mm): 6 | L (mm): 53 | ØD1 (mm): 20 | Stock: Yes (to be switched to NP order after stock depletion)
DCL20-8Collet size: DCL20 | ØD (mm): 8 | L (mm): 53 | ØD1 (mm): 20 | Stock: Yes (to be switched to NP order after stock depletion)
DCL20-10Collet size: DCL20 | ØD (mm): 10 | L (mm): 53 | ØD1 (mm): 20 | Stock: Yes (to be switched to NP order after stock depletion)
DCL20-12Collet size: DCL20 | ØD (mm): 12 | L (mm): 53 | ØD1 (mm): 20 | Stock: Yes (to be switched to NP order after stock depletion)
DCL20-14Collet size: DCL20 | ØD (mm): 14 | L (mm): 53 | ØD1 (mm): 20 | Stock: Yes (to be switched to NP order after stock depletion)
DCL20-16Collet size: DCL20 | ØD (mm): 16 | L (mm): 53 | ØD1 (mm): 20 | Stock: Yes (to be switched to NP order after stock depletion)
DCL32-6Collet size: DCL32 | ØD (mm): 6 | L (mm): 65 | ØD1 (mm): 32 | Stock: Yes (to be switched to NP order after stock depletion)
DCL32-8Collet size: DCL32 | ØD (mm): 8 | L (mm): 65 | ØD1 (mm): 32 | Stock: Yes (to be switched to NP order after stock depletion)
DCL32-10Collet size: DCL32 | ØD (mm): 10 | L (mm): 65 | ØD1 (mm): 32 | Stock: Yes (to be switched to NP order after stock depletion)
DCL32-12Collet size: DCL32 | ØD (mm): 12 | L (mm): 65 | ØD1 (mm): 32 | Stock: Yes (to be switched to NP order after stock depletion)
DCL32-14Collet size: DCL32 | ØD (mm): 14 | L (mm): 65 | ØD1 (mm): 32 | Stock: Yes (to be switched to NP order after stock depletion)
DCL32-16Collet size: DCL32 | ØD (mm): 16 | L (mm): 65 | ØD1 (mm): 32 | Stock: Yes (to be switched to NP order after stock depletion)
DCL32-18Collet size: DCL32 | ØD (mm): 18 | L (mm): 65 | ØD1 (mm): 32 | Stock: Yes (to be switched to NP order after stock depletion)
DCL32-20Collet size: DCL32 | ØD (mm): 20 | L (mm): 65 | ØD1 (mm): 32 | Stock: Yes (to be switched to NP order after stock depletion)
DCL32-25Collet size: DCL32 | ØD (mm): 25 | L (mm): 65 | ØD1 (mm): 32 | Stock: Yes (to be switched to NP order after stock depletion)
