TAUMAX Micro Boring Bar BT-BCF

TAUMAX Micro Boring Bar BT-BCF

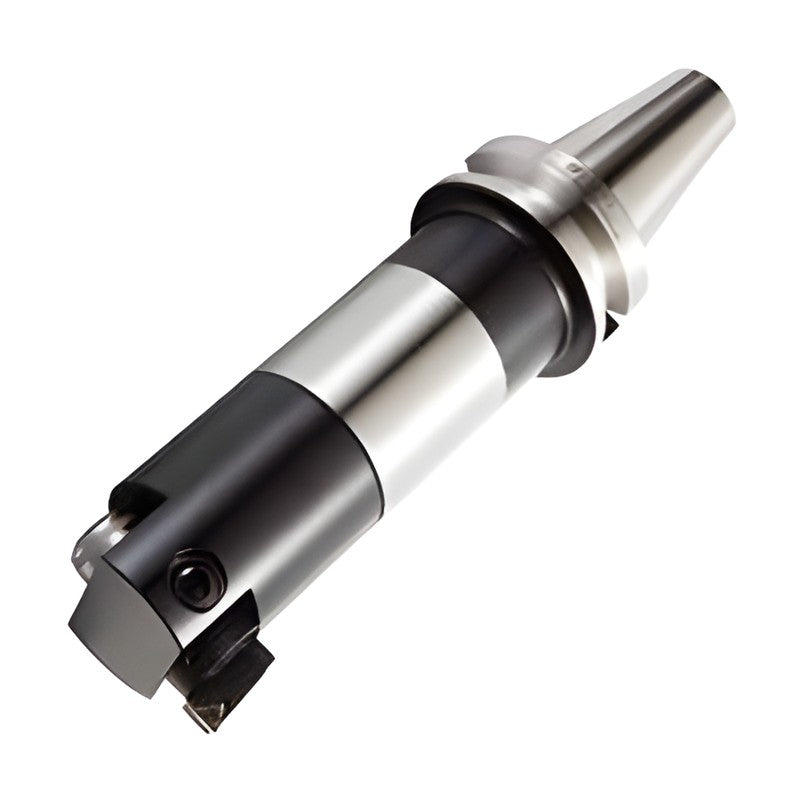

Right-angled and modular type micro boring bars with MAS 403-BT shank covering bores from 29.5 to 450 mm; bodies, boring units and head sets are sold individually.

Key features

  • Boring range 29.5-450 mm
  • Fine adjustment 1 division = 0.02 mm on diameter
  • Uses FF boring units (TBGT0601, TPGT0802, TPGT1103 inserts)
  • No internal coolant

Specifications

Shank MAS 403-BT
BCF2530 Part: Boring head | Boring range (mm): 29.5-42 | Boring unit: FF10-30(S) | Head weight (kg): 0.3 | Stock: Yes
BCF3239 Part: Boring head | Boring range (mm): 39-50 | Boring unit: FF12-39(S) | Head weight (kg): 0.4 | Stock: Yes
BCF4047 Part: Boring head | Boring range (mm): 47-66 | Boring unit: FF16-47(S) | Head weight (kg): 0.6 | Stock: Yes
BCF5058 Part: Boring head | Boring range (mm): 58-83 | Boring unit: FF20-58(S) | Head weight (kg): 1 | Stock: Yes
BCF6379 Part: Boring head | Boring range (mm): 79-108 | Boring unit: FF25-79(S) | Head weight (kg): 1.7 | Stock: Yes
BCF100 Part: Boring head | Boring range (mm): 100-141 | Boring unit: FF32-100(S) | Head weight (kg): 3.8 | Stock: Yes
BCF150 Part: Boring head | Boring range (mm): 150-171 | Boring unit: FF32-138(S) | Stock: Discontinued after inventory depletion
BCF170 Part: Boring head | Boring range (mm): 170-191 | Boring unit: FF32-138(S) | Stock: Discontinued after inventory depletion
BCF190 Part: Boring head | Boring range (mm): 190-211 | Boring unit: FF32-138(S) | Stock: Discontinued after inventory depletion
BCF230 Part: Boring head | Boring range (mm): 230-251 | Boring unit: FF32-138(S) | Stock: Discontinued after inventory depletion
BCF350FS Part: Boring head | Boring range (mm): 350-450 | Boring unit: FF25-79(S) | Stock: Discontinued after inventory depletion
Boring BarsTAUMAX
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Micro Boring Bar BT-BCF

Brand TAUMAX·Boring Bars

Available part numbers (11)

BCF2530, BCF3239, BCF4047, BCF5058, BCF6379, BCF100, BCF150, BCF170, BCF190, BCF230 + 1 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BCF2530Part: Boring head | Boring range (mm): 29.5-42 | Boring unit: FF10-30(S) | Head weight (kg): 0.3 | Stock: Yes
BCF3239Part: Boring head | Boring range (mm): 39-50 | Boring unit: FF12-39(S) | Head weight (kg): 0.4 | Stock: Yes
BCF4047Part: Boring head | Boring range (mm): 47-66 | Boring unit: FF16-47(S) | Head weight (kg): 0.6 | Stock: Yes
BCF5058Part: Boring head | Boring range (mm): 58-83 | Boring unit: FF20-58(S) | Head weight (kg): 1 | Stock: Yes
BCF6379Part: Boring head | Boring range (mm): 79-108 | Boring unit: FF25-79(S) | Head weight (kg): 1.7 | Stock: Yes
BCF100Part: Boring head | Boring range (mm): 100-141 | Boring unit: FF32-100(S) | Head weight (kg): 3.8 | Stock: Yes
BCF150Part: Boring head | Boring range (mm): 150-171 | Boring unit: FF32-138(S) | Stock: Discontinued after inventory depletion
BCF170Part: Boring head | Boring range (mm): 170-191 | Boring unit: FF32-138(S) | Stock: Discontinued after inventory depletion
BCF190Part: Boring head | Boring range (mm): 190-211 | Boring unit: FF32-138(S) | Stock: Discontinued after inventory depletion
BCF230Part: Boring head | Boring range (mm): 230-251 | Boring unit: FF32-138(S) | Stock: Discontinued after inventory depletion
BCF350FSPart: Boring head | Boring range (mm): 350-450 | Boring unit: FF25-79(S) | Stock: Discontinued after inventory depletion
