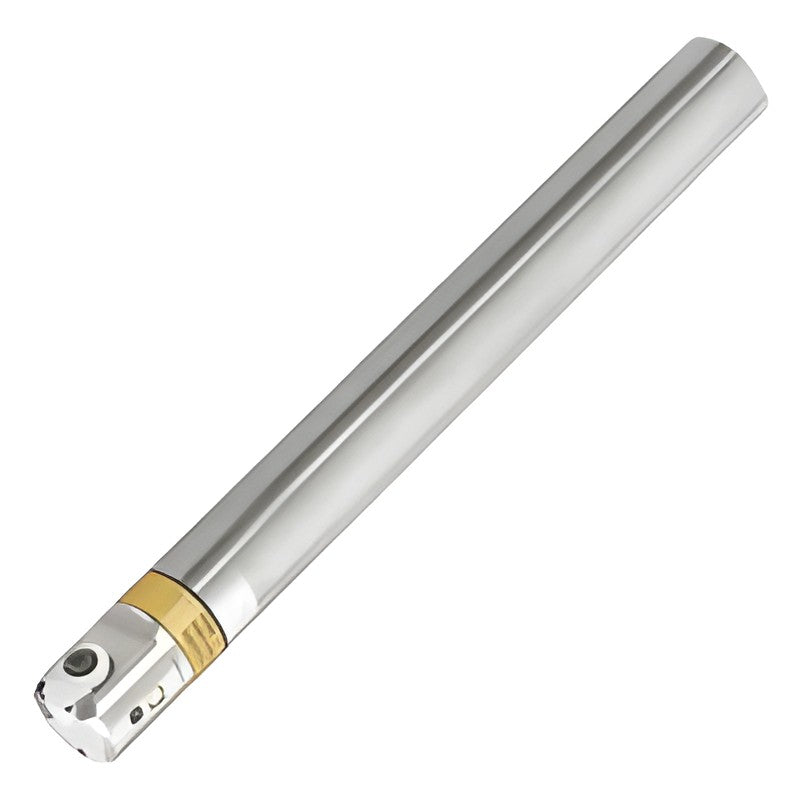

TAUMAX Micro Boring Bar with Straight Shank S-FBH

TAUMAX Micro Boring Bar with Straight Shank S-FBH

Straight carbide or steel shank micro boring bar assembled with an FBH boring head and FBB bite for bores from Ø15 to Ø43 mm.

S19W-FBH20B-120 Shank material: Carbide | Boring range min (mm): 20 | Boring range max (mm): 26 | L (mm): 157 | Shank ØD1 (mm): 19 | M (mm): 35 | Shank: S19W-MD19F-157 | Boring head: FBH1920B | Bite: FBB20N | Weight (kg): 0.6 | Stock: Yes
S19W-FBH20B-140 Shank material: Carbide | Boring range min (mm): 20 | Boring range max (mm): 26 | L (mm): 177 | Shank ØD1 (mm): 19 | M (mm): 35 | Shank: S19W-MD19F-177 | Boring head: FBH1920B | Bite: FBB20N | Weight (kg): 0.7 | Stock: Yes
S19W-FBH20B-160 Shank material: Carbide | Boring range min (mm): 20 | Boring range max (mm): 26 | L (mm): 197 | Shank ØD1 (mm): 19 | M (mm): 35 | Shank: S19W-MD19F-197 | Boring head: FBH1920B | Bite: FBB20N | Weight (kg): 0.8 | Stock: Yes
S25W-FBH26B-150 Shank material: Carbide | Boring range min (mm): 26 | Boring range max (mm): 34 | L (mm): 197 | Shank ØD1 (mm): 25 | M (mm): 41 | Shank: S25W-MD25F-197.5 | Boring head: FBH2526B | Bite: FBB26N | Weight (kg): 1.4 | Stock: Yes
S25W-FBH26B-175 Shank material: Carbide | Boring range min (mm): 26 | Boring range max (mm): 34 | L (mm): 222 | Shank ØD1 (mm): 25 | M (mm): 41 | Shank: S25W-MD25F-222.5 | Boring head: FBH2526B | Bite: FBB26N | Weight (kg): 1.6 | Stock: Yes
S25W-FBH26B-200 Shank material: Carbide | Boring range min (mm): 26 | Boring range max (mm): 34 | L (mm): 247 | Shank ØD1 (mm): 25 | M (mm): 41 | Shank: S25W-MD25F-247.5 | Boring head: FBH2526B | Bite: FBB26N | Weight (kg): 1.8 | Stock: Yes
S32W-FBH33B-180 Shank material: Carbide | Boring range min (mm): 33 | Boring range max (mm): 43 | L (mm): 239 | Shank ØD1 (mm): 32 | M (mm): 41 | Shank: S32W-MD32F-239 | Boring head: FBH3233B | Bite: FBB33N | Weight (kg): 2.7 | Stock: Yes
S32W-FBH33B-240 Shank material: Carbide | Boring range min (mm): 33 | Boring range max (mm): 43 | L (mm): 299 | Shank ØD1 (mm): 32 | M (mm): 41 | Shank: S32W-MD32F-299 | Boring head: FBH3233B | Bite: FBB33N | Weight (kg): 3.4 | Stock: Yes
S19-FBH20B-40 Shank material: Steel | Boring range min (mm): 20 | Boring range max (mm): 26 | L (mm): 77 | Shank ØD1 (mm): 19 | M (mm): 35 | Shank: S19-MD19F-77 | Boring head: FBH1920B | Bite: FBB20N | Weight (kg): 0.2 | Stock: Yes
S19-FBH20B-80 Shank material: Steel | Boring range min (mm): 20 | Boring range max (mm): 26 | L (mm): 117 | Shank ØD1 (mm): 19 | M (mm): 35 | Shank: S19-MD19F-117 | Boring head: FBH1920B | Bite: FBB20N | Weight (kg): 0.2 | Stock: Yes
S25-FBH26B-50 Shank material: Steel | Boring range min (mm): 26 | Boring range max (mm): 34 | L (mm): 97 | Shank ØD1 (mm): 25 | M (mm): 41 | Shank: S25-MD25F-97.5 | Boring head: FBH2526B | Bite: FBB26N | Weight (kg): 0.4 | Stock: Yes
S25-FBH26B-100 Shank material: Steel | Boring range min (mm): 26 | Boring range max (mm): 34 | L (mm): 147 | Shank ØD1 (mm): 25 | M (mm): 41 | Shank: S25-MD25F-147.5 | Boring head: FBH2526B | Bite: FBB26N | Weight (kg): 0.6 | Stock: Yes
S32-FBH33B-90 Shank material: Steel | Boring range min (mm): 33 | Boring range max (mm): 43 | L (mm): 149 | Shank ØD1 (mm): 32 | M (mm): 41 | Shank: S32-MD32F-149 | Boring head: FBH3233B | Bite: FBB33N | Weight (kg): 1.1 | Stock: Yes
S32-FBH33B-120 Shank material: Steel | Boring range min (mm): 33 | Boring range max (mm): 43 | L (mm): 179 | Shank ØD1 (mm): 32 | M (mm): 41 | Shank: S32-MD32F-179 | Boring head: FBH3233B | Bite: FBB33N | Weight (kg): 1.2 | Stock: Yes
S14W-FBH15-85 Shank material: Carbide | Boring range min (mm): 15 | Boring range max (mm): 18 | L (mm): 123.25 | Shank ØD1 (mm): 14 | M (mm): 31.75 | Shank: S14W-M6-123 | Boring head: FBH15 | Bite: FBB15-C | Weight (kg): 0.3 | Stock: Yes
S14W-FBH15-110 Shank material: Carbide | Boring range min (mm): 15 | Boring range max (mm): 18 | L (mm): 148.25 | Shank ØD1 (mm): 14 | M (mm): 31.75 | Shank: S14W-M6-148 | Boring head: FBH15 | Bite: FBB15-C | Weight (kg): 0.3 | Stock: Yes
S16W-FBH18-95 Shank material: Carbide | Boring range min (mm): 18 | Boring range max (mm): 22 | L (mm): 128.25 | Shank ØD1 (mm): 16 | M (mm): 36.75 | Shank: S16W-M8-128 | Boring head: FBH18 | Bite: FBB15-C | Weight (kg): 0.4 | Stock: Yes
S16W-FBH18-125 Shank material: Carbide | Boring range min (mm): 18 | Boring range max (mm): 22 | L (mm): 158.25 | Shank ØD1 (mm): 16 | M (mm): 36.75 | Shank: S16W-M8-158 | Boring head: FBH18 | Bite: FBB15-C | Weight (kg): 0.5 | Stock: Yes
S14-FBH15-40 Shank material: Steel | Boring range min (mm): 15 | Boring range max (mm): 18 | L (mm): 78.25 | Shank ØD1 (mm): 14 | M (mm): 31.75 | Shank: S14-M6-78 | Boring head: FBH15 | Bite: FBB15-C | Weight (kg): 0.1 | Stock: Yes
S16-FBH18-45 Shank material: Steel | Boring range min (mm): 18 | Boring range max (mm): 22 | L (mm): 78.25 | Shank ØD1 (mm): 16 | M (mm): 36.75 | Shank: S16-M8-78 | Boring head: FBH18 | Bite: FBB15-C | Weight (kg): 0.1 | Stock: Yes
Boring BarsTAUMAX
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Micro Boring Bar with Straight Shank S-FBH

Brand TAUMAX·Boring Bars

Available part numbers (20)

S19W-FBH20B-120, S19W-FBH20B-140, S19W-FBH20B-160, S25W-FBH26B-150, S25W-FBH26B-175, S25W-FBH26B-200, S32W-FBH33B-180, S32W-FBH33B-240, S19-FBH20B-40, S19-FBH20B-80 + 10 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S19W-FBH20B-120Shank material: Carbide | Boring range min (mm): 20 | Boring range max (mm): 26 | L (mm): 157 | Shank ØD1 (mm): 19 | M (mm): 35 | Shank: S19W-MD19F-157 | Boring head: FBH1920B | Bite: FBB20N | Weight (kg): 0.6 | Stock: Yes
S19W-FBH20B-140Shank material: Carbide | Boring range min (mm): 20 | Boring range max (mm): 26 | L (mm): 177 | Shank ØD1 (mm): 19 | M (mm): 35 | Shank: S19W-MD19F-177 | Boring head: FBH1920B | Bite: FBB20N | Weight (kg): 0.7 | Stock: Yes
S19W-FBH20B-160Shank material: Carbide | Boring range min (mm): 20 | Boring range max (mm): 26 | L (mm): 197 | Shank ØD1 (mm): 19 | M (mm): 35 | Shank: S19W-MD19F-197 | Boring head: FBH1920B | Bite: FBB20N | Weight (kg): 0.8 | Stock: Yes
S25W-FBH26B-150Shank material: Carbide | Boring range min (mm): 26 | Boring range max (mm): 34 | L (mm): 197 | Shank ØD1 (mm): 25 | M (mm): 41 | Shank: S25W-MD25F-197.5 | Boring head: FBH2526B | Bite: FBB26N | Weight (kg): 1.4 | Stock: Yes
S25W-FBH26B-175Shank material: Carbide | Boring range min (mm): 26 | Boring range max (mm): 34 | L (mm): 222 | Shank ØD1 (mm): 25 | M (mm): 41 | Shank: S25W-MD25F-222.5 | Boring head: FBH2526B | Bite: FBB26N | Weight (kg): 1.6 | Stock: Yes
S25W-FBH26B-200Shank material: Carbide | Boring range min (mm): 26 | Boring range max (mm): 34 | L (mm): 247 | Shank ØD1 (mm): 25 | M (mm): 41 | Shank: S25W-MD25F-247.5 | Boring head: FBH2526B | Bite: FBB26N | Weight (kg): 1.8 | Stock: Yes
S32W-FBH33B-180Shank material: Carbide | Boring range min (mm): 33 | Boring range max (mm): 43 | L (mm): 239 | Shank ØD1 (mm): 32 | M (mm): 41 | Shank: S32W-MD32F-239 | Boring head: FBH3233B | Bite: FBB33N | Weight (kg): 2.7 | Stock: Yes
S32W-FBH33B-240Shank material: Carbide | Boring range min (mm): 33 | Boring range max (mm): 43 | L (mm): 299 | Shank ØD1 (mm): 32 | M (mm): 41 | Shank: S32W-MD32F-299 | Boring head: FBH3233B | Bite: FBB33N | Weight (kg): 3.4 | Stock: Yes
S19-FBH20B-40Shank material: Steel | Boring range min (mm): 20 | Boring range max (mm): 26 | L (mm): 77 | Shank ØD1 (mm): 19 | M (mm): 35 | Shank: S19-MD19F-77 | Boring head: FBH1920B | Bite: FBB20N | Weight (kg): 0.2 | Stock: Yes
S19-FBH20B-80Shank material: Steel | Boring range min (mm): 20 | Boring range max (mm): 26 | L (mm): 117 | Shank ØD1 (mm): 19 | M (mm): 35 | Shank: S19-MD19F-117 | Boring head: FBH1920B | Bite: FBB20N | Weight (kg): 0.2 | Stock: Yes
S25-FBH26B-50Shank material: Steel | Boring range min (mm): 26 | Boring range max (mm): 34 | L (mm): 97 | Shank ØD1 (mm): 25 | M (mm): 41 | Shank: S25-MD25F-97.5 | Boring head: FBH2526B | Bite: FBB26N | Weight (kg): 0.4 | Stock: Yes
S25-FBH26B-100Shank material: Steel | Boring range min (mm): 26 | Boring range max (mm): 34 | L (mm): 147 | Shank ØD1 (mm): 25 | M (mm): 41 | Shank: S25-MD25F-147.5 | Boring head: FBH2526B | Bite: FBB26N | Weight (kg): 0.6 | Stock: Yes
S32-FBH33B-90Shank material: Steel | Boring range min (mm): 33 | Boring range max (mm): 43 | L (mm): 149 | Shank ØD1 (mm): 32 | M (mm): 41 | Shank: S32-MD32F-149 | Boring head: FBH3233B | Bite: FBB33N | Weight (kg): 1.1 | Stock: Yes
S32-FBH33B-120Shank material: Steel | Boring range min (mm): 33 | Boring range max (mm): 43 | L (mm): 179 | Shank ØD1 (mm): 32 | M (mm): 41 | Shank: S32-MD32F-179 | Boring head: FBH3233B | Bite: FBB33N | Weight (kg): 1.2 | Stock: Yes
S14W-FBH15-85Shank material: Carbide | Boring range min (mm): 15 | Boring range max (mm): 18 | L (mm): 123.25 | Shank ØD1 (mm): 14 | M (mm): 31.75 | Shank: S14W-M6-123 | Boring head: FBH15 | Bite: FBB15-C | Weight (kg): 0.3 | Stock: Yes
S14W-FBH15-110Shank material: Carbide | Boring range min (mm): 15 | Boring range max (mm): 18 | L (mm): 148.25 | Shank ØD1 (mm): 14 | M (mm): 31.75 | Shank: S14W-M6-148 | Boring head: FBH15 | Bite: FBB15-C | Weight (kg): 0.3 | Stock: Yes
S16W-FBH18-95Shank material: Carbide | Boring range min (mm): 18 | Boring range max (mm): 22 | L (mm): 128.25 | Shank ØD1 (mm): 16 | M (mm): 36.75 | Shank: S16W-M8-128 | Boring head: FBH18 | Bite: FBB15-C | Weight (kg): 0.4 | Stock: Yes
S16W-FBH18-125Shank material: Carbide | Boring range min (mm): 18 | Boring range max (mm): 22 | L (mm): 158.25 | Shank ØD1 (mm): 16 | M (mm): 36.75 | Shank: S16W-M8-158 | Boring head: FBH18 | Bite: FBB15-C | Weight (kg): 0.5 | Stock: Yes
S14-FBH15-40Shank material: Steel | Boring range min (mm): 15 | Boring range max (mm): 18 | L (mm): 78.25 | Shank ØD1 (mm): 14 | M (mm): 31.75 | Shank: S14-M6-78 | Boring head: FBH15 | Bite: FBB15-C | Weight (kg): 0.1 | Stock: Yes
S16-FBH18-45Shank material: Steel | Boring range min (mm): 18 | Boring range max (mm): 22 | L (mm): 78.25 | Shank ØD1 (mm): 16 | M (mm): 36.75 | Shank: S16-M8-78 | Boring head: FBH18 | Bite: FBB15-C | Weight (kg): 0.1 | Stock: Yes
