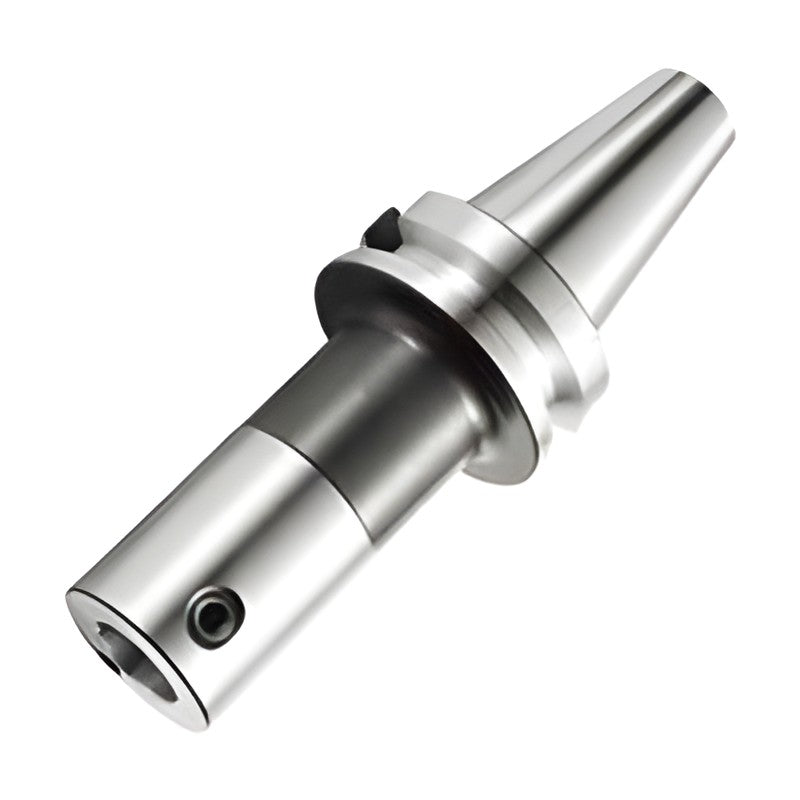

TAUMAX Modular Arbor BT-MD

TAUMAX Modular Arbor BT-MD

Modular arbor with taper connection for mounting DINE boring heads, extensions and reducers (MD19F to MD90F).

Specifications

Shank BT (MAS 403-BT)
BT30-MD19F-70 ØD (mm): 11 | L (mm): 70 | Connection ØD1 (mm): 19 | L1 (mm): 45 | G (thread): M5 | Weight (kg): 0.5 | Stock: Yes
BT30-MD25F-90 ØD (mm): 14 | L (mm): 90 | Connection ØD1 (mm): 25 | L1 (mm): 63 | G (thread): M6 | Weight (kg): 0.6 | Stock: Yes
BT30-MD32F-80 ØD (mm): 18 | L (mm): 80 | Connection ØD1 (mm): 32 | L1 (mm): 55 | G (thread): M8 | Weight (kg): 0.7 | Stock: Yes
BT30-MD40F-45 ØD (mm): 22 | L (mm): 45 | Connection ØD1 (mm): 40 | L1 (mm): 22 | G (thread): M10 | Weight (kg): 0.5 | Stock: Yes
BT30-MD40F-60 ØD (mm): 22 | L (mm): 60 | Connection ØD1 (mm): 40 | L1 (mm): 36 | G (thread): M10 | Weight (kg): 0.7 | Stock: Yes
BT30-MD40F-80 ØD (mm): 22 | L (mm): 80 | Connection ØD1 (mm): 40 | L1 (mm): 56 | G (thread): M10 | Weight (kg): 0.9 | Stock: Yes
BT30-MD50F-70 ØD (mm): 28 | L (mm): 70 | Connection ØD1 (mm): 50 | L1 (mm): 48 | G (thread): M12 | Weight (kg): 0.9 | Stock: Yes
BT40-MD19F-70 ØD (mm): 11 | L (mm): 70 | Connection ØD1 (mm): 19 | L1 (mm): 40 | G (thread): M5 | Weight (kg): 1 | Stock: Yes
BT40-MD25F-95 ØD (mm): 14 | L (mm): 95 | Connection ØD1 (mm): 25 | L1 (mm): 63 | G (thread): M6 | Weight (kg): 1.1 | Stock: Yes
BT40-MD25F-105R ØD (mm): 14 | L (mm): 105 | Connection ØD1 (mm): 25 | L1 (mm): 42 | G (thread): M6 | Weight (kg): 1.2 | Stock: Yes
BT40-MD32F-100 ØD (mm): 18 | L (mm): 100 | Connection ØD1 (mm): 32 | L1 (mm): 70 | G (thread): M8 | Weight (kg): 1.2 | Stock: Yes
BT40-MD32F-115R ØD (mm): 18 | L (mm): 115 | Connection ØD1 (mm): 32 | L1 (mm): 47 | G (thread): M8 | Weight (kg): 1.5 | Stock: Yes
BT40-MD40F-60 ØD (mm): 22 | L (mm): 60 | Connection ØD1 (mm): 40 | L1 (mm): 31 | G (thread): M10 | Weight (kg): 1.1 | Stock: Yes
BT40-MD40F-110R ØD (mm): 22 | L (mm): 110 | Connection ØD1 (mm): 40 | L1 (mm): 60 | G (thread): M10 | Weight (kg): 1.6 | Stock: Yes
BT40-MD40F-115 ØD (mm): 22 | L (mm): 115 | Connection ØD1 (mm): 40 | L1 (mm): 83 | G (thread): M10 | Weight (kg): 1.6 | Stock: Yes
BT40-MD50F-60 ØD (mm): 28 | L (mm): 60 | Connection ØD1 (mm): 50 | L1 (mm): 30 | G (thread): M12 | Weight (kg): 1.3
BT40-MD50F-100R ØD (mm): 28 | L (mm): 100 | Connection ØD1 (mm): 50 | L1 (mm): 52 | G (thread): M12 | Weight (kg): 1.8
BT40-MD50F-105 ØD (mm): 28 | L (mm): 105 | Connection ØD1 (mm): 50 | L1 (mm): 73 | G (thread): M12 | Weight (kg): 1.8 | Stock: Yes
BT40-MD63F-64 ØD (mm): 36 | L (mm): 64 | Connection ØD1 (mm): 63 | L1 (mm): 37 | G (thread): M16 | Weight (kg): 1.5 | Stock: Yes
BT40-MD63F-90 ØD (mm): 36 | L (mm): 90 | Connection ØD1 (mm): 63 | L1 (mm): 63 | G (thread): M16 | Weight (kg): 2
BT40-MD63F-110 ØD (mm): 36 | L (mm): 110 | Connection ØD1 (mm): 63 | L1 (mm): 83 | G (thread): M16 | Weight (kg): 2.4 | Stock: Yes
BT40-MD63F-135 ØD (mm): 36 | L (mm): 135 | Connection ØD1 (mm): 63 | L1 (mm): 108 | G (thread): M16 | Weight (kg): 3 | Stock: Yes
BT40-MD80F-100 ØD (mm): 45 | L (mm): 100 | Connection ØD1 (mm): 80 | L1 (mm): 73 | G (thread): M16 | Weight (kg): 2.9 | Stock: Yes
BT50-MD19F-85 ØD (mm): 11 | L (mm): 85 | Connection ØD1 (mm): 19 | L1 (mm): 44 | G (thread): M5 | Weight (kg): 3.7 | Stock: Yes
BT50-MD19F-100 ØD (mm): 11 | L (mm): 100 | Connection ØD1 (mm): 19 | L1 (mm): 59 | G (thread): M5 | Weight (kg): 3.7
BT50-MD25F-105 ØD (mm): 14 | L (mm): 105 | Connection ØD1 (mm): 25 | L1 (mm): 62 | G (thread): M6 | Weight (kg): 3.8 | Stock: Yes
BT50-MD25F-120R ØD (mm): 14 | L (mm): 120 | Connection ØD1 (mm): 25 | L1 (mm): 42 | G (thread): M6 | Weight (kg): 3.8 | Stock: Yes
BT50-MD32F-110 ØD (mm): 18 | L (mm): 110 | Connection ØD1 (mm): 32 | L1 (mm): 67 | G (thread): M8 | Weight (kg): 4 | Stock: Yes
BT50-MD32F-115R ØD (mm): 18 | L (mm): 115 | Connection ØD1 (mm): 32 | L1 (mm): 47 | G (thread): M8 | Weight (kg): 4.1 | Stock: Yes
BT50-MD32F-235R ØD (mm): 18 | L (mm): 235 | Connection ØD1 (mm): 32 | L1 (mm): 115 | G (thread): M8 | Weight (kg): 5.5 | Stock: Yes
BT50-MD40F-60 ØD (mm): 22 | L (mm): 60 | Connection ØD1 (mm): 40 | L1 (mm): 21 | G (thread): M10 | Weight (kg): 3.7 | Stock: Yes
BT50-MD40F-125R ØD (mm): 22 | L (mm): 125 | Connection ØD1 (mm): 40 | L1 (mm): 59 | G (thread): M10 | Weight (kg): 3.8
BT50-MD40F-145 ØD (mm): 22 | L (mm): 145 | Connection ØD1 (mm): 40 | L1 (mm): 102 | G (thread): M10 | Weight (kg): 4.3
BT50-MD40F-195 ØD (mm): 22 | L (mm): 195 | Connection ØD1 (mm): 40 | L1 (mm): 152 | G (thread): M10 | Weight (kg): 4.8 | Stock: Yes
BT50-MD40F-230R ØD (mm): 22 | L (mm): 230 | Connection ØD1 (mm): 40 | L1 (mm): 180 | G (thread): M10 | Weight (kg): 5 | Stock: Yes
BT50-MD50F-125 ØD (mm): 28 | L (mm): 125 | Connection ØD1 (mm): 50 | L1 (mm): 82 | G (thread): M12 | Weight (kg): 4.6 | Stock: Yes
BT50-MD50F-160R ØD (mm): 28 | L (mm): 160 | Connection ØD1 (mm): 50 | L1 (mm): 61 | G (thread): M12 | Weight (kg): 5.7
BT50-MD50F-225 ØD (mm): 28 | L (mm): 225 | Connection ØD1 (mm): 50 | L1 (mm): 182 | G (thread): M12 | Weight (kg): 6 | Stock: Yes
BT50-MD50F-250R ØD (mm): 28 | L (mm): 250 | Connection ØD1 (mm): 50 | L1 (mm): 81 | G (thread): M12 | Weight (kg): 7 | Stock: Yes
BT50-MD63F-75 ØD (mm): 36 | L (mm): 75 | Connection ØD1 (mm): 63 | L1 (mm): 35 | G (thread): M16 | Weight (kg): 4.2 | Stock: Yes
BT50-MD63F-130 ØD (mm): 36 | L (mm): 130 | Connection ØD1 (mm): 63 | L1 (mm): 87 | G (thread): M16 | Weight (kg): 5.3 | Stock: Yes
BT50-MD63F-140 ØD (mm): 36 | L (mm): 140 | Connection ØD1 (mm): 63 | L1 (mm): 97 | G (thread): M16 | Weight (kg): 5.5
BT50-MD63F-140R ØD (mm): 36 | L (mm): 140 | Connection ØD1 (mm): 63 | L1 (mm): 80 | G (thread): M16 | Weight (kg): 5.7
BT50-MD63F-195 ØD (mm): 36 | L (mm): 195 | Connection ØD1 (mm): 63 | L1 (mm): 152 | G (thread): M16 | Weight (kg): 6.8 | Stock: Yes
BT50-MD63F-230 ØD (mm): 36 | L (mm): 230 | Connection ØD1 (mm): 63 | L1 (mm): 187 | G (thread): M16 | Weight (kg): 7.5 | Stock: Yes
BT50-MD63F-240R ØD (mm): 36 | L (mm): 240 | Connection ØD1 (mm): 63 | L1 (mm): 190 | G (thread): M16 | Weight (kg): 7.8
BT50-MD80F-75 ØD (mm): 45 | L (mm): 75 | Connection ØD1 (mm): 80 | L1 (mm): 36 | G (thread): M16 | Weight (kg): 4.3 | Stock: Yes
BT50-MD80F-110 ØD (mm): 45 | L (mm): 110 | Connection ØD1 (mm): 80 | L1 (mm): 69 | G (thread): M16 | Weight (kg): 5.7 | Stock: Yes
BT50-MD80F-175 ØD (mm): 45 | L (mm): 175 | Connection ØD1 (mm): 80 | L1 (mm): 134 | G (thread): M16 | Weight (kg): 8 | Stock: Yes
BT50-MD90F-75 ØD (mm): 45 | L (mm): 75 | Connection ØD1 (mm): 90 | L1 (mm): 36 | G (thread): M16 | Weight (kg): 4.8 | Stock: Yes
BT50-MD90F-145 ØD (mm): 45 | L (mm): 145 | Connection ØD1 (mm): 90 | L1 (mm): 104 | G (thread): M16 | Weight (kg): 7.4 | Stock: Yes
BT50-MD90F-195 ØD (mm): 45 | L (mm): 195 | Connection ØD1 (mm): 90 | L1 (mm): 154 | G (thread): M16 | Weight (kg): 9.4 | Stock: Yes
Modular ArborsTAUMAX
52 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Modular Arbor BT-MD

Brand TAUMAX·Modular Arbors

Available part numbers (52)

BT30-MD19F-70, BT30-MD25F-90, BT30-MD32F-80, BT30-MD40F-45, BT30-MD40F-60, BT30-MD40F-80, BT30-MD50F-70, BT40-MD19F-70, BT40-MD25F-95, BT40-MD25F-105R + 42 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BT30-MD19F-70ØD (mm): 11 | L (mm): 70 | Connection ØD1 (mm): 19 | L1 (mm): 45 | G (thread): M5 | Weight (kg): 0.5 | Stock: Yes
BT30-MD25F-90ØD (mm): 14 | L (mm): 90 | Connection ØD1 (mm): 25 | L1 (mm): 63 | G (thread): M6 | Weight (kg): 0.6 | Stock: Yes
BT30-MD32F-80ØD (mm): 18 | L (mm): 80 | Connection ØD1 (mm): 32 | L1 (mm): 55 | G (thread): M8 | Weight (kg): 0.7 | Stock: Yes
BT30-MD40F-45ØD (mm): 22 | L (mm): 45 | Connection ØD1 (mm): 40 | L1 (mm): 22 | G (thread): M10 | Weight (kg): 0.5 | Stock: Yes
BT30-MD40F-60ØD (mm): 22 | L (mm): 60 | Connection ØD1 (mm): 40 | L1 (mm): 36 | G (thread): M10 | Weight (kg): 0.7 | Stock: Yes
BT30-MD40F-80ØD (mm): 22 | L (mm): 80 | Connection ØD1 (mm): 40 | L1 (mm): 56 | G (thread): M10 | Weight (kg): 0.9 | Stock: Yes
BT30-MD50F-70ØD (mm): 28 | L (mm): 70 | Connection ØD1 (mm): 50 | L1 (mm): 48 | G (thread): M12 | Weight (kg): 0.9 | Stock: Yes
BT40-MD19F-70ØD (mm): 11 | L (mm): 70 | Connection ØD1 (mm): 19 | L1 (mm): 40 | G (thread): M5 | Weight (kg): 1 | Stock: Yes
BT40-MD25F-95ØD (mm): 14 | L (mm): 95 | Connection ØD1 (mm): 25 | L1 (mm): 63 | G (thread): M6 | Weight (kg): 1.1 | Stock: Yes
BT40-MD25F-105RØD (mm): 14 | L (mm): 105 | Connection ØD1 (mm): 25 | L1 (mm): 42 | G (thread): M6 | Weight (kg): 1.2 | Stock: Yes
BT40-MD32F-100ØD (mm): 18 | L (mm): 100 | Connection ØD1 (mm): 32 | L1 (mm): 70 | G (thread): M8 | Weight (kg): 1.2 | Stock: Yes
BT40-MD32F-115RØD (mm): 18 | L (mm): 115 | Connection ØD1 (mm): 32 | L1 (mm): 47 | G (thread): M8 | Weight (kg): 1.5 | Stock: Yes
BT40-MD40F-60ØD (mm): 22 | L (mm): 60 | Connection ØD1 (mm): 40 | L1 (mm): 31 | G (thread): M10 | Weight (kg): 1.1 | Stock: Yes
BT40-MD40F-110RØD (mm): 22 | L (mm): 110 | Connection ØD1 (mm): 40 | L1 (mm): 60 | G (thread): M10 | Weight (kg): 1.6 | Stock: Yes
BT40-MD40F-115ØD (mm): 22 | L (mm): 115 | Connection ØD1 (mm): 40 | L1 (mm): 83 | G (thread): M10 | Weight (kg): 1.6 | Stock: Yes
BT40-MD50F-60ØD (mm): 28 | L (mm): 60 | Connection ØD1 (mm): 50 | L1 (mm): 30 | G (thread): M12 | Weight (kg): 1.3
BT40-MD50F-100RØD (mm): 28 | L (mm): 100 | Connection ØD1 (mm): 50 | L1 (mm): 52 | G (thread): M12 | Weight (kg): 1.8
BT40-MD50F-105ØD (mm): 28 | L (mm): 105 | Connection ØD1 (mm): 50 | L1 (mm): 73 | G (thread): M12 | Weight (kg): 1.8 | Stock: Yes
BT40-MD63F-64ØD (mm): 36 | L (mm): 64 | Connection ØD1 (mm): 63 | L1 (mm): 37 | G (thread): M16 | Weight (kg): 1.5 | Stock: Yes
BT40-MD63F-90ØD (mm): 36 | L (mm): 90 | Connection ØD1 (mm): 63 | L1 (mm): 63 | G (thread): M16 | Weight (kg): 2
BT40-MD63F-110ØD (mm): 36 | L (mm): 110 | Connection ØD1 (mm): 63 | L1 (mm): 83 | G (thread): M16 | Weight (kg): 2.4 | Stock: Yes
BT40-MD63F-135ØD (mm): 36 | L (mm): 135 | Connection ØD1 (mm): 63 | L1 (mm): 108 | G (thread): M16 | Weight (kg): 3 | Stock: Yes
BT40-MD80F-100ØD (mm): 45 | L (mm): 100 | Connection ØD1 (mm): 80 | L1 (mm): 73 | G (thread): M16 | Weight (kg): 2.9 | Stock: Yes
BT50-MD19F-85ØD (mm): 11 | L (mm): 85 | Connection ØD1 (mm): 19 | L1 (mm): 44 | G (thread): M5 | Weight (kg): 3.7 | Stock: Yes
BT50-MD19F-100ØD (mm): 11 | L (mm): 100 | Connection ØD1 (mm): 19 | L1 (mm): 59 | G (thread): M5 | Weight (kg): 3.7
BT50-MD25F-105ØD (mm): 14 | L (mm): 105 | Connection ØD1 (mm): 25 | L1 (mm): 62 | G (thread): M6 | Weight (kg): 3.8 | Stock: Yes
BT50-MD25F-120RØD (mm): 14 | L (mm): 120 | Connection ØD1 (mm): 25 | L1 (mm): 42 | G (thread): M6 | Weight (kg): 3.8 | Stock: Yes
BT50-MD32F-110ØD (mm): 18 | L (mm): 110 | Connection ØD1 (mm): 32 | L1 (mm): 67 | G (thread): M8 | Weight (kg): 4 | Stock: Yes
BT50-MD32F-115RØD (mm): 18 | L (mm): 115 | Connection ØD1 (mm): 32 | L1 (mm): 47 | G (thread): M8 | Weight (kg): 4.1 | Stock: Yes
BT50-MD32F-235RØD (mm): 18 | L (mm): 235 | Connection ØD1 (mm): 32 | L1 (mm): 115 | G (thread): M8 | Weight (kg): 5.5 | Stock: Yes
BT50-MD40F-60ØD (mm): 22 | L (mm): 60 | Connection ØD1 (mm): 40 | L1 (mm): 21 | G (thread): M10 | Weight (kg): 3.7 | Stock: Yes
BT50-MD40F-125RØD (mm): 22 | L (mm): 125 | Connection ØD1 (mm): 40 | L1 (mm): 59 | G (thread): M10 | Weight (kg): 3.8
BT50-MD40F-145ØD (mm): 22 | L (mm): 145 | Connection ØD1 (mm): 40 | L1 (mm): 102 | G (thread): M10 | Weight (kg): 4.3
BT50-MD40F-195ØD (mm): 22 | L (mm): 195 | Connection ØD1 (mm): 40 | L1 (mm): 152 | G (thread): M10 | Weight (kg): 4.8 | Stock: Yes
BT50-MD40F-230RØD (mm): 22 | L (mm): 230 | Connection ØD1 (mm): 40 | L1 (mm): 180 | G (thread): M10 | Weight (kg): 5 | Stock: Yes
BT50-MD50F-125ØD (mm): 28 | L (mm): 125 | Connection ØD1 (mm): 50 | L1 (mm): 82 | G (thread): M12 | Weight (kg): 4.6 | Stock: Yes
BT50-MD50F-160RØD (mm): 28 | L (mm): 160 | Connection ØD1 (mm): 50 | L1 (mm): 61 | G (thread): M12 | Weight (kg): 5.7
BT50-MD50F-225ØD (mm): 28 | L (mm): 225 | Connection ØD1 (mm): 50 | L1 (mm): 182 | G (thread): M12 | Weight (kg): 6 | Stock: Yes
BT50-MD50F-250RØD (mm): 28 | L (mm): 250 | Connection ØD1 (mm): 50 | L1 (mm): 81 | G (thread): M12 | Weight (kg): 7 | Stock: Yes
BT50-MD63F-75ØD (mm): 36 | L (mm): 75 | Connection ØD1 (mm): 63 | L1 (mm): 35 | G (thread): M16 | Weight (kg): 4.2 | Stock: Yes
BT50-MD63F-130ØD (mm): 36 | L (mm): 130 | Connection ØD1 (mm): 63 | L1 (mm): 87 | G (thread): M16 | Weight (kg): 5.3 | Stock: Yes
BT50-MD63F-140ØD (mm): 36 | L (mm): 140 | Connection ØD1 (mm): 63 | L1 (mm): 97 | G (thread): M16 | Weight (kg): 5.5
BT50-MD63F-140RØD (mm): 36 | L (mm): 140 | Connection ØD1 (mm): 63 | L1 (mm): 80 | G (thread): M16 | Weight (kg): 5.7
BT50-MD63F-195ØD (mm): 36 | L (mm): 195 | Connection ØD1 (mm): 63 | L1 (mm): 152 | G (thread): M16 | Weight (kg): 6.8 | Stock: Yes
BT50-MD63F-230ØD (mm): 36 | L (mm): 230 | Connection ØD1 (mm): 63 | L1 (mm): 187 | G (thread): M16 | Weight (kg): 7.5 | Stock: Yes
BT50-MD63F-240RØD (mm): 36 | L (mm): 240 | Connection ØD1 (mm): 63 | L1 (mm): 190 | G (thread): M16 | Weight (kg): 7.8
BT50-MD80F-75ØD (mm): 45 | L (mm): 75 | Connection ØD1 (mm): 80 | L1 (mm): 36 | G (thread): M16 | Weight (kg): 4.3 | Stock: Yes
BT50-MD80F-110ØD (mm): 45 | L (mm): 110 | Connection ØD1 (mm): 80 | L1 (mm): 69 | G (thread): M16 | Weight (kg): 5.7 | Stock: Yes
BT50-MD80F-175ØD (mm): 45 | L (mm): 175 | Connection ØD1 (mm): 80 | L1 (mm): 134 | G (thread): M16 | Weight (kg): 8 | Stock: Yes
BT50-MD90F-75ØD (mm): 45 | L (mm): 75 | Connection ØD1 (mm): 90 | L1 (mm): 36 | G (thread): M16 | Weight (kg): 4.8 | Stock: Yes
BT50-MD90F-145ØD (mm): 45 | L (mm): 145 | Connection ØD1 (mm): 90 | L1 (mm): 104 | G (thread): M16 | Weight (kg): 7.4 | Stock: Yes
BT50-MD90F-195ØD (mm): 45 | L (mm): 195 | Connection ØD1 (mm): 90 | L1 (mm): 154 | G (thread): M16 | Weight (kg): 9.4 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →
