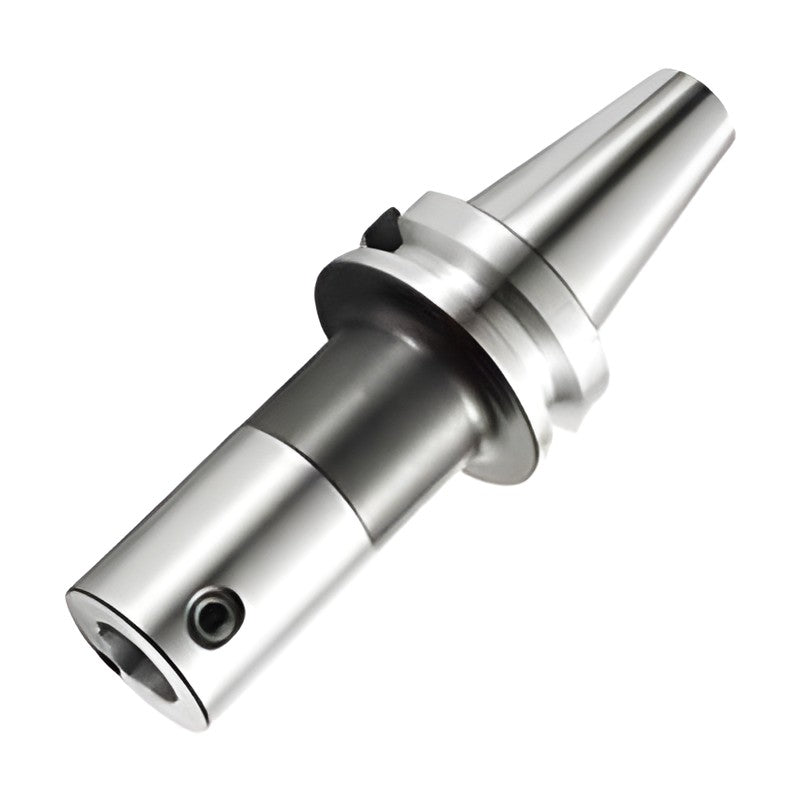

TAUMAX Modular Arbor DBT-MD

TAUMAX Modular Arbor DBT-MD

Modular arbor with taper connection for mounting DINE boring heads, extensions and reducers (MD19F to MD90F).

Specifications

Shank BT dual contact (DBT)
DBT30-MD19F-70R ØD (mm): 11 | L (mm): 70 | Connection ØD1 (mm): 19 | L1 (mm): 27 | G (thread): M5 | Weight (kg): 0.5
DBT30-MD25F-90R ØD (mm): 14 | L (mm): 90 | Connection ØD1 (mm): 25 | L1 (mm): 43 | G (thread): M6 | Weight (kg): 0.6
DBT30-MD32F-80R ØD (mm): 18 | L (mm): 80 | Connection ØD1 (mm): 32 | L1 (mm): 39 | G (thread): M8 | Weight (kg): 0.7
DBT30-MD40F-45 ØD (mm): 22 | L (mm): 45 | Connection ØD1 (mm): 40 | L1 (mm): 22 | G (thread): M10 | Weight (kg): 0.5
DBT30-MD40F-80R ØD (mm): 22 | L (mm): 80 | Connection ØD1 (mm): 40 | L1 (mm): 49 | G (thread): M10 | Weight (kg): 0.8
DBT30-MD50F-70 ØD (mm): 28 | L (mm): 70 | Connection ØD1 (mm): 50 | L1 (mm): 48 | G (thread): M12 | Weight (kg): 0.9
DBT40-MD19F-70 ØD (mm): 11 | L (mm): 70 | Connection ØD1 (mm): 19 | L1 (mm): 40 | G (thread): M5 | Weight (kg): 1
DBT40-MD25F-95 ØD (mm): 14 | L (mm): 95 | Connection ØD1 (mm): 25 | L1 (mm): 63 | G (thread): M6 | Weight (kg): 1.1
DBT40-MD25F-105R ØD (mm): 14 | L (mm): 105 | Connection ØD1 (mm): 25 | L1 (mm): 42 | G (thread): M6 | Weight (kg): 1.2
DBT40-MD32F-100 ØD (mm): 18 | L (mm): 100 | Connection ØD1 (mm): 32 | L1 (mm): 70 | G (thread): M8 | Weight (kg): 1.2
DBT40-MD32F-115R ØD (mm): 18 | L (mm): 115 | Connection ØD1 (mm): 32 | L1 (mm): 47 | G (thread): M8 | Weight (kg): 1.5
DBT40-MD40F-50 ØD (mm): 22 | L (mm): 50 | Connection ØD1 (mm): 40 | L1 (mm): 21 | G (thread): M10 | Weight (kg): 1.2
DBT40-MD40F-110R ØD (mm): 22 | L (mm): 110 | Connection ØD1 (mm): 40 | L1 (mm): 60 | G (thread): M10 | Weight (kg): 1.6
DBT40-MD40F-115 ØD (mm): 22 | L (mm): 115 | Connection ØD1 (mm): 40 | L1 (mm): 83 | G (thread): M10 | Weight (kg): 1.6
DBT40-MD50F-100R ØD (mm): 28 | L (mm): 100 | Connection ØD1 (mm): 50 | L1 (mm): 52 | G (thread): M12 | Weight (kg): 1.8
DBT40-MD50F-105 ØD (mm): 28 | L (mm): 105 | Connection ØD1 (mm): 50 | L1 (mm): 73 | G (thread): M12 | Weight (kg): 1.9
DBT40-MD63F-64 ØD (mm): 36 | L (mm): 64 | Connection ØD1 (mm): 63 | L1 (mm): 37 | G (thread): M16 | Weight (kg): 1.5
DBT40-MD63F-90 ØD (mm): 36 | L (mm): 90 | Connection ØD1 (mm): 63 | L1 (mm): 63 | G (thread): M16 | Weight (kg): 2.1
DBT40-MD63F-110 ØD (mm): 36 | L (mm): 110 | Connection ØD1 (mm): 63 | L1 (mm): 83 | G (thread): M16 | Weight (kg): 2.5
DBT40-MD80F-100 ØD (mm): 45 | L (mm): 100 | Connection ØD1 (mm): 80 | L1 (mm): 73 | G (thread): M16 | Weight (kg): 2.9
DBT50-MD19F-85 ØD (mm): 11 | L (mm): 85 | Connection ØD1 (mm): 19 | L1 (mm): 44 | G (thread): M5 | Weight (kg): 3.7
DBT50-MD19F-100 ØD (mm): 11 | L (mm): 100 | Connection ØD1 (mm): 19 | L1 (mm): 59 | G (thread): M5 | Weight (kg): 3.8
DBT50-MD25F-105 ØD (mm): 14 | L (mm): 105 | Connection ØD1 (mm): 25 | L1 (mm): 62 | G (thread): M6 | Weight (kg): 3.9
DBT50-MD25F-120R ØD (mm): 14 | L (mm): 120 | Connection ØD1 (mm): 25 | L1 (mm): 42 | G (thread): M6 | Weight (kg): 4
DBT50-MD32F-110 ØD (mm): 18 | L (mm): 110 | Connection ØD1 (mm): 32 | L1 (mm): 67 | G (thread): M8 | Weight (kg): 4.1
DBT50-MD32F-115R ØD (mm): 18 | L (mm): 115 | Connection ØD1 (mm): 32 | L1 (mm): 47 | G (thread): M8 | Weight (kg): 4.2
DBT50-MD32F-235R ØD (mm): 18 | L (mm): 235 | Connection ØD1 (mm): 32 | L1 (mm): 115 | G (thread): M8 | Weight (kg): 5.5
DBT50-MD40F-60 ØD (mm): 22 | L (mm): 60 | Connection ØD1 (mm): 40 | L1 (mm): 21 | G (thread): M10 | Weight (kg): 3.7
DBT50-MD40F-125R ØD (mm): 22 | L (mm): 125 | Connection ØD1 (mm): 40 | L1 (mm): 59 | G (thread): M10 | Weight (kg): 4.3
DBT50-MD40F-145 ØD (mm): 22 | L (mm): 145 | Connection ØD1 (mm): 40 | L1 (mm): 102 | G (thread): M10 | Weight (kg): 4.5
DBT50-MD40F-195R ØD (mm): 22 | L (mm): 195 | Connection ØD1 (mm): 40 | L1 (mm): 83 | G (thread): M10 | Weight (kg): 4.8
DBT50-MD40F-230R ØD (mm): 22 | L (mm): 230 | Connection ØD1 (mm): 40 | L1 (mm): 180 | G (thread): M10 | Weight (kg): 5
DBT50-MD50F-125 ØD (mm): 28 | L (mm): 125 | Connection ØD1 (mm): 50 | L1 (mm): 82 | G (thread): M12 | Weight (kg): 4.6
DBT50-MD50F-160R ØD (mm): 28 | L (mm): 160 | Connection ØD1 (mm): 50 | L1 (mm): 61 | G (thread): M12 | Weight (kg): 5.8
DBT50-MD50F-225R ØD (mm): 28 | L (mm): 225 | Connection ØD1 (mm): 50 | L1 (mm): 125 | G (thread): M12 | Weight (kg): 6
DBT50-MD50F-250R ØD (mm): 28 | L (mm): 250 | Connection ØD1 (mm): 50 | L1 (mm): 81 | G (thread): M12 | Weight (kg): 7
DBT50-MD63F-75 ØD (mm): 36 | L (mm): 75 | Connection ØD1 (mm): 63 | L1 (mm): 35 | G (thread): M16 | Weight (kg): 4.2
DBT50-MD63F-130 ØD (mm): 36 | L (mm): 130 | Connection ØD1 (mm): 63 | L1 (mm): 87 | G (thread): M16 | Weight (kg): 5.3
DBT50-MD63F-140 ØD (mm): 36 | L (mm): 140 | Connection ØD1 (mm): 63 | L1 (mm): 97 | G (thread): M16 | Weight (kg): 5.5
DBT50-MD63F-140R ØD (mm): 36 | L (mm): 140 | Connection ØD1 (mm): 63 | L1 (mm): 80 | G (thread): M16 | Weight (kg): 5.7
DBT50-MD63F-195R ØD (mm): 36 | L (mm): 195 | Connection ØD1 (mm): 63 | L1 (mm): 120 | G (thread): M16 | Weight (kg): 6.8
DBT50-MD63F-230R ØD (mm): 36 | L (mm): 230 | Connection ØD1 (mm): 63 | L1 (mm): 149 | G (thread): M16 | Weight (kg): 7.5
DBT50-MD63F-240R ØD (mm): 36 | L (mm): 240 | Connection ØD1 (mm): 63 | L1 (mm): 190 | G (thread): M16 | Weight (kg): 7.8
DBT50-MD80F-75 ØD (mm): 45 | L (mm): 75 | Connection ØD1 (mm): 80 | L1 (mm): 36 | G (thread): M16 | Weight (kg): 4.4
DBT50-MD80F-110 ØD (mm): 45 | L (mm): 110 | Connection ØD1 (mm): 80 | L1 (mm): 69 | G (thread): M16 | Weight (kg): 5.8
DBT50-MD80F-160 ØD (mm): 45 | L (mm): 160 | Connection ØD1 (mm): 80 | L1 (mm): 119 | G (thread): M16 | Weight (kg): 8
DBT50-MD90F-75 ØD (mm): 45 | L (mm): 75 | Connection ØD1 (mm): 90 | L1 (mm): 36 | G (thread): M16 | Weight (kg): 4.8
DBT50-MD90F-145 ØD (mm): 45 | L (mm): 145 | Connection ØD1 (mm): 90 | L1 (mm): 104 | G (thread): M16 | Weight (kg): 7.4
Modular ArborsTAUMAX
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Modular Arbor DBT-MD

Brand TAUMAX·Modular Arbors

Available part numbers (48)

DBT30-MD19F-70R, DBT30-MD25F-90R, DBT30-MD32F-80R, DBT30-MD40F-45, DBT30-MD40F-80R, DBT30-MD50F-70, DBT40-MD19F-70, DBT40-MD25F-95, DBT40-MD25F-105R, DBT40-MD32F-100 + 38 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
