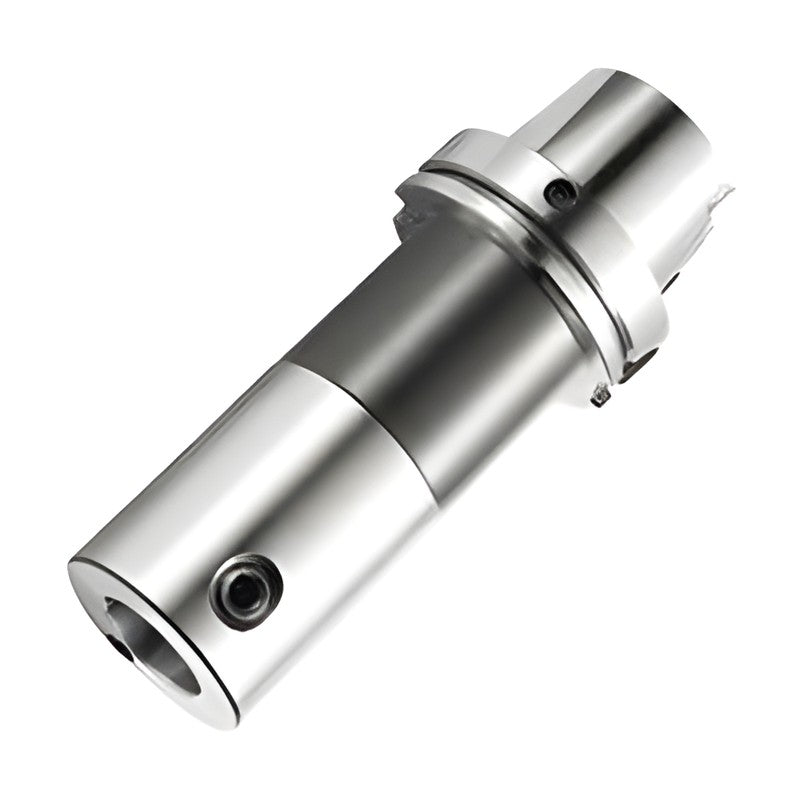

TAUMAX Modular Arbor HSK-MD

TAUMAX Modular Arbor HSK-MD

Modular arbor with taper connection for mounting DINE boring heads, extensions and reducers (MD19F to MD90F).

Specifications

Shank HSK-A (DIN 69893)
HSK63A-MD19F-60 ØD (mm): 11 | L (mm): 60 | Connection ØD1 (mm): 19 | L1 (mm): 31 | H (mm): 15.5 | G (thread): M5 | Weight (kg): 0.7 | Stock: Yes
HSK63A-MD25F-60 ØD (mm): 14 | L (mm): 60 | Connection ØD1 (mm): 25 | L1 (mm): 31 | H (mm): 18.5 | G (thread): M6 | Weight (kg): 0.7 | Stock: Yes
HSK63A-MD32F-65 ØD (mm): 18 | L (mm): 65 | Connection ØD1 (mm): 32 | L1 (mm): 36 | H (mm): 23.5 | G (thread): M8 | Weight (kg): 0.8 | Stock: Yes
HSK63A-MD40F-70 ØD (mm): 22 | L (mm): 70 | Connection ØD1 (mm): 40 | L1 (mm): 41 | H (mm): 29 | G (thread): M10 | Weight (kg): 0.9 | Stock: Yes
HSK63A-MD50F-85 ØD (mm): 28 | L (mm): 85 | Connection ØD1 (mm): 50 | L1 (mm): 58 | H (mm): 36 | G (thread): M12 | Weight (kg): 1.3 | Stock: Yes
HSK63A-MD63F-95 ØD (mm): 36 | L (mm): 95 | Connection ØD1 (mm): 63 | L1 (mm): 69 | H (mm): 46 | G (thread): M16 | Weight (kg): 1.7 | Stock: Yes
HSK100A-MD19F-60 ØD (mm): 11 | L (mm): 60 | Connection ØD1 (mm): 19 | L1 (mm): 28 | H (mm): 15.5 | G (thread): M5 | Weight (kg): 2.1
HSK100A-MD25F-60 ØD (mm): 14 | L (mm): 60 | Connection ØD1 (mm): 25 | L1 (mm): 28 | H (mm): 18.5 | G (thread): M6 | Weight (kg): 2.1
HSK100A-MD32F-65 ØD (mm): 18 | L (mm): 65 | Connection ØD1 (mm): 32 | L1 (mm): 33 | H (mm): 23.5 | G (thread): M8 | Weight (kg): 2.1
HSK100A-MD40F-70 ØD (mm): 22 | L (mm): 70 | Connection ØD1 (mm): 40 | L1 (mm): 38 | H (mm): 29 | G (thread): M10 | Weight (kg): 2.3
HSK100A-MD50F-80 ØD (mm): 28 | L (mm): 80 | Connection ØD1 (mm): 50 | L1 (mm): 48 | H (mm): 36 | G (thread): M12 | Weight (kg): 2.6
HSK100A-MD63F-90 ØD (mm): 36 | L (mm): 90 | Connection ØD1 (mm): 63 | L1 (mm): 58 | H (mm): 46 | G (thread): M16 | Weight (kg): 3
HSK100A-MD80F-105 ØD (mm): 45 | L (mm): 105 | Connection ØD1 (mm): 80 | L1 (mm): 73 | H (mm): 57 | G (thread): M16 | Weight (kg): 4.2
HSK100A-MD90F-105 ØD (mm): 45 | L (mm): 105 | Connection ØD1 (mm): 90 | L1 (mm): 76 | H (mm): 57 | G (thread): M16 | Weight (kg): 4.7
Modular ArborsTAUMAX
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Modular Arbor HSK-MD

Brand TAUMAX·Modular Arbors

Available part numbers (14)

HSK63A-MD19F-60, HSK63A-MD25F-60, HSK63A-MD32F-65, HSK63A-MD40F-70, HSK63A-MD50F-85, HSK63A-MD63F-95, HSK100A-MD19F-60, HSK100A-MD25F-60, HSK100A-MD32F-65, HSK100A-MD40F-70 + 4 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HSK63A-MD19F-60ØD (mm): 11 | L (mm): 60 | Connection ØD1 (mm): 19 | L1 (mm): 31 | H (mm): 15.5 | G (thread): M5 | Weight (kg): 0.7 | Stock: Yes
HSK63A-MD25F-60ØD (mm): 14 | L (mm): 60 | Connection ØD1 (mm): 25 | L1 (mm): 31 | H (mm): 18.5 | G (thread): M6 | Weight (kg): 0.7 | Stock: Yes
HSK63A-MD32F-65ØD (mm): 18 | L (mm): 65 | Connection ØD1 (mm): 32 | L1 (mm): 36 | H (mm): 23.5 | G (thread): M8 | Weight (kg): 0.8 | Stock: Yes
HSK63A-MD40F-70ØD (mm): 22 | L (mm): 70 | Connection ØD1 (mm): 40 | L1 (mm): 41 | H (mm): 29 | G (thread): M10 | Weight (kg): 0.9 | Stock: Yes
HSK63A-MD50F-85ØD (mm): 28 | L (mm): 85 | Connection ØD1 (mm): 50 | L1 (mm): 58 | H (mm): 36 | G (thread): M12 | Weight (kg): 1.3 | Stock: Yes
HSK63A-MD63F-95ØD (mm): 36 | L (mm): 95 | Connection ØD1 (mm): 63 | L1 (mm): 69 | H (mm): 46 | G (thread): M16 | Weight (kg): 1.7 | Stock: Yes
HSK100A-MD19F-60ØD (mm): 11 | L (mm): 60 | Connection ØD1 (mm): 19 | L1 (mm): 28 | H (mm): 15.5 | G (thread): M5 | Weight (kg): 2.1
HSK100A-MD25F-60ØD (mm): 14 | L (mm): 60 | Connection ØD1 (mm): 25 | L1 (mm): 28 | H (mm): 18.5 | G (thread): M6 | Weight (kg): 2.1
HSK100A-MD32F-65ØD (mm): 18 | L (mm): 65 | Connection ØD1 (mm): 32 | L1 (mm): 33 | H (mm): 23.5 | G (thread): M8 | Weight (kg): 2.1
HSK100A-MD40F-70ØD (mm): 22 | L (mm): 70 | Connection ØD1 (mm): 40 | L1 (mm): 38 | H (mm): 29 | G (thread): M10 | Weight (kg): 2.3
HSK100A-MD50F-80ØD (mm): 28 | L (mm): 80 | Connection ØD1 (mm): 50 | L1 (mm): 48 | H (mm): 36 | G (thread): M12 | Weight (kg): 2.6
HSK100A-MD63F-90ØD (mm): 36 | L (mm): 90 | Connection ØD1 (mm): 63 | L1 (mm): 58 | H (mm): 46 | G (thread): M16 | Weight (kg): 3
HSK100A-MD80F-105ØD (mm): 45 | L (mm): 105 | Connection ØD1 (mm): 80 | L1 (mm): 73 | H (mm): 57 | G (thread): M16 | Weight (kg): 4.2
HSK100A-MD90F-105ØD (mm): 45 | L (mm): 105 | Connection ØD1 (mm): 90 | L1 (mm): 76 | H (mm): 57 | G (thread): M16 | Weight (kg): 4.7
