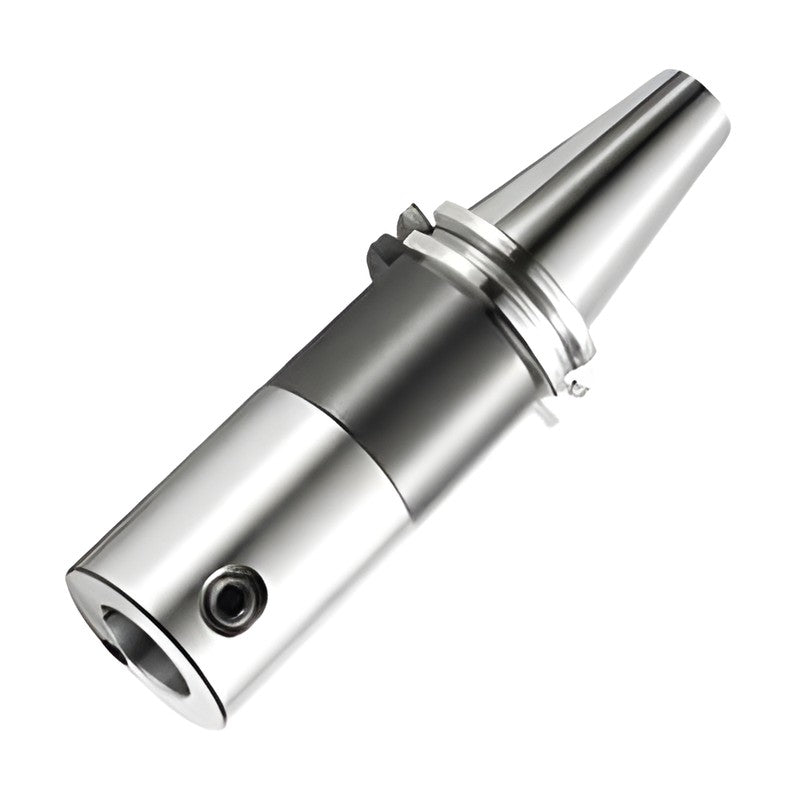

TAUMAX Modular Arbor SK-MD

TAUMAX Modular Arbor SK-MD

Modular arbor with taper connection for mounting DINE boring heads, extensions and reducers (MD19F to MD90F).

Specifications

Shank SK (DIN 69871)
SK40-MD19F-80R ØD (mm): 11 | L (mm): 80 | Connection ØD1 (mm): 19 | ØD2 (mm): 30 | L1 (mm): 12 | G (thread): M5 | Weight (kg): 1
SK40-MD25F-80R ØD (mm): 14 | L (mm): 80 | Connection ØD1 (mm): 25 | ØD2 (mm): 35 | L1 (mm): 22 | G (thread): M6 | Weight (kg): 1.1 | Stock: Yes
SK40-MD32F-115R ØD (mm): 18 | L (mm): 115 | Connection ØD1 (mm): 32 | ØD2 (mm): 42 | L1 (mm): 36 | G (thread): M8 | Weight (kg): 1.5 | Stock: Yes
SK40-MD40F-60 ØD (mm): 22 | L (mm): 60 | Connection ØD1 (mm): 40 | L1 (mm): 40 | G (thread): M10 | Weight (kg): 1.1 | Stock: Yes
SK40-MD40F-100 ØD (mm): 22 | L (mm): 100 | Connection ØD1 (mm): 40 | L1 (mm): 78 | G (thread): M10 | Weight (kg): 1.4 | Stock: Yes
SK40-MD50F-75 ØD (mm): 28 | L (mm): 75 | Connection ØD1 (mm): 50 | L1 (mm): 55 | G (thread): M12 | Weight (kg): 1.5 | Stock: Yes
SK40-MD50F-100 ØD (mm): 28 | L (mm): 100 | Connection ØD1 (mm): 50 | L1 (mm): 80 | G (thread): M12 | Weight (kg): 1.8 | Stock: Yes
SK40-MD63F-70 ØD (mm): 36 | L (mm): 70 | Connection ØD1 (mm): 63 | L1 (mm): 50 | G (thread): M16 | Weight (kg): 1.4 | Stock: Yes
SK50-MD19F-85R ØD (mm): 11 | L (mm): 85 | Connection ØD1 (mm): 19 | ØD2 (mm): 40 | L1 (mm): 12 | G (thread): M5 | Weight (kg): 3
SK50-MD25F-80R ØD (mm): 14 | L (mm): 80 | Connection ØD1 (mm): 25 | ØD2 (mm): 44 | L1 (mm): 22 | G (thread): M6 | Weight (kg): 3.1 | Stock: Yes
SK50-MD25F-105R ØD (mm): 14 | L (mm): 105 | Connection ØD1 (mm): 25 | ØD2 (mm): 44 | L1 (mm): 22 | G (thread): M6 | Weight (kg): 3.3 | Stock: Yes
SK50-MD32F-110 ØD (mm): 18 | L (mm): 110 | Connection ØD1 (mm): 32 | L1 (mm): 87 | G (thread): M8 | Weight (kg): 3 | Stock: Yes
SK50-MD32F-110R ØD (mm): 18 | L (mm): 110 | Connection ØD1 (mm): 32 | ØD2 (mm): 50 | L1 (mm): 36 | G (thread): M8 | Weight (kg): 3.5 | Stock: Yes
SK50-MD40F-100 ØD (mm): 22 | L (mm): 100 | Connection ØD1 (mm): 40 | L1 (mm): 75 | G (thread): M10 | Weight (kg): 3.2 | Stock: Yes
SK50-MD40F-145 ØD (mm): 22 | L (mm): 145 | Connection ØD1 (mm): 40 | L1 (mm): 120 | G (thread): M10 | Weight (kg): 3.5 | Stock: Yes
SK50-MD40F-220R ØD (mm): 22 | L (mm): 220 | Connection ØD1 (mm): 40 | ØD2 (mm): 60 | L1 (mm): 83 | G (thread): M10 | Weight (kg): 5.6 | Stock: Yes
SK50-MD50F-125R ØD (mm): 28 | L (mm): 125 | Connection ØD1 (mm): 50 | ØD2 (mm): 65 | L1 (mm): 60 | G (thread): M12 | Weight (kg): 4.3 | Stock: Yes
SK50-MD50F-240R ØD (mm): 28 | L (mm): 240 | Connection ØD1 (mm): 50 | ØD2 (mm): 65 | L1 (mm): 125 | G (thread): M12 | Weight (kg): 6.6 | Stock: Yes
SK50-MD63F-75 ØD (mm): 36 | L (mm): 75 | Connection ØD1 (mm): 63 | L1 (mm): 52 | G (thread): M16 | Weight (kg): 3.6 | Stock: Yes
SK50-MD63F-130 ØD (mm): 36 | L (mm): 130 | Connection ØD1 (mm): 63 | L1 (mm): 107 | G (thread): M16 | Weight (kg): 4.7 | Stock: Yes
SK50-MD63F-230R ØD (mm): 36 | L (mm): 230 | Connection ØD1 (mm): 63 | ØD2 (mm): 80 | L1 (mm): 149 | G (thread): M16 | Weight (kg): 7.9 | Stock: Yes
SK50-MD80F-95 ØD (mm): 45 | L (mm): 95 | Connection ØD1 (mm): 80 | L1 (mm): 75 | G (thread): M16 | Weight (kg): 4.8 | Stock: Yes
SK50-MD80F-150 ØD (mm): 45 | L (mm): 150 | Connection ØD1 (mm): 80 | L1 (mm): 129 | G (thread): M16 | Weight (kg): 6.8 | Stock: Yes
SK50-MD90F-115 ØD (mm): 45 | L (mm): 115 | Connection ØD1 (mm): 90 | L1 (mm): 95 | G (thread): M16 | Weight (kg): 6.3 | Stock: Yes
SK50-MD90F-165 ØD (mm): 45 | L (mm): 165 | Connection ØD1 (mm): 90 | L1 (mm): 145 | G (thread): M16 | Weight (kg): 8.1 | Stock: Yes
Modular ArborsTAUMAX
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Modular Arbor SK-MD

Brand TAUMAX·Modular Arbors

Available part numbers (25)

SK40-MD19F-80R, SK40-MD25F-80R, SK40-MD32F-115R, SK40-MD40F-60, SK40-MD40F-100, SK40-MD50F-75, SK40-MD50F-100, SK40-MD63F-70, SK50-MD19F-85R, SK50-MD25F-80R + 15 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
