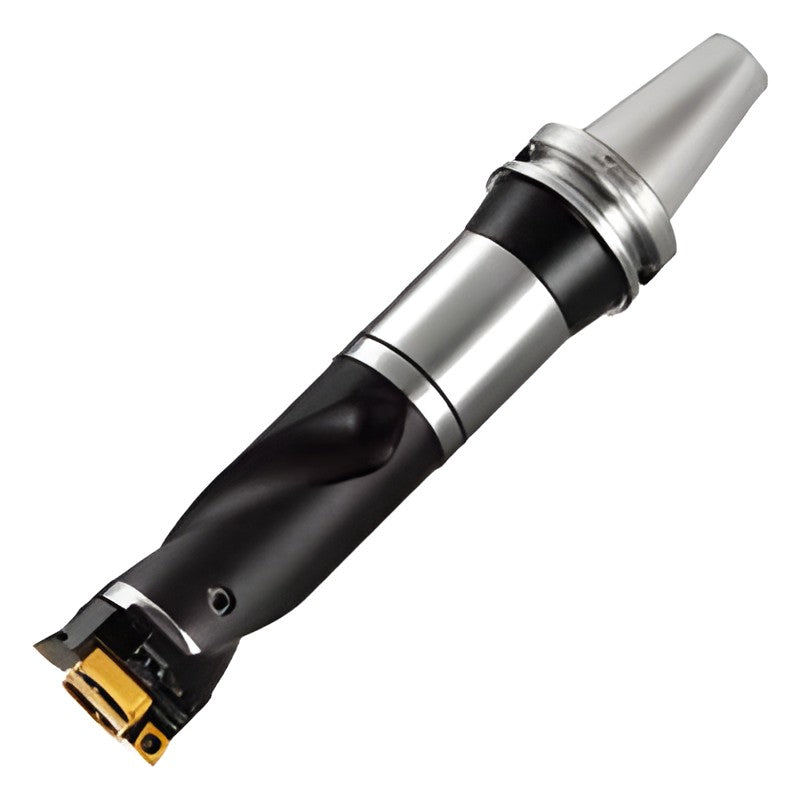

TAUMAX New Balance Cut Boring Head DBCA-H (Helical Type)

TAUMAX New Balance Cut Boring Head DBCA-H (Helical Type)

Twin-edge rough boring head with helical body for improved chip evacuation, mounted on MD modular arbors.

Key features

  • Twin control structure for simultaneous bidirectional diameter adjustment
  • Cartridge assist design reinforces machining rigidity
  • Boring range Ø28 to Ø130 mm
  • Helical type improves chip discharge from holes
DBCA2528S-H Boring range (mm): 28~38 | Head length L1 (mm): 103 | Connection ØD1 (mm): 25 | Head weight (kg): 0.3 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBCA3238S-H Boring range (mm): 38~54 | Head length L1 (mm): 110 | Connection ØD1 (mm): 32 | Head weight (kg): 0.5 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBCA5054S-H Boring range (mm): 54~74 | Head length L1 (mm): 145 | Connection ØD1 (mm): 50 | Head weight (kg): 1.8 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBCA6374S-H Boring range (mm): 74~100 | Head length L1 (mm): 180 | Connection ØD1 (mm): 63 | Head weight (kg): 3.3 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBCA80100S-H Boring range (mm): 100~130 | Head length L1 (mm): 215 | Connection ØD1 (mm): 80 | Head weight (kg): 7.3 | Arbor: MD modular arbor (sold separately) | Stock: Yes
Boring HeadsTAUMAX
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX New Balance Cut Boring Head DBCA-H (Helical Type)

Brand TAUMAX·Boring Heads

Available part numbers (5)

DBCA2528S-H, DBCA3238S-H, DBCA5054S-H, DBCA6374S-H, DBCA80100S-H

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DBCA2528S-HBoring range (mm): 28~38 | Head length L1 (mm): 103 | Connection ØD1 (mm): 25 | Head weight (kg): 0.3 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBCA3238S-HBoring range (mm): 38~54 | Head length L1 (mm): 110 | Connection ØD1 (mm): 32 | Head weight (kg): 0.5 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBCA5054S-HBoring range (mm): 54~74 | Head length L1 (mm): 145 | Connection ØD1 (mm): 50 | Head weight (kg): 1.8 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBCA6374S-HBoring range (mm): 74~100 | Head length L1 (mm): 180 | Connection ØD1 (mm): 63 | Head weight (kg): 3.3 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBCA80100S-HBoring range (mm): 100~130 | Head length L1 (mm): 215 | Connection ØD1 (mm): 80 | Head weight (kg): 7.3 | Arbor: MD modular arbor (sold separately) | Stock: Yes
