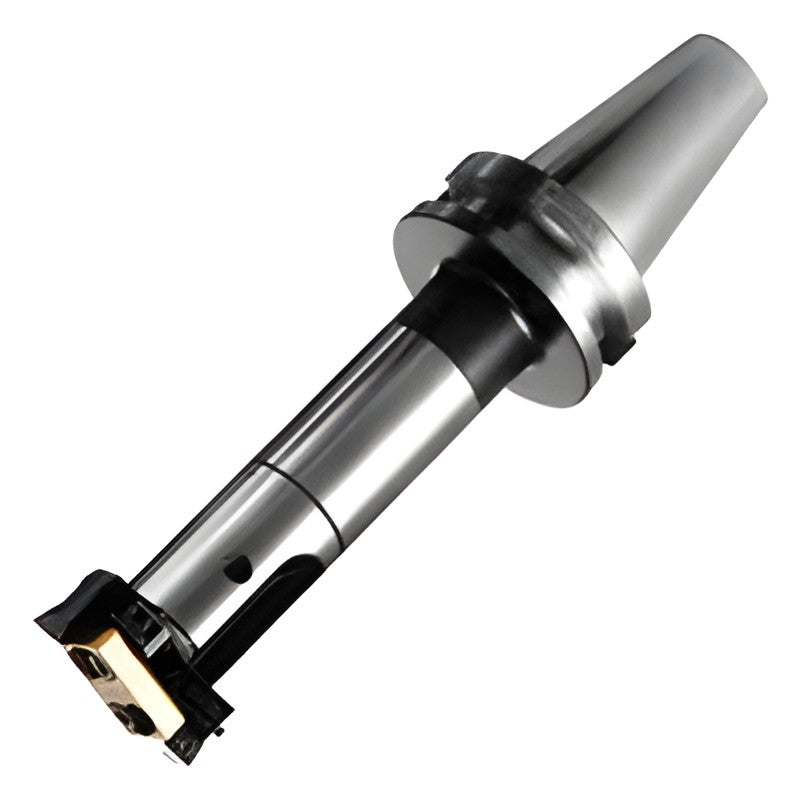

TAUMAX New Balance Cut Boring Head DBCA (Straight Type)

TAUMAX New Balance Cut Boring Head DBCA (Straight Type)

Twin-edge rough boring head (straight type) with adjustable cartridges, mounted on MD modular arbors.

Key features

  • Twin control structure for simultaneous bidirectional diameter adjustment
  • Cartridge assist design reinforces machining rigidity
  • Boring range Ø28 to Ø130 mm
DBCA2528S Boring range (mm): 28~38 | Head length L1 (mm): 60 | Connection ØD1 (mm): 25 | Head weight (kg): 0.2 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBCA3238S Boring range (mm): 38~54 | Head length L1 (mm): 65 | Connection ØD1 (mm): 32 | Head weight (kg): 0.4 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBCA5054S Boring range (mm): 54~74 | Head length L1 (mm): 80 | Connection ØD1 (mm): 50 | Head weight (kg): 1.1 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBCA6374S Boring range (mm): 74~100 | Head length L1 (mm): 90 | Connection ØD1 (mm): 63 | Head weight (kg): 1.9 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBCA80100S Boring range (mm): 100~130 | Head length L1 (mm): 100 | Connection ØD1 (mm): 80 | Head weight (kg): 3.7 | Arbor: MD modular arbor (sold separately) | Stock: Yes
Boring HeadsTAUMAX
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX New Balance Cut Boring Head DBCA (Straight Type)

Brand TAUMAX·Boring Heads

Available part numbers (5)

DBCA2528S, DBCA3238S, DBCA5054S, DBCA6374S, DBCA80100S

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DBCA2528SBoring range (mm): 28~38 | Head length L1 (mm): 60 | Connection ØD1 (mm): 25 | Head weight (kg): 0.2 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBCA3238SBoring range (mm): 38~54 | Head length L1 (mm): 65 | Connection ØD1 (mm): 32 | Head weight (kg): 0.4 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBCA5054SBoring range (mm): 54~74 | Head length L1 (mm): 80 | Connection ØD1 (mm): 50 | Head weight (kg): 1.1 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBCA6374SBoring range (mm): 74~100 | Head length L1 (mm): 90 | Connection ØD1 (mm): 63 | Head weight (kg): 1.9 | Arbor: MD modular arbor (sold separately) | Stock: Yes
DBCA80100SBoring range (mm): 100~130 | Head length L1 (mm): 100 | Connection ØD1 (mm): 80 | Head weight (kg): 3.7 | Arbor: MD modular arbor (sold separately) | Stock: Yes
