• TAUMAX NT Shank New Power Milling Chuck NT-NPM
1 1

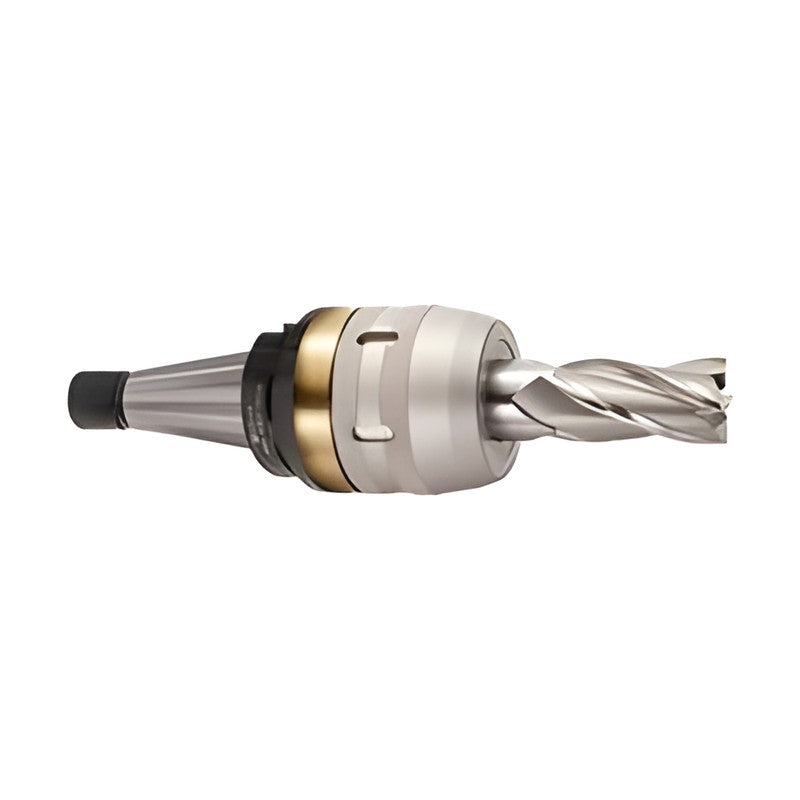

TAUMAX NT Shank New Power Milling Chuck NT-NPM

TAUMAX NT Shank New Power Milling Chuck NT-NPM

NT (DIN 2080 / JIS 6101) shank power milling chuck for medium to heavy roughing with straight collets.

Key features

  • Strong clamping force for medium to heavy roughing
  • Dust block function keeps cutting oil and chips out of the chuck
  • Slot design minimizes holder deformation
  • Run-out within 15 µm at 3D
  • Clamping range Ø20 to Ø42 mm with straight collets

Specifications

Clamping force 130 kgf·m (min.) to 500 kgf·m (max.)
L (mm) 95
NT40-NPM32-95 Shank: NT40 | ØD (mm): 32 | ØD1 (mm): 75 | G thread: M16 | Applicable collet: DC32, DCS32 | Weight (kg): 2.7 | Stock: Yes
NT50-NPM32-95 Shank: NT50 | ØD (mm): 32 | ØD1 (mm): 75 | G thread: M24 | Applicable collet: DC32, DCS32 | Weight (kg): 4.3 | Stock: Yes
NT50-NPM42-95 Shank: NT50 | ØD (mm): 42 | ØD1 (mm): 90 | G thread: M24 | Applicable collet: DC42, DCS42 | Weight (kg): 4.8 | Stock: Yes
NT50M-NPM32-95 Shank: NT50M | ØD (mm): 32 | ØD1 (mm): 75 | G thread: M24 | Applicable collet: DC32, DCS32 | Weight (kg): 4.4 | Stock: Yes
NT50M-NPM42-95 Shank: NT50M | ØD (mm): 42 | ØD1 (mm): 90 | G thread: M24 | Applicable collet: DC42, DCS42 | Weight (kg): 4.9 | Stock: Yes
Milling ChucksTAUMAX
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX NT Shank New Power Milling Chuck NT-NPM

Brand TAUMAX·Milling Chucks

Available part numbers (5)

NT40-NPM32-95, NT50-NPM32-95, NT50-NPM42-95, NT50M-NPM32-95, NT50M-NPM42-95

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NT40-NPM32-95Shank: NT40 | ØD (mm): 32 | ØD1 (mm): 75 | G thread: M16 | Applicable collet: DC32, DCS32 | Weight (kg): 2.7 | Stock: Yes
NT50-NPM32-95Shank: NT50 | ØD (mm): 32 | ØD1 (mm): 75 | G thread: M24 | Applicable collet: DC32, DCS32 | Weight (kg): 4.3 | Stock: Yes
NT50-NPM42-95Shank: NT50 | ØD (mm): 42 | ØD1 (mm): 90 | G thread: M24 | Applicable collet: DC42, DCS42 | Weight (kg): 4.8 | Stock: Yes
NT50M-NPM32-95Shank: NT50M | ØD (mm): 32 | ØD1 (mm): 75 | G thread: M24 | Applicable collet: DC32, DCS32 | Weight (kg): 4.4 | Stock: Yes
NT50M-NPM42-95Shank: NT50M | ØD (mm): 42 | ØD1 (mm): 90 | G thread: M24 | Applicable collet: DC42, DCS42 | Weight (kg): 4.9 | Stock: Yes
