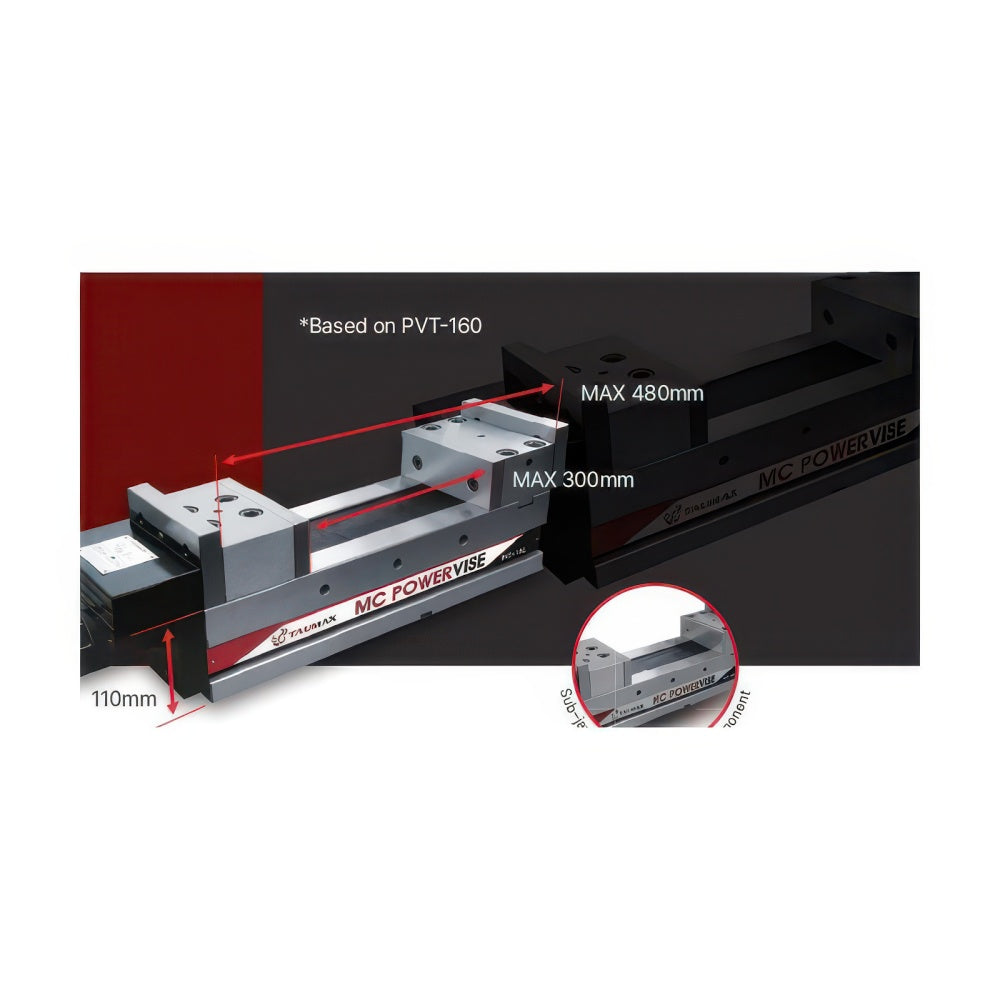

TAUMAX PVT Series MC Power Vise (Standard Type)

TAUMAX PVT Series MC Power Vise (Standard Type)

Mechanical power vise for machining centers with a built-in force-boosting mechanism and four selectable clamping-force steps.

Key features

  • Built-in mechanical power-boost device
  • Designed to minimize workpiece lifting
  • Height tolerance 0.01 mm; can be used side by side in parallel
  • Inside sub-jaws (18T) built in
  • High-stiffness body for improved durability
  • Clamping force set in 4 steps with the control grip

Specifications

Type Mechanical power vise (standard type)
Included Handle, ratchet handle, inside sub-jaws
Unit mm
PVT-100 Jaw width (A): 100 mm | Body length (B): 310 mm | Overall length (C): 442 mm | Max opening (J1): 300 mm | Max clamping force: 2,500 kgf | Clamping force steps 1-4: 1,000 / 1,500 / 2,000 / 2,500 kgf | Package weight: 30 kg
PVT-130 Jaw width (A): 130 mm | Body length (B): 410 mm | Overall length (C): 542 mm | Max opening (J1): 400 mm | Max clamping force: 3,500 kgf | Clamping force steps 1-4: 2,000 / 2,500 / 3,000 / 3,500 kgf | Package weight: 45 kg
PVT-160 Jaw width (A): 160 mm | Body length (B): 490 mm | Overall length (C): 622 mm | Max opening (J1): 480 mm | Max clamping force: 4,500 kgf | Clamping force steps 1-4: 3,000 / 3,500 / 4,000 / 4,500 kgf | Package weight: 64 kg
PVT-200 Jaw width (A): 200 mm | Body length (B): 530 mm | Overall length (C): 662 mm | Max opening (J1): 520 mm | Max clamping force: 5,500 kgf | Clamping force steps 1-4: 3,500 / 4,500 / 5,000 / 5,500 kgf | Package weight: 86 kg
Machine VisesTAUMAX
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX PVT Series MC Power Vise (Standard Type)

Brand TAUMAX·Machine Vises

Available part numbers (4)

PVT-100, PVT-130, PVT-160, PVT-200

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PVT-100Jaw width (A): 100 mm | Body length (B): 310 mm | Overall length (C): 442 mm | Max opening (J1): 300 mm | Max clamping force: 2,500 kgf | Clamping force steps 1-4: 1,000 / 1,500 / 2,000 / 2,500 kgf | Package weight: 30 kg
PVT-130Jaw width (A): 130 mm | Body length (B): 410 mm | Overall length (C): 542 mm | Max opening (J1): 400 mm | Max clamping force: 3,500 kgf | Clamping force steps 1-4: 2,000 / 2,500 / 3,000 / 3,500 kgf | Package weight: 45 kg
PVT-160Jaw width (A): 160 mm | Body length (B): 490 mm | Overall length (C): 622 mm | Max opening (J1): 480 mm | Max clamping force: 4,500 kgf | Clamping force steps 1-4: 3,000 / 3,500 / 4,000 / 4,500 kgf | Package weight: 64 kg
PVT-200Jaw width (A): 200 mm | Body length (B): 530 mm | Overall length (C): 662 mm | Max opening (J1): 520 mm | Max clamping force: 5,500 kgf | Clamping force steps 1-4: 3,500 / 4,500 / 5,000 / 5,500 kgf | Package weight: 86 kg
