TAUMAX QPT Quick Point System for 5-Axis Vises

TAUMAX QPT Quick Point System for 5-Axis Vises

Quick-change base plate that locates and clamps 5-axis vises via four pull-stud bolts.

Key features

  • Fast vise mounting with four pull-stud bolts at 96 mm pitch
  • Holds up to 6 tons
  • Single-wrench mechanical pin clamping
  • Height tolerance within 0.01 mm when clamped
  • Compatible with 4-axis rotary and 5-axis tilting/rotary tables

Specifications

Bolt pitch 96 mm
Included Ratchet handle, screw x4, pull stud bolt x4
Unit mm
Size (A x B) 192 x 145 mm
Height (H) 27 mm
Clamping force 4,800 kgf

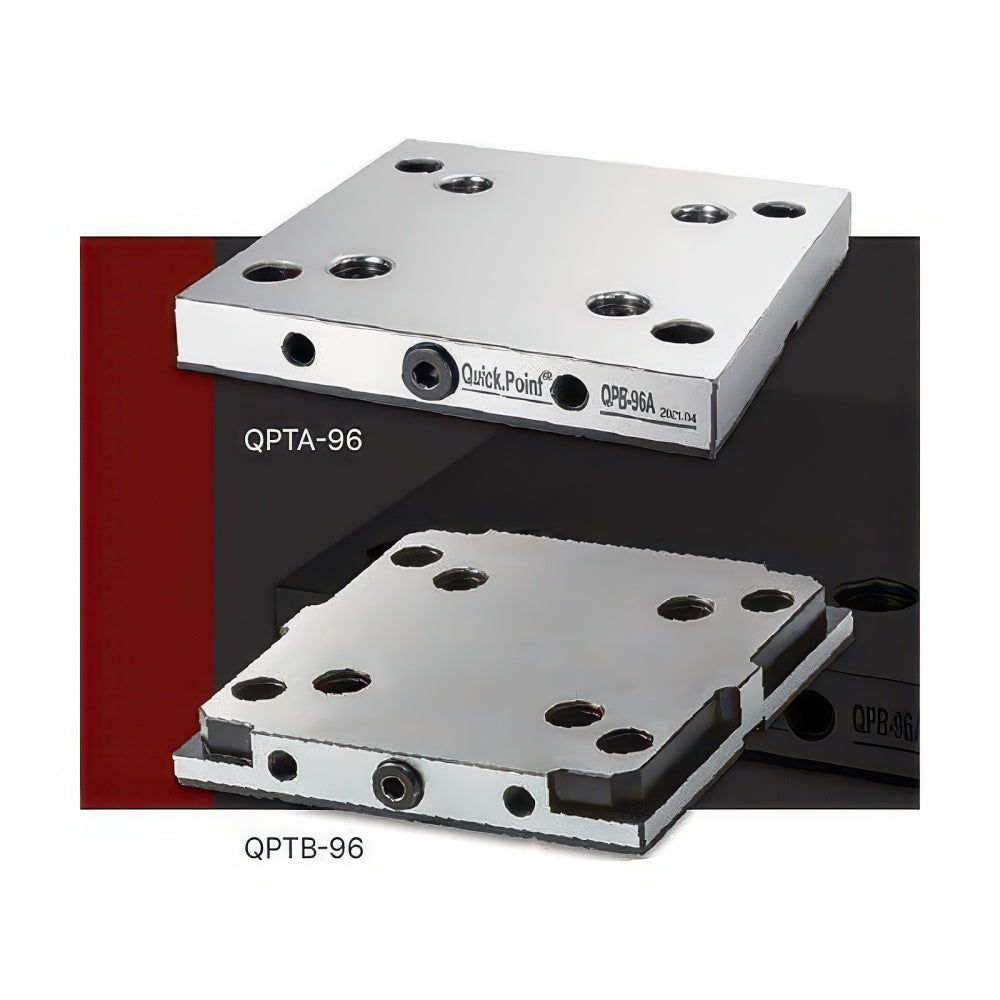

QPTA-96 Mounting: T-nut fixed type | Size (A x B): 192 x 145 mm | Height (H): 27 mm | Clamping force: 4,800 kgf | Package weight: 7.0 kg
QPTB-96 Mounting: Screw fixed type | Size (A x B): 192 x 145 mm | Height (H): 27 mm | Clamping force: 4,800 kgf | Package weight: 6.4 kg
Zero-Point Clamping SystemsTAUMAX
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX QPT Quick Point System for 5-Axis Vises

Brand TAUMAX·Zero-Point Clamping Systems

Available part numbers (2)

QPTA-96, QPTB-96

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
QPTA-96Mounting: T-nut fixed type | Size (A x B): 192 x 145 mm | Height (H): 27 mm | Clamping force: 4,800 kgf | Package weight: 7.0 kg
QPTB-96Mounting: Screw fixed type | Size (A x B): 192 x 145 mm | Height (H): 27 mm | Clamping force: 4,800 kgf | Package weight: 6.4 kg
