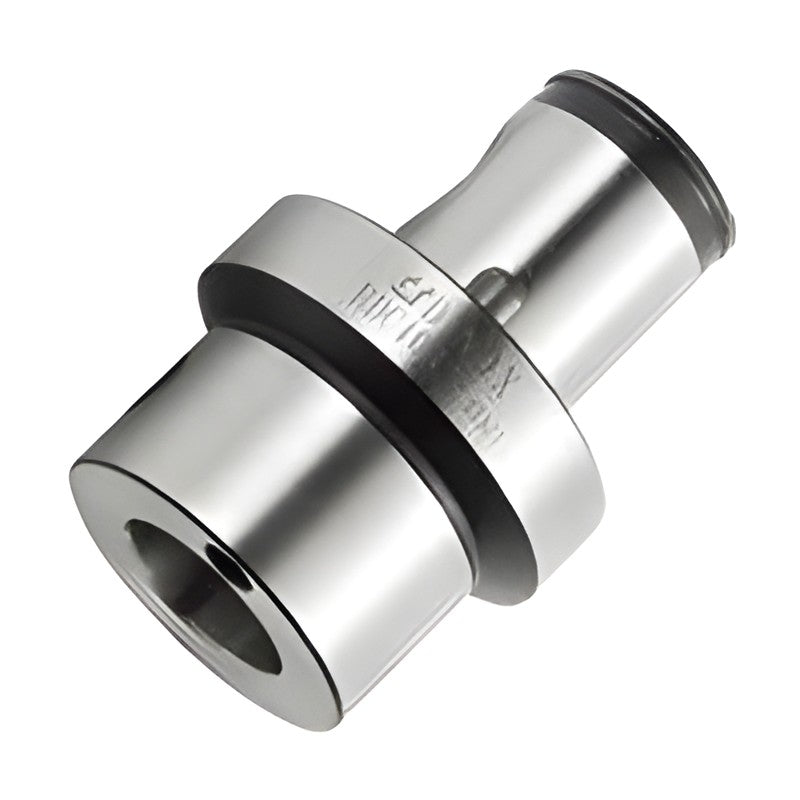

• TAUMAX Reducer Bar RDC for Modular Arbors
1 1

TAUMAX Reducer Bar RDC for Modular Arbors

TAUMAX Reducer Bar RDC for Modular Arbors

Reducer bar to step down the MD modular connection size.

RDC3225F ØD (mm): 18 | L (mm): 30 | ØD1 (mm): 32 | ØD2 (mm): 14 | ØD3 (mm): 25 | L1 (mm): 9 | G (thread): M6 | Weight (kg): 0.1 | Stock: Yes
RDC4025F ØD (mm): 22 | L (mm): 30 | ØD1 (mm): 40 | ØD2 (mm): 14 | ØD3 (mm): 25 | L1 (mm): 9 | G (thread): M6 | Weight (kg): 0.3 | Stock: Yes
RDC4032F ØD (mm): 22 | L (mm): 30 | ØD1 (mm): 40 | ØD2 (mm): 18 | ØD3 (mm): 32 | L1 (mm): 9 | G (thread): M8 | Weight (kg): 0.2 | Stock: Yes
RDC5025F ØD (mm): 28 | L (mm): 30 | ØD1 (mm): 50 | ØD2 (mm): 14 | ØD3 (mm): 25 | L1 (mm): 9 | G (thread): M6 | Weight (kg): 0.3 | Stock: Yes
RDC5032F ØD (mm): 28 | L (mm): 40 | ØD1 (mm): 50 | ØD2 (mm): 18 | ØD3 (mm): 32 | L1 (mm): 9 | G (thread): M8 | Weight (kg): 0.3 | Stock: Yes
RDC5040F ØD (mm): 28 | L (mm): 40 | ØD1 (mm): 50 | ØD2 (mm): 22 | ØD3 (mm): 40 | L1 (mm): 10 | G (thread): M10 | Weight (kg): 0.5 | Stock: Yes
RDC6325F ØD (mm): 36 | L (mm): 30 | ØD1 (mm): 63 | ØD2 (mm): 14 | ØD3 (mm): 25 | L1 (mm): 9 | G (thread): M6 | Weight (kg): 0.6 | Stock: Yes
RDC6332F ØD (mm): 36 | L (mm): 40 | ØD1 (mm): 63 | ØD2 (mm): 18 | ØD3 (mm): 32 | L1 (mm): 9 | G (thread): M8 | Weight (kg): 0.6 | Stock: Yes
RDC6340F ØD (mm): 36 | L (mm): 40 | ØD1 (mm): 63 | ØD2 (mm): 22 | ØD3 (mm): 40 | L1 (mm): 10 | G (thread): M10 | Weight (kg): 0.7 | Stock: Yes
RDC6350F ØD (mm): 36 | L (mm): 45 | ØD1 (mm): 63 | ØD2 (mm): 28 | ØD3 (mm): 50 | L1 (mm): 10 | G (thread): M12 | Weight (kg): 0.9 | Stock: Yes
RDC8040F ØD (mm): 45 | L (mm): 40 | ØD1 (mm): 80 | ØD2 (mm): 22 | ØD3 (mm): 40 | L1 (mm): 10 | G (thread): M10 | Weight (kg): 1.2 | Stock: Yes
RDC8050F ØD (mm): 45 | L (mm): 45 | ØD1 (mm): 80 | ØD2 (mm): 28 | ØD3 (mm): 50 | L1 (mm): 10 | G (thread): M12 | Weight (kg): 1.3 | Stock: Yes
RDC8063F ØD (mm): 45 | L (mm): 50 | ØD1 (mm): 80 | ØD2 (mm): 36 | ØD3 (mm): 63 | L1 (mm): 13 | G (thread): M16 | Weight (kg): 1.6 | Stock: Yes
Modular ArborsTAUMAX
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Reducer Bar RDC for Modular Arbors

Brand TAUMAX·Modular Arbors

Available part numbers (13)

RDC3225F, RDC4025F, RDC4032F, RDC5025F, RDC5032F, RDC5040F, RDC6325F, RDC6332F, RDC6340F, RDC6350F + 3 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RDC3225FØD (mm): 18 | L (mm): 30 | ØD1 (mm): 32 | ØD2 (mm): 14 | ØD3 (mm): 25 | L1 (mm): 9 | G (thread): M6 | Weight (kg): 0.1 | Stock: Yes
RDC4025FØD (mm): 22 | L (mm): 30 | ØD1 (mm): 40 | ØD2 (mm): 14 | ØD3 (mm): 25 | L1 (mm): 9 | G (thread): M6 | Weight (kg): 0.3 | Stock: Yes
RDC4032FØD (mm): 22 | L (mm): 30 | ØD1 (mm): 40 | ØD2 (mm): 18 | ØD3 (mm): 32 | L1 (mm): 9 | G (thread): M8 | Weight (kg): 0.2 | Stock: Yes
RDC5025FØD (mm): 28 | L (mm): 30 | ØD1 (mm): 50 | ØD2 (mm): 14 | ØD3 (mm): 25 | L1 (mm): 9 | G (thread): M6 | Weight (kg): 0.3 | Stock: Yes
RDC5032FØD (mm): 28 | L (mm): 40 | ØD1 (mm): 50 | ØD2 (mm): 18 | ØD3 (mm): 32 | L1 (mm): 9 | G (thread): M8 | Weight (kg): 0.3 | Stock: Yes
RDC5040FØD (mm): 28 | L (mm): 40 | ØD1 (mm): 50 | ØD2 (mm): 22 | ØD3 (mm): 40 | L1 (mm): 10 | G (thread): M10 | Weight (kg): 0.5 | Stock: Yes
RDC6325FØD (mm): 36 | L (mm): 30 | ØD1 (mm): 63 | ØD2 (mm): 14 | ØD3 (mm): 25 | L1 (mm): 9 | G (thread): M6 | Weight (kg): 0.6 | Stock: Yes
RDC6332FØD (mm): 36 | L (mm): 40 | ØD1 (mm): 63 | ØD2 (mm): 18 | ØD3 (mm): 32 | L1 (mm): 9 | G (thread): M8 | Weight (kg): 0.6 | Stock: Yes
RDC6340FØD (mm): 36 | L (mm): 40 | ØD1 (mm): 63 | ØD2 (mm): 22 | ØD3 (mm): 40 | L1 (mm): 10 | G (thread): M10 | Weight (kg): 0.7 | Stock: Yes
RDC6350FØD (mm): 36 | L (mm): 45 | ØD1 (mm): 63 | ØD2 (mm): 28 | ØD3 (mm): 50 | L1 (mm): 10 | G (thread): M12 | Weight (kg): 0.9 | Stock: Yes
RDC8040FØD (mm): 45 | L (mm): 40 | ØD1 (mm): 80 | ØD2 (mm): 22 | ØD3 (mm): 40 | L1 (mm): 10 | G (thread): M10 | Weight (kg): 1.2 | Stock: Yes
RDC8050FØD (mm): 45 | L (mm): 45 | ØD1 (mm): 80 | ØD2 (mm): 28 | ØD3 (mm): 50 | L1 (mm): 10 | G (thread): M12 | Weight (kg): 1.3 | Stock: Yes
RDC8063FØD (mm): 45 | L (mm): 50 | ØD1 (mm): 80 | ØD2 (mm): 36 | ØD3 (mm): 63 | L1 (mm): 13 | G (thread): M16 | Weight (kg): 1.6 | Stock: Yes
