• TAUMAX Side Lock Arbor SLA
1 1

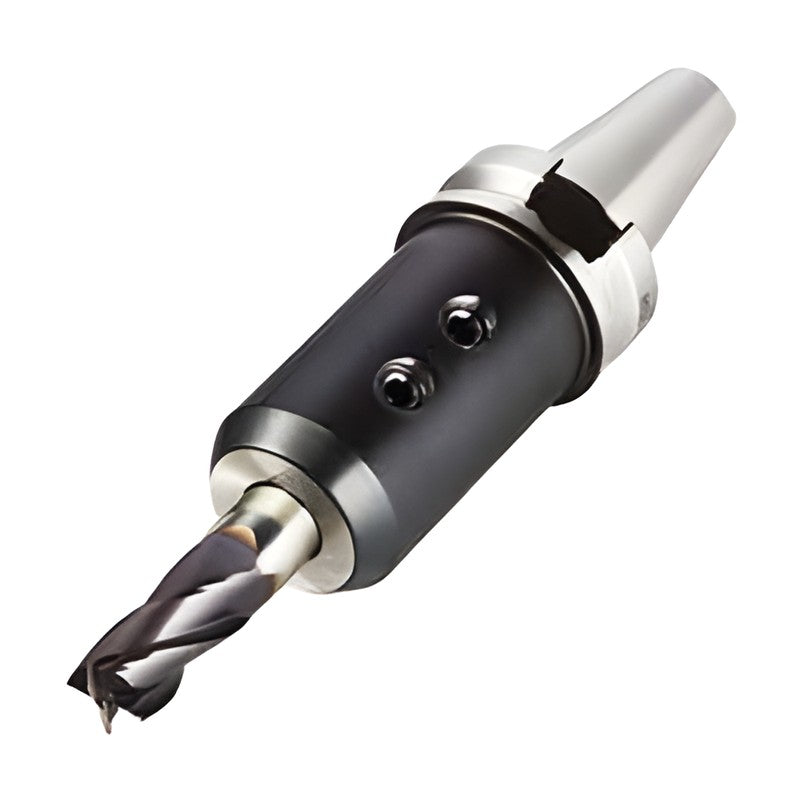

TAUMAX Side Lock Arbor SLA

TAUMAX Side Lock Arbor SLA

Side lock (Weldon) arbor with BT, HSK63A or SK shank for clamping flatted shank end mills and drills from Ø6 to Ø42 mm.

Specifications

Coolant Internal coolant optional
BT30-SLA6-75 Bore ØD (mm): 6 | L (mm): 75 | ØD1 (mm): 25 | H (mm): 35 | H1 (mm): 18 | Set screw M: M5 | G (thread): M5 | Weight (kg): 0.7
BT30-SLA8-75 Bore ØD (mm): 8 | L (mm): 75 | ØD1 (mm): 28 | H (mm): 40 | H1 (mm): 18 | Set screw M: M6 | G (thread): M5 | Weight (kg): 0.8
BT30-SLA10-75 Bore ØD (mm): 10 | L (mm): 75 | ØD1 (mm): 35 | H (mm): 50 | H1 (mm): 14 | H2 (mm): 13 | Set screw M: M8 | G (thread): M5 | Weight (kg): 0.9
BT30-SLA12-75 Bore ØD (mm): 12 | L (mm): 75 | ØD1 (mm): 40 | H (mm): 50 | H1 (mm): 14 | H2 (mm): 16 | Set screw M: M10 | G (thread): M10 | Weight (kg): 1.2 | Stock: Yes
BT30-SLA16-75 Bore ØD (mm): 16 | L (mm): 75 | ØD1 (mm): 44 | H (mm): 65 | H1 (mm): 14 | H2 (mm): 18 | Set screw M: M12 | G (thread): M10 | Weight (kg): 1.3 | Stock: Yes
BT30-SLA20-75 Bore ØD (mm): 20 | L (mm): 75 | ØD1 (mm): 48 | H (mm): 70 | H1 (mm): 14 | H2 (mm): 22 | Set screw M: M14 | G (thread): M10 | Weight (kg): 1.4 | Stock: Yes
BT30-SLA25-85 Bore ØD (mm): 25 | L (mm): 85 | ØD1 (mm): 48 | H (mm): 70 | H1 (mm): 18 | H2 (mm): 24 | Set screw M: M14 | G (thread): M10 | Weight (kg): 1.5 | Stock: Yes
BT30-SLA32-105 Bore ØD (mm): 32 | L (mm): 105 | ØD1 (mm): 60 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Set screw M: M16 | G (thread): M10 | Weight (kg): 1.6 | Stock: Yes
BT40-SLA6-75 Bore ØD (mm): 6 | L (mm): 75 | ØD1 (mm): 25 | H (mm): 35 | H1 (mm): 18 | Set screw M: M5 | G (thread): M5 | Weight (kg): 1.1
BT40-SLA8-75 Bore ØD (mm): 8 | L (mm): 75 | ØD1 (mm): 28 | H (mm): 40 | H1 (mm): 18 | Set screw M: M6 | G (thread): M5 | Weight (kg): 1.1
BT40-SLA10-90 Bore ØD (mm): 10 | L (mm): 90 | ØD1 (mm): 35 | H (mm): 50 | H1 (mm): 14 | H2 (mm): 13 | Set screw M: M8 | G (thread): M5 | Weight (kg): 1.2
BT40-SLA12-90 Bore ØD (mm): 12 | L (mm): 90 | ØD1 (mm): 40 | H (mm): 50 | H1 (mm): 14 | H2 (mm): 16 | Set screw M: M10 | G (thread): M10 | Weight (kg): 1.4 | Stock: Yes
BT40-SLA16-90 Bore ØD (mm): 16 | L (mm): 90 | ØD1 (mm): 44 | H (mm): 65 | H1 (mm): 20 | H2 (mm): 20 | Set screw M: M12 | G (thread): M10 | Weight (kg): 1.5 | Stock: Yes
BT40-SLA20-90 Bore ØD (mm): 20 | L (mm): 90 | ØD1 (mm): 50 | H (mm): 70 | H1 (mm): 20 | H2 (mm): 25 | Set screw M: M14 | G (thread): M10 | Weight (kg): 1.5 | Stock: Yes
BT40-SLA25-90 Bore ØD (mm): 25 | L (mm): 90 | ØD1 (mm): 50 | H (mm): 70 | H1 (mm): 20 | H2 (mm): 25 | Set screw M: M14 | G (thread): M10 | Weight (kg): 1.5 | Stock: Yes
BT40-SLA32-90 Bore ØD (mm): 32 | L (mm): 90 | ØD1 (mm): 60 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Set screw M: M16 | G (thread): M10 | Weight (kg): 1.5 | Stock: Yes
BT40-SLA32-105 Bore ØD (mm): 32 | L (mm): 105 | ØD1 (mm): 60 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Set screw M: M16 | G (thread): M10 | Weight (kg): 1.7 | Stock: Yes
BT40-SLA40-105 Bore ØD (mm): 40 | L (mm): 105 | ØD1 (mm): 70 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Set screw M: M16 | G (thread): M10 | Weight (kg): 1.8 | Stock: Yes
BT40-SLA42-105 Bore ØD (mm): 42 | L (mm): 105 | ØD1 (mm): 72 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Set screw M: M16 | G (thread): M10 | Weight (kg): 1.8 | Stock: Yes
BT50-SLA6-90 Bore ØD (mm): 6 | L (mm): 90 | ØD1 (mm): 25 | H (mm): 35 | H1 (mm): 18 | Set screw M: M5 | G (thread): M5 | Weight (kg): 4.0
BT50-SLA8-90 Bore ØD (mm): 8 | L (mm): 90 | ØD1 (mm): 28 | H (mm): 40 | H1 (mm): 18 | Set screw M: M6 | G (thread): M5 | Weight (kg): 4.0
BT50-SLA10-105 Bore ØD (mm): 10 | L (mm): 105 | ØD1 (mm): 35 | H (mm): 50 | H1 (mm): 14 | H2 (mm): 13 | Set screw M: M8 | G (thread): M5 | Weight (kg): 4.3
BT50-SLA12-90 Bore ØD (mm): 12 | L (mm): 90 | ØD1 (mm): 40 | H (mm): 50 | H1 (mm): 14 | H2 (mm): 16 | Set screw M: M10 | G (thread): M10 | Weight (kg): 4.3 | Stock: Yes
BT50-SLA12-105 Bore ØD (mm): 12 | L (mm): 105 | ØD1 (mm): 40 | H (mm): 50 | H1 (mm): 14 | H2 (mm): 16 | Set screw M: M10 | G (thread): M10 | Weight (kg): 4.4 | Stock: Yes
BT50-SLA16-90 Bore ØD (mm): 16 | L (mm): 90 | ØD1 (mm): 44 | H (mm): 65 | H1 (mm): 20 | H2 (mm): 20 | Set screw M: M12 | G (thread): M10 | Weight (kg): 4.4 | Stock: Yes
BT50-SLA16-105 Bore ØD (mm): 16 | L (mm): 105 | ØD1 (mm): 44 | H (mm): 65 | H1 (mm): 20 | H2 (mm): 20 | Set screw M: M12 | G (thread): M10 | Weight (kg): 4.4 | Stock: Yes
BT50-SLA20-105 Bore ØD (mm): 20 | L (mm): 105 | ØD1 (mm): 50 | H (mm): 75 | H1 (mm): 20 | H2 (mm): 25 | Set screw M: M14 | G (thread): M10 | Weight (kg): 4.4 | Stock: Yes
BT50-SLA25-105 Bore ØD (mm): 25 | L (mm): 105 | ØD1 (mm): 50 | H (mm): 75 | H1 (mm): 20 | H2 (mm): 25 | Set screw M: M14 | G (thread): M10 | Weight (kg): 4.4 | Stock: Yes
BT50-SLA32-105 Bore ØD (mm): 32 | L (mm): 105 | ØD1 (mm): 60 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Set screw M: M16 | G (thread): M10 | Weight (kg): 4.5 | Stock: Yes
BT50-SLA40-105 Bore ØD (mm): 40 | L (mm): 105 | ØD1 (mm): 75 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Set screw M: M16 | G (thread): M10 | Weight (kg): 4.5 | Stock: Yes
BT50-SLA42-105 Bore ØD (mm): 42 | L (mm): 105 | ØD1 (mm): 75 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Set screw M: M16 | G (thread): M10 | Weight (kg): 4.7 | Stock: Yes
HSK63A-SLA20-115 Bore ØD (mm): 20 | L (mm): 115 | ØD1 (mm): 50 | H (mm): 70 | H1 (mm): 20 | H2 (mm): 25 | Set screw M: M14 | G (thread): M10 | Weight (kg): 1.7
HSK63A-SLA25-115 Bore ØD (mm): 25 | L (mm): 115 | ØD1 (mm): 50 | H (mm): 70 | H1 (mm): 20 | H2 (mm): 25 | Set screw M: M14 | G (thread): M10 | Weight (kg): 1.7
HSK63A-SLA32-120 Bore ØD (mm): 32 | L (mm): 120 | ØD1 (mm): 60 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Set screw M: M16 | G (thread): M10 | Weight (kg): 2.2
HSK63A-SLA40-120 Bore ØD (mm): 40 | L (mm): 120 | ØD1 (mm): 75 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Set screw M: M16 | G (thread): M10 | Weight (kg): 2.4
SK40-SLA16-75 Bore ØD (mm): 16 | L (mm): 75 | ØD1 (mm): 44 | H (mm): 65 | H1 (mm): 20 | H2 (mm): 20 | Set screw M: M12 | G (thread): M10 | Weight (kg): 1.5 | Stock: Yes
SK40-SLA20-75 Bore ØD (mm): 20 | L (mm): 75 | ØD1 (mm): 50 | H (mm): 70 | H1 (mm): 20 | H2 (mm): 25 | Set screw M: M14 | G (thread): M10 | Weight (kg): 1.8 | Stock: Yes
SK40-SLA25-95 Bore ØD (mm): 25 | L (mm): 95 | ØD1 (mm): 50 | H (mm): 75 | H1 (mm): 20 | H2 (mm): 25 | Set screw M: M14 | G (thread): M10 | Weight (kg): 1.9 | Stock: Yes
SK40-SLA32-105 Bore ØD (mm): 32 | L (mm): 105 | ØD1 (mm): 60 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Set screw M: M16 | G (thread): M10 | Weight (kg): 2.0 | Stock: Yes
SK50-SLA16-90 Bore ØD (mm): 16 | L (mm): 90 | ØD1 (mm): 44 | H (mm): 65 | H1 (mm): 20 | H2 (mm): 20 | Set screw M: M12 | G (thread): M10 | Weight (kg): 4.3 | Stock: Yes
SK50-SLA20-90 Bore ØD (mm): 20 | L (mm): 90 | ØD1 (mm): 50 | H (mm): 75 | H1 (mm): 20 | H2 (mm): 25 | Set screw M: M14 | G (thread): M10 | Weight (kg): 4.5 | Stock: Yes
SK50-SLA25-105 Bore ØD (mm): 25 | L (mm): 105 | ØD1 (mm): 50 | H (mm): 75 | H1 (mm): 20 | H2 (mm): 25 | Set screw M: M14 | G (thread): M10 | Weight (kg): 4.8 | Stock: Yes
SK50-SLA32-120 Bore ØD (mm): 32 | L (mm): 120 | ØD1 (mm): 60 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Set screw M: M16 | G (thread): M10 | Weight (kg): 4.8 | Stock: Yes
SK50-SLA40-120 Bore ØD (mm): 40 | L (mm): 120 | ØD1 (mm): 75 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Set screw M: M16 | G (thread): M10 | Weight (kg): 4.9 | Stock: Yes
Side Lock HoldersTAUMAX
44 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Side Lock Arbor SLA

Brand TAUMAX·Side Lock Holders

Available part numbers (44)

BT30-SLA6-75, BT30-SLA8-75, BT30-SLA10-75, BT30-SLA12-75, BT30-SLA16-75, BT30-SLA20-75, BT30-SLA25-85, BT30-SLA32-105, BT40-SLA6-75, BT40-SLA8-75 + 34 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BT30-SLA6-75Bore ØD (mm): 6 | L (mm): 75 | ØD1 (mm): 25 | H (mm): 35 | H1 (mm): 18 | Set screw M: M5 | G (thread): M5 | Weight (kg): 0.7
BT30-SLA8-75Bore ØD (mm): 8 | L (mm): 75 | ØD1 (mm): 28 | H (mm): 40 | H1 (mm): 18 | Set screw M: M6 | G (thread): M5 | Weight (kg): 0.8
BT30-SLA10-75Bore ØD (mm): 10 | L (mm): 75 | ØD1 (mm): 35 | H (mm): 50 | H1 (mm): 14 | H2 (mm): 13 | Set screw M: M8 | G (thread): M5 | Weight (kg): 0.9
BT30-SLA12-75Bore ØD (mm): 12 | L (mm): 75 | ØD1 (mm): 40 | H (mm): 50 | H1 (mm): 14 | H2 (mm): 16 | Set screw M: M10 | G (thread): M10 | Weight (kg): 1.2 | Stock: Yes
BT30-SLA16-75Bore ØD (mm): 16 | L (mm): 75 | ØD1 (mm): 44 | H (mm): 65 | H1 (mm): 14 | H2 (mm): 18 | Set screw M: M12 | G (thread): M10 | Weight (kg): 1.3 | Stock: Yes
BT30-SLA20-75Bore ØD (mm): 20 | L (mm): 75 | ØD1 (mm): 48 | H (mm): 70 | H1 (mm): 14 | H2 (mm): 22 | Set screw M: M14 | G (thread): M10 | Weight (kg): 1.4 | Stock: Yes
BT30-SLA25-85Bore ØD (mm): 25 | L (mm): 85 | ØD1 (mm): 48 | H (mm): 70 | H1 (mm): 18 | H2 (mm): 24 | Set screw M: M14 | G (thread): M10 | Weight (kg): 1.5 | Stock: Yes
BT30-SLA32-105Bore ØD (mm): 32 | L (mm): 105 | ØD1 (mm): 60 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Set screw M: M16 | G (thread): M10 | Weight (kg): 1.6 | Stock: Yes
BT40-SLA6-75Bore ØD (mm): 6 | L (mm): 75 | ØD1 (mm): 25 | H (mm): 35 | H1 (mm): 18 | Set screw M: M5 | G (thread): M5 | Weight (kg): 1.1
BT40-SLA8-75Bore ØD (mm): 8 | L (mm): 75 | ØD1 (mm): 28 | H (mm): 40 | H1 (mm): 18 | Set screw M: M6 | G (thread): M5 | Weight (kg): 1.1
BT40-SLA10-90Bore ØD (mm): 10 | L (mm): 90 | ØD1 (mm): 35 | H (mm): 50 | H1 (mm): 14 | H2 (mm): 13 | Set screw M: M8 | G (thread): M5 | Weight (kg): 1.2
BT40-SLA12-90Bore ØD (mm): 12 | L (mm): 90 | ØD1 (mm): 40 | H (mm): 50 | H1 (mm): 14 | H2 (mm): 16 | Set screw M: M10 | G (thread): M10 | Weight (kg): 1.4 | Stock: Yes
BT40-SLA16-90Bore ØD (mm): 16 | L (mm): 90 | ØD1 (mm): 44 | H (mm): 65 | H1 (mm): 20 | H2 (mm): 20 | Set screw M: M12 | G (thread): M10 | Weight (kg): 1.5 | Stock: Yes
BT40-SLA20-90Bore ØD (mm): 20 | L (mm): 90 | ØD1 (mm): 50 | H (mm): 70 | H1 (mm): 20 | H2 (mm): 25 | Set screw M: M14 | G (thread): M10 | Weight (kg): 1.5 | Stock: Yes
BT40-SLA25-90Bore ØD (mm): 25 | L (mm): 90 | ØD1 (mm): 50 | H (mm): 70 | H1 (mm): 20 | H2 (mm): 25 | Set screw M: M14 | G (thread): M10 | Weight (kg): 1.5 | Stock: Yes
BT40-SLA32-90Bore ØD (mm): 32 | L (mm): 90 | ØD1 (mm): 60 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Set screw M: M16 | G (thread): M10 | Weight (kg): 1.5 | Stock: Yes
BT40-SLA32-105Bore ØD (mm): 32 | L (mm): 105 | ØD1 (mm): 60 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Set screw M: M16 | G (thread): M10 | Weight (kg): 1.7 | Stock: Yes
BT40-SLA40-105Bore ØD (mm): 40 | L (mm): 105 | ØD1 (mm): 70 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Set screw M: M16 | G (thread): M10 | Weight (kg): 1.8 | Stock: Yes
BT40-SLA42-105Bore ØD (mm): 42 | L (mm): 105 | ØD1 (mm): 72 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Set screw M: M16 | G (thread): M10 | Weight (kg): 1.8 | Stock: Yes
BT50-SLA6-90Bore ØD (mm): 6 | L (mm): 90 | ØD1 (mm): 25 | H (mm): 35 | H1 (mm): 18 | Set screw M: M5 | G (thread): M5 | Weight (kg): 4.0
BT50-SLA8-90Bore ØD (mm): 8 | L (mm): 90 | ØD1 (mm): 28 | H (mm): 40 | H1 (mm): 18 | Set screw M: M6 | G (thread): M5 | Weight (kg): 4.0
BT50-SLA10-105Bore ØD (mm): 10 | L (mm): 105 | ØD1 (mm): 35 | H (mm): 50 | H1 (mm): 14 | H2 (mm): 13 | Set screw M: M8 | G (thread): M5 | Weight (kg): 4.3
BT50-SLA12-90Bore ØD (mm): 12 | L (mm): 90 | ØD1 (mm): 40 | H (mm): 50 | H1 (mm): 14 | H2 (mm): 16 | Set screw M: M10 | G (thread): M10 | Weight (kg): 4.3 | Stock: Yes
BT50-SLA12-105Bore ØD (mm): 12 | L (mm): 105 | ØD1 (mm): 40 | H (mm): 50 | H1 (mm): 14 | H2 (mm): 16 | Set screw M: M10 | G (thread): M10 | Weight (kg): 4.4 | Stock: Yes
BT50-SLA16-90Bore ØD (mm): 16 | L (mm): 90 | ØD1 (mm): 44 | H (mm): 65 | H1 (mm): 20 | H2 (mm): 20 | Set screw M: M12 | G (thread): M10 | Weight (kg): 4.4 | Stock: Yes
BT50-SLA16-105Bore ØD (mm): 16 | L (mm): 105 | ØD1 (mm): 44 | H (mm): 65 | H1 (mm): 20 | H2 (mm): 20 | Set screw M: M12 | G (thread): M10 | Weight (kg): 4.4 | Stock: Yes
BT50-SLA20-105Bore ØD (mm): 20 | L (mm): 105 | ØD1 (mm): 50 | H (mm): 75 | H1 (mm): 20 | H2 (mm): 25 | Set screw M: M14 | G (thread): M10 | Weight (kg): 4.4 | Stock: Yes
BT50-SLA25-105Bore ØD (mm): 25 | L (mm): 105 | ØD1 (mm): 50 | H (mm): 75 | H1 (mm): 20 | H2 (mm): 25 | Set screw M: M14 | G (thread): M10 | Weight (kg): 4.4 | Stock: Yes
BT50-SLA32-105Bore ØD (mm): 32 | L (mm): 105 | ØD1 (mm): 60 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Set screw M: M16 | G (thread): M10 | Weight (kg): 4.5 | Stock: Yes
BT50-SLA40-105Bore ØD (mm): 40 | L (mm): 105 | ØD1 (mm): 75 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Set screw M: M16 | G (thread): M10 | Weight (kg): 4.5 | Stock: Yes
BT50-SLA42-105Bore ØD (mm): 42 | L (mm): 105 | ØD1 (mm): 75 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Set screw M: M16 | G (thread): M10 | Weight (kg): 4.7 | Stock: Yes
HSK63A-SLA20-115Bore ØD (mm): 20 | L (mm): 115 | ØD1 (mm): 50 | H (mm): 70 | H1 (mm): 20 | H2 (mm): 25 | Set screw M: M14 | G (thread): M10 | Weight (kg): 1.7
HSK63A-SLA25-115Bore ØD (mm): 25 | L (mm): 115 | ØD1 (mm): 50 | H (mm): 70 | H1 (mm): 20 | H2 (mm): 25 | Set screw M: M14 | G (thread): M10 | Weight (kg): 1.7
HSK63A-SLA32-120Bore ØD (mm): 32 | L (mm): 120 | ØD1 (mm): 60 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Set screw M: M16 | G (thread): M10 | Weight (kg): 2.2
HSK63A-SLA40-120Bore ØD (mm): 40 | L (mm): 120 | ØD1 (mm): 75 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Set screw M: M16 | G (thread): M10 | Weight (kg): 2.4
SK40-SLA16-75Bore ØD (mm): 16 | L (mm): 75 | ØD1 (mm): 44 | H (mm): 65 | H1 (mm): 20 | H2 (mm): 20 | Set screw M: M12 | G (thread): M10 | Weight (kg): 1.5 | Stock: Yes
SK40-SLA20-75Bore ØD (mm): 20 | L (mm): 75 | ØD1 (mm): 50 | H (mm): 70 | H1 (mm): 20 | H2 (mm): 25 | Set screw M: M14 | G (thread): M10 | Weight (kg): 1.8 | Stock: Yes
SK40-SLA25-95Bore ØD (mm): 25 | L (mm): 95 | ØD1 (mm): 50 | H (mm): 75 | H1 (mm): 20 | H2 (mm): 25 | Set screw M: M14 | G (thread): M10 | Weight (kg): 1.9 | Stock: Yes
SK40-SLA32-105Bore ØD (mm): 32 | L (mm): 105 | ØD1 (mm): 60 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Set screw M: M16 | G (thread): M10 | Weight (kg): 2.0 | Stock: Yes
SK50-SLA16-90Bore ØD (mm): 16 | L (mm): 90 | ØD1 (mm): 44 | H (mm): 65 | H1 (mm): 20 | H2 (mm): 20 | Set screw M: M12 | G (thread): M10 | Weight (kg): 4.3 | Stock: Yes
SK50-SLA20-90Bore ØD (mm): 20 | L (mm): 90 | ØD1 (mm): 50 | H (mm): 75 | H1 (mm): 20 | H2 (mm): 25 | Set screw M: M14 | G (thread): M10 | Weight (kg): 4.5 | Stock: Yes
SK50-SLA25-105Bore ØD (mm): 25 | L (mm): 105 | ØD1 (mm): 50 | H (mm): 75 | H1 (mm): 20 | H2 (mm): 25 | Set screw M: M14 | G (thread): M10 | Weight (kg): 4.8 | Stock: Yes
SK50-SLA32-120Bore ØD (mm): 32 | L (mm): 120 | ØD1 (mm): 60 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Set screw M: M16 | G (thread): M10 | Weight (kg): 4.8 | Stock: Yes
SK50-SLA40-120Bore ØD (mm): 40 | L (mm): 120 | ØD1 (mm): 75 | H (mm): 80 | H1 (mm): 25 | H2 (mm): 25 | Set screw M: M16 | G (thread): M10 | Weight (kg): 4.9 | Stock: Yes
