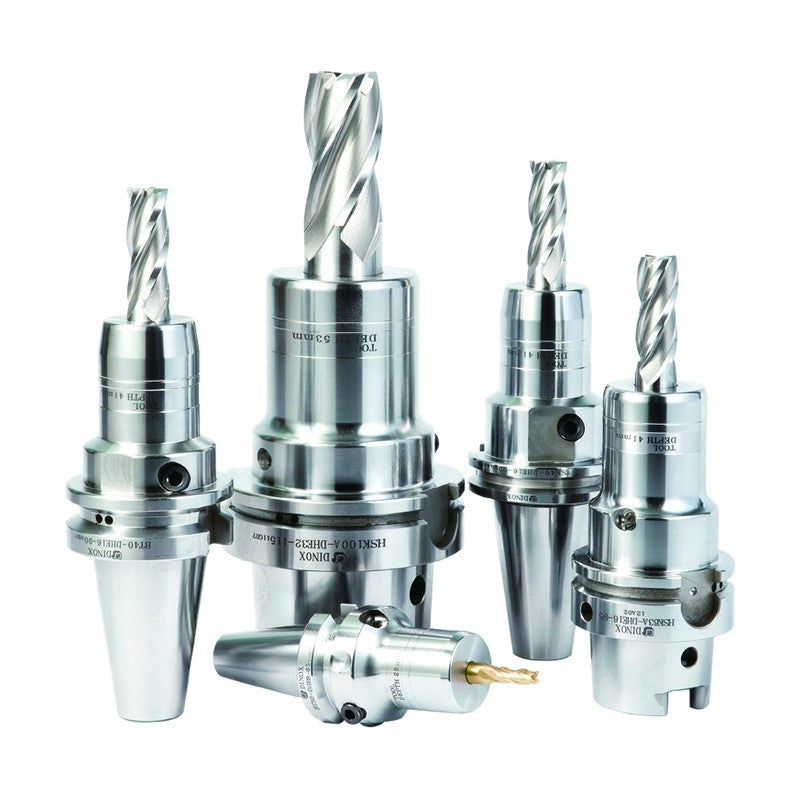

TAUMAX SK Shank Hydraulic Expansion Chuck DHE

TAUMAX SK Shank Hydraulic Expansion Chuck DHE

Hydraulic expansion chuck with a fully sealed hydraulic chamber, recommended for finishing, with run-out of 3 um or less at 3 x D.

Key features

  • Fully sealed internal construction keeps out dust, coolant and chips
  • Run-out 3 um or less at 3 x D
  • 2-point clamping for strong gripping force
  • Easy tool clamping with T-wrench
  • Damping effect of the hydraulic chamber reduces vibration
  • Tool clamping range Ø4-Ø32 mm

Specifications

Shank SK (DIN 69871-1 A/B)
Balance Grade G6.3
Internal Coolant Built-in
SK40-DHE6-90 Tool Dia. ØD (mm): 6 | Length L (mm): 90 | ØD1 (mm): 29 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 1.4 | Stock: Yes
SK40-DHE8-90 Tool Dia. ØD (mm): 8 | Length L (mm): 90 | ØD1 (mm): 31 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 30-40 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 1.4 | Stock: Yes
SK40-DHE10-90 Tool Dia. ØD (mm): 10 | Length L (mm): 90 | ØD1 (mm): 33 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 35-45 | Adjust Screw: M5 | Max RPM: 20,000 | Weight (kg): 1.5 | Stock: Yes
SK40-DHE12-90 Tool Dia. ØD (mm): 12 | Length L (mm): 90 | ØD1 (mm): 35 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 41-51 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 1.5 | Stock: Yes
SK40-DHE12-140 Tool Dia. ØD (mm): 12 | Length L (mm): 140 | ØD1 (mm): 35 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 41-51 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 2.1 | Stock: Yes
SK40-DHE14-90 Tool Dia. ØD (mm): 14 | Length L (mm): 90 | ØD1 (mm): 36 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 43-53 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 1.4 | Stock: Non-stock item
SK40-DHE16-90 Tool Dia. ØD (mm): 16 | Length L (mm): 90 | ØD1 (mm): 40 | ØD2 (mm): 50 | L1 (mm): 45 | Tool Insertion Depth H (mm): 46-56 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 1.5 | Stock: Yes
SK40-DHE18-90 Tool Dia. ØD (mm): 18 | Length L (mm): 90 | ØD1 (mm): 42 | ØD2 (mm): 50 | L1 (mm): 45 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 1.5 | Stock: Yes
SK40-DHE20-90 Tool Dia. ØD (mm): 20 | Length L (mm): 90 | ØD1 (mm): 44 | ØD2 (mm): 50 | L1 (mm): 50 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 1.5 | Stock: Yes
SK40-DHE20-140 Tool Dia. ØD (mm): 20 | Length L (mm): 140 | ØD1 (mm): 44 | ØD2 (mm): 50 | L1 (mm): 50 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 20,000 | Weight (kg): 2.1 | Stock: Yes
SK50-DHE12-90 Tool Dia. ØD (mm): 12 | Length L (mm): 90 | ØD1 (mm): 35 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 41-51 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 3.2 | Stock: Yes
SK50-DHE14-90 Tool Dia. ØD (mm): 14 | Length L (mm): 90 | ØD1 (mm): 36 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 43-53 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 3.2 | Stock: Yes
SK50-DHE16-90 Tool Dia. ØD (mm): 16 | Length L (mm): 90 | ØD1 (mm): 40 | ØD2 (mm): 50 | L1 (mm): 45 | Tool Insertion Depth H (mm): 46-56 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 3.3 | Stock: Yes
SK50-DHE18-90 Tool Dia. ØD (mm): 18 | Length L (mm): 90 | ØD1 (mm): 42 | ØD2 (mm): 50 | L1 (mm): 40 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 3.2 | Stock: Non-stock item
SK50-DHE20-90 Tool Dia. ØD (mm): 20 | Length L (mm): 90 | ØD1 (mm): 44 | ØD2 (mm): 50 | L1 (mm): 50 | Tool Insertion Depth H (mm): 49-59 | Adjust Screw: M10 | Max RPM: 15,000 | Weight (kg): 3.2 | Stock: Yes
