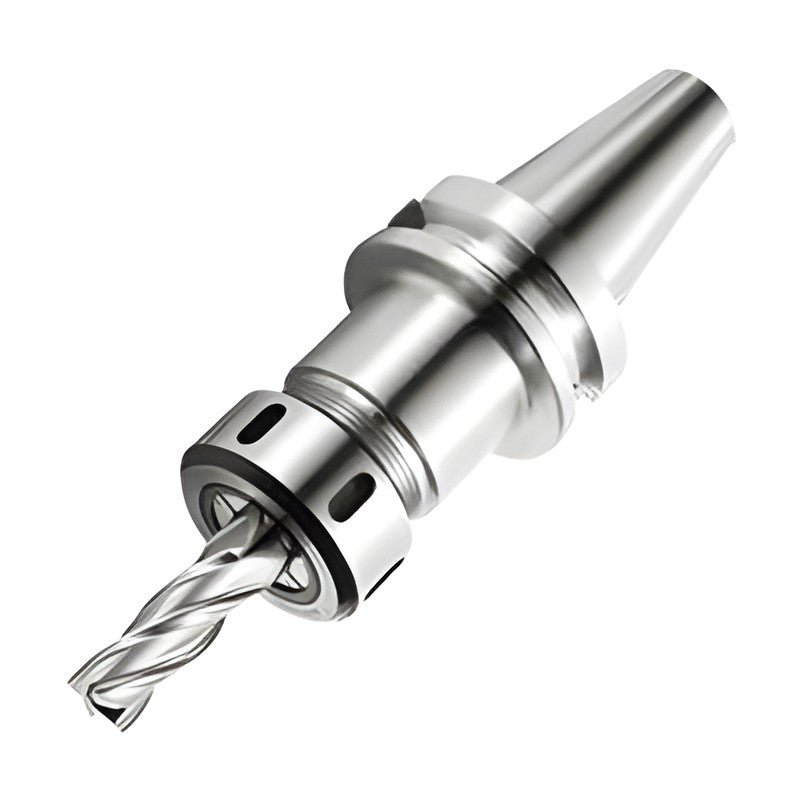

TAUMAX SK Shank Precision Collet Chuck SK-SDC/P

TAUMAX SK Shank Precision Collet Chuck SK-SDC/P

SK40 (DIN 69871) shank ER precision collet chuck for multi-purpose machining.

Key features

  • Consistent precision and clamping force with sleeve bearing RN nut
  • Stable run-out compared to standard nuts
  • Wide clamping range Ø1 to Ø26 mm with GERC/ER collets
  • For milling, drilling, tapping and chamfering
  • Jet coolant usable with RT/RUT nut and RTJW disk

Specifications

Shank SK40
SK40-SDC10P-90 ØD (mm): 1.0~10.0 | L (mm): 90 | ØD1 (mm): 32 | ØD2 (mm): 31 | H insertion depth (mm): 44.5 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 1.1 | Stock: Yes
SK40-SDC13P-90 ØD (mm): 1.0~13.0 | L (mm): 90 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 1.2 | Stock: Yes
SK40-SDC13P-120 ØD (mm): 1.0~13.0 | L (mm): 120 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 1.3 | Stock: No
SK40-SDC16P-90 ØD (mm): 2.0~16.0 | L (mm): 90 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | Collet/step (mm): GERC25/1.0 | G thread: M18 | Weight (kg): 1.4 | Stock: Yes
SK40-SDC20P-90 ØD (mm): 2.0~20.0 | L (mm): 90 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | Collet/step (mm): GERC32/1.0 | G thread: M22 | Weight (kg): 1.5 | Stock: Yes
Collet ChucksTAUMAX
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX SK Shank Precision Collet Chuck SK-SDC/P

Brand TAUMAX·Collet Chucks

Available part numbers (5)

SK40-SDC10P-90, SK40-SDC13P-90, SK40-SDC13P-120, SK40-SDC16P-90, SK40-SDC20P-90

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SK40-SDC10P-90ØD (mm): 1.0~10.0 | L (mm): 90 | ØD1 (mm): 32 | ØD2 (mm): 31 | H insertion depth (mm): 44.5 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 1.1 | Stock: Yes
SK40-SDC13P-90ØD (mm): 1.0~13.0 | L (mm): 90 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 1.2 | Stock: Yes
SK40-SDC13P-120ØD (mm): 1.0~13.0 | L (mm): 120 | ØD1 (mm): 35 | ØD2 (mm): 34 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 1.3 | Stock: No
SK40-SDC16P-90ØD (mm): 2.0~16.0 | L (mm): 90 | ØD1 (mm): 42 | ØD2 (mm): 41 | H insertion depth (mm): 50 | Collet/step (mm): GERC25/1.0 | G thread: M18 | Weight (kg): 1.4 | Stock: Yes
SK40-SDC20P-90ØD (mm): 2.0~20.0 | L (mm): 90 | ØD1 (mm): 50 | ØD2 (mm): 49 | H insertion depth (mm): 60 | Collet/step (mm): GERC32/1.0 | G thread: M22 | Weight (kg): 1.5 | Stock: Yes
