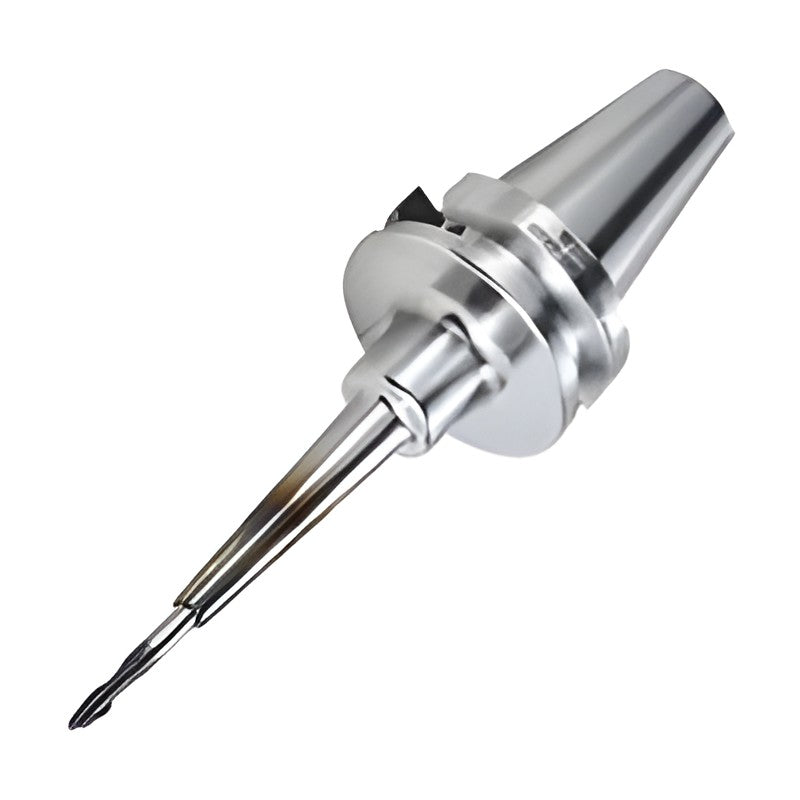

TAUMAX SK Shank Shrinking Chuck SK-DSC/M Mono Type

TAUMAX SK Shank Shrinking Chuck SK-DSC/M Mono Type

SK40 (DIN 69871) shank mono-type shrink-fit chuck for carbide tools Ø6 to Ø20 mm.

Key features

  • Shrink-fit clamping with run-out of 3 µm or less
  • 30% higher clamping force compared to hydraulic chucks
  • Symmetrical design for balanced high-speed machining
  • Machining range: Ø3 to Ø20 mm
  • Use with cemented carbide tool shanks (h6)

Specifications

Shank SK40
Max RPM 20,000
SK40-DSC6M-95 ØD (mm): 6 | L (mm): 95 | ØD1 (mm): 10 | ØD2 (mm): 26 | L1 (mm): 42 | H insertion depth (mm): 131 | Weight (kg): 0.8 | Stock: No
SK40-DSC6M-120 ØD (mm): 6 | L (mm): 120 | ØD1 (mm): 10 | ØD2 (mm): 26 | L1 (mm): 67 | H insertion depth (mm): 156 | Weight (kg): 1 | Stock: No
SK40-DSC8M-95 ØD (mm): 8 | L (mm): 95 | ØD1 (mm): 13 | ØD2 (mm): 36 | L1 (mm): 42 | H insertion depth (mm): 131 | Weight (kg): 1.4 | Stock: No
SK40-DSC8M-120 ØD (mm): 8 | L (mm): 120 | ØD1 (mm): 13 | ØD2 (mm): 36 | L1 (mm): 67 | H insertion depth (mm): 156 | Weight (kg): 1 | Stock: No
SK40-DSC10M-95 ØD (mm): 10 | L (mm): 95 | ØD1 (mm): 16 | ØD2 (mm): 36 | L1 (mm): 42 | H insertion depth (mm): 131 | Weight (kg): 1 | Stock: Yes (to be switched to NP order after stock depletion)
SK40-DSC10M-120 ØD (mm): 10 | L (mm): 120 | ØD1 (mm): 16 | ØD2 (mm): 36 | L1 (mm): 67 | H insertion depth (mm): 156 | Weight (kg): 1 | Stock: No
SK40-DSC12M-95 ØD (mm): 12 | L (mm): 95 | ØD1 (mm): 19 | ØD2 (mm): 36 | L1 (mm): 42 | H insertion depth (mm): 131 | Weight (kg): 1 | Stock: No
SK40-DSC12M-120 ØD (mm): 12 | L (mm): 120 | ØD1 (mm): 19 | ØD2 (mm): 36 | L1 (mm): 67 | H insertion depth (mm): 156 | Weight (kg): 1.1 | Stock: No
SK40-DSC16M-95 ØD (mm): 16 | L (mm): 95 | ØD1 (mm): 24 | ØD2 (mm): 50 | L1 (mm): 42 | H insertion depth (mm): 47 | Weight (kg): 1.3 | Stock: No
SK40-DSC16M-120 ØD (mm): 16 | L (mm): 120 | ØD1 (mm): 24 | ØD2 (mm): 50 | L1 (mm): 67 | H insertion depth (mm): 47 | Weight (kg): 1.4 | Stock: No
SK40-DSC20M-95 ØD (mm): 20 | L (mm): 95 | ØD1 (mm): 29 | ØD2 (mm): 50 | L1 (mm): 42 | H insertion depth (mm): 55 | Weight (kg): 1.3 | Stock: No
SK40-DSC20M-120 ØD (mm): 20 | L (mm): 120 | ØD1 (mm): 29 | ØD2 (mm): 50 | L1 (mm): 67 | H insertion depth (mm): 55 | Weight (kg): 1.4 | Stock: No
Shrink Fit HoldersTAUMAX
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX SK Shank Shrinking Chuck SK-DSC/M Mono Type

Brand TAUMAX·Shrink Fit Holders

Available part numbers (12)

SK40-DSC6M-95, SK40-DSC6M-120, SK40-DSC8M-95, SK40-DSC8M-120, SK40-DSC10M-95, SK40-DSC10M-120, SK40-DSC12M-95, SK40-DSC12M-120, SK40-DSC16M-95, SK40-DSC16M-120 + 2 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SK40-DSC6M-95ØD (mm): 6 | L (mm): 95 | ØD1 (mm): 10 | ØD2 (mm): 26 | L1 (mm): 42 | H insertion depth (mm): 131 | Weight (kg): 0.8 | Stock: No
SK40-DSC6M-120ØD (mm): 6 | L (mm): 120 | ØD1 (mm): 10 | ØD2 (mm): 26 | L1 (mm): 67 | H insertion depth (mm): 156 | Weight (kg): 1 | Stock: No
SK40-DSC8M-95ØD (mm): 8 | L (mm): 95 | ØD1 (mm): 13 | ØD2 (mm): 36 | L1 (mm): 42 | H insertion depth (mm): 131 | Weight (kg): 1.4 | Stock: No
SK40-DSC8M-120ØD (mm): 8 | L (mm): 120 | ØD1 (mm): 13 | ØD2 (mm): 36 | L1 (mm): 67 | H insertion depth (mm): 156 | Weight (kg): 1 | Stock: No
SK40-DSC10M-95ØD (mm): 10 | L (mm): 95 | ØD1 (mm): 16 | ØD2 (mm): 36 | L1 (mm): 42 | H insertion depth (mm): 131 | Weight (kg): 1 | Stock: Yes (to be switched to NP order after stock depletion)
SK40-DSC10M-120ØD (mm): 10 | L (mm): 120 | ØD1 (mm): 16 | ØD2 (mm): 36 | L1 (mm): 67 | H insertion depth (mm): 156 | Weight (kg): 1 | Stock: No
SK40-DSC12M-95ØD (mm): 12 | L (mm): 95 | ØD1 (mm): 19 | ØD2 (mm): 36 | L1 (mm): 42 | H insertion depth (mm): 131 | Weight (kg): 1 | Stock: No
SK40-DSC12M-120ØD (mm): 12 | L (mm): 120 | ØD1 (mm): 19 | ØD2 (mm): 36 | L1 (mm): 67 | H insertion depth (mm): 156 | Weight (kg): 1.1 | Stock: No
SK40-DSC16M-95ØD (mm): 16 | L (mm): 95 | ØD1 (mm): 24 | ØD2 (mm): 50 | L1 (mm): 42 | H insertion depth (mm): 47 | Weight (kg): 1.3 | Stock: No
SK40-DSC16M-120ØD (mm): 16 | L (mm): 120 | ØD1 (mm): 24 | ØD2 (mm): 50 | L1 (mm): 67 | H insertion depth (mm): 47 | Weight (kg): 1.4 | Stock: No
SK40-DSC20M-95ØD (mm): 20 | L (mm): 95 | ØD1 (mm): 29 | ØD2 (mm): 50 | L1 (mm): 42 | H insertion depth (mm): 55 | Weight (kg): 1.3 | Stock: No
SK40-DSC20M-120ØD (mm): 20 | L (mm): 120 | ØD1 (mm): 29 | ØD2 (mm): 50 | L1 (mm): 67 | H insertion depth (mm): 55 | Weight (kg): 1.4 | Stock: No
